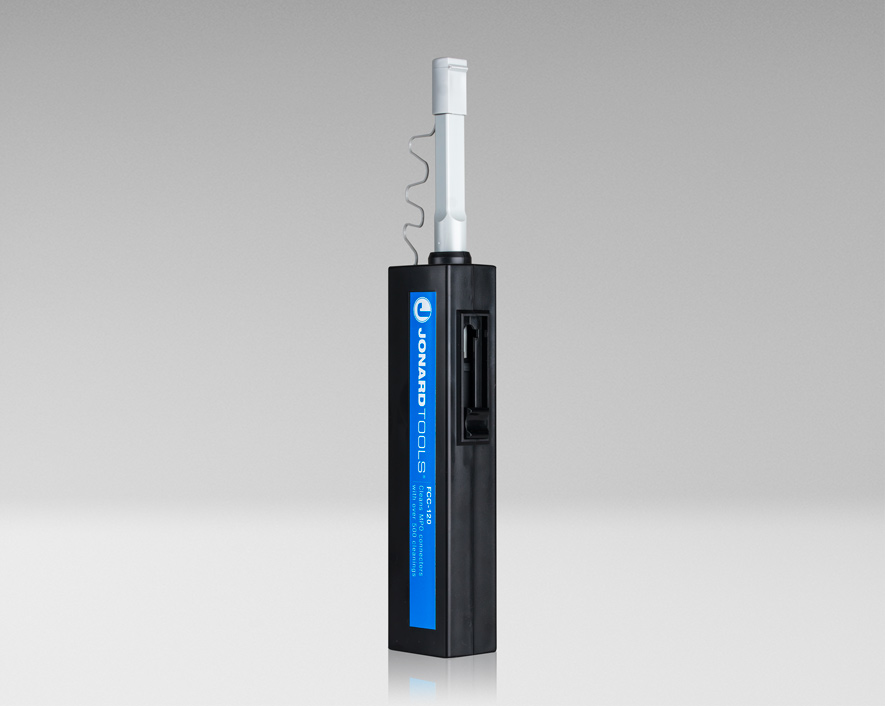

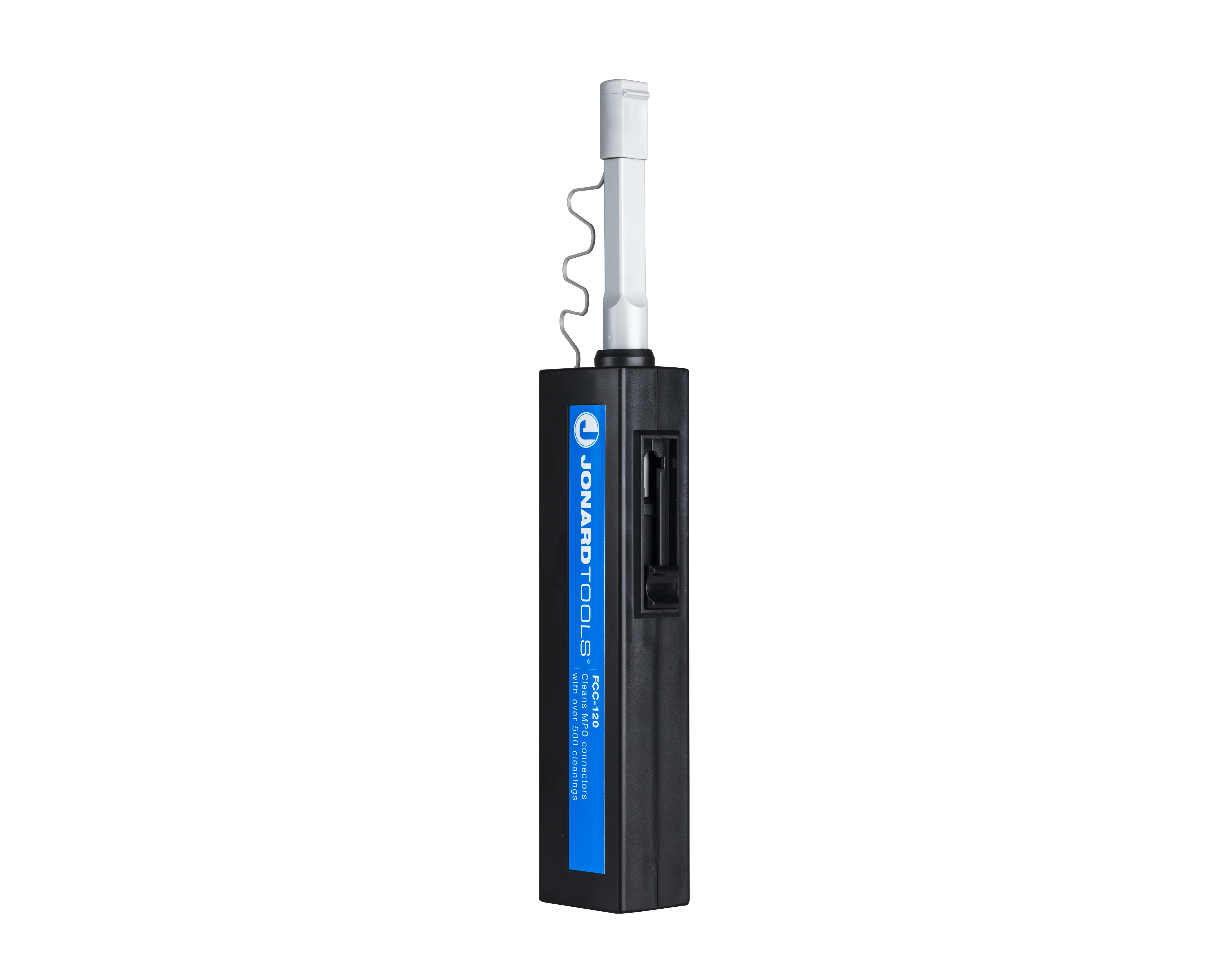

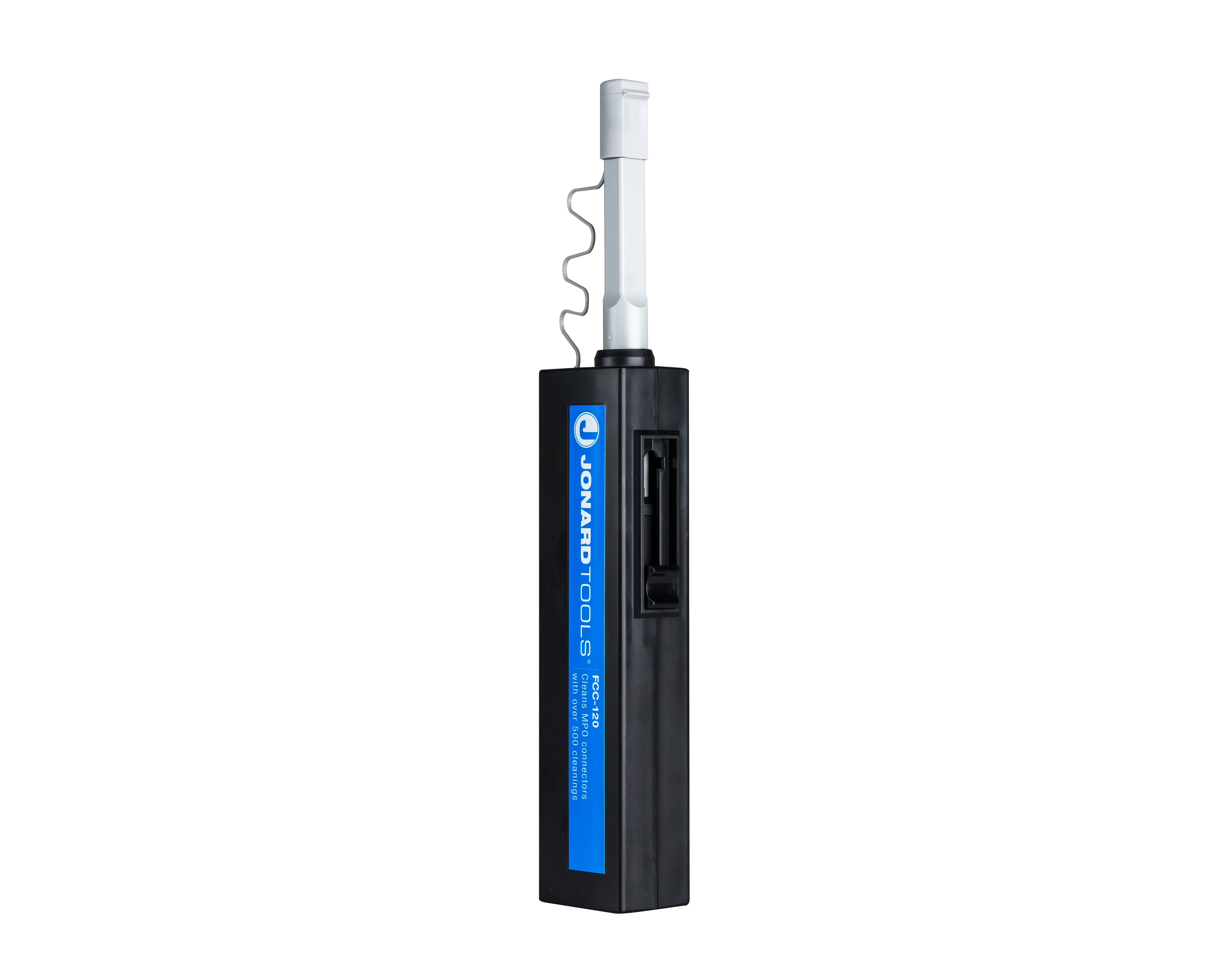

Fiber Connector Cleaner, MPO
FCC-120 Copy ID to clipboard
Buy Online
PRODUCT FEATURES
The FCC-120 Fiber Connector Cleaner removes dust, oil, and debris from MPO-12 connectors and ferrules in both accessible ports and recessed adapters. Its extendable nose adapts to varied port depths, making it the right tool for routine, high-frequency cleaning across data centers, enterprise IT environments, and structured cabling networks.
- Compatible with MPO 12 connectors, both UPC & APC polish types, and male (pinned) & female (unpinned) pin configurations.
- One-push operation provides consistent cleaning for more than 500 cleaning cycles.
- Nose extends up to 4" to allow for access to recessed adapters and tight spaces in high-density fiber panels.
- Flip-open adapter cap with tether for secure switching between plug and port cleaning.
- Slide-Guide™ tape system with viewing window ensures smooth tape advance and easy capacity monitoring.
- Rugged housing rated crush-resistant up to 250N and impact-resistant up to 1.5m drop; ESD-safe microfiber cloth and housing meets IEC 61300-3-35, Telcordia, and iNEMI standards
- Limited Warranty
Specifications
| Fiber Type/Application | Multi-Fiber, Simplex |
|---|---|
| Connector Type | MPO: 12, 24 (12x2) |
| Polish Type | PC, UPC, APC |
| Pin Configuration | Male (with pins) or Female (no pins) |
| Number of Cleans | 500+ |
| Cleaning Motion | 180°, Push Forward |
| Guide Type | Extendable |
| Cleaning Depth | Retracted: 2.625" (66.67 mm) Extended: 4" (101.6 mm) |
| Standards | Cleaning: IEC 61300-3-35, Telcordia GR-2923-CORE, iNEMI,Cisco EDCS 7027180 Crush Resistant: over 250N Impact Resistant: 1.5M |
| Cleaning Fabric | Static-Free Micro Fiber |
| Dimensions | 9 in x 1 in x 1 in (22.86 cm x 2.54 cm x 2.54 cm) |
| Weight | 0.18 lb (81.65 g) |
| UPC # | 811490017252 |
