FPM-55 Copy ID to clipboard

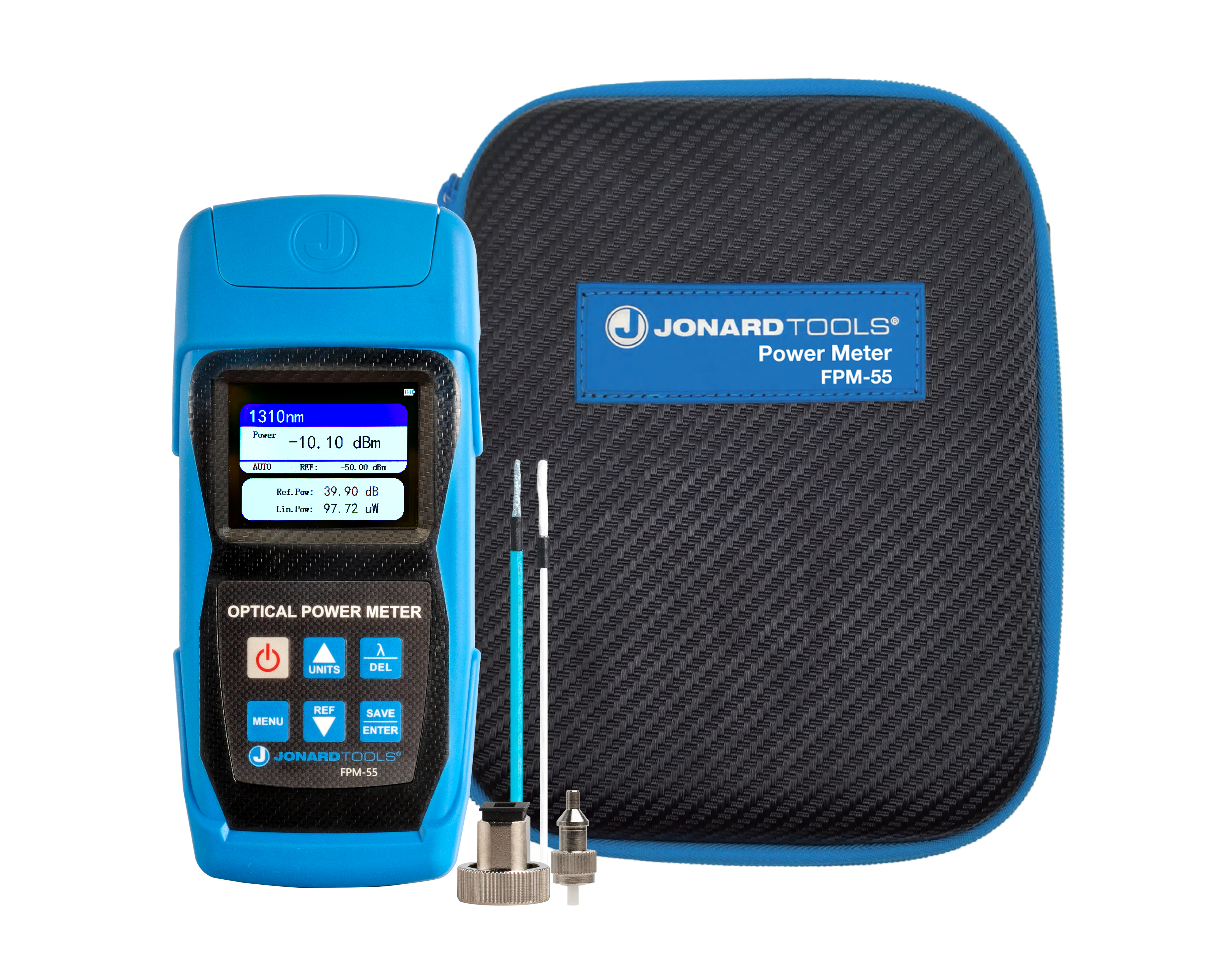

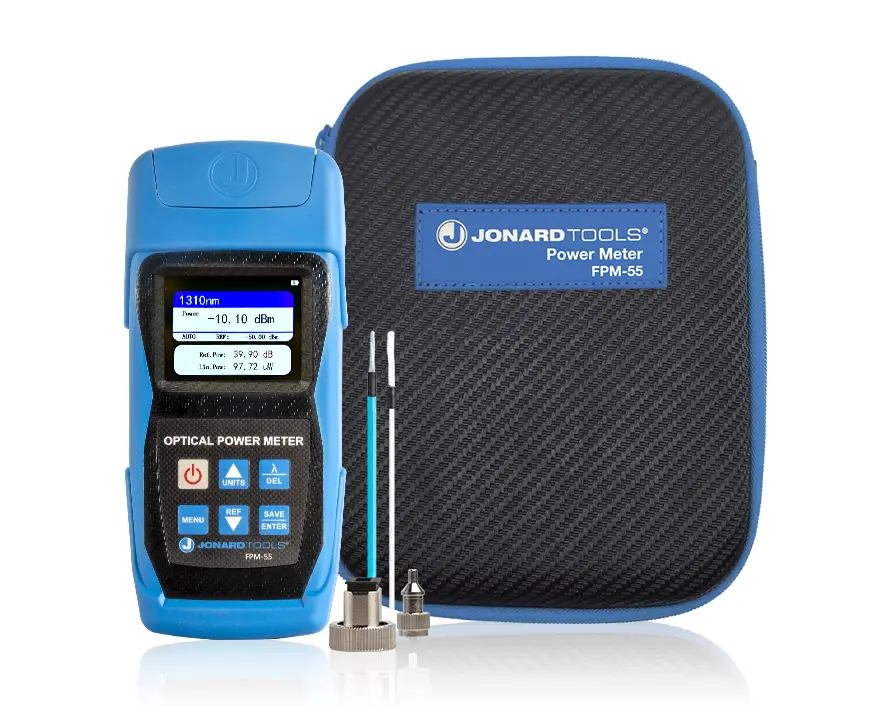

Fiber Optic Power Meter with Data Storage (-50 to +26 dBm) and FC/SC/LC Adapters

PRODUCT FEATURES

The Jonard Tools Fiber Optic Power Meter with Data Storage is the perfect power meter for measuring and recording both the absolute optical power and relative power loss in fiber optic cables. This power meter features the following:

  • Measures a wide variety of wavelengths from 850-1650 nm, with a mere 0.01 dB resolution
  • Measures 8 preset calibrated wavelengths with high precision to determine absolute or relative power
  • Intelligent backlight control adjusts the screen brightness automatically to reduce power consumption
  • Stores up to 1,000 data entries which can be downloaded via USB
  • Reference power level can be set up and stored via included software
  • Auto-off function can be turned on or off
  • Includes carrying case, instruction manual, software (available for download on this product page), and FC, SC, and LC adapters so that fiber connectors can be directly connected to the tool
    • The FC/SC adapters are for APC/PC/UPC connectors
    • The LC adapter is for PC/UPC connectors only

Learn more about product features Show less

Measurement Range

Measurement Range: -50 dBm to +26 dBm

Included Adapters

Included Adapters: FC, SC, LC

Data Storage

Data Storage: Yes

Specifications

Connector Types

FC, SC (APC/PC/UPC) & LC (PC/UPC)

Calibrated Wavelengths (nm)

850, 980, 1300, 1310, 1490, 1550, 1625, 1650

Detector Type

InGaAs

Measurement Range

-50 dBm to +26 dBm

Single Mode Range

980, 1310, 1490, 1550, 1625, 1650 nm, ≤ ± 0.25 dB

Multi Mode Range

850, 1300 nm, ≤ ± 0.8 dB

Data Storage Capacity

1000 entries

Resolution

0.01 dB

Operating Time

200 hours (without backlight)

Battery Type

(3) AA batteries

Dimensions

6.89" x 3.54" x 1.75" (175 mm x 90 mm x 44.5 mm)

Weight 0.66 lb (299.64 g)
UPC # 810053350416
