DFB224 Copy ID to clipboard

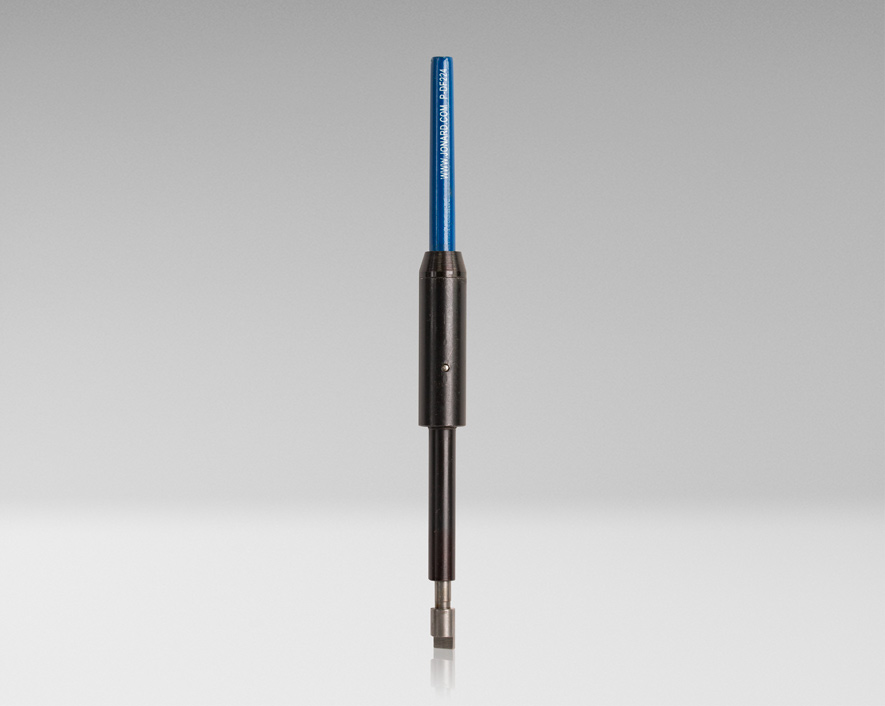

Wire Wrap/Unwrap Bit & Sleeve Set, 22-24 AWG
PRODUCT FEATURES
This patented wire 22-24 AWG wrapping/unwrapping bit and sleeve set offers a revolutionary way to approach wire wrapping by combining both wire wrapping and unwrapping functions into one bit/sleeve set. This bit and sleeve set features the following:
- Precision machined for high-quality wire wrapping in the clockwise direction and unwrapping in the counterclockwise direction
- Easily switch between wrap and unwrap mode by retracting or extending the sleeve and flipping the switch on a PTX Wire Wrapping/Unwrapping Tool
- Maximizes the efficiency of wire wrapping and unwrapping 24-26 AWG wires, while eliminating the need to purchase or carry other extra tools for unwrapping
- Retractable wire wrapping sleeve is coated with a durable 1000V dielectric material to prevent pin-to-pin shorting
The kit includes:
Set variation:
Model: Wire Wrap/Unwrap Bit & Sleeve Set, 22-24 AWG
Specifications
| Wrap Function | Wrap, Unwrap |
|---|---|
| Wire Gauge | 22-24 AWG (0.65-0.50 mm) |
| Minimum Terminal Diagonal | 0.054" (1.37 mm) |
| Maximum Terminal Diagonal | 0.073" (1.85 mm) |
| Terminal Hole Depth | 0.50" (12.70 mm) |
| Terminal Hole Diameter | 0.075" (1.9 mm) |
| Effective Radius | 0.111" (2.82 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Length | 5(12.7cm) |
| Weight | 0.09 lb (40.86 g) |
| UPC # | 811490013902 |
