UST-205 - Replacement Blade Cartridge for UST-500, UST-100, and CST-92

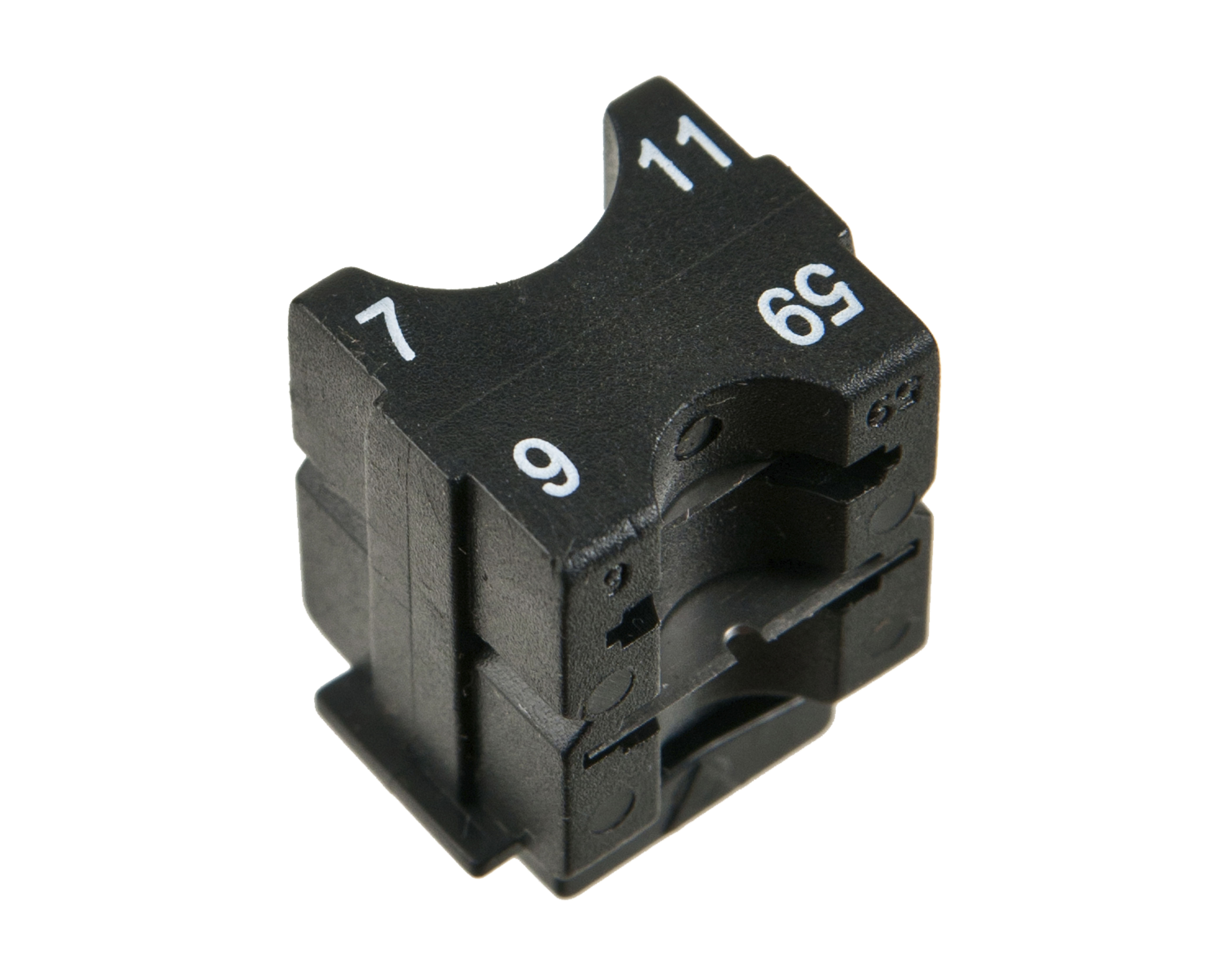

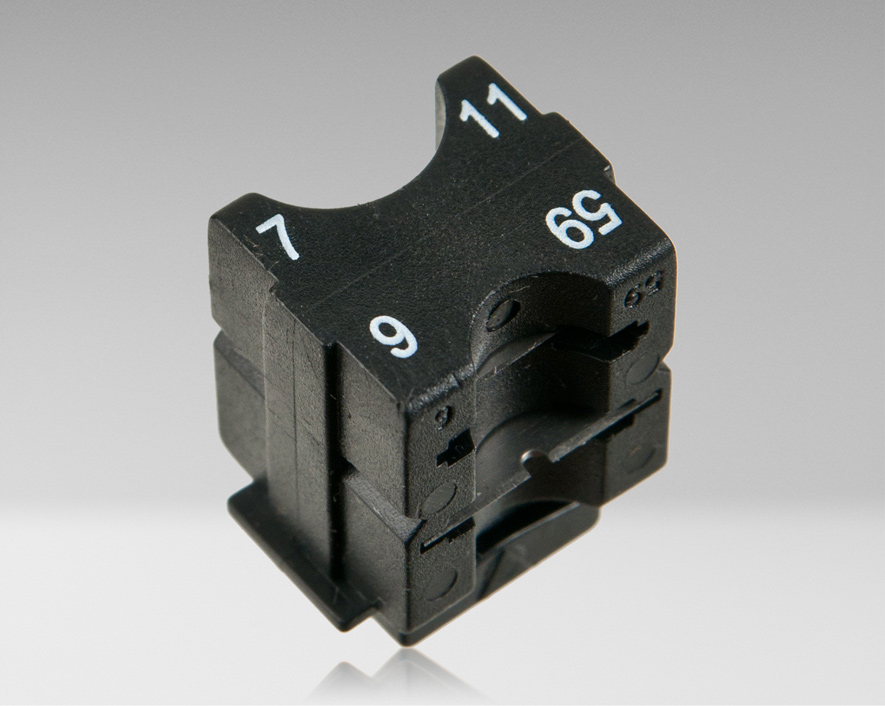

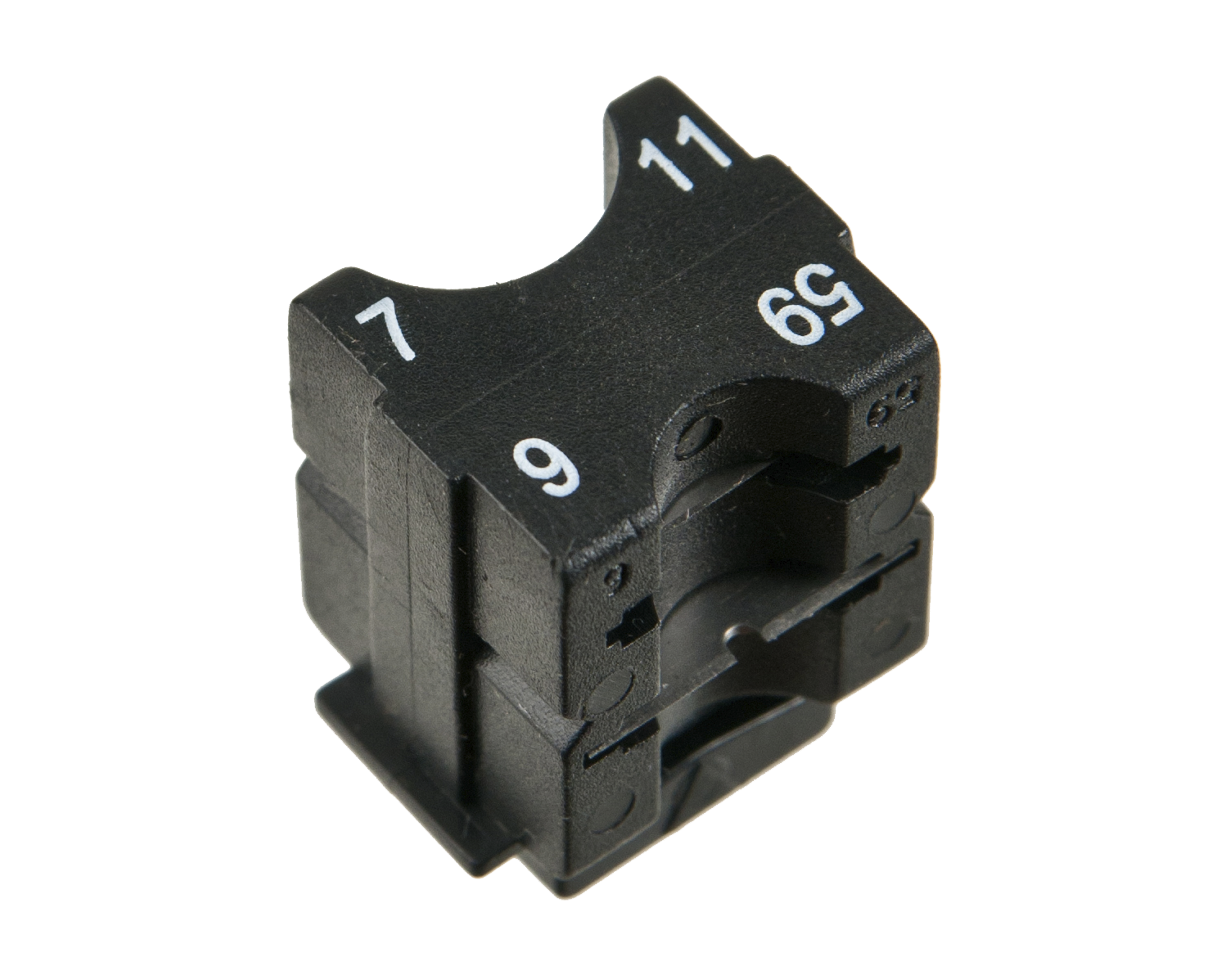

Replacement Blade Cartridge for UST-500, UST-100, and CST-92

UST-205 Copy ID to clipboard

Save to Toolbox

Cartridge Type

Model: RG59, RG6, RG7, RG11 No Cable Stop

PRODUCT FEATURES

This product is the Replacement Blade Cartridge for Universal Cable Stripping Tool (UST-500), the Coaxial Cable Stripping Tool (UST-100), and the Coaxial Cable Stripper (CST-92). This blade cartridge features the following:

  • Provides a 2-level strip for F, BNC, and RCA connector termination
  • High carbon steel blades last for over 5,000 strips
  • Cartridge is reversible for ambidextrous use
  • Compatible with all of our UST Stripping Tools (except the UST-175 and UST-185)
  • Stripping action removes 1/4" of jacket and 5/16" of shield and dielectric, which exposes the center conductor
Find Local Retailer
Register Product
Cable Type

COAX
Cable Size

RG59/6/N48, RG7 and RG11
Cable Diameter

6.1 mm – 10.5 mm
Strip Length

Jacket: 0.25" (6.35 mm), Shield & Dielectric: 0.3125" (7.9375 mm)
Dimensions 0 in x 0 in x 0 in (0 cm x 0 cm x 0 cm)
Weight 0.03 lb (13.62 g)
UPC # 811490014756
