UST-100 Copy ID to clipboard
COAX Stripping Tool for RG59, RG6, RG7, RG11 Cables
PRODUCT FEATURES

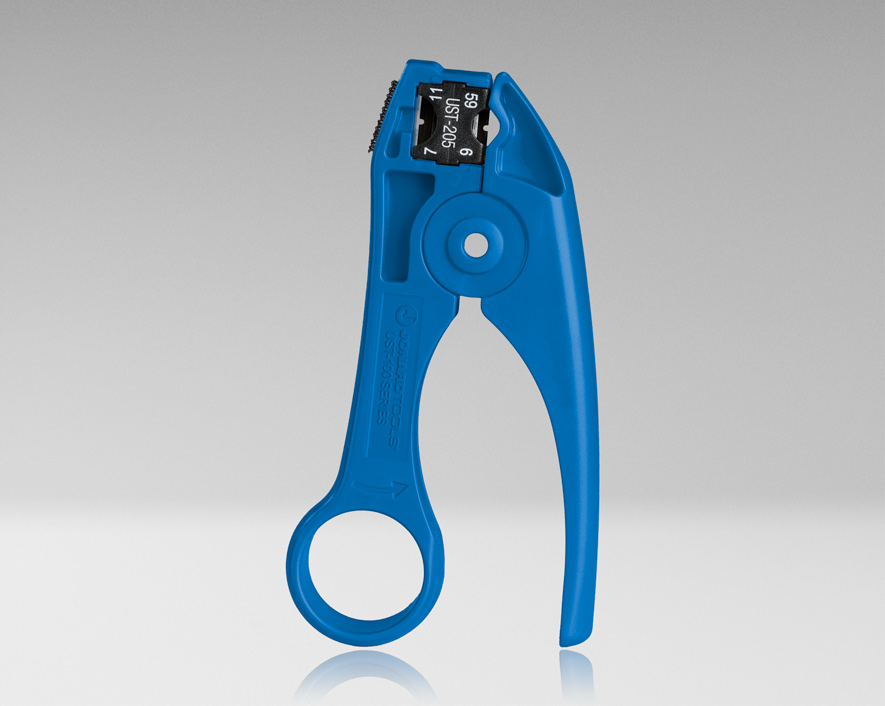

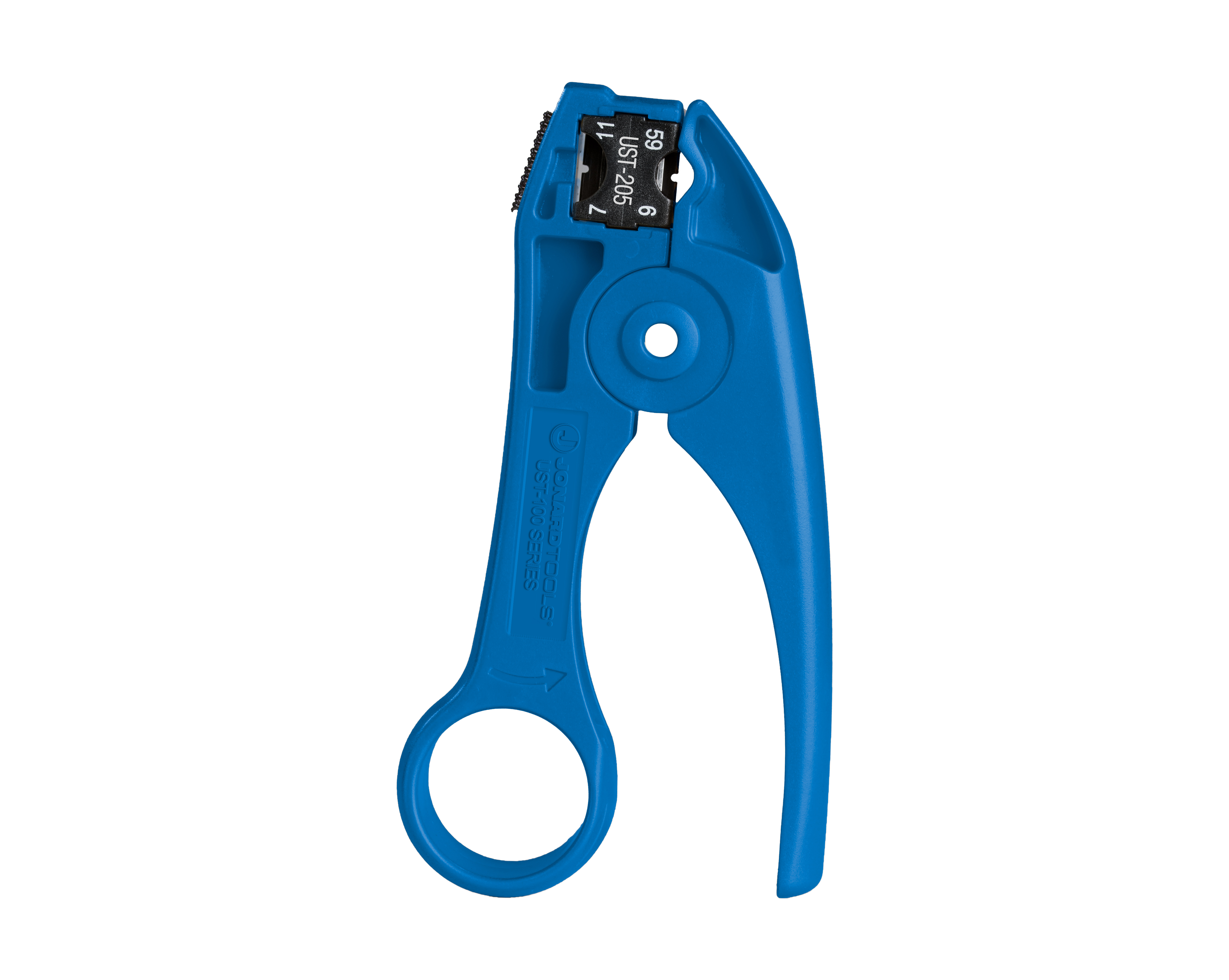

The Jonard Tools UST-100 COAX stripping tool is designed to strip RG59, RG6, RG6 Tri & Quad Shield, N48, RG7, and RG11 coaxial cables for quick and easy termination. This COAX stripping tool features the following:
- Included blade cartridge (UST-205) provides a 2-level strip for F, BNC, and RCA connector termination
- High carbon steel blades last over 5,000 strips
- Cartridge is reversible for ambidextrous use
- Hook and Loop strip on bottom of the tool folds back the braided shield on the cable with ease
- Large finger loop provides smooth rotation during use
- Stripping action removes 1/4" of jacket and 5/16" of shield and dielectric, which exposes the center conductor
Specifications
| Cable Type | COAX |
|---|---|
| Cable Size | RG59/6/N48 & RG7/11 |
| Handle Color | Blue |
| Product Main Color | Blue |
| Dimensions | 4.97 in x 2.63 in x 1 in (12.63 cm x 6.68 cm x 2.54 cm) |
| Weight | 0.1 lb (47.216 g) |
| UPC # | 811490012394 |
Specifications
| Cable Type | COAX |
|---|---|
| Cable Size | RG59/6/N48 & RG7/11 |
| Handle Color | Blue |
| Product Main Color | Blue |
| Dimensions | 4.97 in x 2.63 in x 1 in (12.63 cm x 6.68 cm x 2.54 cm) |
| Weight | 0.1 lb (47.216 g) |
| UPC # | 811490012394 |
