In the world of electrical work, the multimeter stands as one of the most indispensable tools on the market. Whether you're a professional electrician, a DIY enthusiast, or someone working in electronics, the multimeter is a versatile and essential tool for measuring electrical properties such as voltage, current, and resistance. Its ability to diagnose and troubleshoot electrical issues makes it a critical component of any toolkit. This blog will explore the history, functionality, and importance of the multimeter, along with a brief guide on how to use it effectively.

A Brief History of the Multimeter

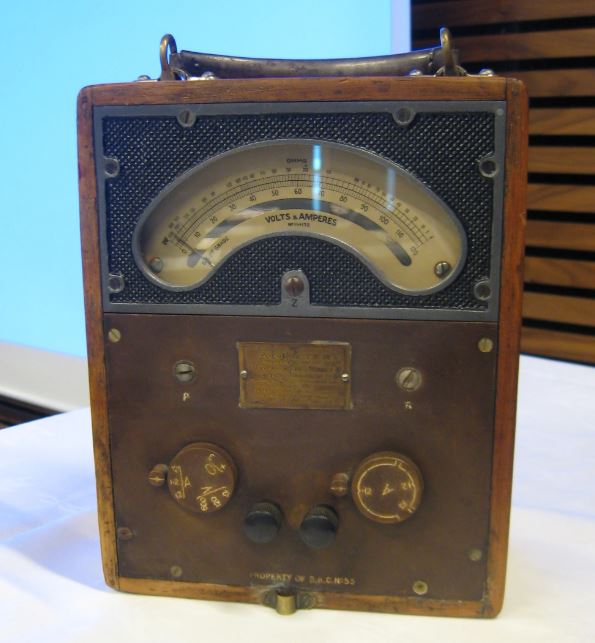

The multimeter's origins date back to the early 1920s, a time when electrical engineers and technicians faced the cumbersome task of carrying multiple instruments to measure different electrical parameters. Donald Macadie, a British Post Office engineer, was among those who found this process inefficient. Frustrated by the need to use separate devices for measuring voltage, current, and resistance, Macadie set out to create a single tool that could perform all these functions. His invention, the first-ever "AVO meter" (an acronym for Amps, Volts, and Ohms), was a groundbreaking innovation that combined the capabilities of multiple instruments into one compact device. The AVO meter featured a moving-coil galvanometer, which enabled it to measure electrical current, voltage, and resistance with reasonable accuracy. Macadie's creation quickly gained popularity, as it significantly streamlined the workflow for engineers and technicians, reducing the need to switch between different tools and thereby improving efficiency and accuracy in electrical measurements.

As the decades passed, the multimeter continued to evolve, driven by advancements in technology and the growing demands of the electrical and electronics industries. The original analog multimeters, which relied on a needle and dial to display measurements, gradually gave way to digital multimeters (DMMs) in the 1970s. The introduction of digital technology brought about a significant improvement in accuracy, readability, and functionality. Digital multimeters featured LCD screens that displayed measurements in a clear and precise manner, eliminating the parallax errors associated with analog dials. Additionally, these digital devices often included more advanced features, such as automatic ranging, data logging, and the ability to measure additional parameters like capacitance, frequency, and temperature. Over time, multimeters became more compact, portable, and user-friendly, making them indispensable tools not only for professional electricians and engineers but also for hobbyists and DIY enthusiasts. Today, the multimeter stands as a testament to over a century of innovation in electrical measurement technology, continuing to serve as a critical tool in a wide array of applications across numerous industries.

How the Multimeter Works

The multimeter is a handheld device designed to measure electrical properties such as voltage (volts), current (amperes), and resistance (ohms). It consists of several key components: a display screen, a selection dial, input jacks, and test leads. The selection dial allows the user to choose the measurement type (voltage, current, or resistance) and the appropriate range for the measurement. The test leads, typically red and black, are used to connect the multimeter to the circuit or component being tested.

When measuring voltage, the multimeter is connected across the component or section of the circuit, with the red lead typically placed on the positive side and the black lead on the negative side. For current measurement, the multimeter must be connected in series with the circuit so that the current flows through the meter. Resistance measurement involves connecting the multimeter across the component while ensuring the circuit is powered off to prevent damage to the meter.

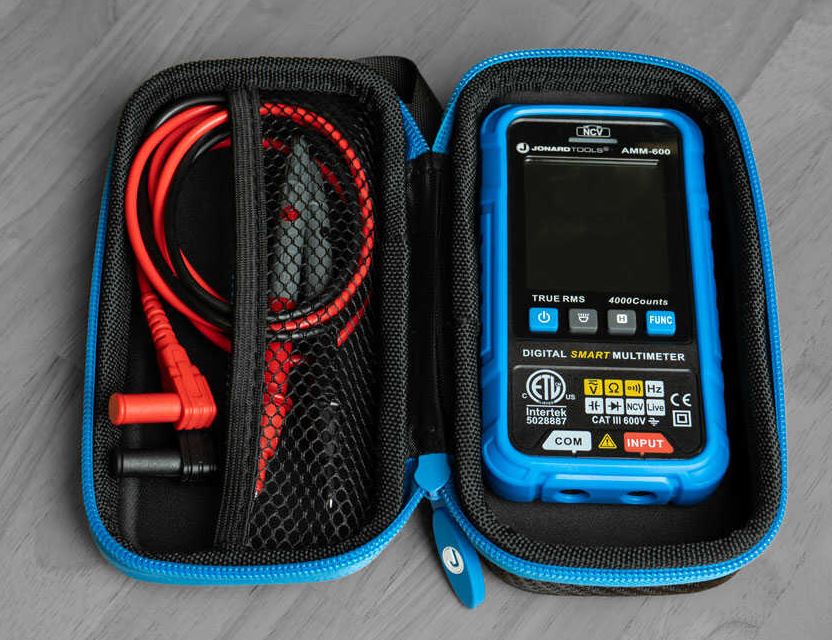

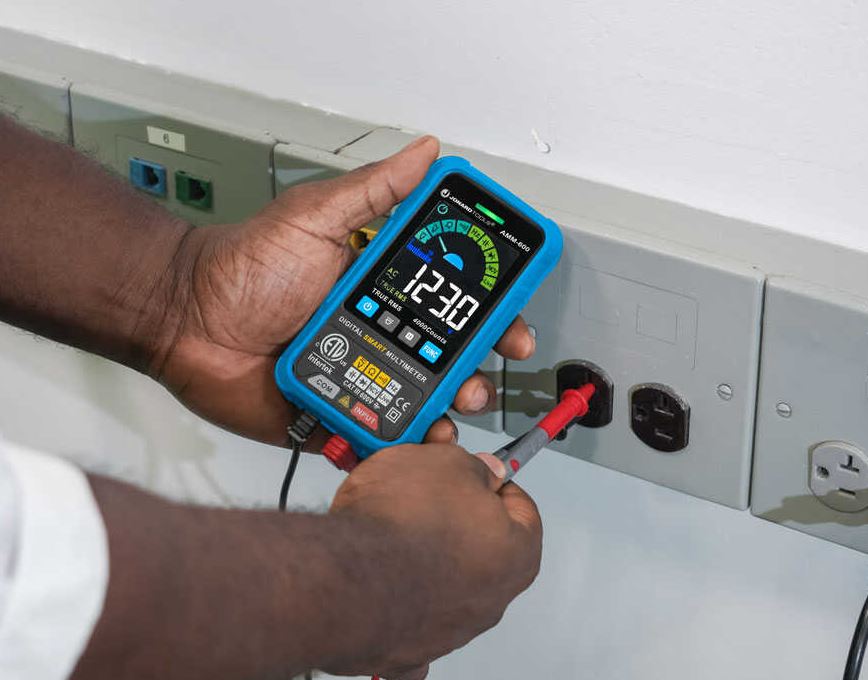

Multimeters are widely used across various applications, including testing electrical circuits in homes, troubleshooting automotive electrical systems, repairing household appliances, and working with electronic devices. Advanced models also feature additional functions, such as measuring capacitance, frequency, and temperature, making them versatile tools for professionals and hobbyists alike. Our multimeter in particular has the ability to gauge both the required range and the required function based on the test lead input, which makes for the simplest and most accurate experience.

How to Use a Multimeter

Using a multimeter effectively requires understanding its different functions and how to properly connect it to the circuit or component you're testing. When using the multimeter:

• Select the Appropriate Function: Turn the selection dial to the desired measurement type: voltage (V), current (A), or resistance (Ω). For voltage and current, ensure you select either AC or DC, depending on the type of current you're working with.
• Connect the Test Leads: Insert the black test lead into the COM (common) jack and the red test lead into the appropriate jack for the measurement type (usually labeled VΩ for voltage and resistance or A for current).
• Measure Voltage: To measure voltage, touch the test leads to the two points in the circuit where you want to measure the voltage difference. The multimeter will display the voltage on the screen.
• Measure Current: To measure current, break the circuit where you want to measure the flow of current and connect the multimeter in series. The current will pass through the multimeter, and the reading will appear on the display.
• Measure Resistance: To measure resistance, disconnect the power to the circuit, place the test leads across the component, and the multimeter will display the resistance value.
• Safety Tips: Always start with the highest range to prevent damage to the meter, and never try to measure resistance on a live circuit.

The Importance of the Multimeter

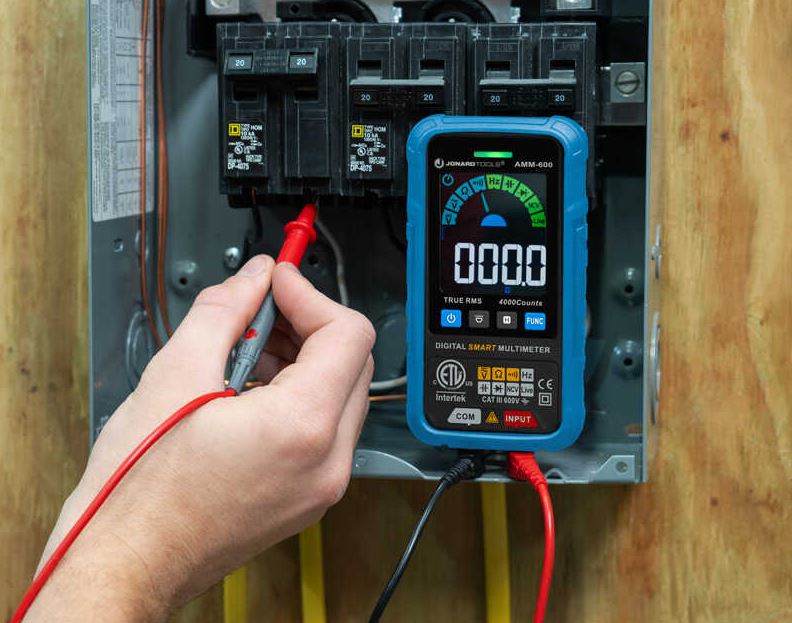

The multimeter is an invaluable tool across multiple industries due to its versatility and reliability. In the electrical field, it is crucial for diagnosing problems such as short circuits, open circuits, and faulty components. Electricians rely on multimeters to ensure that circuits are functioning correctly and safely before making any changes or repairs.

In electronics, engineers and technicians use multimeters to test components like resistors, capacitors, and transistors during the design, testing, and repair of electronic devices. The precision and range of functions available in a multimeter make it a fundamental tool in these processes.

Automotive technicians also benefit greatly from multimeters, particularly when diagnosing electrical issues in vehicles. From checking the battery voltage to diagnosing alternator problems, a multimeter provides the necessary data to keep vehicles running smoothly.

Additionally, in the renewable energy sector, multimeters are used to install and maintain solar panels and other energy systems, ensuring they operate at peak efficiency. Without a multimeter, professionals in these fields would find it challenging to accurately measure, troubleshoot, and repair electrical systems.

Conclusion

The multimeter is more than just a tool; it is an essential instrument that enables professionals across various fields to work safely and efficiently. Its ability to measure voltage, current, and resistance makes it indispensable for diagnosing and troubleshooting electrical and electronic systems. Whether you're an electrician, an engineer, or a DIY enthusiast, understanding how to use a multimeter effectively is crucial. By mastering this versatile tool, you can ensure accuracy and safety in all your electrical projects.
