AMM-600 Copy ID to clipboard

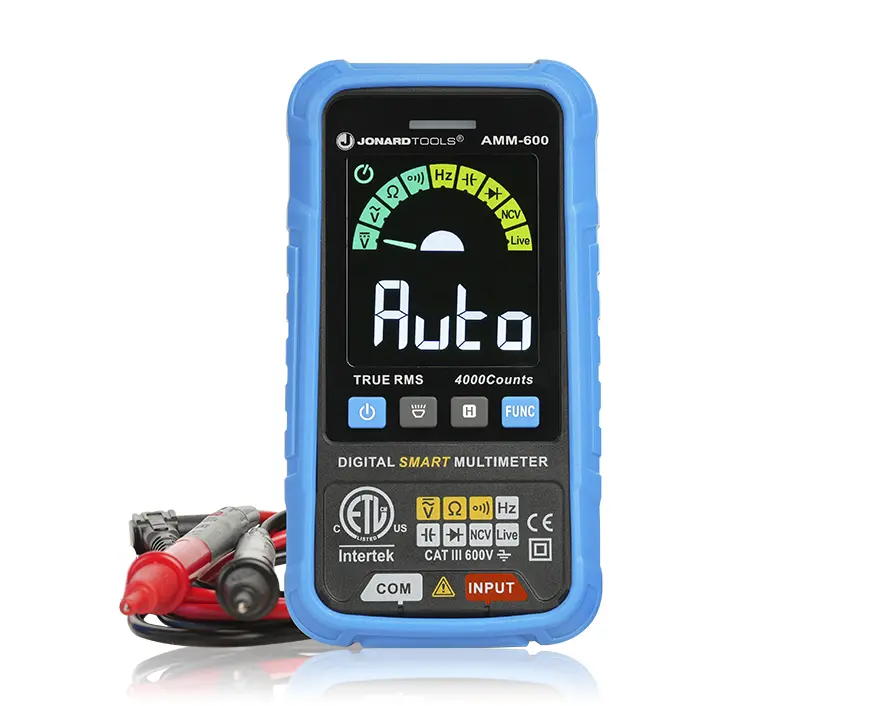

600V Automatic Intelligent Digital Multimeter

PRODUCT FEATURES

Intelligent, auto-function volt meter is capable of gauging both the required range and the required function based on the test lead input, providing the simplest experience and the most accurate results. Simply plug in the leads and connect to your test subject and let the AMM-600 take the guess work out of testing.

  • Tests AC and DC voltage, resistance, capacitance, frequency, diode, duty cycle, continuity, automatic current input detection, live testing, non-contact voltage detection (NCV)
  • Provides maximum/minimum/average readings, relative measurements
  • CAT III 600V, Class 2, Double insulation safety rating
  • Backlit display for low light, and highlight environments
  • Unique design with grooved housing for superior grip
  • Includes hard carrying case
Learn more about product features Show less

Specifications

AC voltage

600V

Resistance

400Ω-40MΩ

Capacitance

4nF-40mF

Frequency

4Hz-4MHz

Counts

4000

Overvoltage Category

CAT III 600v

Dimensions 6.7 in x 3.6 in x 2.45 in (17.02 cm x 9.14 cm x 6.22 cm)
Weight 0.73 lb (333.236 g)
UPC # 810053359525
AC voltage

600V

Resistance

400Ω-40MΩ

Capacitance

4nF-40mF

Frequency

4Hz-4MHz

Counts

4000

Overvoltage Category

CAT III 600v

Dimensions 6.7 in x 3.6 in x 2.45 in (17.02 cm x 9.14 cm x 6.22 cm)
Weight 0.73 lb (333.236 g)
UPC # 810053359525
