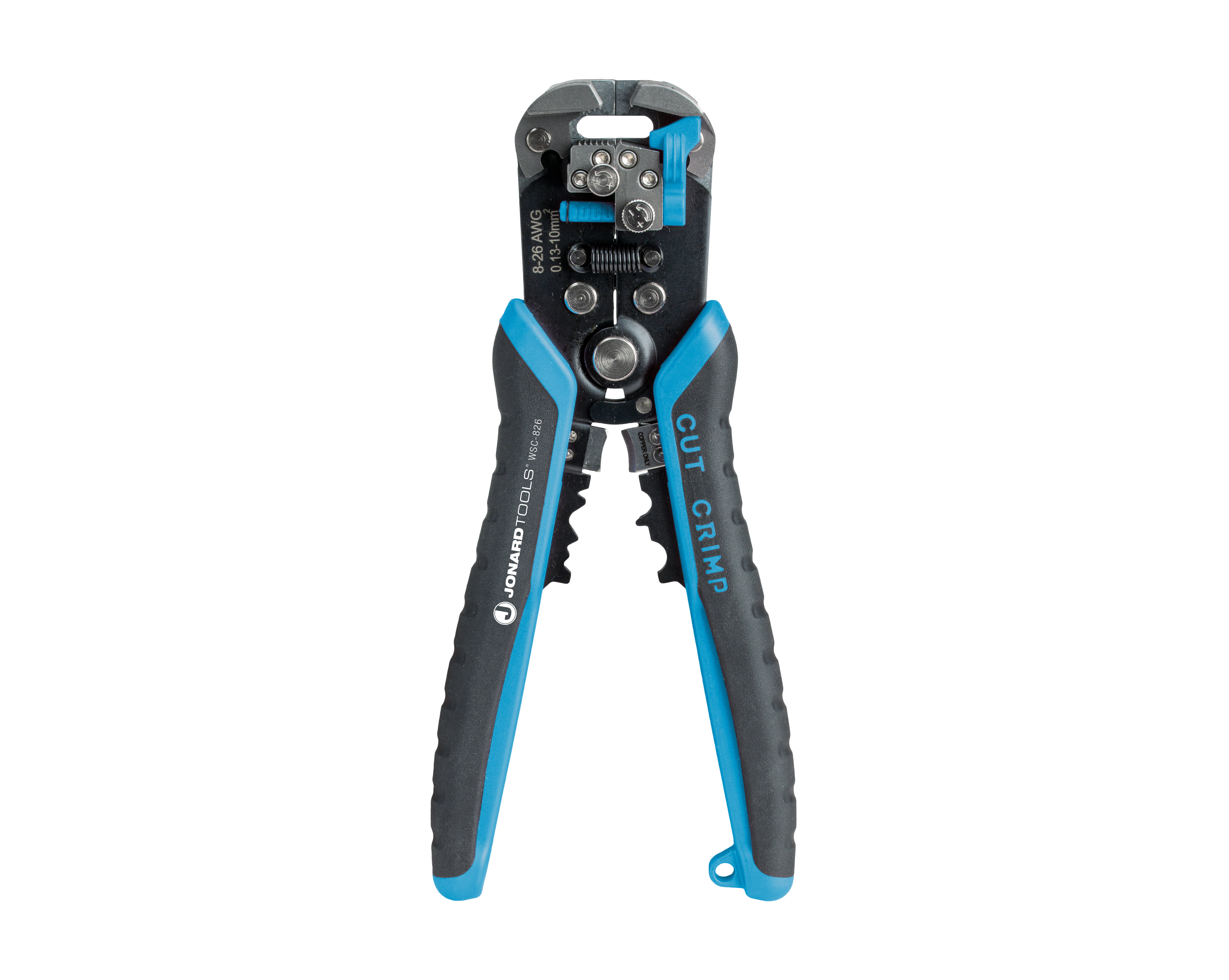

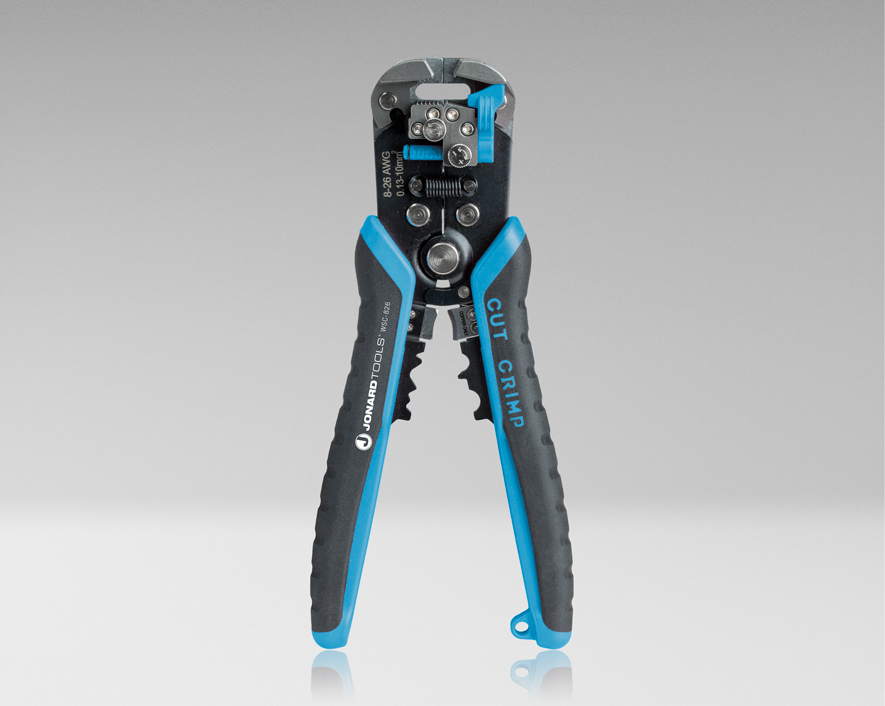

WSC-826 Copy ID to clipboard
Wire Stripper & Crimper (8 AWG-26 AWG)
PRODUCT FEATURES
The Jonard Tools WSC-826 is a multi-function wire stripper designed to cut and strip wire from 8 AWG-26 AWG (0.40 mm-3.26 mm) without any adjustments needed. This wire stripper features the following:
- Perfect for stripping Romex 12 AWG and 14 AWG cables and most stranded or solid conductors
- Tool has a wire stripper, cutter, and crimper for non-insulated terminals
- Built-in handy adjustable wire stop ensures precise and consistent results
- Special micro adjustment knob allows the tool to work on cables as small as 30 AWG and as large as 8 AWG
- Crimper portion of the tool works on non-insulated terminals from 22 AWG - 10 AWG and there is a separate crimper for crimping 7 mm to 8 mm ignition wires
Specifications
| Wire Gauge | 8 AWG-26 AWG (0.40 mm-3.26 mm) |
|---|---|
| Overall Length | 7 3/4" (19.7 cm) |
| Dimensions | 8.06 in x 3.63 in x 1.2 in (20.48 cm x 9.22 cm x 3.05 cm) |
| Weight | 0.78 lb (355.936 g) |
| UPC # | 811490017771 |
Specifications
| Wire Gauge | 8 AWG-26 AWG (0.40 mm-3.26 mm) |
|---|---|
| Overall Length | 7 3/4" (19.7 cm) |
| Dimensions | 8.06 in x 3.63 in x 1.2 in (20.48 cm x 9.22 cm x 3.05 cm) |
| Weight | 0.78 lb (355.936 g) |
| UPC # | 811490017771 |
