IC Insertion/Extraction Kit

Share Page

WK-7 - IC Insertion/Extraction Kit WK-7 - IC Insertion/Extraction Kit WK-7 - IC Insertion/Extraction Kit WK-7 - IC Insertion/Extraction Kit WK-7 - IC Insertion/Extraction Kit WK-7 - IC Insertion/Extraction Kit WK-7 - IC Insertion/Extraction Kit
Register Product
My Toolbox

PRODUCT FEATURES

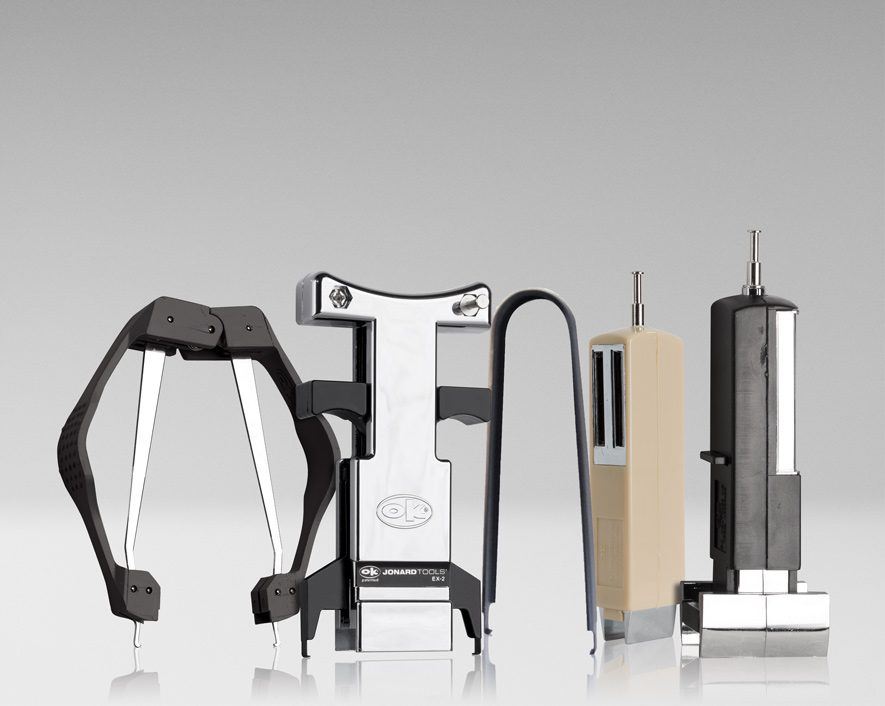

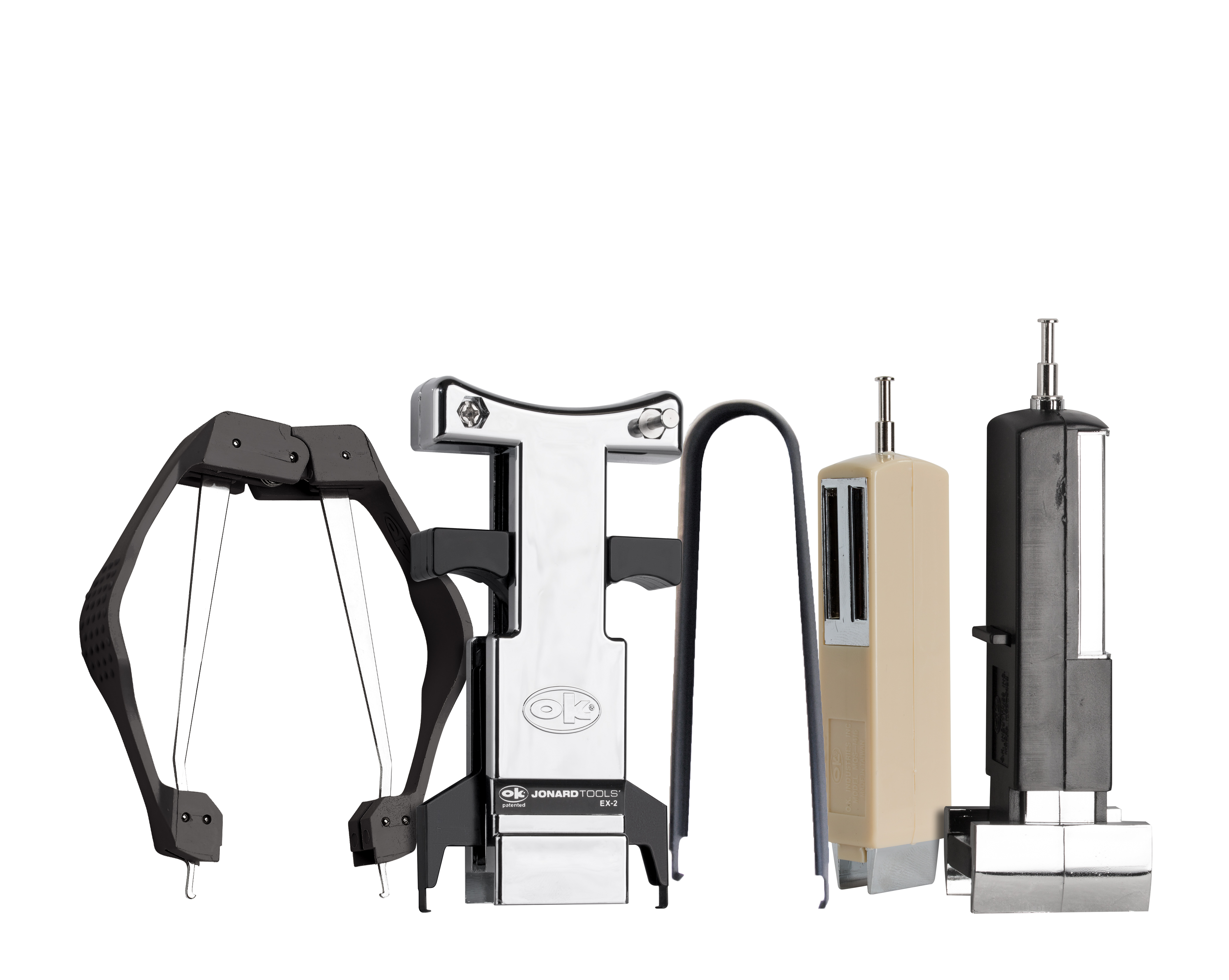

This tool kit is designed to facilitate the installation and extraction of DIP IC and PLCC chips on circuit boards. All included tools are CMOS safe and include grounding lugs where appropriate.

Kit includes one each of the following:

  • EX-1 DIP IC Extractor (8-24 pins)
  • EX-2 DIP IC Extractor (24-40 Pins)
  • EX-5 PLCC Extractor, ESD Safe
  • MOS-1416 Insertion Tool (14-16 Pins)
  • MOS-2428 Insertion Tool (24-28 Pins)
Learn more about product features Show less

Specifications

Application Type

Insertion and Extraction
Chip Package Type

DIP IC, PLCC
Pin Count for Insertion

14-16, 24-28
Pin Count for Extraction

8-24, 24-40
Weight 0 lb (0 g)
UPC # 811490010284
