Wire Stripper 10-22 AWG
JIC-1022 Copy ID to clipboard
Buy Online
PRODUCT FEATURES

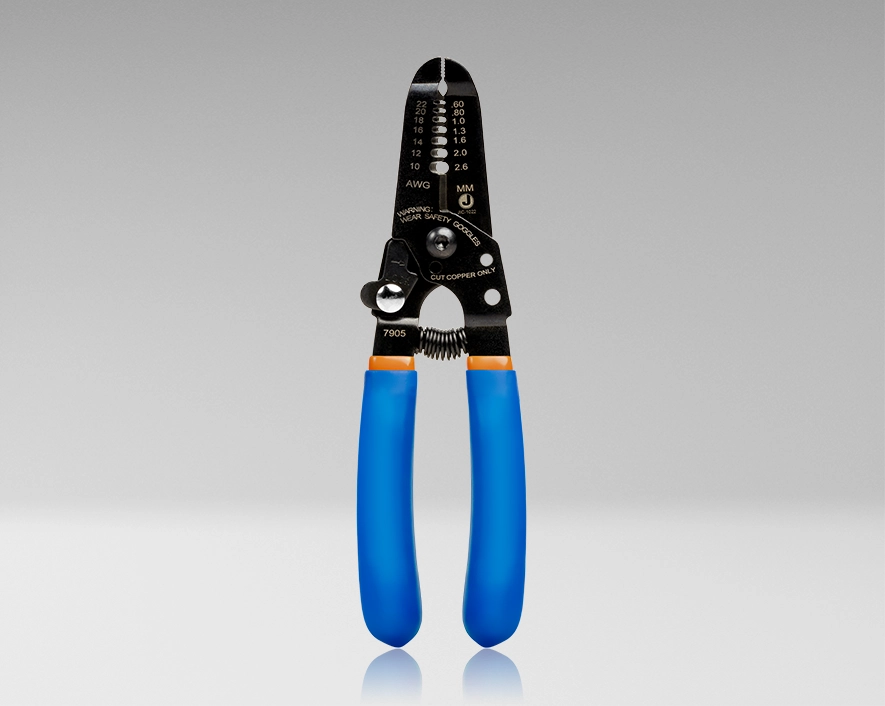

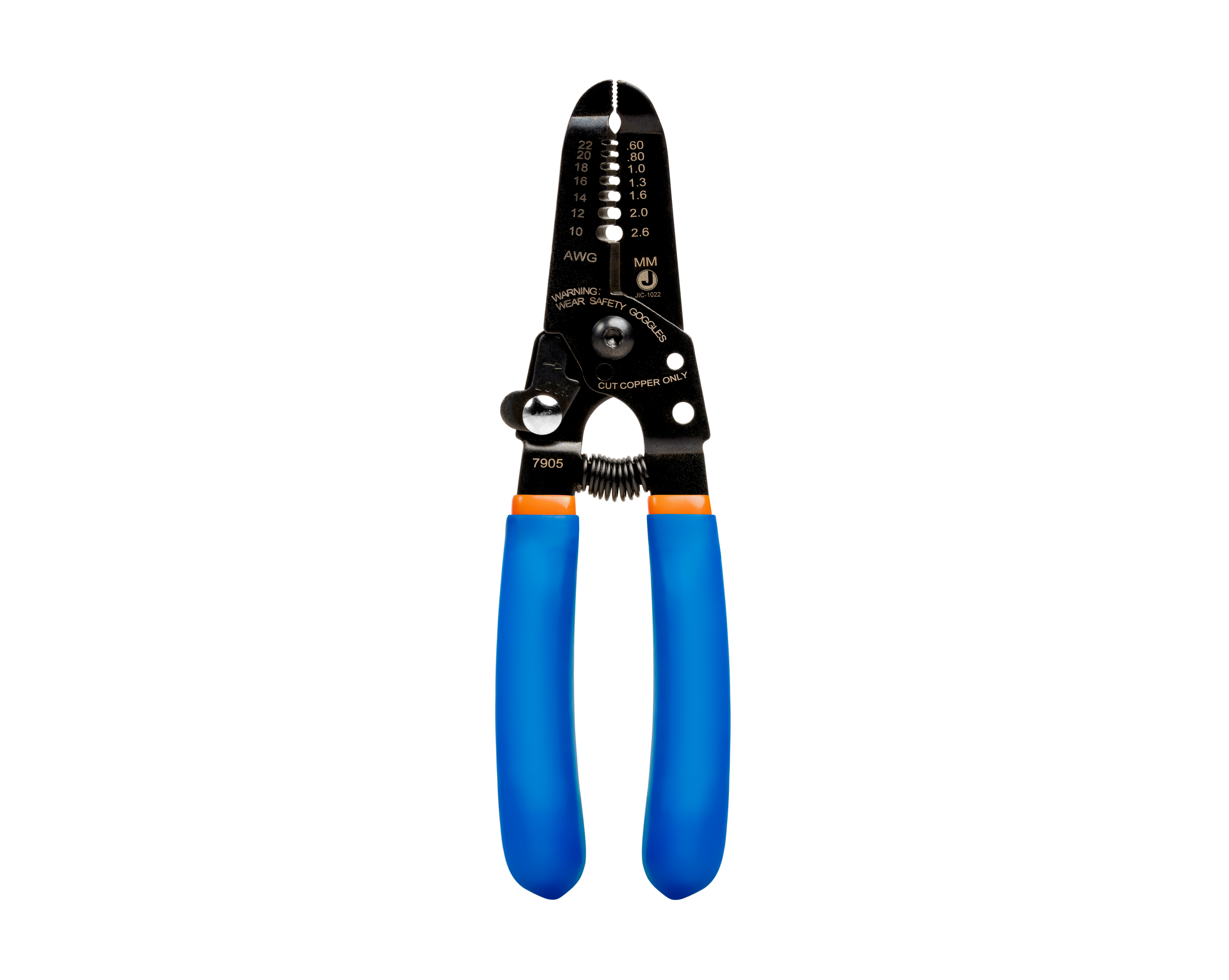

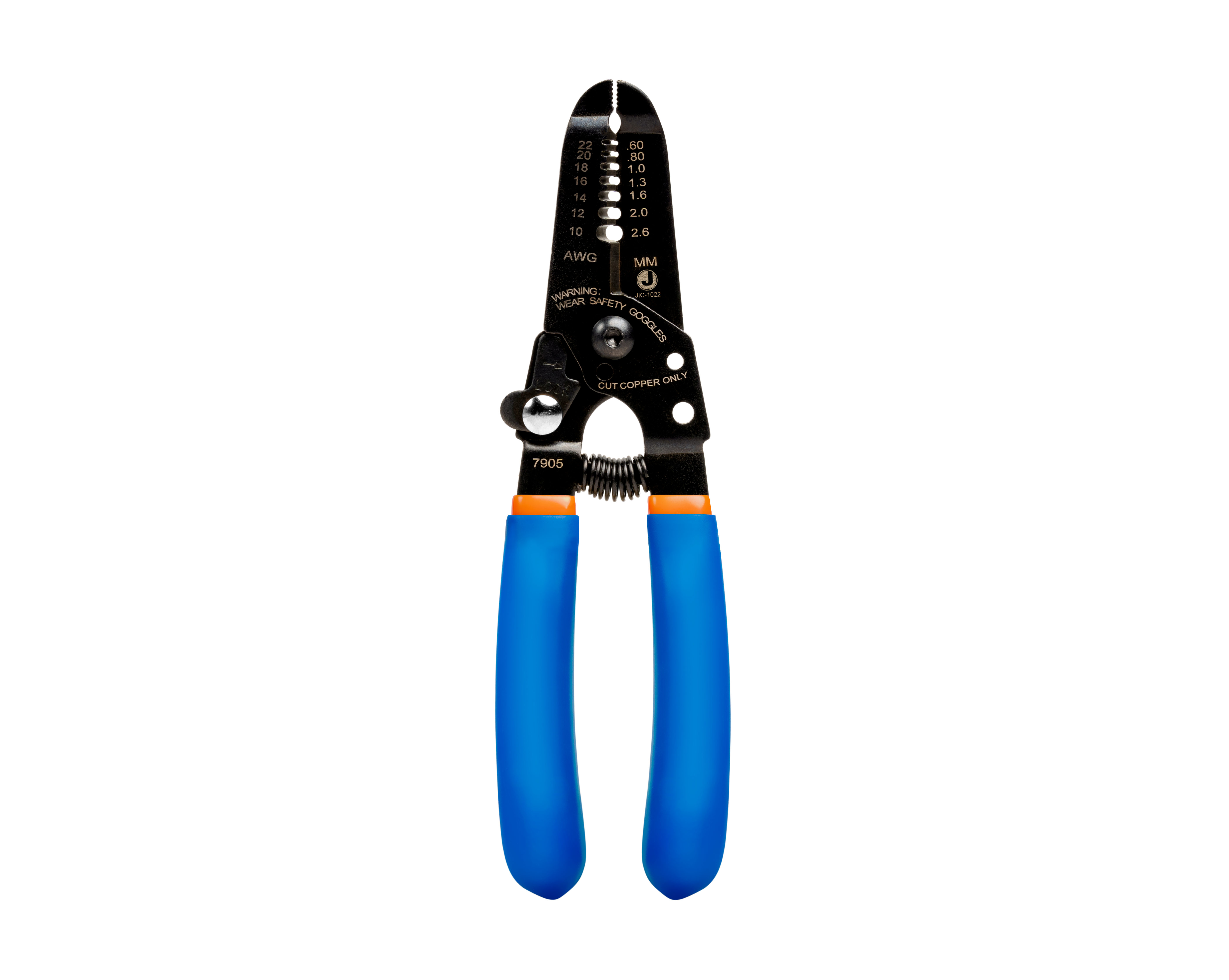

Designed to cut and strip the most commonly used stranded and single conductors, this wire stripper is the perfect tool for cutting and stripping wires 10 to 22 AWG (2.60 to 0.64 mm) and 2 mm-3 mm fiber jackets. This wire stripper features the following:
- Perfect for stripping 2 mm-3 mm fiber jackets off of fiber optic cables without damaging the fiber
- Coil spring reduces hand fatigue when using the tool for extended periods of time
- Conveniently located bending holes makes wire looping quick and easy
- 50 HRC black oxide finish enhances strength and durability of the tool
- Cutting edges are hardened, tempered, and ground for superior cutting and stripping
Specifications
| Cut Type | Cut & Strip |
|---|---|
| Wire Gauge | 10-22 AWG (2.6 to 0.60 mm) Copper Wire, 2 to 3 mm Diameter Fiber Jackets |
| Maximum Strip Length | |
| Strip Length | |
| Blade Material | Hardened, Tempered, and Ground Steel |
| Finish | Black Oxide |
| Cable Size | 10-22 AWG (2.6 to 0.60 mm) Copper Wire, 2 to 3 mm Diameter Fiber Jackets |
| Handle Length | |
| Cable Type | Stranded & Solid Conductors/Fiber |
| Dimensions | 6.5 in x 1.88 in x 0.47 in (16.51 cm x 4.76 cm x 1.19 cm) |
| Weight | 0.30 lb (136 g) |
| UPC # | 811490011182 |
Used In
Used in
- TK-170 Fiber Prep Kit with Small & Large Mid Span Slitters
- TK-179 Advanced Fiber Prep Kit
- TK-179B Advanced Backpack Fiber Prep Kit
- TK-199B Ultimate Backpack Fiber Prep Kit
- TK-199R Ultimate Fiber Kit in Rolling Tool Bag
- TK-196B OSP Tool Kit
- TK-527 Complete Telecom & Fiber Installation Tool Kit for Field Techs
| Cut Type | Cut & Strip |
|---|---|
| Wire Gauge | 10-22 AWG (2.6 to 0.60 mm) Copper Wire, 2 to 3 mm Diameter Fiber Jackets |
| Maximum Strip Length | |
| Strip Length | |
| Blade Material | Hardened, Tempered, and Ground Steel |
| Finish | Black Oxide |
| Cable Size | 10-22 AWG (2.6 to 0.60 mm) Copper Wire, 2 to 3 mm Diameter Fiber Jackets |
| Handle Length | |
| Cable Type | Stranded & Solid Conductors/Fiber |
| Dimensions | 6.5 in x 1.88 in x 0.47 in (16.51 cm x 4.76 cm x 1.19 cm) |
| Weight | 0.30 lb (136 g) |
| UPC # | 811490011182 |
