ST-100 Copy ID to clipboard

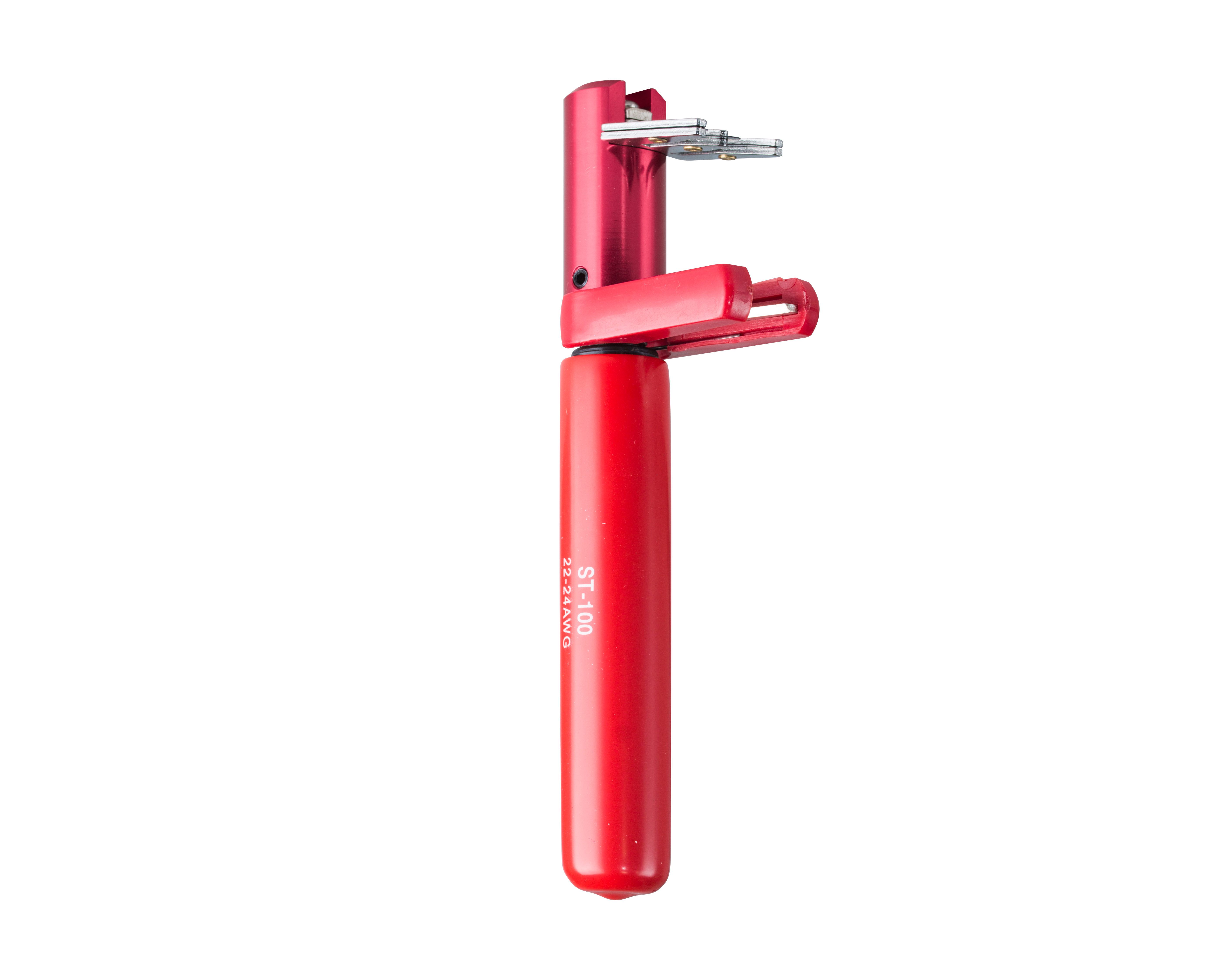

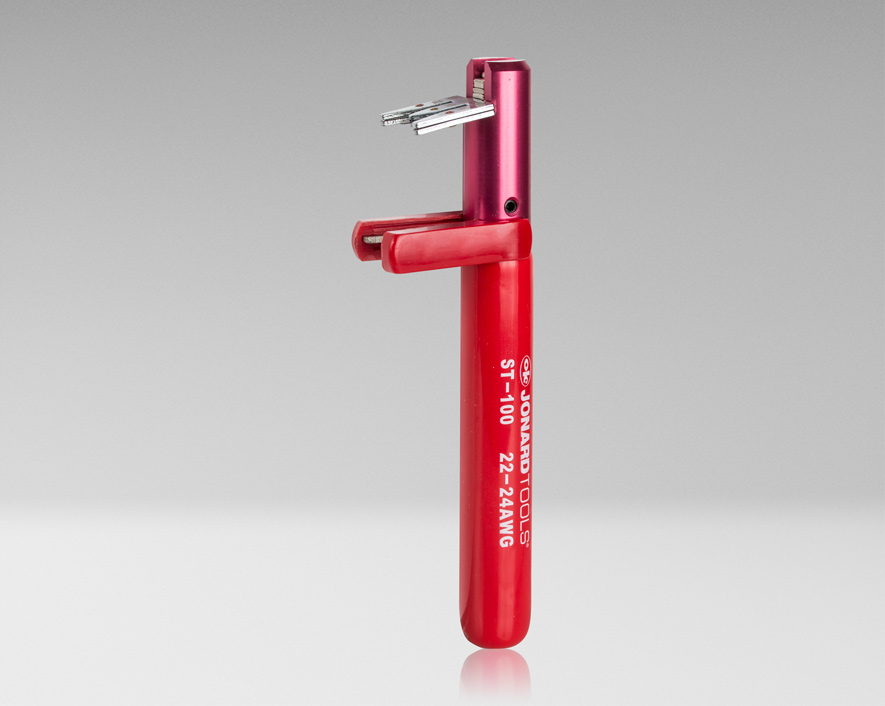

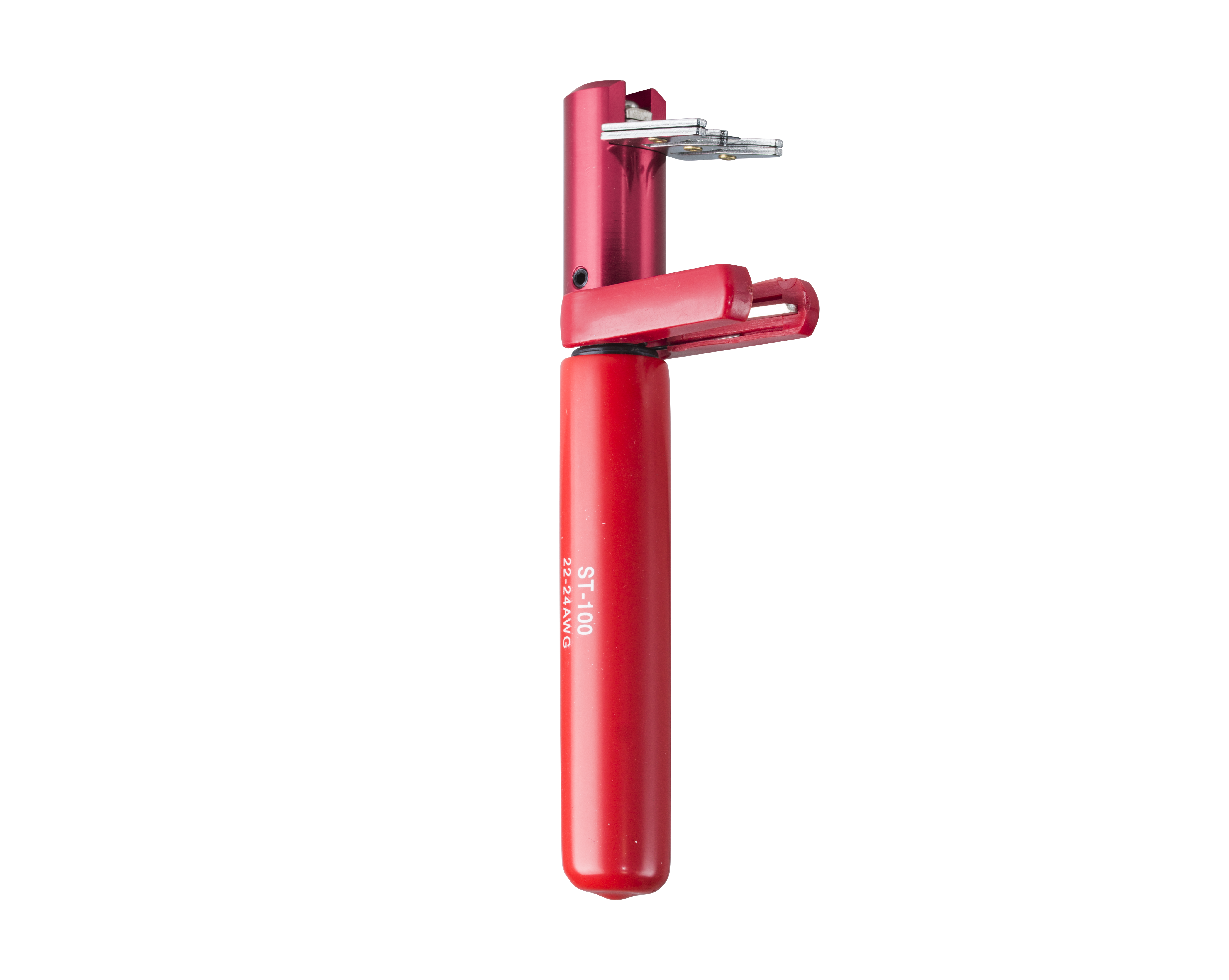

Cut-Strip Tool, 22-24 AWG
PRODUCT FEATURES
Designed to cut and strip off 5/16” to 9/16” length of wire, this cut-strip tool is the perfect tool for cutting and stripping 22-24 AWG (0.65-0.50 mm) wire for wire wrapping purposes. This cut-strip tool features the following:
- Biomechanically designed for maximum work efficiency
- Easy operation: place wire (up to 4 at once) in stripping slot, press the tool, and pull the wire(s)
- Dual tempered spring steel blades ensure clean nick-free cutting on 22 & 24 AWG wire
- Strip length is adjustable from 5/16” to 9/16”
- Replaceable blades can be purchased separately
Strip Gauge
Strip Gauge: 22-24 AWG (0.64 mm-0.51 mm)
Specifications
| Wire Gauge | 22-24 AWG (0.65-0.50 mm) |
|---|---|
| Adjustable Strip-off Length | 1 5/16" to 1 9/16" (33.33 mm to 39.68 mm) |
| Handle Color | Red |
| Product Main Color | Red |
| Dimensions | 6.5 in x 1.9 in x 1.65 in (16.51 cm x 4.83 cm x 4.19 cm) |
| Weight | 0.19 lb (84.444 g) |
| UPC # | 811490010147 |
Specifications
| Wire Gauge | 22-24 AWG (0.65-0.50 mm) |
|---|---|
| Adjustable Strip-off Length | 1 5/16" to 1 9/16" (33.33 mm to 39.68 mm) |
| Handle Color | Red |
| Product Main Color | Red |
| Dimensions | 6.5 in x 1.9 in x 1.65 in (16.51 cm x 4.83 cm x 4.19 cm) |
| Weight | 0.19 lb (84.444 g) |
| UPC # | 811490010147 |
