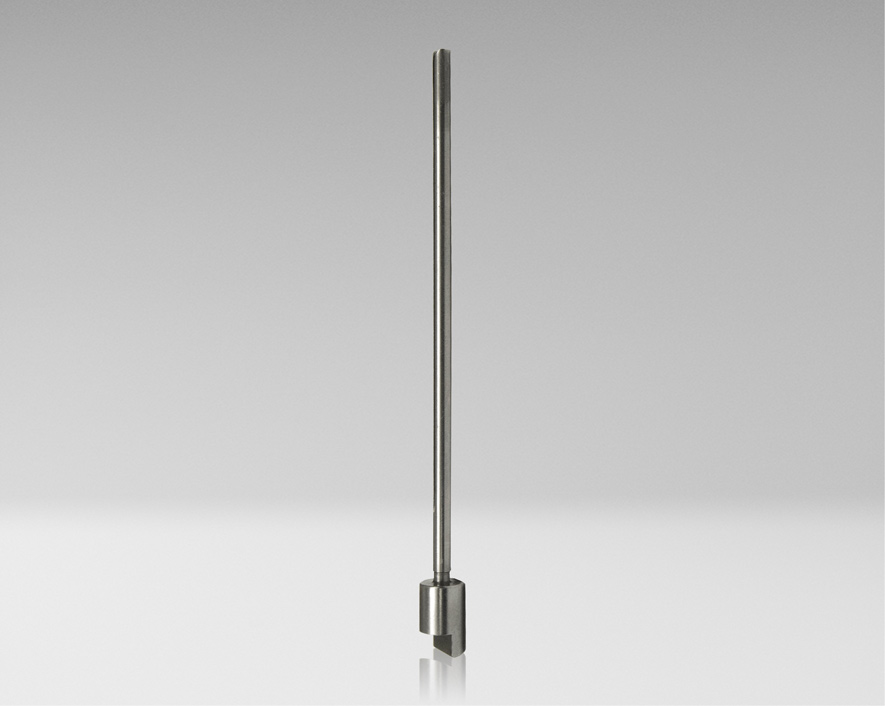

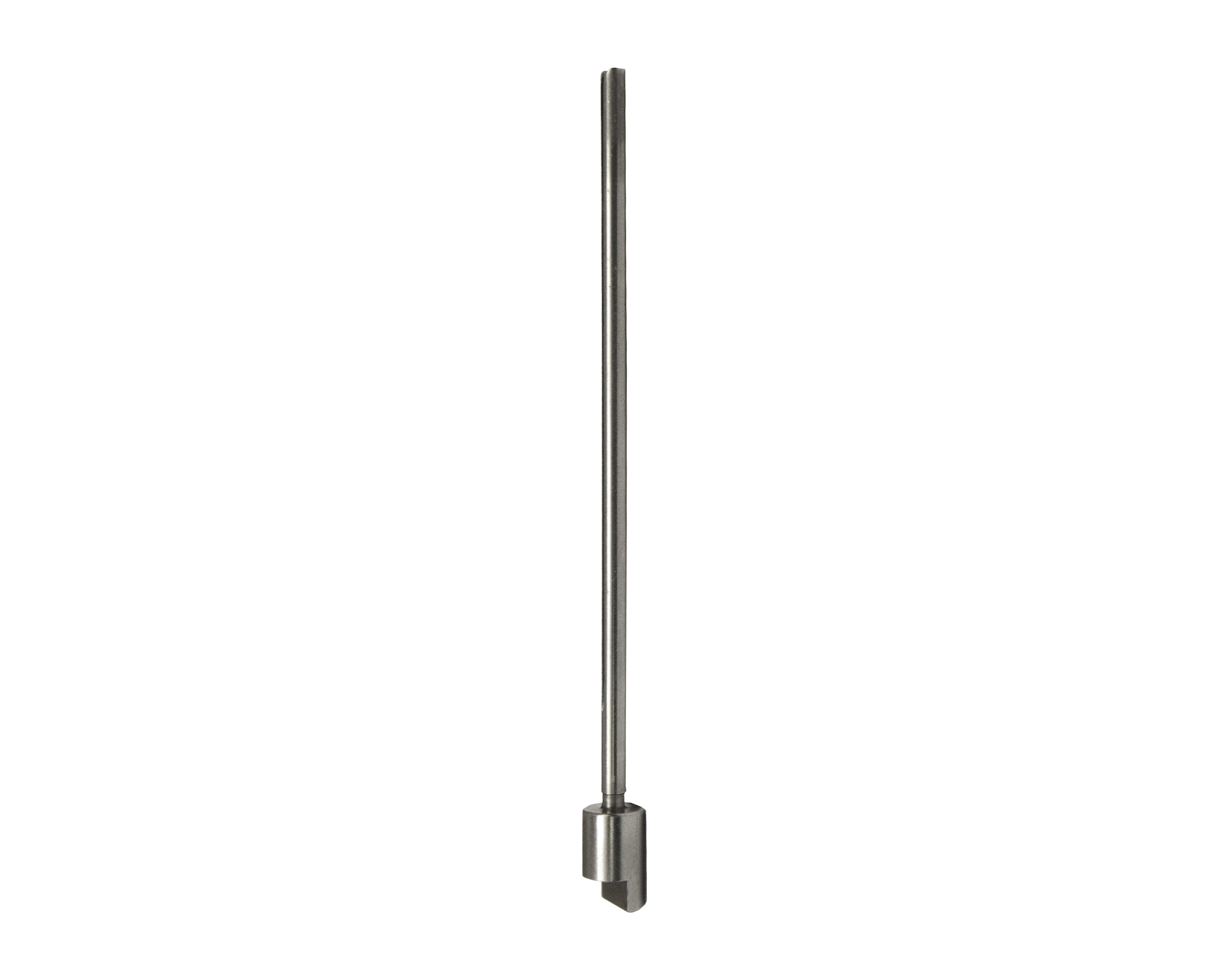

WB26M - Wire Wrapping Bit, 26 AWG

Wire Wrapping Bit, 26 AWG

WB26M Copy ID to clipboard

Discontinued

PRODUCT FEATURES

Discontinued

Fully compatible with any make or model wire wrapping tool. Gauge Size: 26 AWG. Wrap Type: Modified. Max Insulation Diameter: 0.046". Minimum Terminal Diagonal: 0.054". Max Terminal Diagonal: 0.073". Terminal Hole Depth: 1". Effective Radius: 0.118". Terminal Hole Diameter: 0.075"

Compatible Wrap Sleeve Part #: P2224

Find Local Retailer
Register Product
Specs

Wrap|Modified|26 AWG (0.40 mm)|0.046" (1.17 mm)|0.054" (1.37 mm)|0.073" (1.85 mm)|1" (25.4 mm)|0.075" (1.9 mm)|0.118" (2.99 mm)|0.045" (1.14 mm)|Provides 1.5 to 2 turns of insulation|P2224 and P2224INS (sold separately)|3" (76.2 mm)
Dimensions 0 in x 0 in x 0 in (0 cm x 0 cm x 0 cm)
Weight 0 lb (0 g)
UPC # 811490013483
