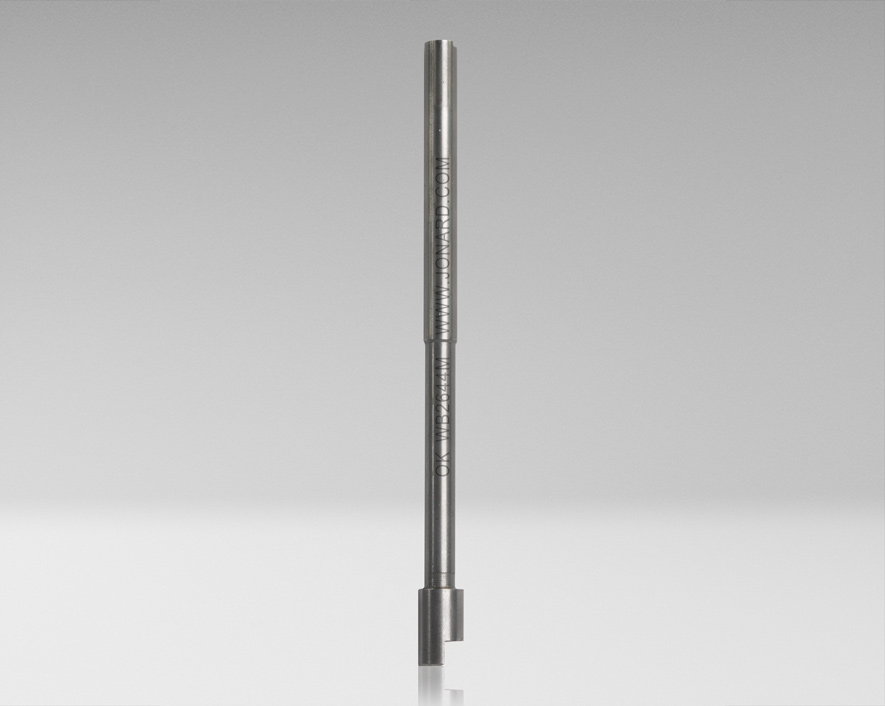

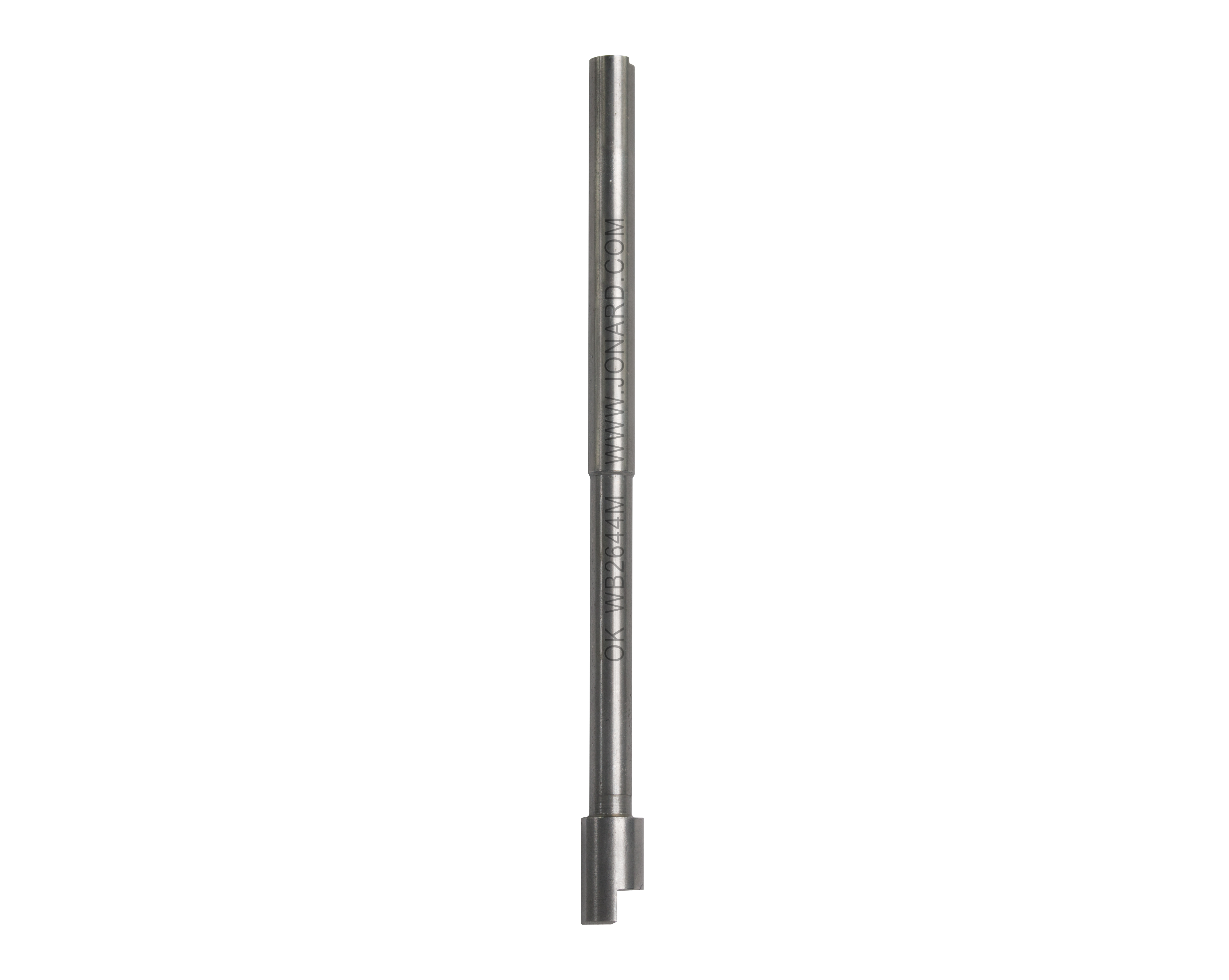

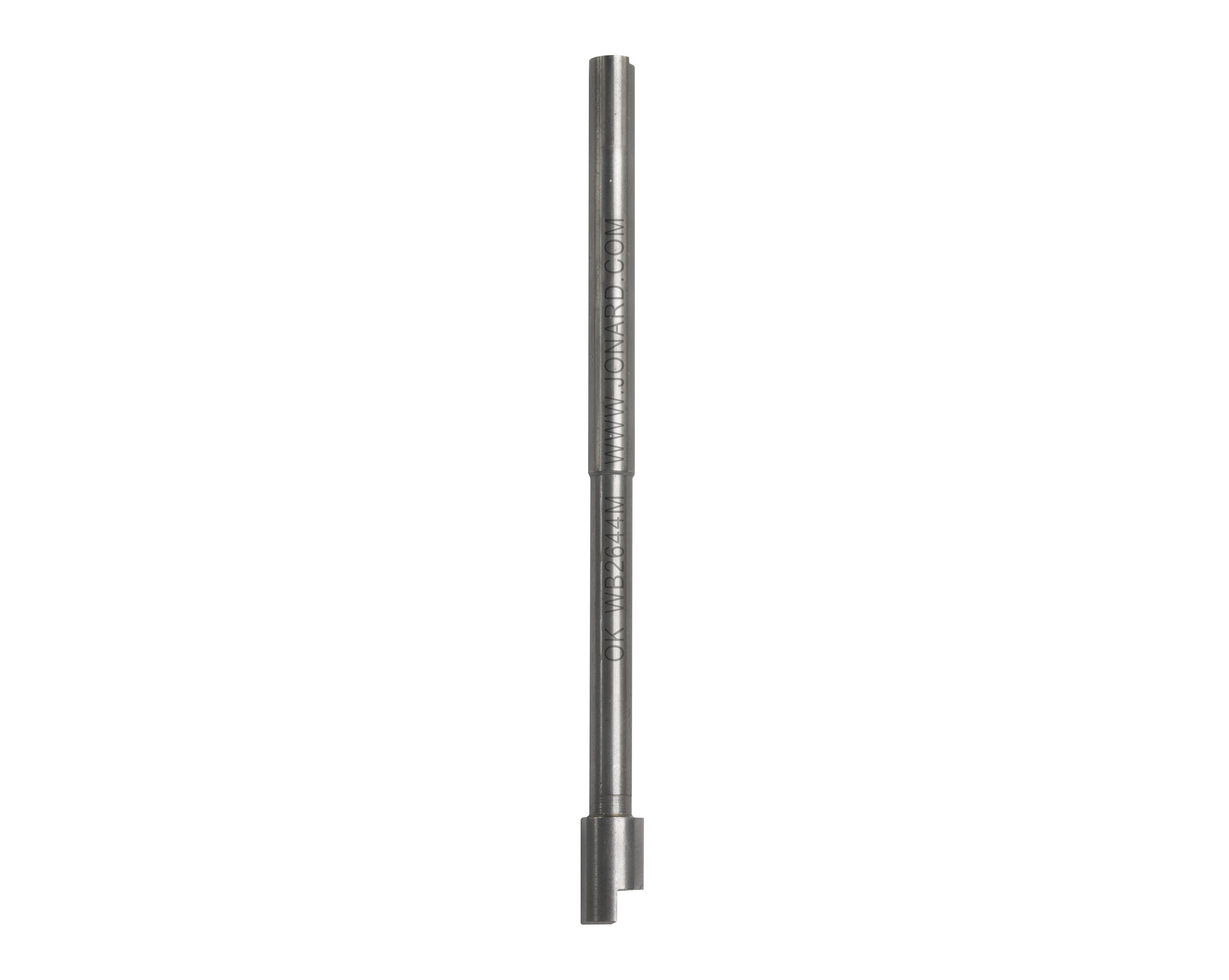

Wire Wrapping Bit, 26 AWG
WB2644M Copy ID to clipboard
PRODUCT FEATURES
Fully compatible with any make or model wire wrapping tool. Gauge Size: 26 AWG. Wrap Type: Modified. Max Insulation Diameter: 0.046". Minimum Terminal Diagonal: 0.024". Max Terminal Diagonal: 0.043". Terminal Hole Depth: 0.75". Effective Radius: 0.098". Terminal Hole Diameter: 0.044". This tool is recommended for 0.025" square terminals on 0.100" center to center of the pins. Compatible Sleeve Part #: P3032LN
Replacements
Replacements
Specifications
| Wrap | Modified |
|---|---|
| Specs | 26 AWG (0.40 mm)|0.046" (1.17mm)|0.024" (0.6 mm)|0.043" (1.09 mm)|0.75" (19.05 mm)|0.044" (1.11 mm)|0.098" (2.48 mm)|0.045" (1.14 mm)|Provides 1.5 to 2 turns of insulation|P3032LN (Sold Separately)|3" (76.2mm)|0.051 lb (23.13 g) |
| Dimensions | 0 in x 0 in x 0 in (0 cm x 0 cm x 0 cm) |
| Weight | 0 lb (0 g) |
| UPC # | 811490013513 |
