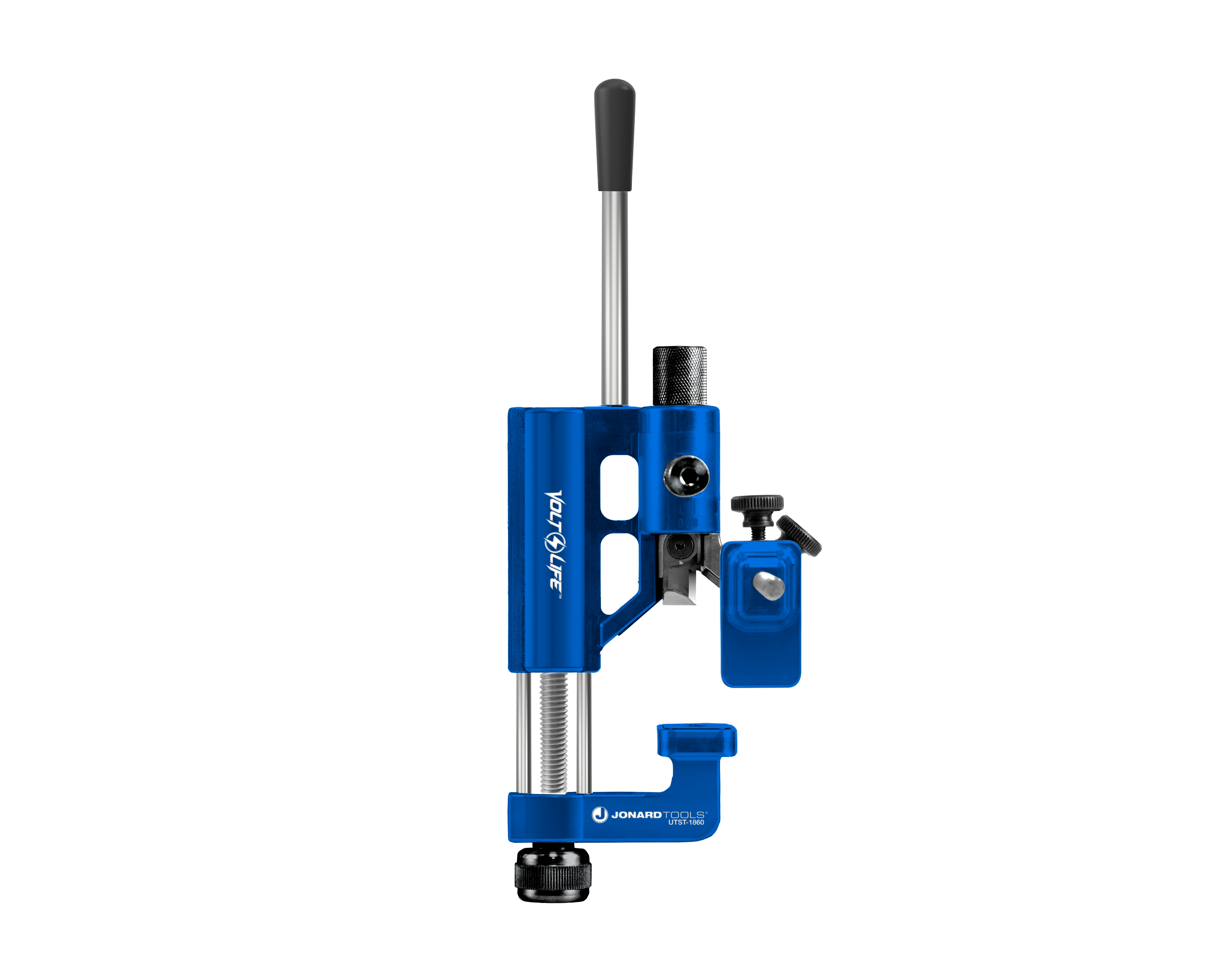

600V-35kV Utility Cable Jacket and Insulation Stripper, 0.5" - 2.5"
UTST-1860 Copy ID to clipboard
Buy OnlinePRODUCT FEATURES
The UTST-1860 is the ultimate adjustable stripping solution for utility professionals, engineered with precision, durability, and safety at its core. Designed for both mid-span and end stripping on primary and secondary utility cables, this tool eliminates guesswork, increases efficiency, and replaces outdated methods with confidence.
- Adjustable cable grip base and blade depth for a wide cable range from 0.5” to 2.5” diameter, tackling jacket and insulation removal on cables rated from 600V up to 35kV.
- Strips PVC, PE, and HDPE jackets and PE, XLPE insulation with ease.
- User-friendly blade angle knob toggles between 0° for radial cuts,10° for small spiral, and 20° large spiral cuts.
- Removable handle for customized operation in tight, hard-to-reach spaces.
- Included strip stop rod allows you to set the strip length easily.
- Reduced tool body weight minimizes fatigue and bending of cables during stripping.
- Includes: Utility Cable Jacket and Insulation Stripper, Removable Handle, Removable Strip Stop Bar, and Hard Case.
- Lifetime Warranty
Specifications
| Cable Compatibility | Primary Distribution Overhead & Underground, Secondary Distribution, Tree Wire, Spacer Cables |
|---|---|
| Cable Voltage Range | 600V - 35 kV |
| Compatible Material | Jacket: PVC, PE, and HDPE Insulation: PE, XLPE |
| Cable Diameter | 0.5" - 2.5" (12.7 mm - 63.5 mm) |
| Insulation Thickness | 0.06" - 0.42" (1.52 mm - 10.60 mm) |
| Blade Depth | Adjustable: 0.0” - 0.51” (0 mm - 13 mm) |
| Cable Access | Mid-Span, End |
| Removal Method | Radial, Spiral |
| Blade Angle | 0° (Ring/Radial) / 10° (Small Spiral) / 20° (Large Spiral) |
| Material | Aluminum |
| Dimensions | 10.5" x 4.75" x 2.6" (26.67 cm x 12.07 cm x 6.6 cm) |
| Weight | 2.5 lb (1135 g) |
| UPC # | 810132439537 |
