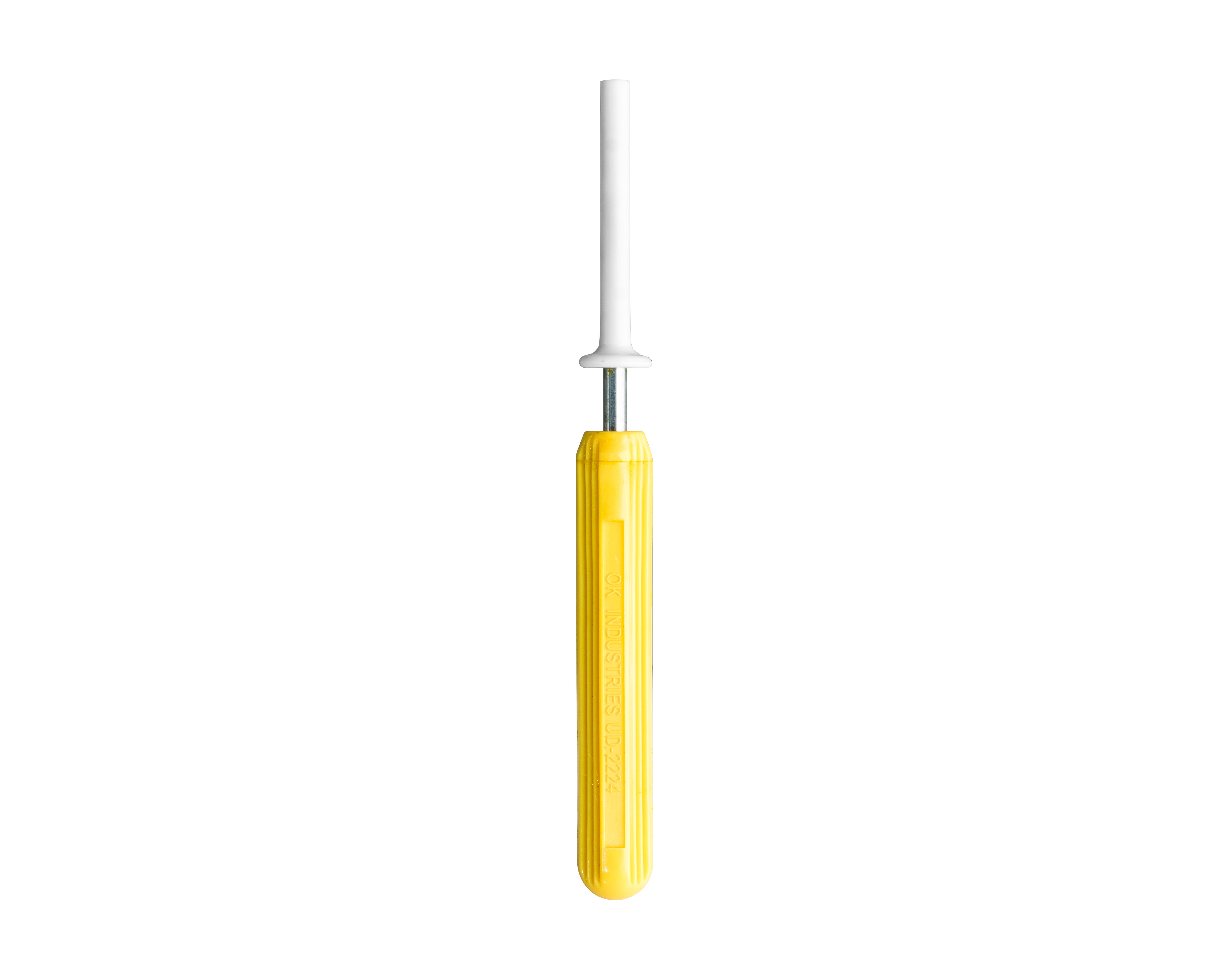

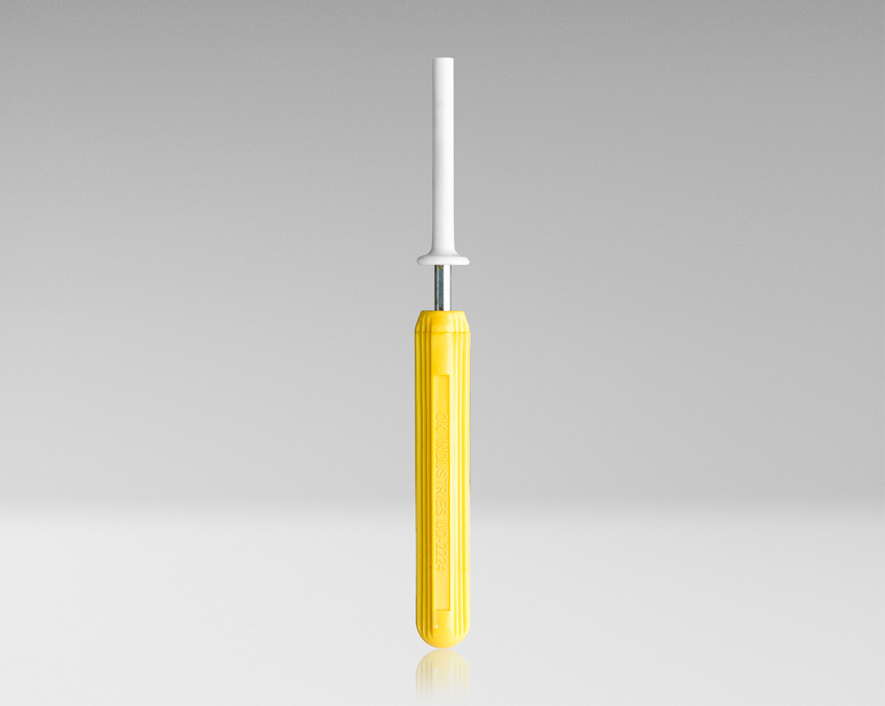

UD-2224 - Sleeved Unwrapping Tool, 20-26 AWG

Sleeved Unwrapping Tool, 20-26 AWG

UD-2224 Copy ID to clipboard

Save to Toolbox

PRODUCT FEATURES

Designed to unwrap wire on binding posts in the left-hand or right-hand direction, this sleeved hand wrap tool is perfect for unwrapping 20-26 AWG (0.81 mm-0.40 mm) wire quickly and easily. This unwrap tool features the following:

  • Funnel-shaped spring-loaded retractable sleeve has special internal threads to keep unwrapped wire coiled and prevent shorts
  • Simple two step operation: Push the tool onto a wrapped wire then pull back shield to remove the wire
  • Unwraps wire in the left-hand or right-hand direction
  • Molded sleeve and stainless steel shaft for long-life and durability
Find Local Retailer
Register Product
Unwrap Wire Gauge

20-26 AWG (0.81 mm-0.40 mm)
Unwrap Direction

Left-hand, right-hand
Terminal Hole Diameter

0.070" (1.77 mm)
Terminal Hole Depth

2.36" (60 mm)
Outside Diameter

1.95" (4.95 mm)
Wrap Post Size

0.045" (1.14 mm)
Handle Color

Yellow
Dimensions 5.5 in x 0.51 in x 0.5 in (13.96 cm x 1.3 cm x 1.28 cm)
Weight 0.04 lb (16.344 g)
UPC # 811490010604
