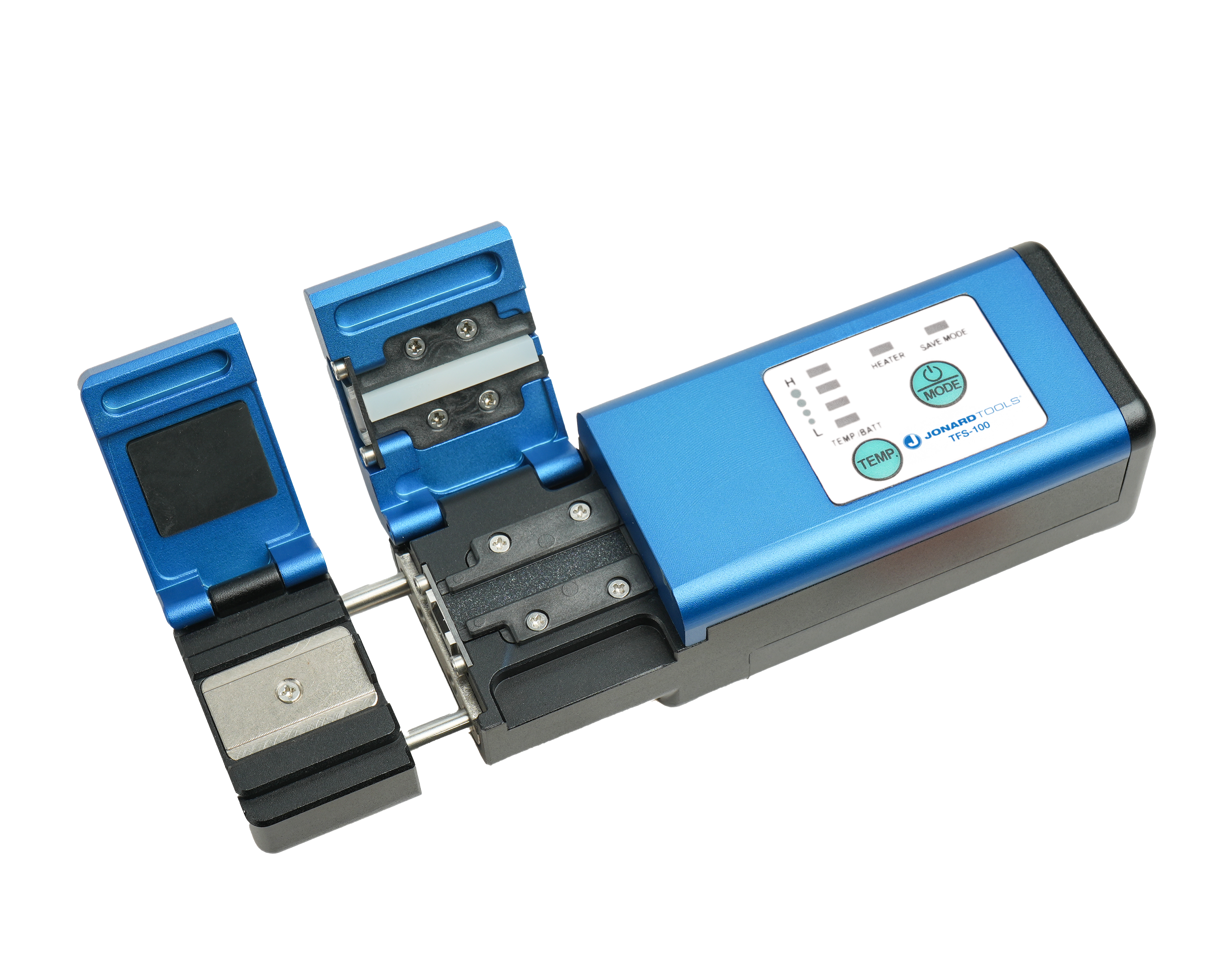

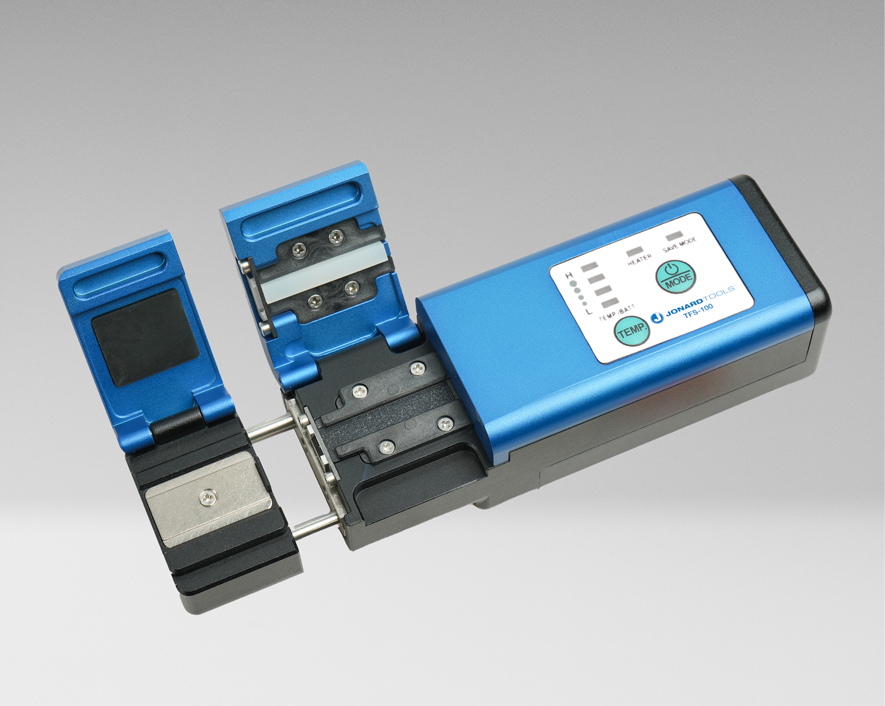

Handheld Thermal Stripper for Ribbon or Simplex Fiber

PRODUCT FEATURES

The Jonard Tools TFS-100 portable wireless thermal stripper is designed to strip the jacket off single fiber and up to 12-strand ribbon fiber cable. With an outstanding heating time of 4 seconds, and a rugged aluminum housing, this is the perfect thermal stripper for on-the-go use. This thermal stripper also features the following:

  • Strips simplex and ribbon fiber cable (2 - 12 strand) quickly and cleanly every time
  • Rapidly heats to the maximum temperature in 4 seconds, with 4 levels of temperature levels
  • Optional power saving mode
  • Compatible with most fiber holders, including Fujikura's field and factory style holders
  • Can strip more than 300 times before needing to be recharged
  • Rugged aluminum housing protects for long life and durability



Requires Fiber Holder for use, not included

Learn more about product features Show less

Specifications

Fiber Types

Single fiber, Ribbon fiber

Coating Material

UV curable resin

Single Core Coating Diameter

0.25 mm - 0.4 mm

Ribbon Fiber Coating Diameter

0.3 mm - 0.4 mm

Cladding Diameter

125 µm

Max. Coating Strip Length

1.18" (30 mm)

Typical Heating Time

4 - 5 seconds

Battery Capacity

800 mAh Li-battery (300+ cycles)

Dimensions 5.75 in x 1.72 in x 1.38 in (14.61 cm x 4.37 cm x 3.51 cm)
Weight 0.88 lb (399.52 g)
UPC # 810132435355
