Replacement Blade for CSS-596
CSS-105 Copy ID to clipboard
Buy OnlineStrip Length (Braid / Center Conductor)
Model: 1/4" / 5/16"
PRODUCT FEATURES

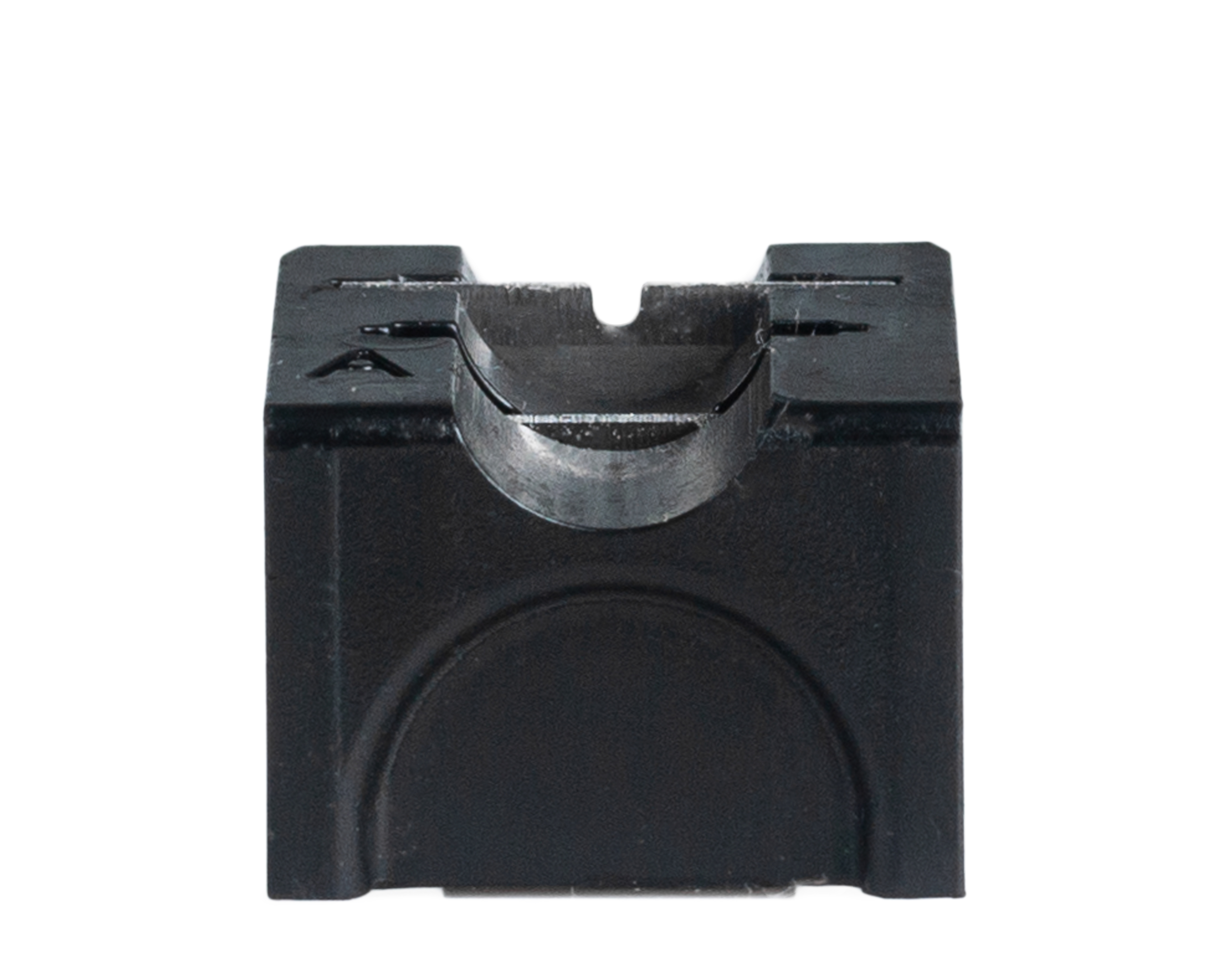

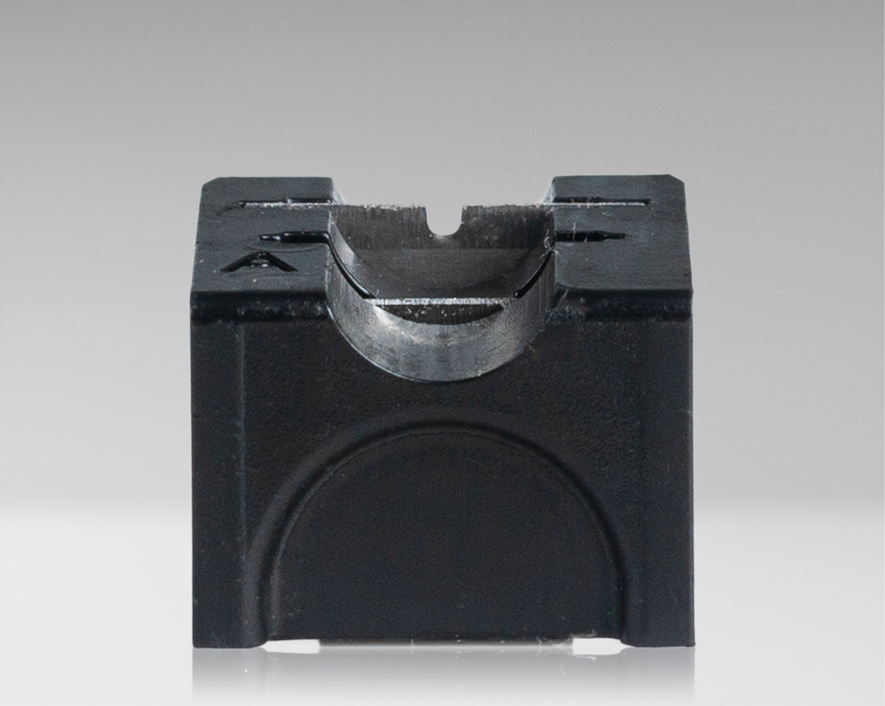

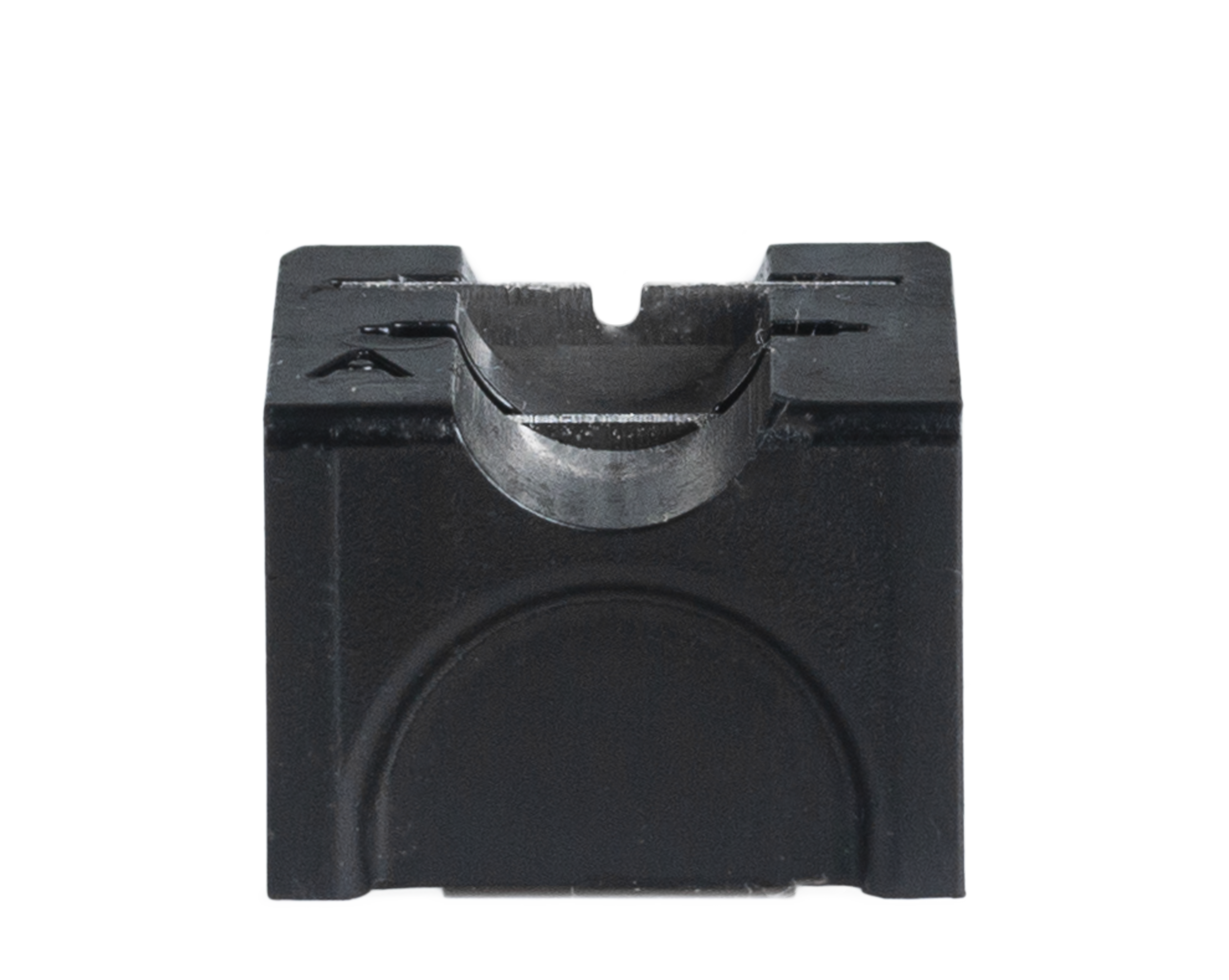

The Replacement Blade Cartridge is for the COAX Stub End Cable Stripper (CSS-596). This cartridge features the following:
- Provides a 2-level strip for RG59 & RG6 cables, exposing 1/4” of braid and 5/16” of center conductor
- Will not cut or damage the braid or score the center conductor
- High carbon steel blades last for over 5,000 strips on each side
- Compatible with all of our CSS tools (COAX Stub End Strippers)
Specifications
| Cable Type | COAX |
|---|---|
| Cable Size | RG59 and RG6 |
| Cable Diameter | 6-7 mm |
| Strip Length | Jacket: 0.25" (6.35 mm), Shield & Dielectric: 0.3125" (7.9375 mm) |
| Dimensions | 0.92 in x 0.67 in x 0.58 in (2.34 cm x 1.7 cm x 1.47 cm) |
| Weight | 0.01 lb (3.632 g) |
| UPC # | 811490017443 |
