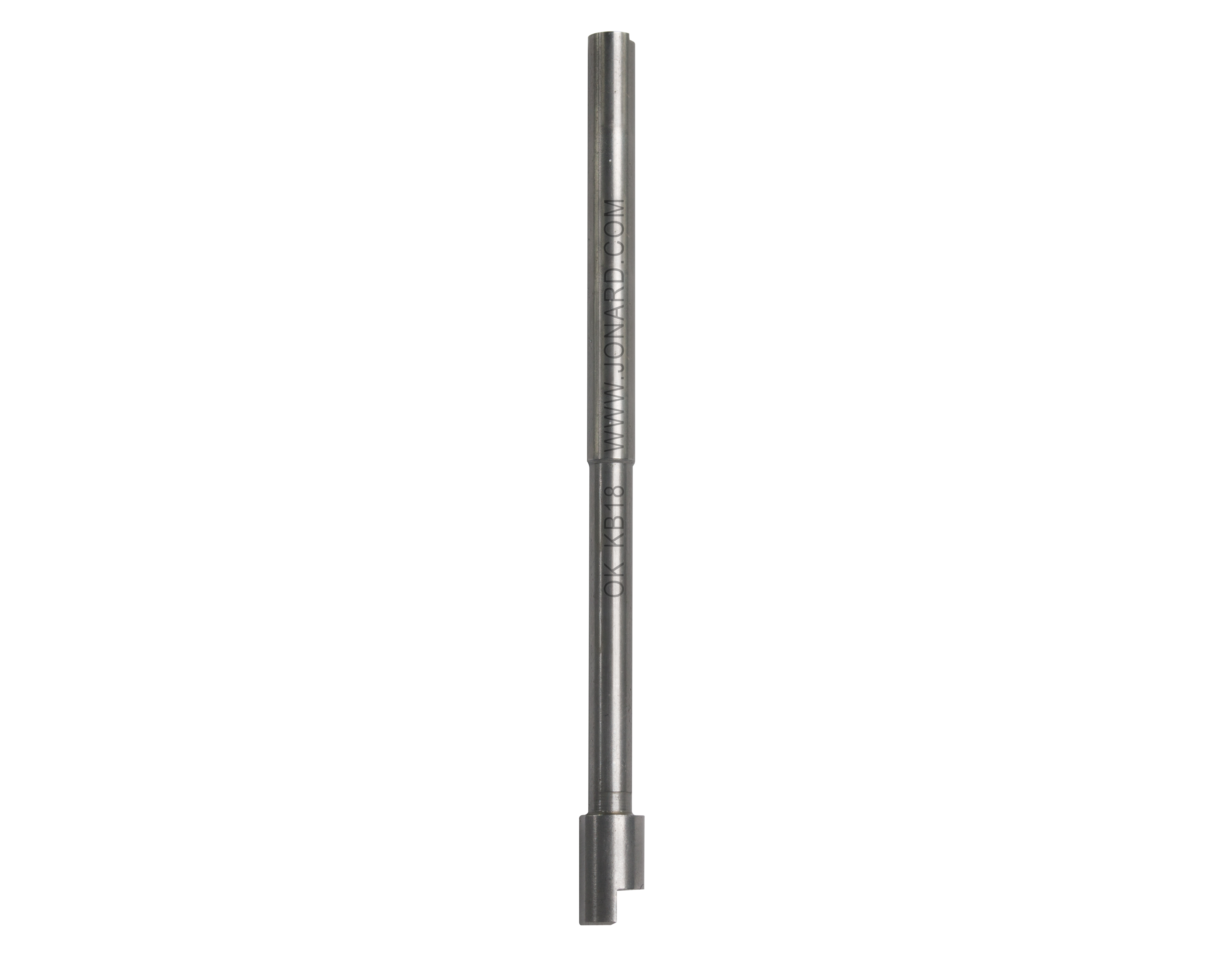

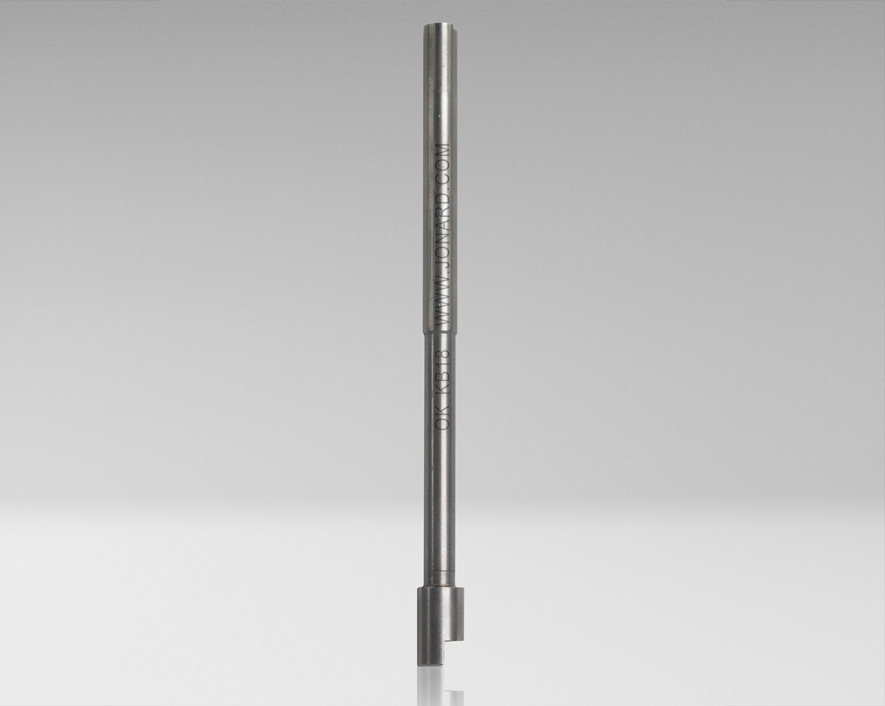

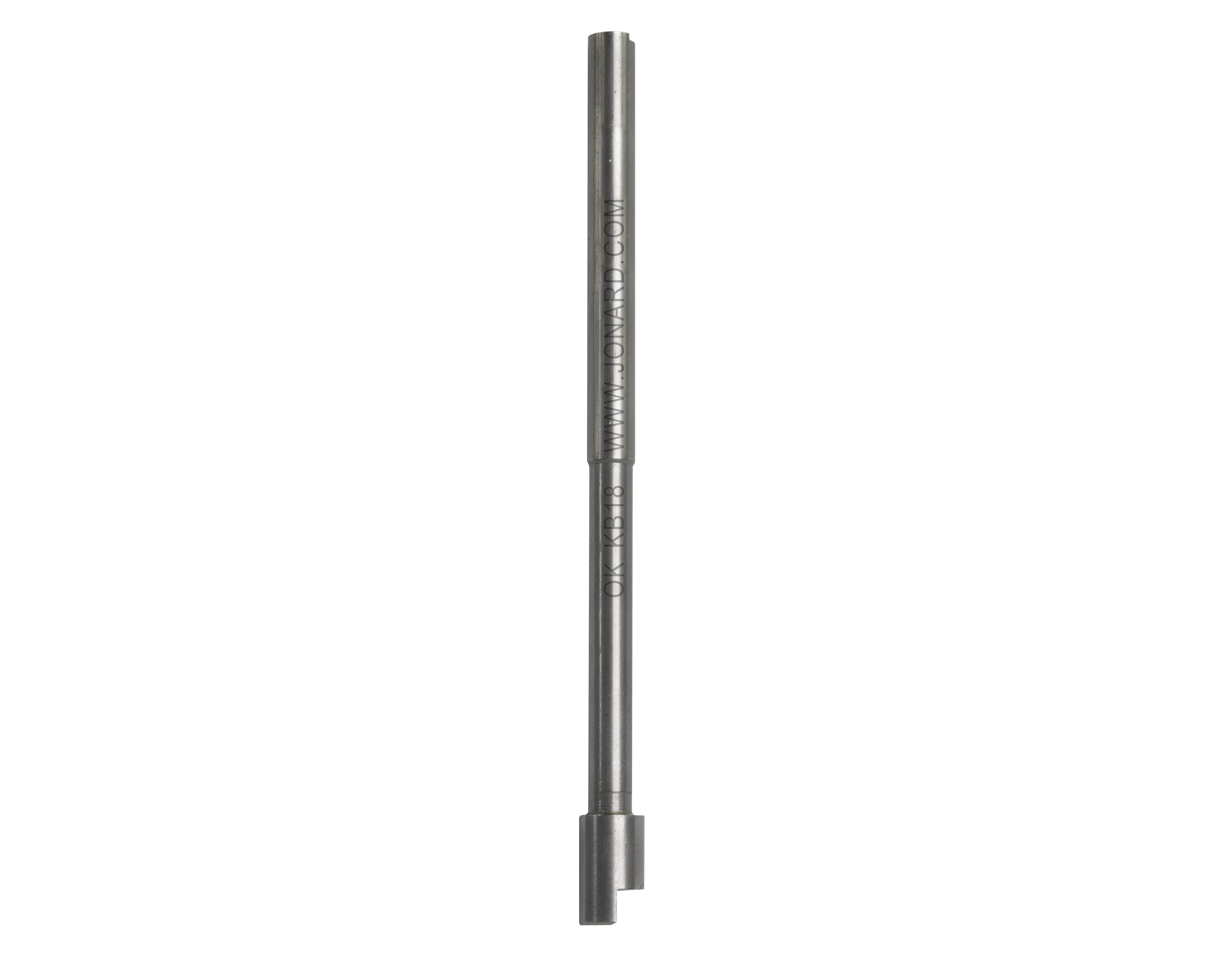

Wire Wrapping Bit, 18 AWG
KB18 Copy ID to clipboard
Buy OnlineWire Gauge
Wire Gauge: 18 AWG (1.02 mm)
Terminal Hole Diameter
Terminal Hole Diameter: 0.075" (1.9 mm)
Terminal Hole Depth
Terminal Hole Depth: 1" (25.4 mm)
PRODUCT FEATURES
Fully compatible with any make or model of wire wrapping tools, this 3" wire wrapping bit is perfect for wrapping 18 AWG wire around binding posts when used in conjunction with a wire wrapping tool.
Compatible Wrap Sleeve Part No.: P194LN
Replacements
Replacements
Specifications
| Sleeve Part No. | P194LN (sold separately) |
|---|---|
| Wrap Function | Wrap |
| Wrap Type | Regular |
| Wire Gauge | 18 AWG (1 mm) |
| Minimum Terminal Diagonal | 0.060" (1.52 mm) |
| Maximum Terminal Diagonal | 0.073" (1.85 mm) |
| Terminal Hole Diameter | 0.075" (1.9 mm) |
| Terminal Hole Depth | 1" (25.4 mm) |
| Effective Radius | 0.15" (3.81 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Dimensions | 3.13 in x 0.23 in x 0.23 in (7.94 cm x 0.59 cm x 0.59 cm) |
| Weight | 0.02 lb (9.08 g) |
| UPC # | 811490013445 |
