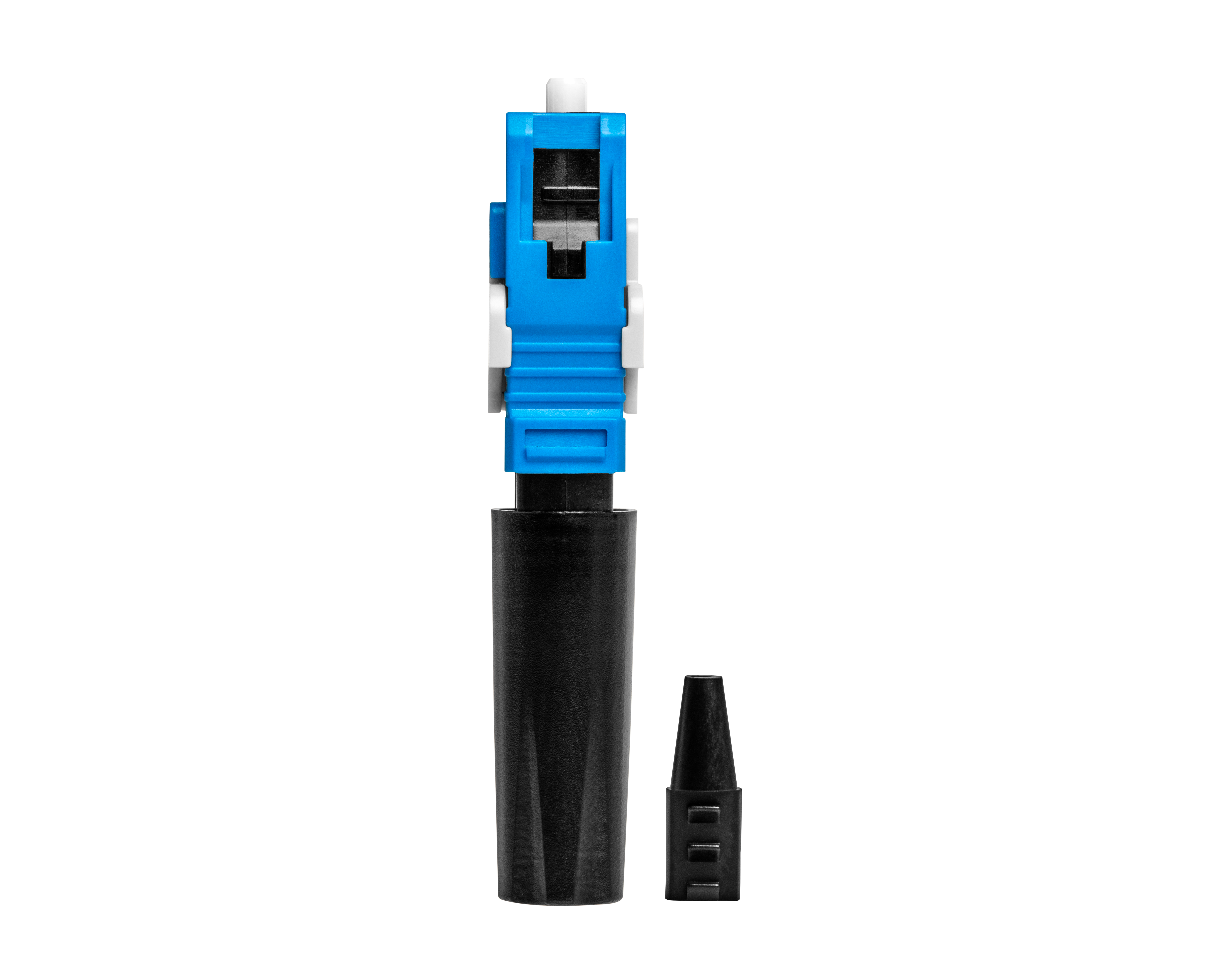

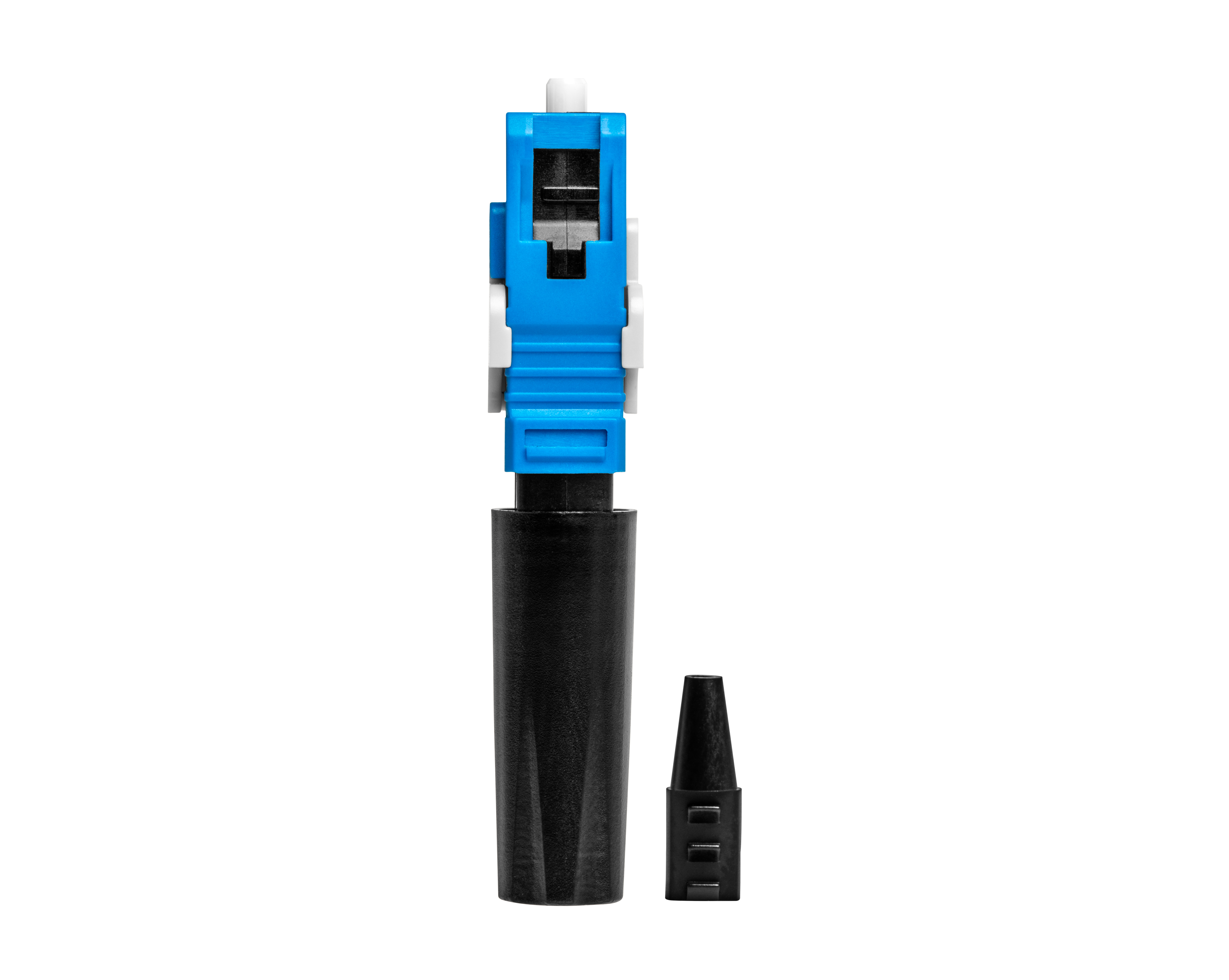

SPARC™ Rapid Linc Mechanical Connector, SC/UPC, Pack of 10
SRL-SCU/10 Copy ID to clipboard
Buy OnlinePRODUCT FEATURES
Jonard Tools' Mechanical Connectors for fiber optic cables provide a reliable and efficient solution for connectorizing 250 µm and 900 µm coated fibers. These connectors are ideal for quick field installations, offering a simple, tool-free setup that saves time and enhances productivity. These connectors also feature the following:
- SC/UPC polish for excellent performance and minimal signal loss
- Works with both 250 µm and 900 µm coated fiber cables
- Easy to use with no special tools required, making it ideal for quick fieldwork
- Built to withstand demanding environments, ensuring long-lasting reliability
- INCLUDES: (10) SC/UPC mechanical connectors
Specifications
| Connector Type | SC |
|---|---|
| Polish Type | UPC (Singlemode) |
| Fiber Type | Singlemode |
| Cable Types | 900 μm & 250 μm |
| Insertion Loss | AVG≤0.3dB MAX≤0.5dB |
| Return Loss | UPC≥50dB |
| Operating Temperature | -40/+85℃ |
| Standards | TIA/EIA 604-3 |
| Dimensions | 2" x 0.35" x 0.43" (5.08 cm x 0.89 cm x 1.09 cm) |
| Weight | 0.1 lb (45.4 g) |
| UPC # | 810132438516 |
| Connector Type | SC |
|---|---|
| Polish Type | UPC (Singlemode) |
| Fiber Type | Singlemode |
| Cable Types | 900 μm & 250 μm |
| Insertion Loss | AVG≤0.3dB MAX≤0.5dB |
| Return Loss | UPC≥50dB |
| Operating Temperature | -40/+85℃ |
| Standards | TIA/EIA 604-3 |
| Dimensions | 2" x 0.35" x 0.43" (5.08 cm x 0.89 cm x 1.09 cm) |
| Weight | 0.1 lb (45.4 g) |
| UPC # | 810132438516 |
