SPRI-1 Copy ID to clipboard

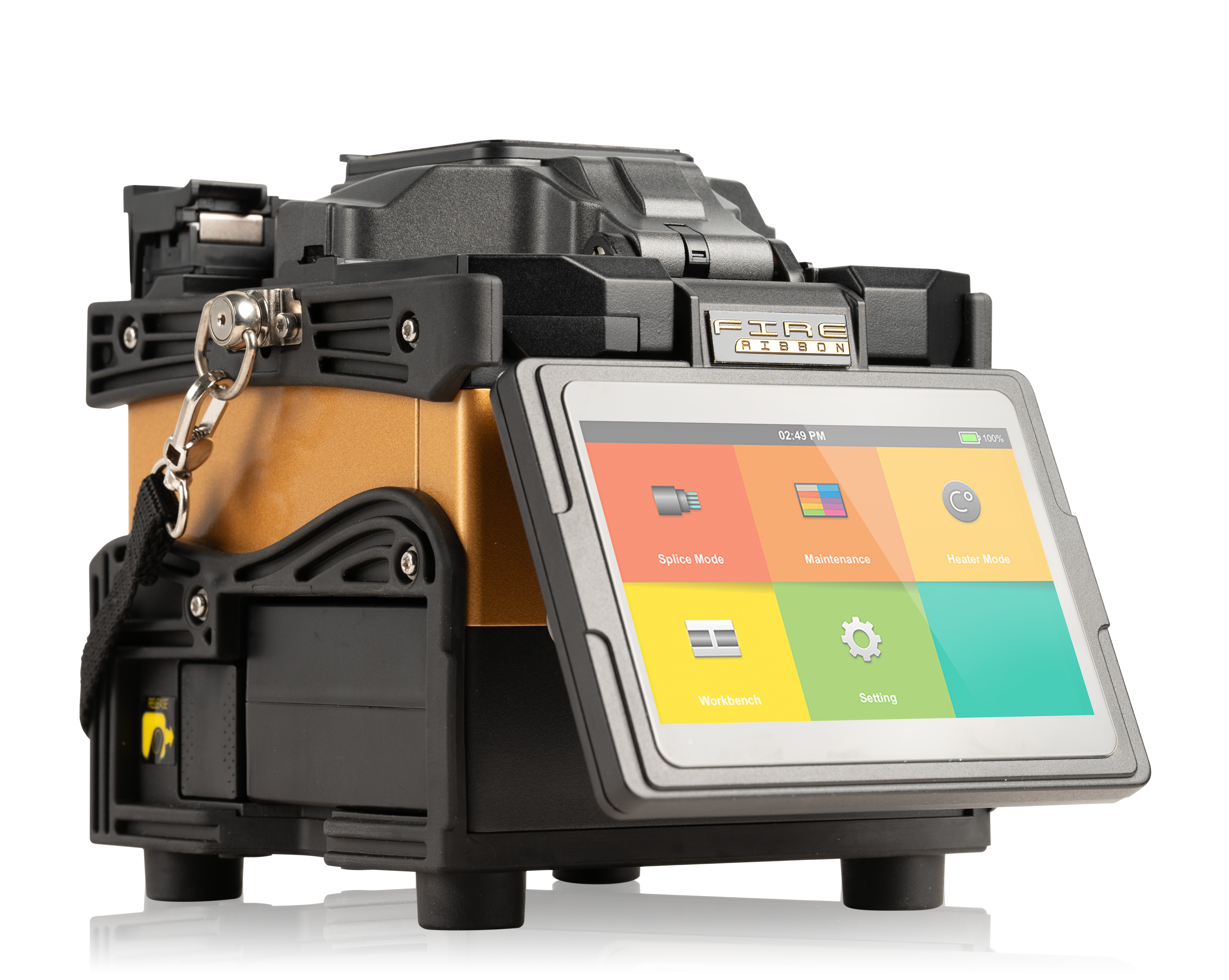

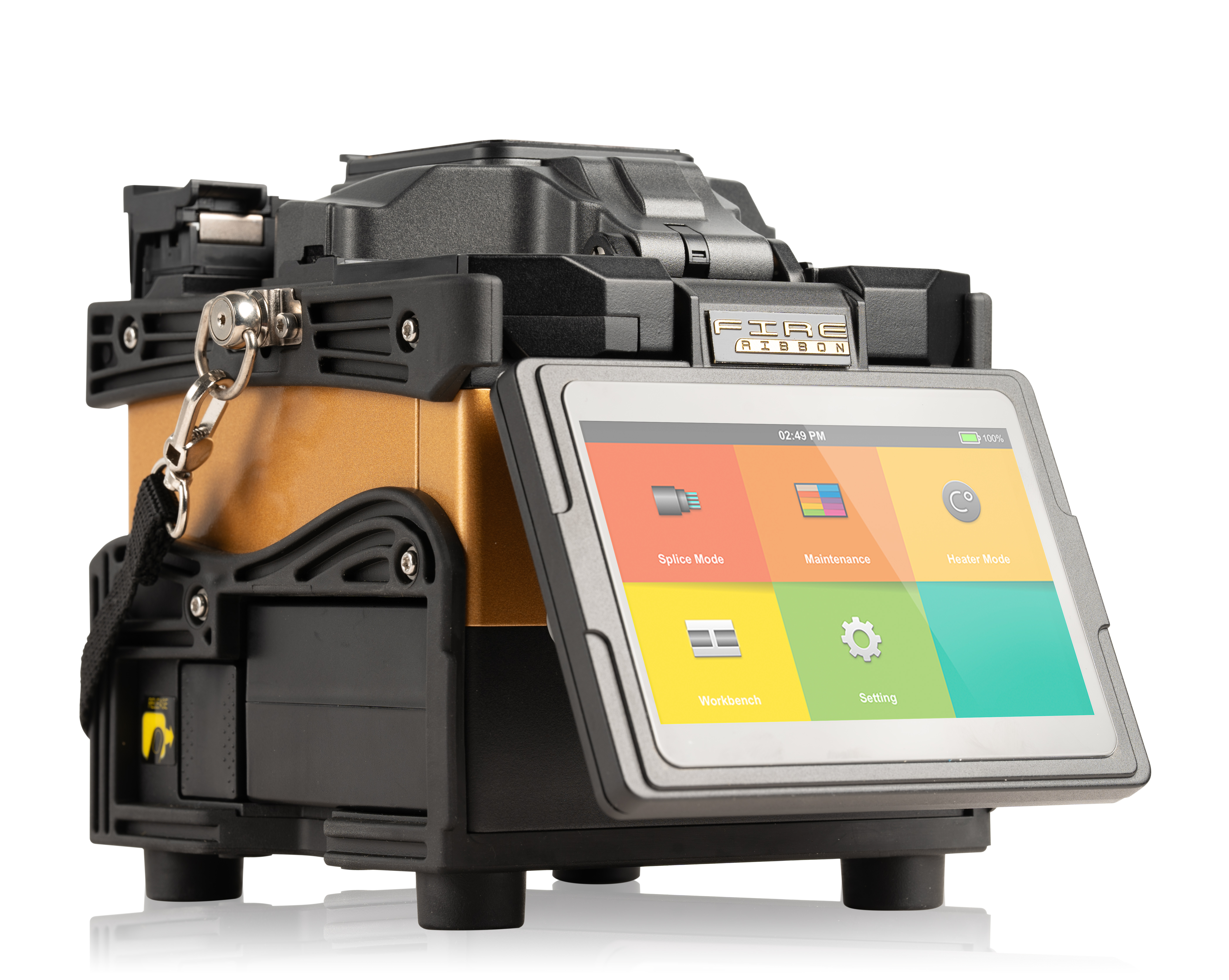

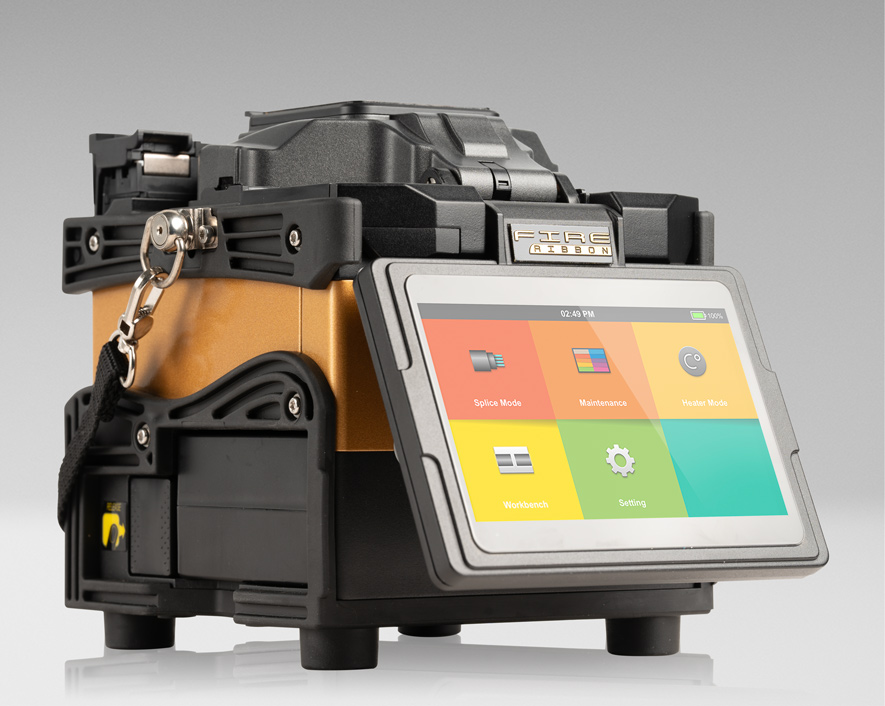

SPARC Fusion Splicer, Ribbon Fiber
PRODUCT FEATURES
Coming Soon!
The SPARC core Alignment Fusion Splicer is an advanced Ribbon Fiber Fusion Splicer. It ensures impeccable fiber splicing precision, reliability, and efficiency. Engineered for fiber optic professionals, it combines rapid splicing times with cutting-edge features, offering a seamless and dependable splicing experience even in challenging environments.
- Splices fiber optic cables in as little as 15 seconds for ribbon fiber or 9 seconds for single fibers
- Pressure Heater Technology reduces heating time to only 20 seconds
- Versatile fiber holders to easily switch between different sizes of ribbon fibers
- Improved lighting for higher visibility in dark settings
- Intuitive full touch screen for enhanced user experience
- 9000 mAh battery provides up to 220 cycles (splicing and heating) on one charge
- Rugged design with water resistance (IPx2), shock resistance (drop tested from 30"), and dust resistance (IP5X)
- On-board memory stores up to 5,000 test results
Kit includes
FSP-RI
|
SPARC Fusion Splicer, Ribbon Fiber |
| FC-800
|
SPARC Fiber Cleaver |
| FH-SOC
|
SPARC SOC Holder |
| HH-SOCR
|
SPARC SOC Heater Holder for Ribbon Fiber |
| ADP-65JH
|
SPARC AC Adapter |
| FSP-E50
|
SPARC Electrodes (1 Spare) |
| ADP-PC
|
SPARC Power Cable |
| H-2000
|
SPARC Carrying Case |
| FSP-STP
|
SPARC Shoulder Strap |
| FSP-CTR
|
SPARC Cooling Tray |
| FSP-B30
|
SPARC Battery Pack |
Kit Includes
Kit includes
| FSP-RI
|
SPARC Fusion Splicer, Ribbon Fiber |
| FC-800
|
SPARC Fiber Cleaver |
| FH-SOC
|
SPARC SOC Holder |
| HH-SOCR
|
SPARC SOC Heater Holder for Ribbon Fiber |
| ADP-65JH
|
SPARC AC Adapter |
| FSP-E50
|
SPARC Electrodes (1 Spare) |
| ADP-PC
|
SPARC Power Cable |
| H-2000
|
SPARC Carrying Case |
| FSP-STP
|
SPARC Shoulder Strap |
| FSP-CTR
|
SPARC Cooling Tray |
| FSP-B30
|
SPARC Battery Pack |
Specifications
| Alignment Method | Clamp Alignment System |
|---|---|
| Number of Fibers | 1, 2, 4, 6, 8, 10, 12 |
| Applicable Fibers | SM (ITU-T G.652& T G.657) / MM (ITU-T G.651) / DS (ITU- T G.653) / NZDS (ITU-T G.655) |
| Compatible Fiber | Ribbon : 0.25~0.4 mm / Single: 250 μm & 900 μm |
| Cladding Diameter | 125 µm |
| Cleave Length | 10 - 13 mm |
| Typical Splice Loss | SM: 0.05 dB / MM: 0.02dB / DS: 0.08dB / NZDS: 0.08dB (ITU-T standard) |
| Return Loss | >>60 dB |
| Splice Time | Ribbon fiber: 15 sec / Single fiber: 9 sec |
| Splice Programs | Max 100 modes |
| Automatic Calibration | Automatic Arc Calibration by air pressure & temperature |
| Electrode Life Span | 1500 Arc Discharges |
| Heating Programs | Max 32 modes |
| Heating Time | Typical 20 sec |
| Protection Sleeve Length | 60mm, 50mm, 40mm, Micro |
| Data Output | USB-C |
| Splice Memory | 5,000 results |
| Battery Capacity | 9000m Ah Battery Capacity / Typical 220 times (Splice + Heat) |
| Power Supply | AC Input 100 - 240V, DC Input 9 - 19V |
| Monitor | 5.0" Color LCD display, Full Touch Screen |
| Fiber View & Magnification | X, Y, XY, X/Y : 250X Magnification |
| Pull Test | 1.96 - 2.25 N |
| Dimensions | 6.57" x 5.62" x 6.41" (16.7 cm x 14.3 cm x 16.3 cm) |
| Weight | 5.82 lb |
