SPD-MC3 Copy ID to clipboard

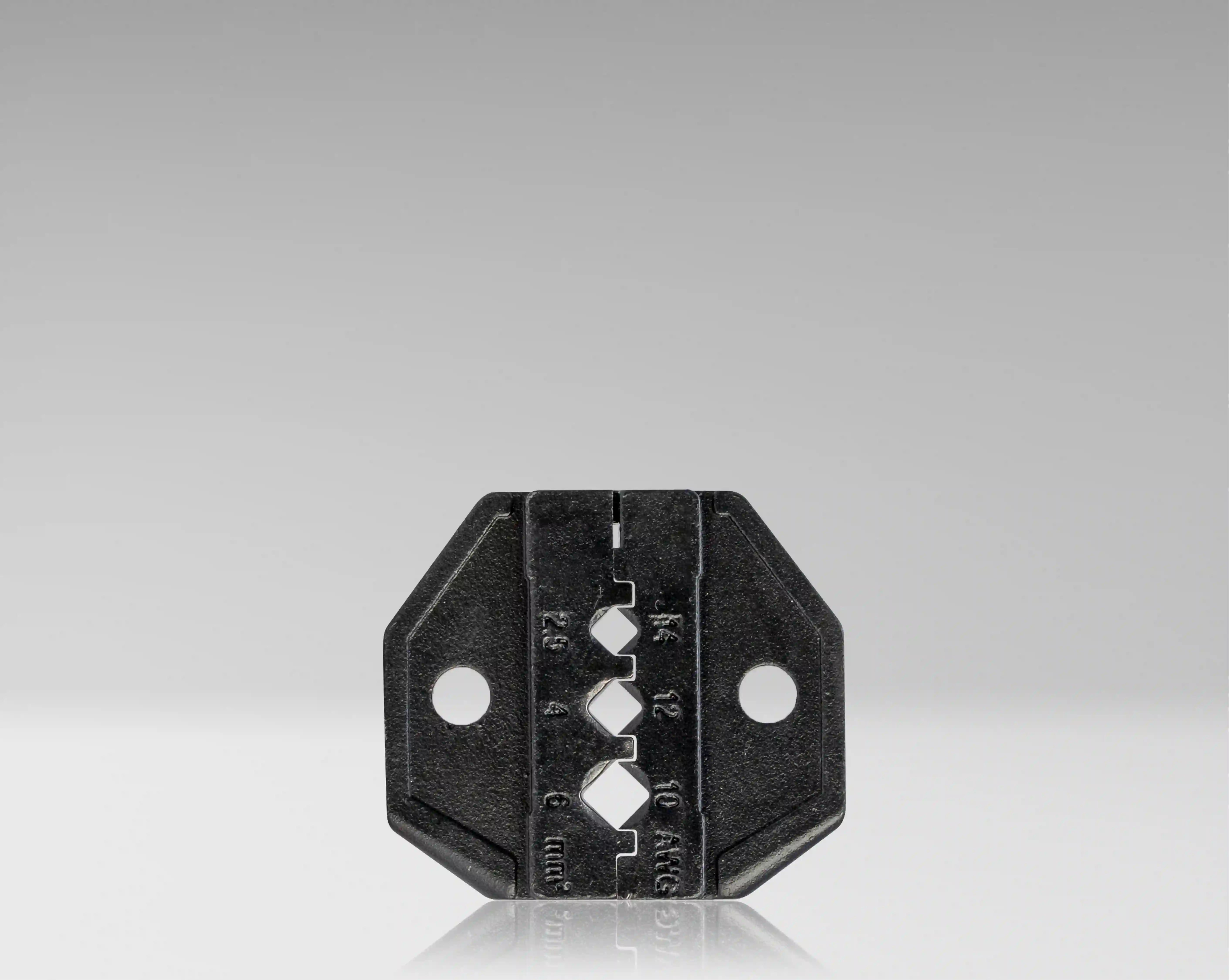

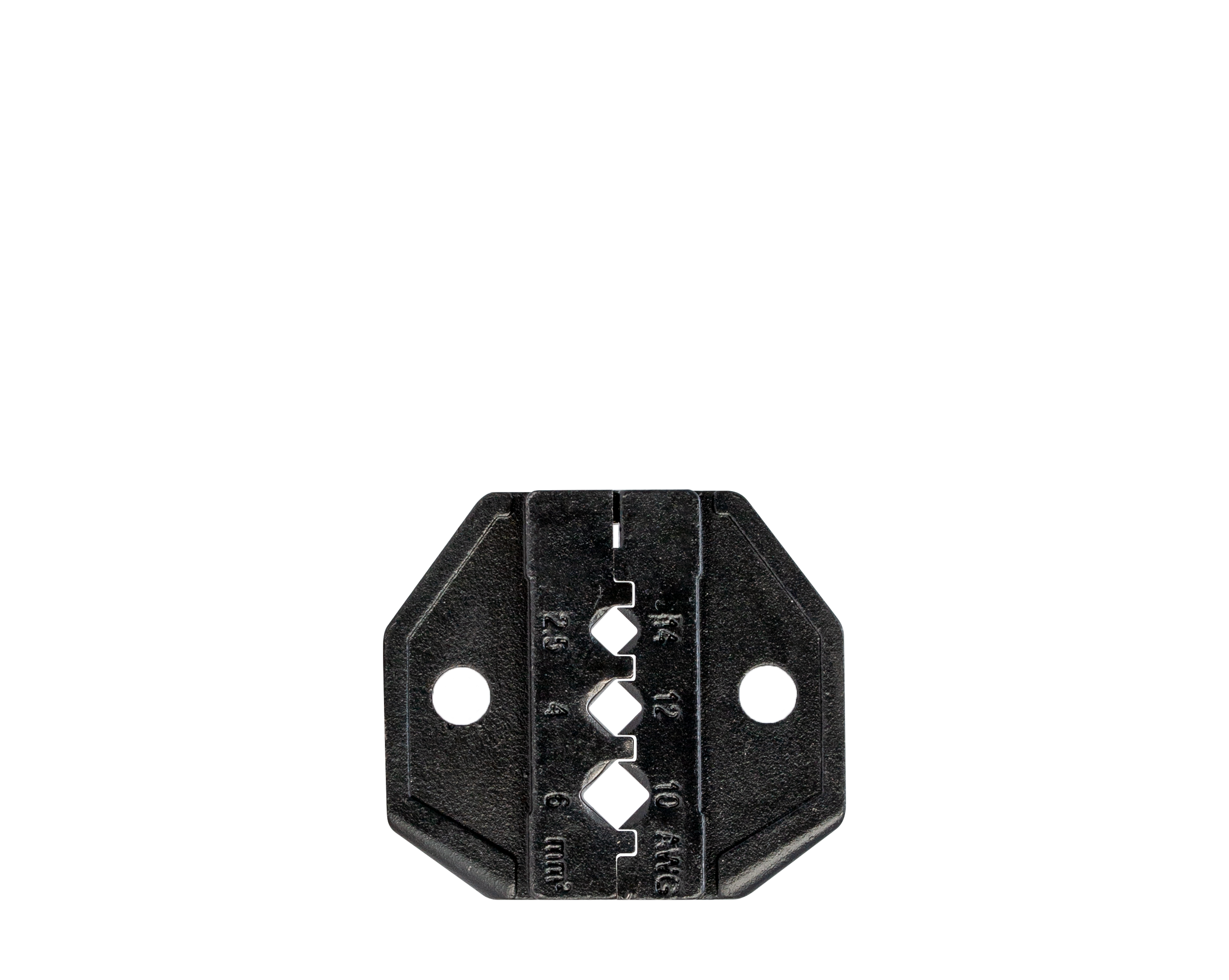

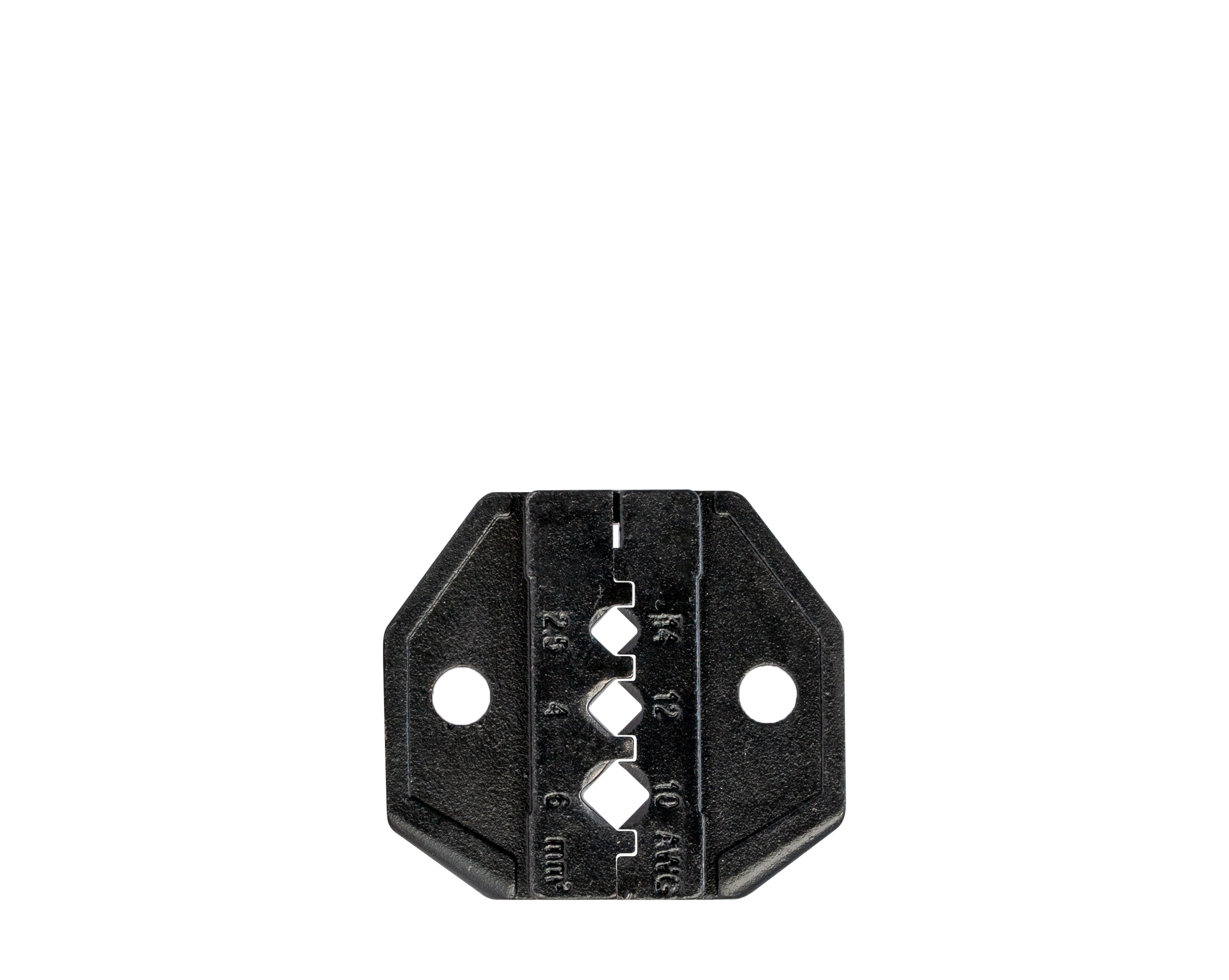

Solar Panel MC3 Crimper Die
PRODUCT FEATURES
This crimping die, when used in conjunction with a Solar Panel Crimper (such as our SPC-MC4), is able to crimp MC3 connectors onto 14, 12, and 10 AWG (2.5 mm², 4 mm², 6 mm²) cable. It is ideal for solar panel installers when termination or replacing a new MC3 solar panel connector. The crimping die features the following:
- Crimps wire gauges sizes 14, 12, 10 AWG (2.5 / 4.0 / 6.0 mm²)
- Perfectly crimps MC3 Solar Connectors
- Compatible with ratcheting solar crimping tools, like our SDC-MC4
Specifications
| Application Type | Locking/Unlocking MC3 Connectors |
|---|---|
| Wire Diameter | 14, 12, 10 AWG or (2.5 / 4.0 / 6 mm²) |
| Connector Type | MC3 Connectors |
| Material | Carbon Steel with Black Oxide |
| Product Dimensions | 1.28" x 1.40" x 0.391" (32.5 mm x 35.7 mm x 9.91 mm) |
| Product Material | Carbon Steel with Black Oxide |
| Weight | 0 lb (0 g) |
| UPC # | 811490018198 |
