SPCO-1 - SPARC Fusion Splicer, Core Alignment
Find Local Retailer

SPCO-1 Copy ID to clipboard

SPARC Fusion Splicer, Core Alignment

Share Page

SPCO-1 - SPARC Fusion Splicer, Core Alignment
Register Product
My Toolbox

PRODUCT FEATURES

Coming Soon!

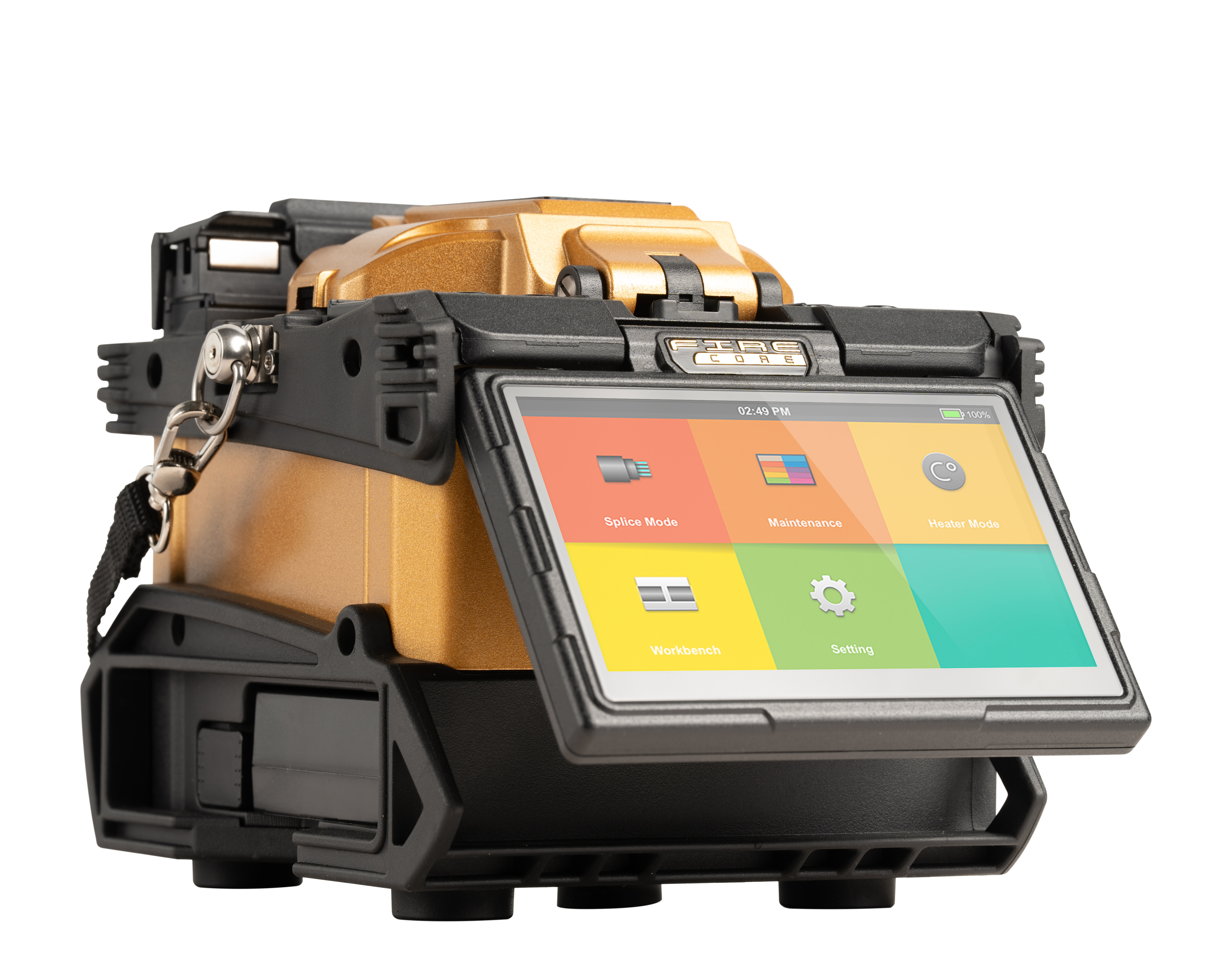

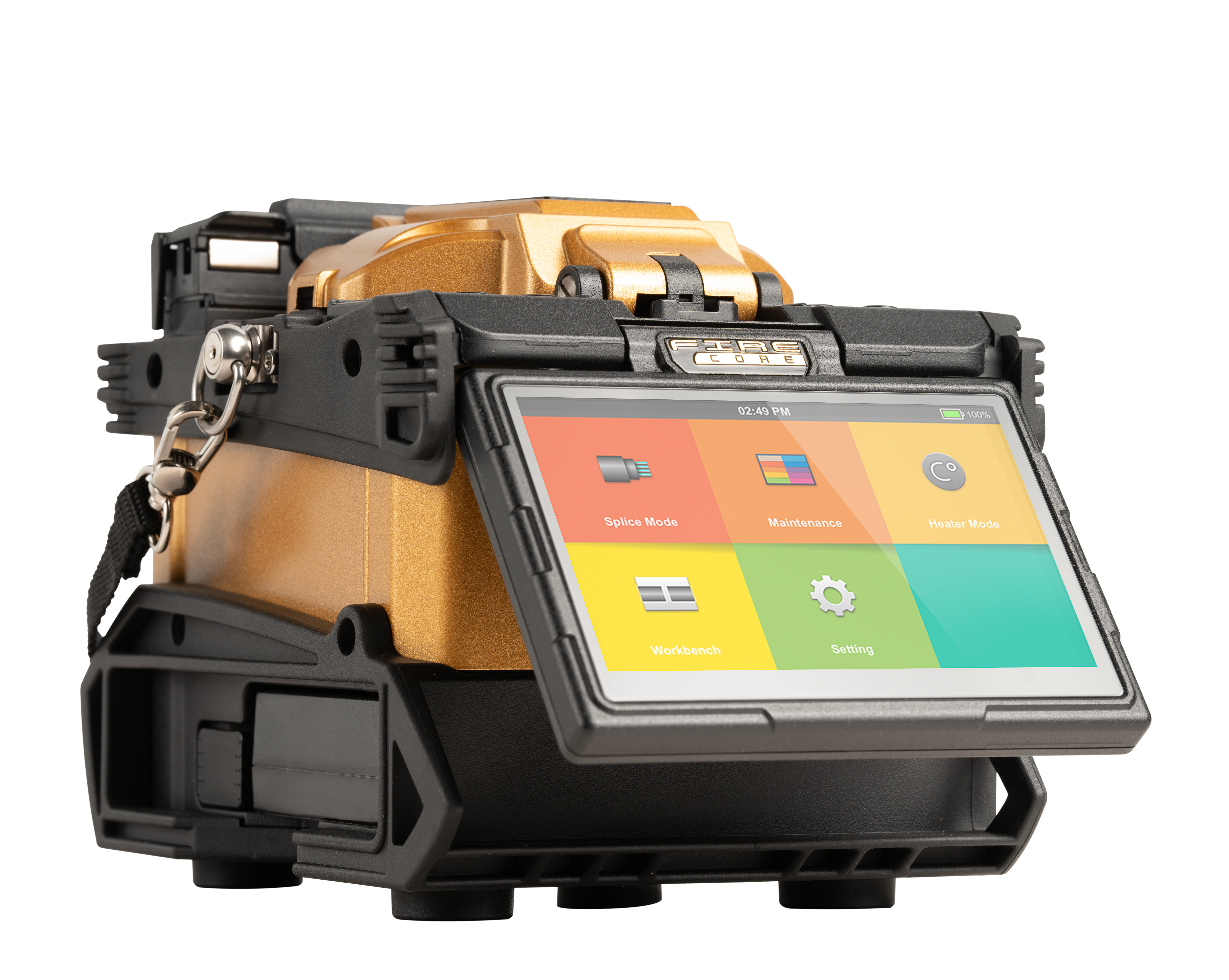

The SPARC core Alignment Fusion Splicer is an advanced Core Alignment Fusion Splicer, equipped with IoT and GPS modules for superior performance and real-time connectivity. It ensures impeccable fiber splicing precision, reliability, and efficiency. Engineered for fiber optic professionals, it combines rapid splicing times with cutting-edge features, offering a seamless and dependable splicing experience even in challenging environments.

  • Splices fiber optic cables in as little as 4 seconds
  • Pressure Heater Technology reduces heating time to only 9 seconds
  • Versatile fiber holder to easily switch between standard and loose-tube fibers
  • Improved lighting for higher visibility in dark settings
  • Intuitive full touch screen for enhanced user experience
  • 5200 mAh battery provides up to 300 cycles (splicing and heating) on one charge
  • Rugged design with water resistance (IPx2), shock resistance (drop tested from 30"), and dust resistance (IP5X)
  • On-board memory stores up to 20,000 splice data or 10,000 images
Learn more about product features Show less

Kit includes

Kit includes

Specifications

Alignment Method

Core Alignment
Number of Fibers

Single
Applicable Fibers

SM (ITU-T G.652& T G.657) / MM (ITU-T G.651) / DS (ITU- T G.653) / NZDS (ITU-T G.655)
Coating Diameter

100 µm - 3 mm
Cladding Diameter

80 - 150 µm
Cleave Length

5 - 16 mm
Typical Splice Loss

SM: 0.01dB / MM: 0.01dB / DS: 0.03dB / NZDS: 0.03dB / G.657: 0.01dB
Return Loss

>>60 dB
Splice Time

Quick mode: Avg. 4 sec / SM mode: Avg. 5 sec / Auto mode: Avg. 7 sec
Splice Programs

Max 128 modes
Automatic Calibration

Automatic Arc Calibration by air pressure & temperature
Electrode Life Span

6000 Arc Discharges
Heating Programs

Max 32 modes
Heating Time

Quick: 9s / Average: 13s
Protection Sleeve Length

20 mm - 60 mm
Data Output

USB-C
Splice Memory

20,000 Splice Data / 10,000 Splice Images
Battery Capacity

5200mAh / Operation Cycle: 300 cycles (Splicing + Heating)
Power Supply

AC Input 100 - 240V, DC Input 9 - 19V
Monitor

5.0" Color LCD display, Full Touch Screen
Magnification

x360, x520
Pull Test

1.96 - 2.25 N
Product Main Color Black/Gold
Dimensions 5.95" x 5.86" x 6.96" (15.1 cm x 14.9 cm x 17.7 cm)
Weight 5.18 lbs
