TCK-178 Copy ID to clipboard

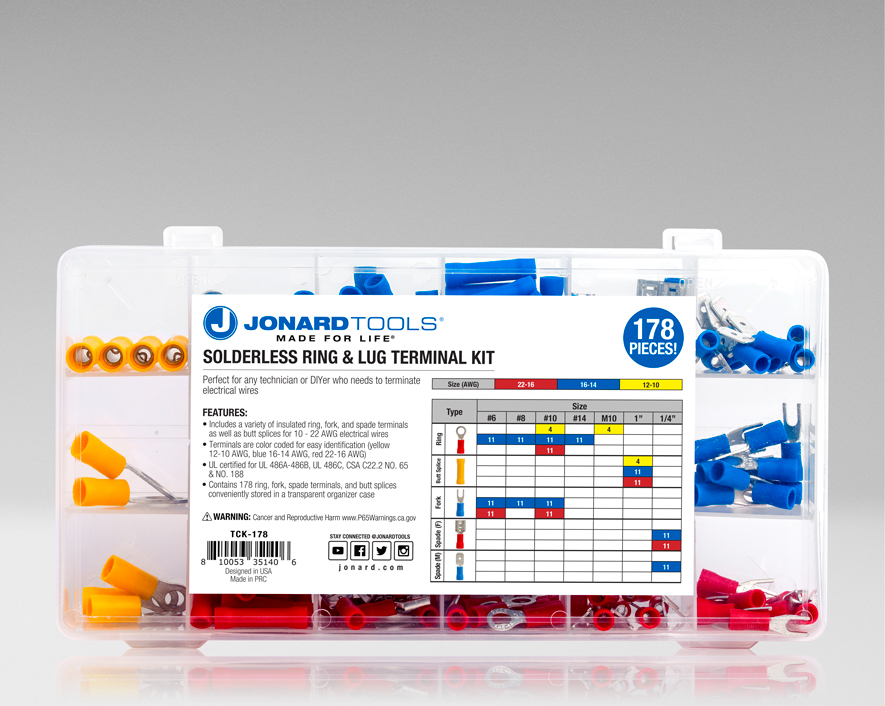

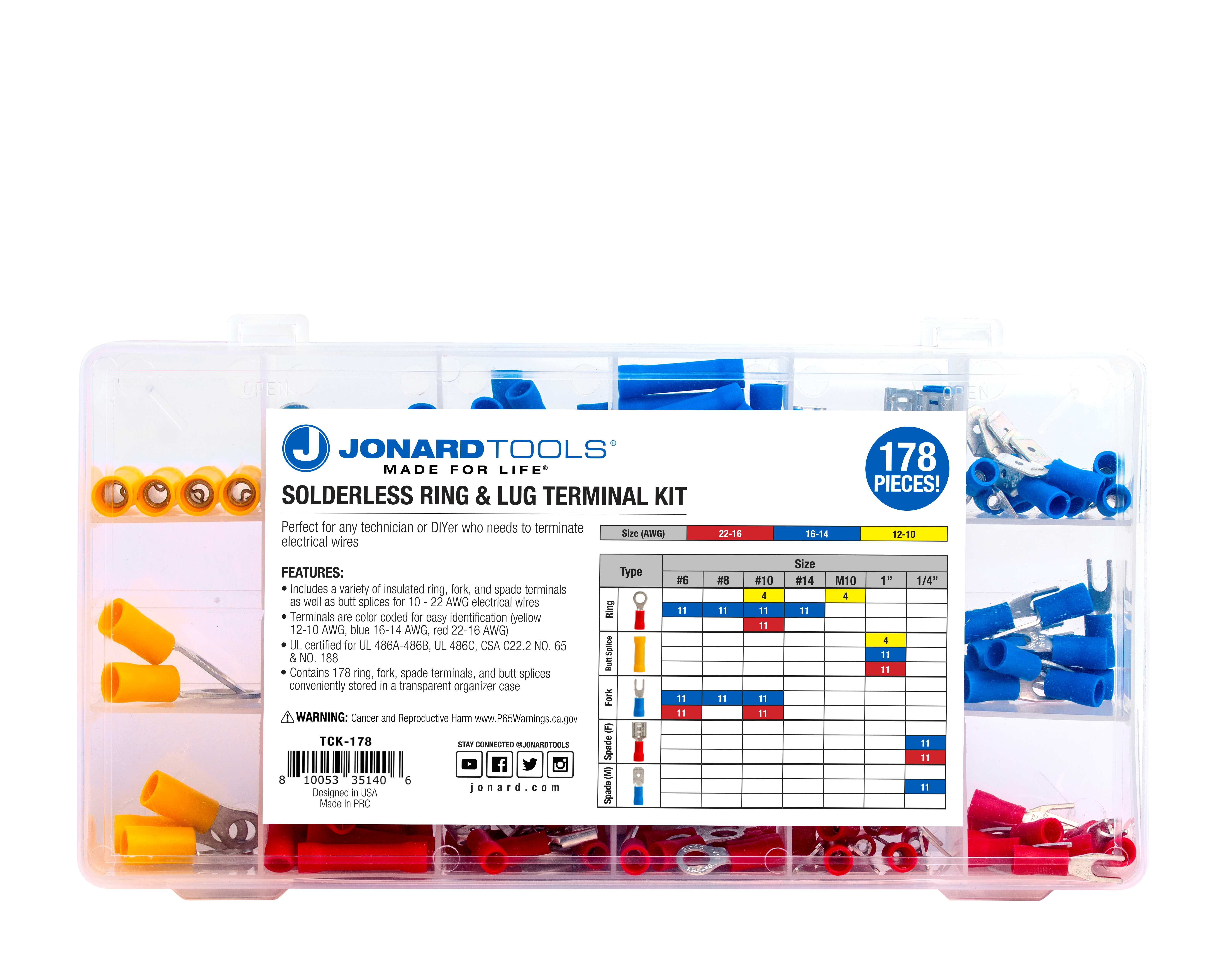

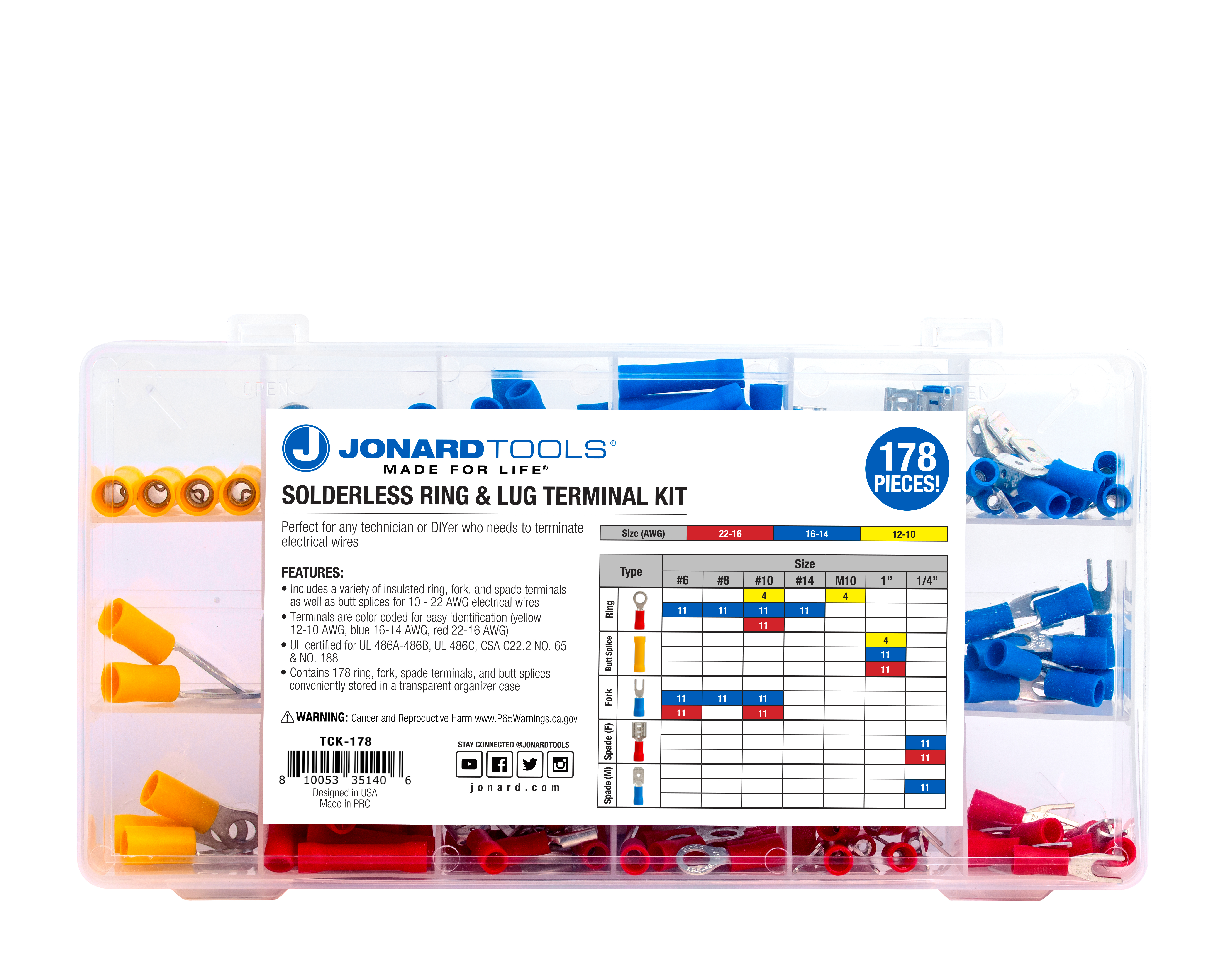

Solderless Ring and Lug Terminal Kit, 178 Pcs
PRODUCT FEATURES
The Jonard Tools Terminal Ring and Lug Kit is perfect for any technician or DIYer who needs to terminate electrical wires. These connectors feature the following:
- Includes a variety of insulated ring, fork, and spade terminals as well as butt splices for 10 - 22 AWG electrical wires
- Terminals are color coded for easy identification (yellow 12-10 AWG, blue 16-14 AWG, red 22-16 AWG)
- UL certified for UL 486A-486B, UL 486C, CSA C22.2 NO. 65 & NO. 188
- Contains 178 ring, fork, spade terminals, and butt splices conveniently stored in a transparent organizer case
Specifications
| # Pieces | 178 |
|---|---|
| Wire Gauge | 10 - 22 AWG |
| Ring Terminal Sizes | Red #10, Blue #6, #8, #10, #14, Yellow #10, M10 |
| Fork Terminal Sizes | Red #6, #10, Blue #6, #8, #10 |
| Spade Terminals | Red Female, Blue Male, Blue Female |
| Butt Splices | Red, Blue, Yellow |
| Dimensions | 8.27" x 4.57" x 1.14" (21 cm x 11.6 cm x 2.9 cm) |
| Weight | 0.55 lb (249.7 g) |
| UPC # | 810053351406 |
