SPK-90 Copy ID to clipboard
Solar Panel MC3 & MC4 Crimping Tool Kit
PRODUCT FEATURES
Discontinued - Superseded by SPK-100

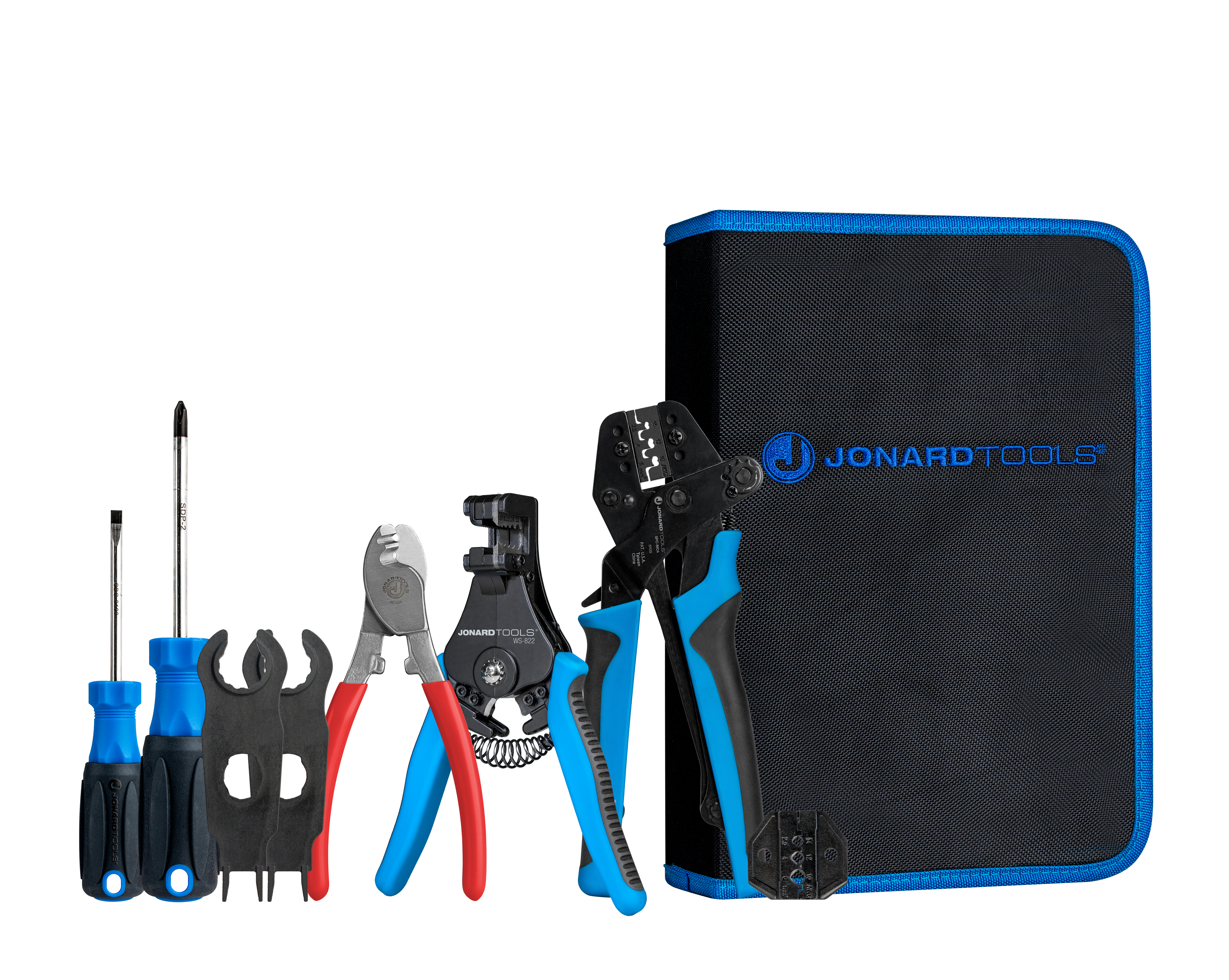

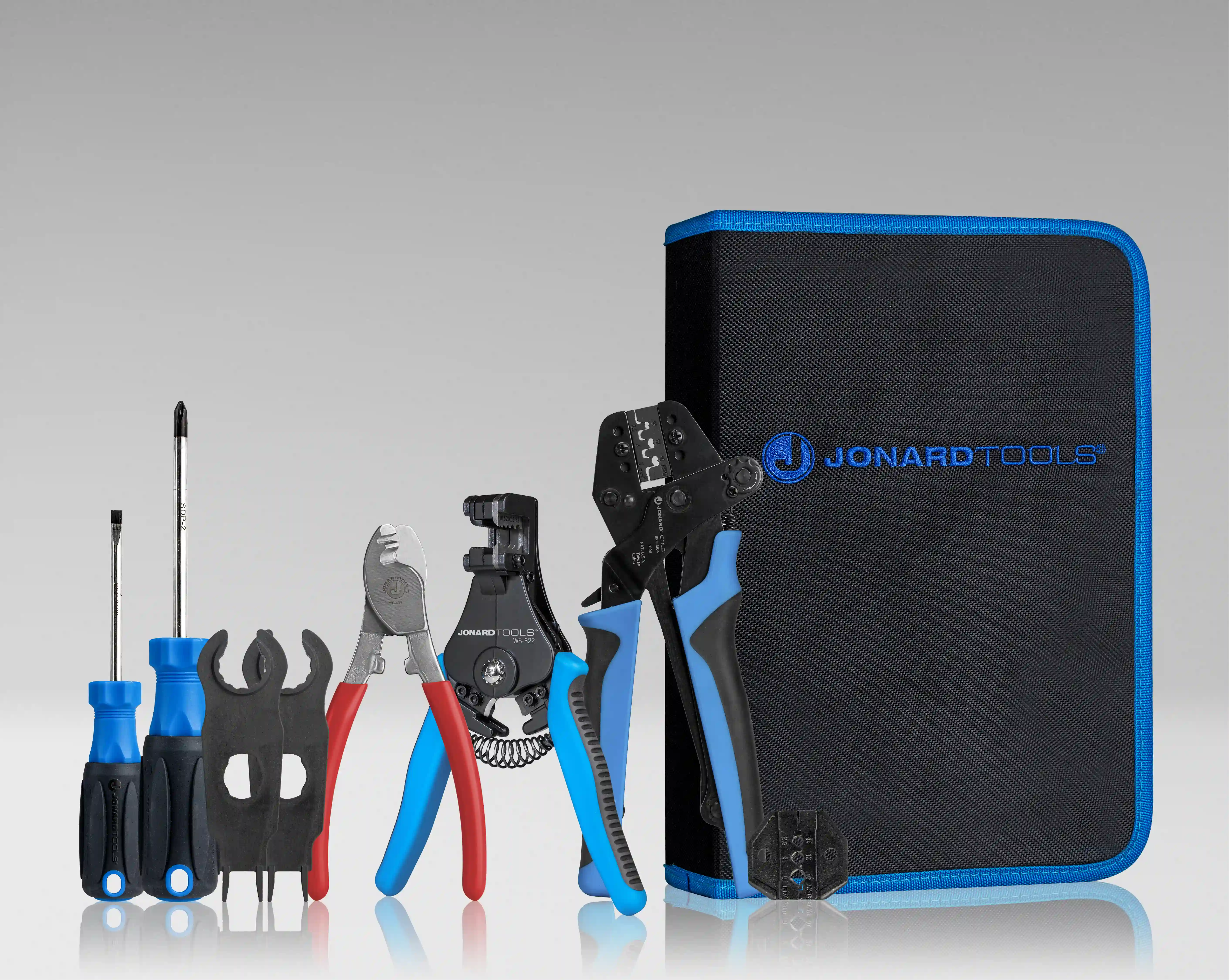

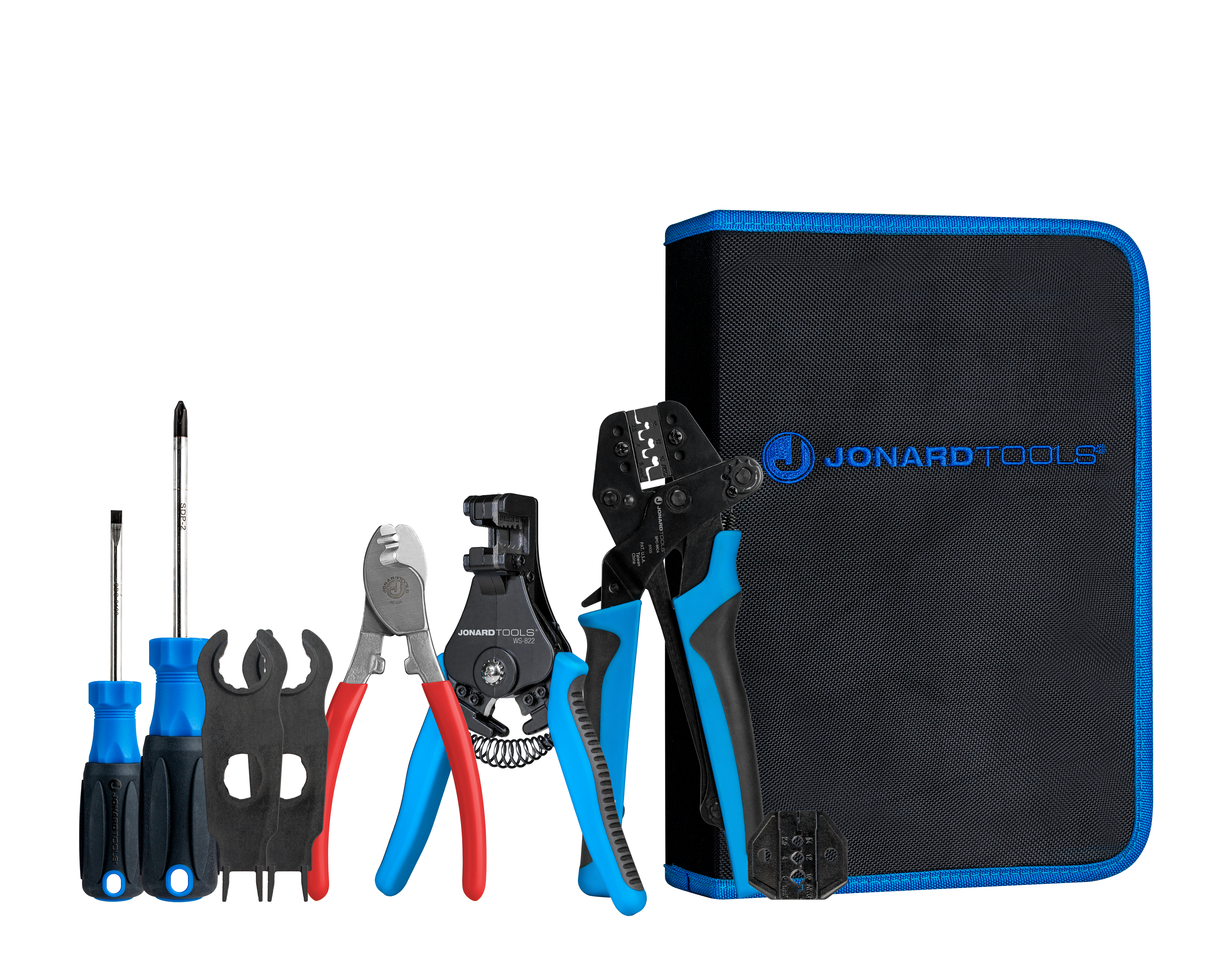

The Jonard Tools SPK-90 Solar Panel Crimping Tool Kit is designed to facilitate the installation and maintenance of solar panels. It includes a variety tools to make installing and maintaining solar panels quick and easy.
This crimping tool kit includes the following tools:
- SPC-MC4 Solar Panel Crimper with Included MC4 Crimping Die
- SPD-MC3 MC3 Crimping Die
- SPS-2 Solar Panel Spanners for MC4 Connectors (Pack of 2)
- SDP-2 Phillips Head Screwdriver, #2 x 4" Shank Length
- SDC-3163 Cabinet Slotted Head Screwdriver, 3/16" x 3" Shank Length
- JIC-625 Copper COAX and Network Cable Cutter
- WS-822 Wire Stripper and Cutter for 8-22 AWG Wire
- TKC-110 Rugged Nylon 11 Pocket Carrying Case
Kit includes
SPC-MC4
|
Solar Panel Crimper with Included MC4 Die |
SPD-MC3
|
Solar Panel MC3 Crimper Die |
SPS-2
|
Solar Panel Spanners for MC4 Connectors (Pack of… |
SDP-2
|
Phillips Screwdriver, #2 x 4" |
SDC-3163
|
Cabinet Slotted Screwdriver, 3/16" x 3" |
JIC-625
|
Copper COAX & Network Cable Cutter |
TKC-110
|
Rugged 11 Pocket Tool Case |
WS-822
|
Wire Stripper and Cutter, 8-22 AWG |
Kit Includes
Kit includes
| SPC-MC4
|
Solar Panel Crimper with Included MC4 Die |
| SPD-MC3
|
Solar Panel MC3 Crimper Die |
| SPS-2
|
Solar Panel Spanners for MC4 Connectors (Pack of… |
| SDP-2
|
Phillips Screwdriver, #2 x 4" |
| SDC-3163
|
Cabinet Slotted Screwdriver, 3/16" x 3" |
| JIC-625
|
Copper COAX & Network Cable Cutter |
| TKC-110
|
Rugged 11 Pocket Tool Case |
| WS-822
|
Wire Stripper and Cutter, 8-22 AWG |
Specifications
| Application Type | Solar Panel Maintenance |
|---|---|
| Cable Diameter | 14, 12, or 10 AWG or (2.5 / 4.0 / 6 mm²) |
| Connector Type | MC3 & MC4 Male/Female Solar Panel Connectors |
| Product Dimensions | 8.25” x 12.13” x 2.75” (20.96 cm x 30.80 cm x 6.99 cm) |
| Weight | 0 lb (0 g) |
| UPC # | 811490018204 |
