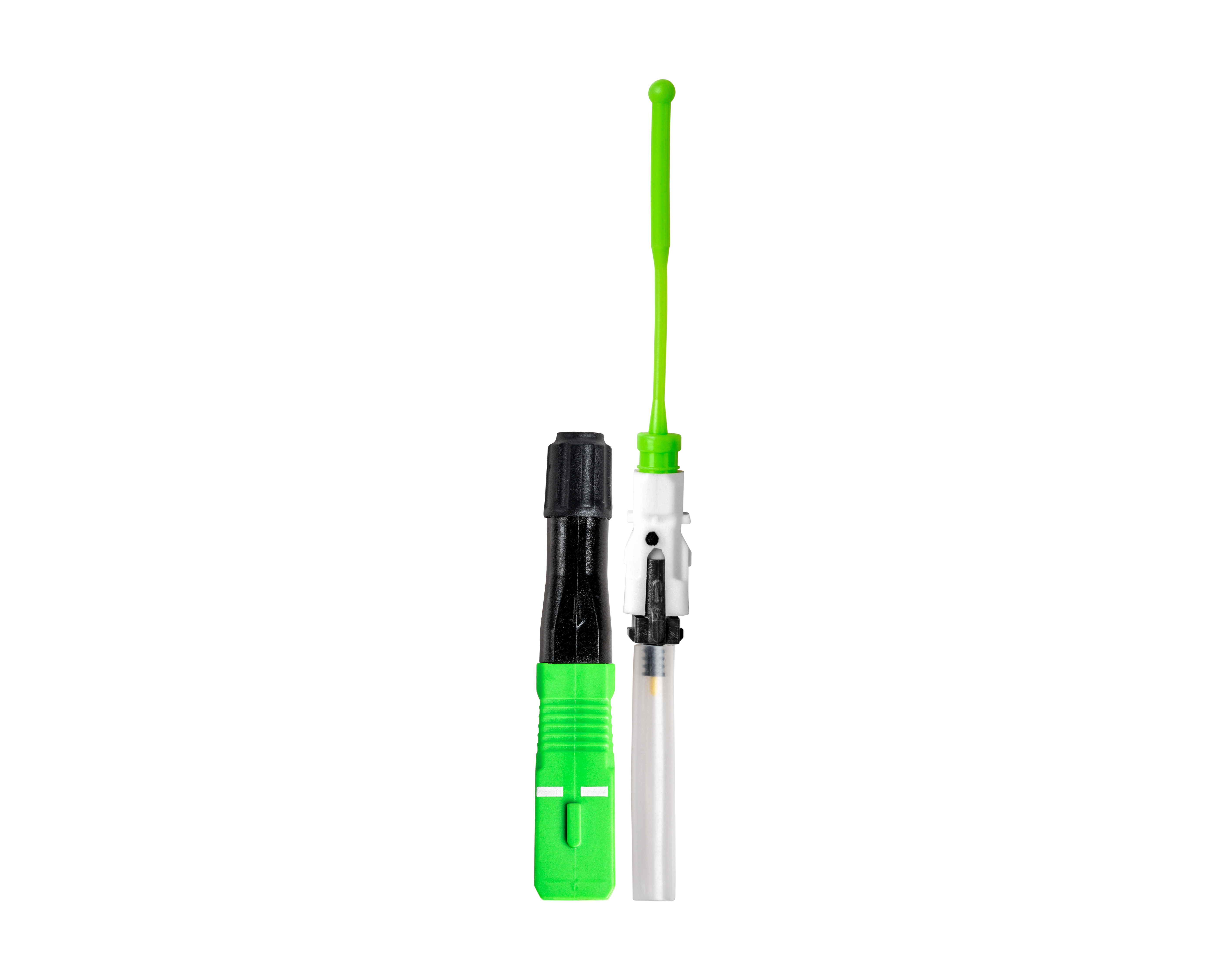

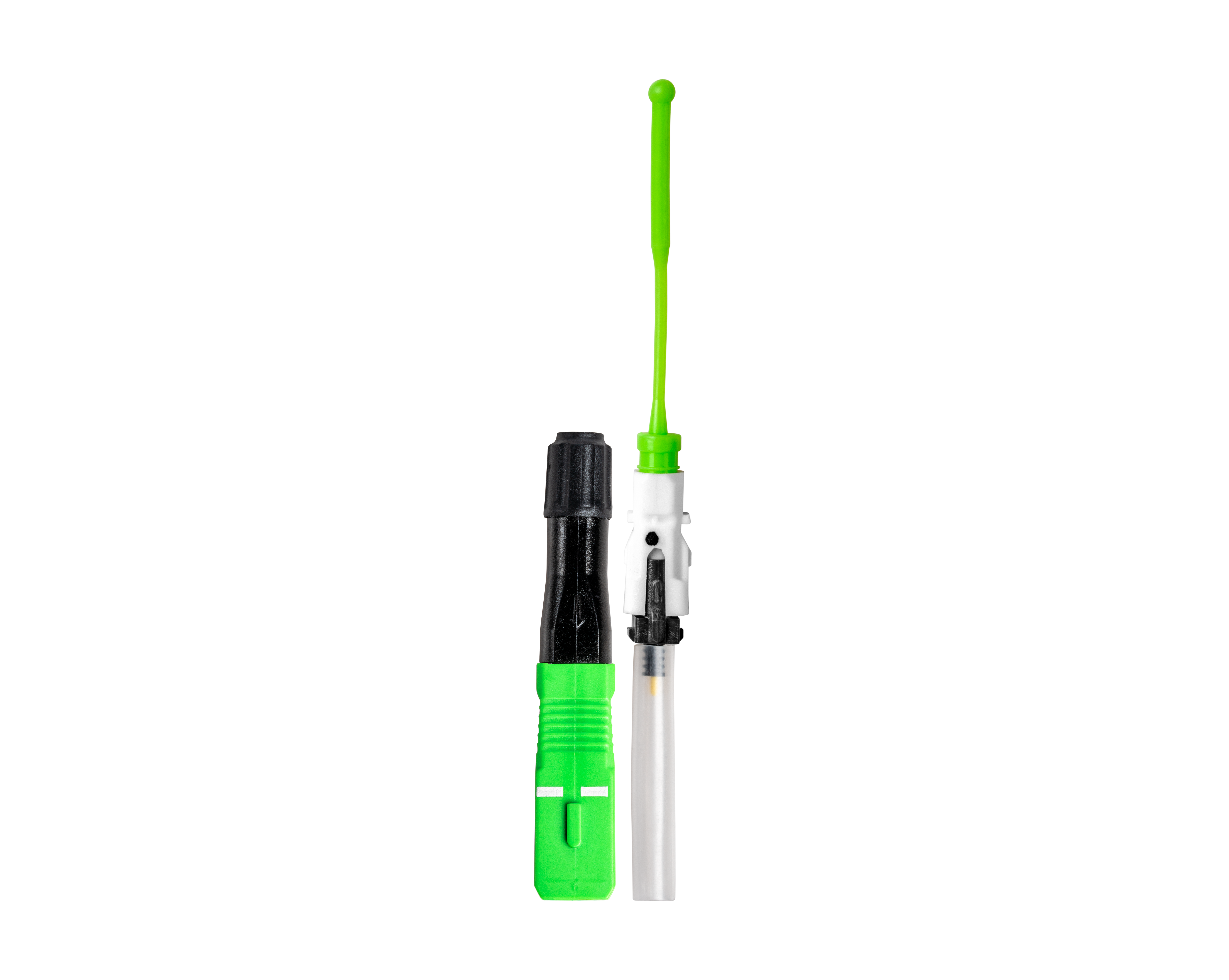

SPARC™ Linc Splice On Connector, Singlemode SC/APC 900 µm (Pack of 10)
SOC-SCA9/10 Copy ID to clipboard
Buy OnlinePRODUCT FEATURES
Designed for easy fusion splicing this SC/APC Splice On Connector provides a seamless and low-loss connection for single-mode fiber applications. Engineered for quick installation without compromising performance, it is ideal for FTTH (Fiber to the Home), data centers, and telecommunications networks.
With its pre-polished ferrule and rugged housing, this connector offers optimal performance and consistent signal integrity, ensuring a secure, high-speed connection every time.
This connector also features the following:
- No need for polishing and matching gel in the field.
- Protect the splicing point inside of the connector body.
- Easy to assemble with One-Touch, Push-Pull System.
- Enhanced high quality with improved optical features (Splice Loss & Return Loss)
- Split boot structure prevents bending fiber while inserting the connector to the termination.
- Pack of 10 connectors
Specifications
| Fiber Type | Singlemode |
|---|---|
| Insertion Loss | 0.3 dB (Maximum) |
| Return Loss | ≤ -65 dB |
| Repeating Operation Test | 500 Cycles, ≤ 0.2 dB |
| Temperature Range | -40 °C - 75 °C |
| Fiber Type | 0.9 mm |
| Tensile Strength | ≥ 25 N (≥ 2.5 kgf) |
| Quantity | 10 |
| Dimensions | 2.22" x 0.35" x 0.36" (5.64 cm x 0.89 cm x 0.91 cm) |
| Weight | 0 lb (0 g) |
| UPC # | 810132437878 |
| Fiber Type | Singlemode |
|---|---|
| Insertion Loss | 0.3 dB (Maximum) |
| Return Loss | ≤ -65 dB |
| Repeating Operation Test | 500 Cycles, ≤ 0.2 dB |
| Temperature Range | -40 °C - 75 °C |
| Fiber Type | 0.9 mm |
| Tensile Strength | ≥ 25 N (≥ 2.5 kgf) |
| Quantity | 10 |
| Dimensions | 2.22" x 0.35" x 0.36" (5.64 cm x 0.89 cm x 0.91 cm) |
| Weight | 0 lb (0 g) |
| UPC # | 810132437878 |
