CP-475 Copy ID to clipboard

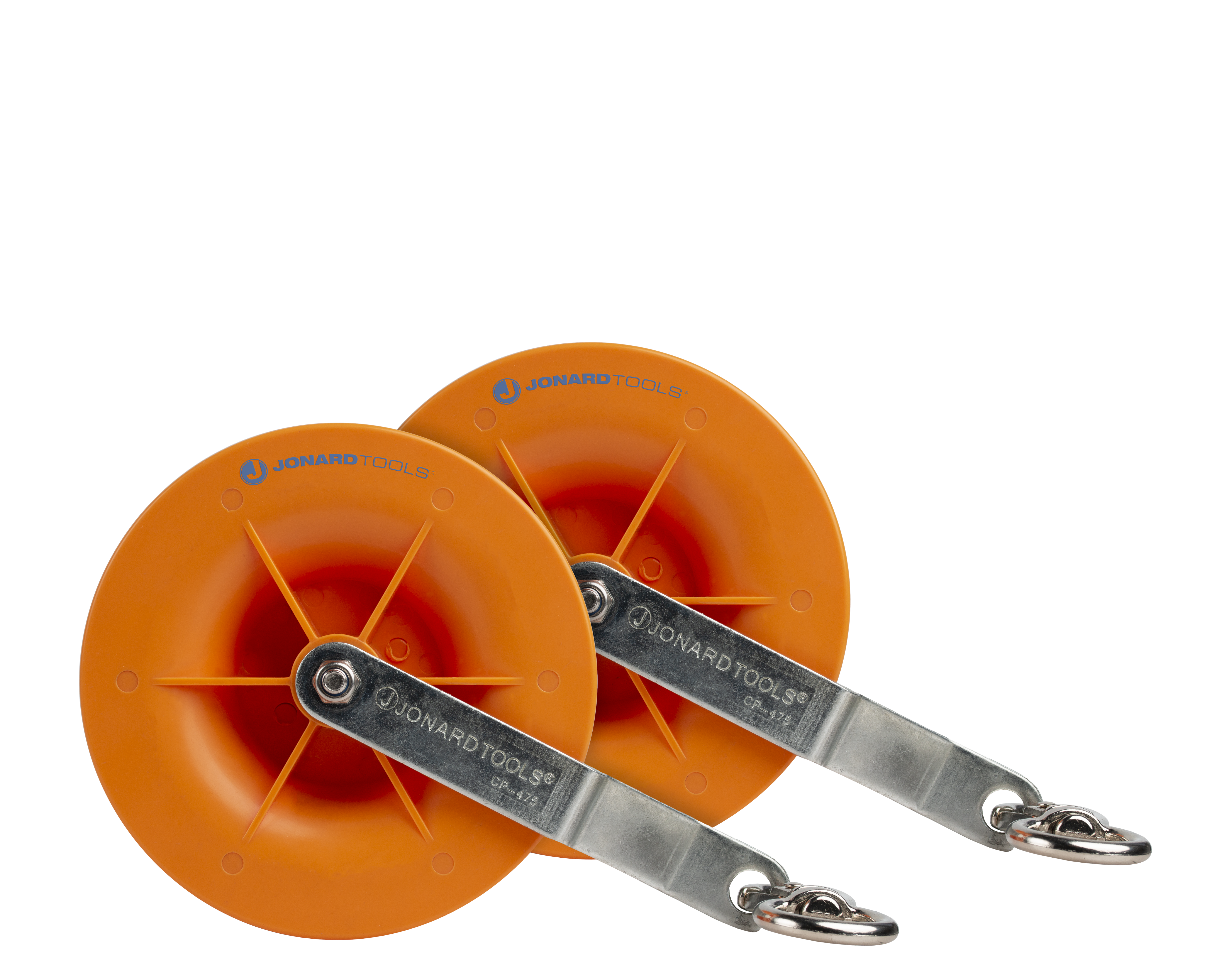

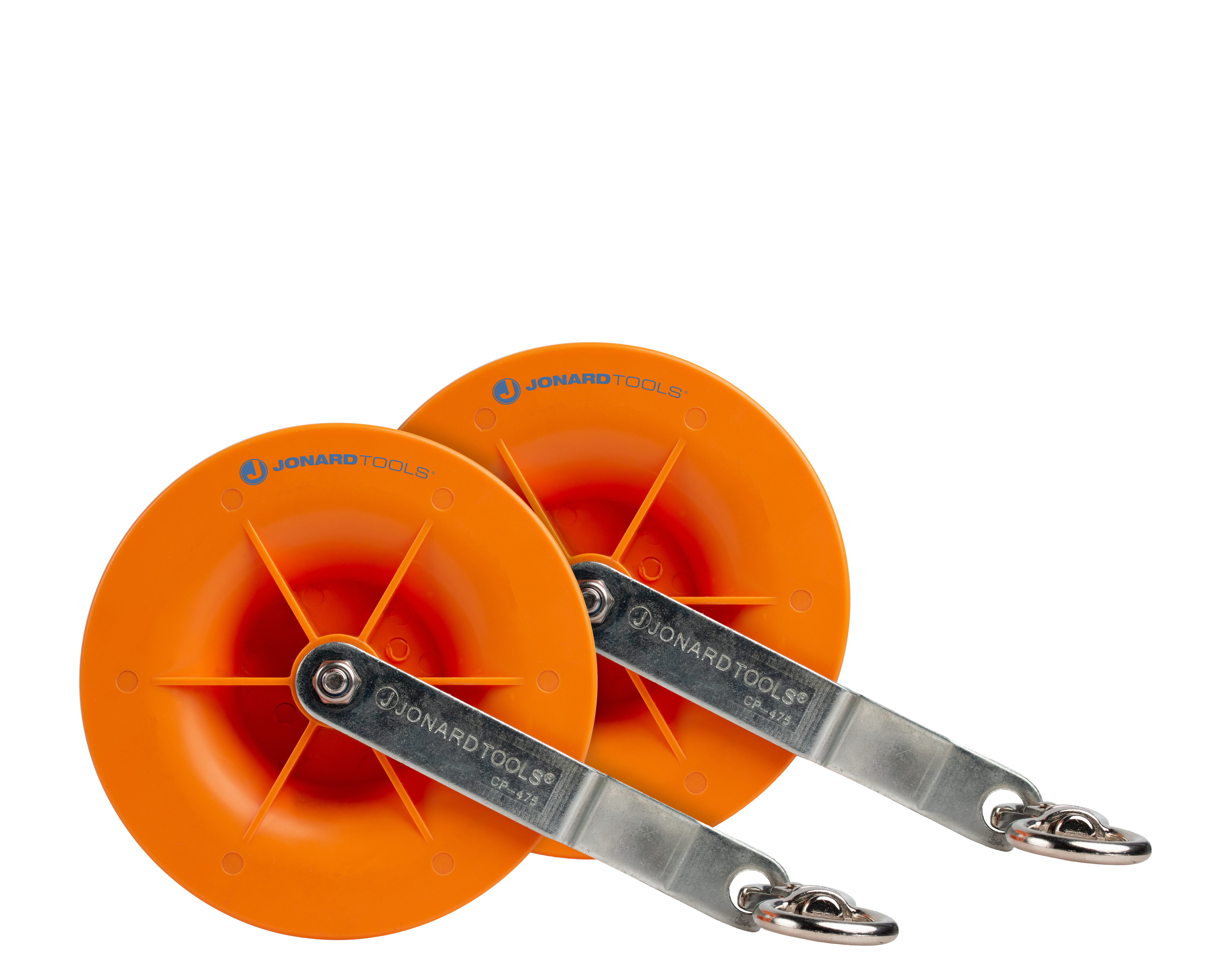

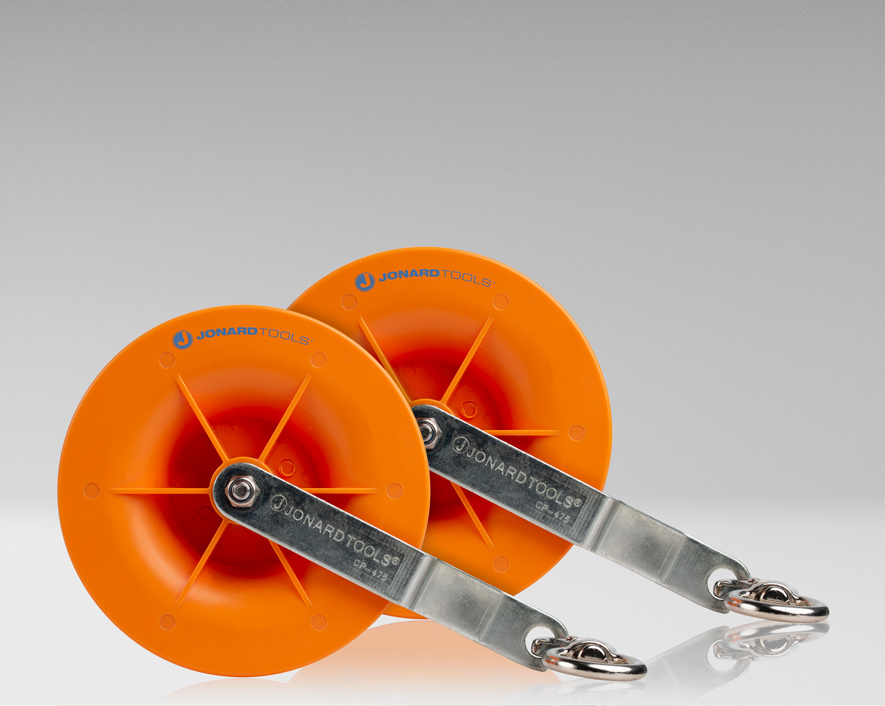

Pulley for Low Voltage Electrical, Network, & COAX Cables (2 pack)
PRODUCT FEATURES
The CP-475 is a set of two cable pulleys designed to help install electrical, COAX, network, and other various low voltage cables. With their swivel snap hooks, deep grooves, and anti-friction bearings, these pulleys keeps cables aligned with the direction of the pull, preventing snags and kinks.
- Holds up to 20 CAT5/6 network cables
- Swivel snap hook installs easily and keeps pulley aligned with direction of pull to prevent kinks
- Anti-friction roller bearings and deep grooves allow cable to be pulled smoothly and easily
- Made from a high strength ABS plastic and zinc coated steel to provide enhanced durability and longer life
- Easy to remove the pulley after cable is installed
- Includes (2) pulleys
Specifications
| Number of Cables | Up to 20 |
|---|---|
| Maximum Weight Capacity | 120 lb (54.43 kg) |
| Channel Width | 1.43" (36.41 mm) |
| Diameter | 4.75" (12.07 cm) |
| Pulley Weight | .63 lb each (287.58 g) |
| Total Weight | 1.27 lb (576.06 g) |
| Length | 4(12.065cm) |
| Weight | 1.27 lb (576.58 g) |
| UPC # | 810053350805 |
Specifications
| Number of Cables | Up to 20 |
|---|---|
| Maximum Weight Capacity | 120 lb (54.43 kg) |
| Channel Width | 1.43" (36.41 mm) |
| Diameter | 4.75" (12.07 cm) |
| Pulley Weight | .63 lb each (287.58 g) |
| Total Weight | 1.27 lb (576.06 g) |
| Length | 4(12.065cm) |
| Weight | 1.27 lb (576.58 g) |
| UPC # | 810053350805 |
