PLB-1000 Copy ID to clipboard

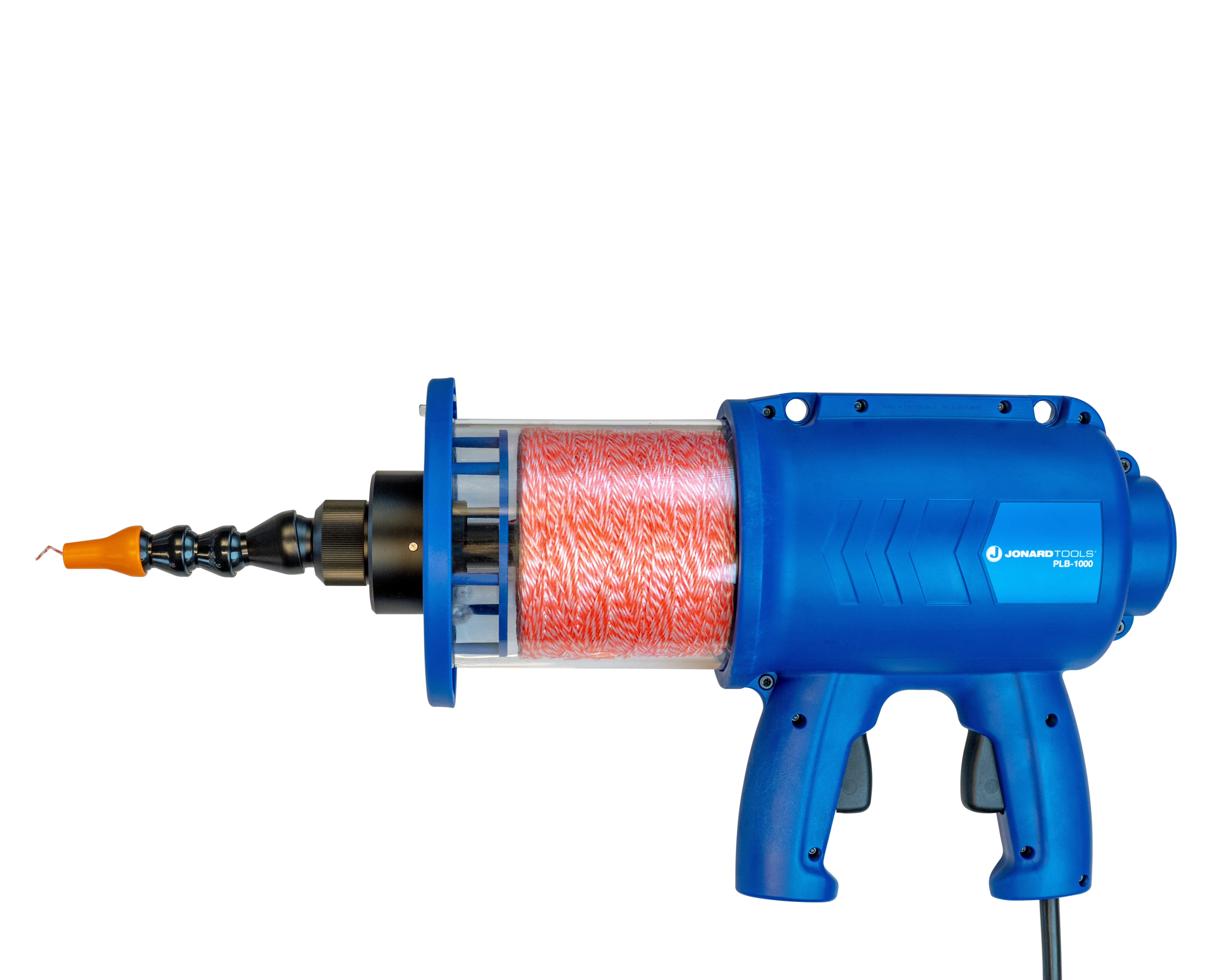

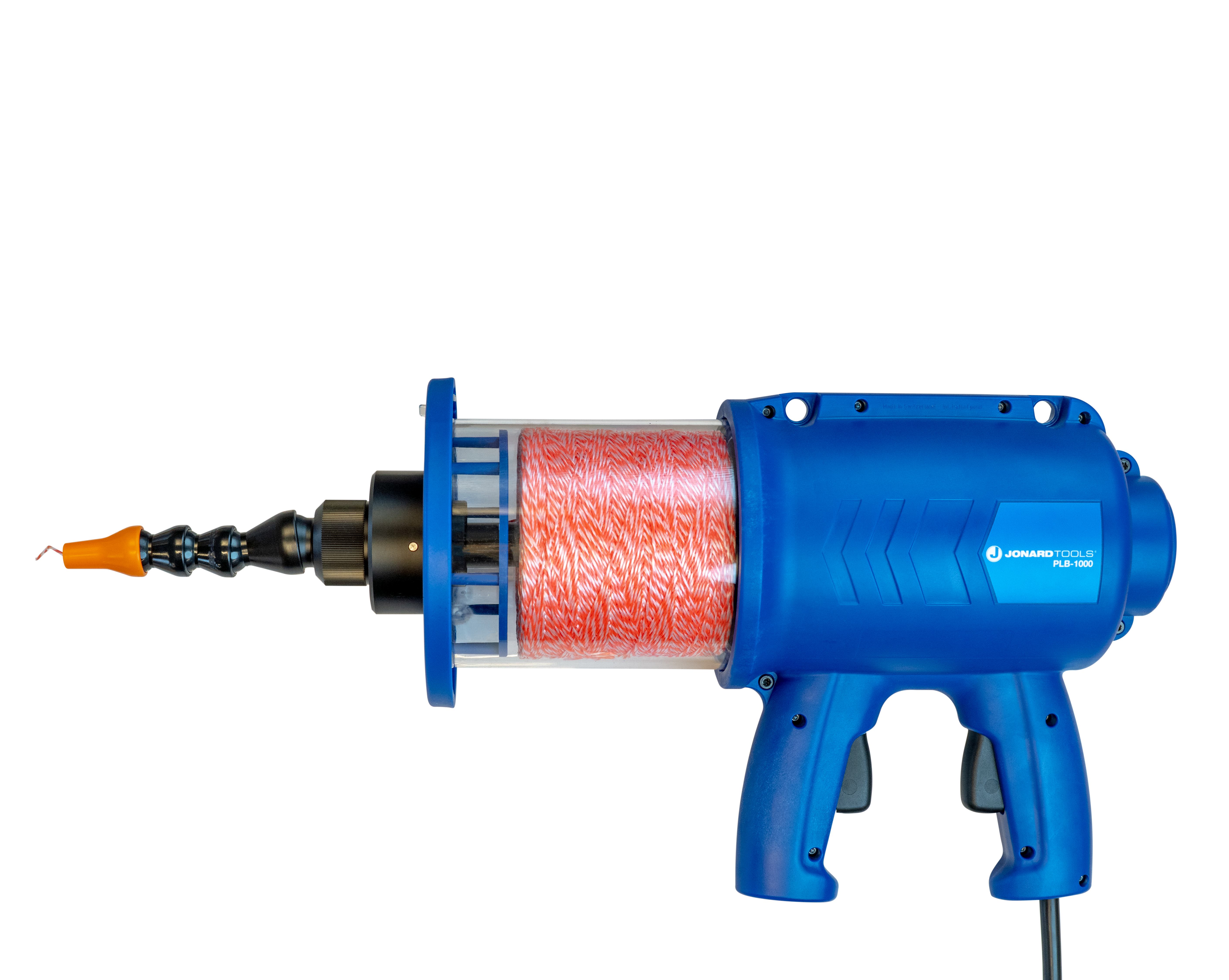

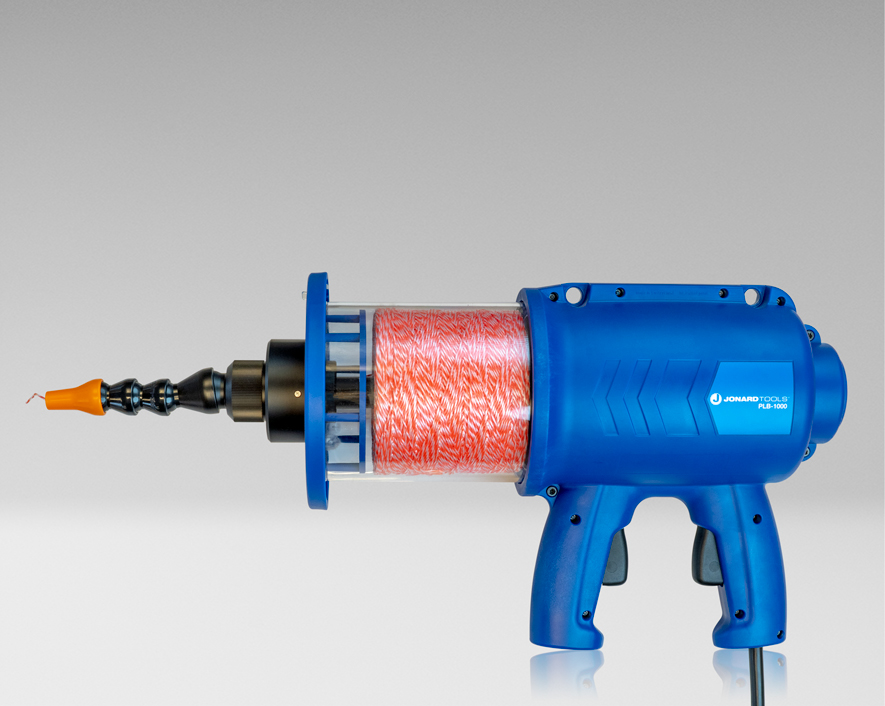

Pull Line Blower for 3/4"-2" (18-50 mm) Conduit
PRODUCT FEATURES
Designed to blow or suck pull line through 3/4" - 2" (18-50 mm) conduit for cable pulling, this pull line blower is perfect for running wire or cable through conduits multiple times a day. With its unique design, it makes short work of bends and kinks in conduit, saving a huge amount of time compared to mule tape or jet line. This pull line blower also features the following:
- Blows or sucks pull line without the need for a compressor
- For all commercial and residential pipe work with internal diameters from 3/4" - 2" (18 mm - 50 mm)
- Lightweight and ergonomic for superior accessibility, even in confined spaces
- Works great on flexible conduit
- Saves a tremendous amount of time compared to mule tape or jet line
Kit Includes:
- (1) PLB-1000 Pull Line Blower (aka Stringing Gun)
- (2) Pull line rolls (Ø 1 mm, tensile strength approx. 24 kg, length approx. 900 m)
- (1) Suction device
- (1) Components set A: 2 joints ½" reducer 19/12 mm plus nozzle int. Ø 9,5 mm
- (1) Components set B: 3 joints ¾" nozzle int. Ø 16 mm plus nozzle int. Ø 19 mm
- (1) Special nozzle black, for int. Ø from 25 to 50 mm
- (1) Special nozzle with 90° angle, Ø ext. 12 mm
- (3) Beads (round) of Ø 11mm
- (3) Beads (round) of Ø 13mm
- (3) Beads (round) of Ø 16mm
- (1) Operating Manual
Specifications
Air Flow | 140 ft³/min (cfm) (4 m³/min) |
---|---|
Product Main Color | Blue |
Weight | 8.8 lb (3995.2 g) |
UPC # | 810053352137 |
