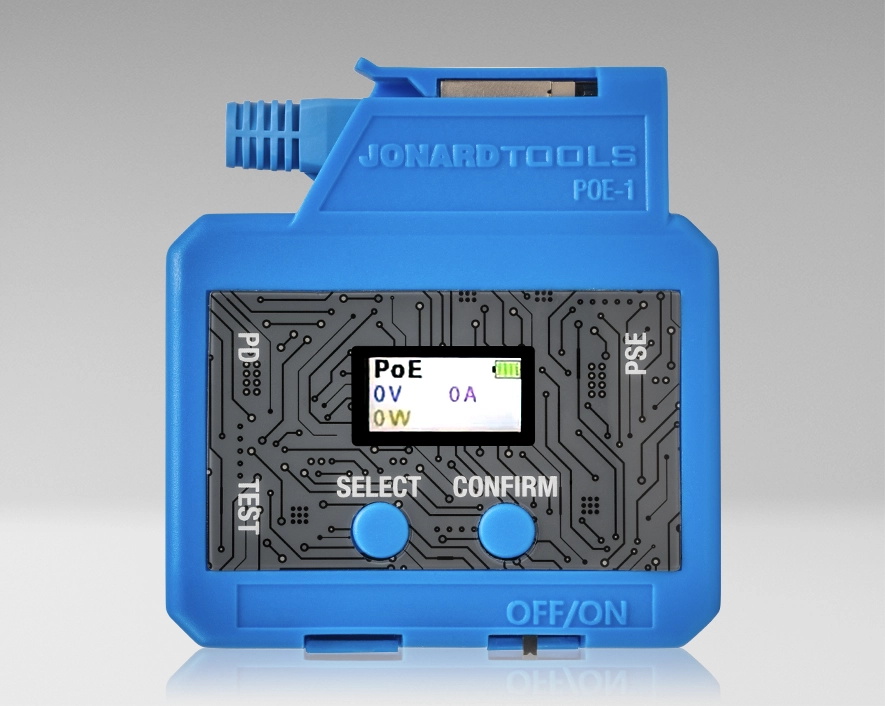

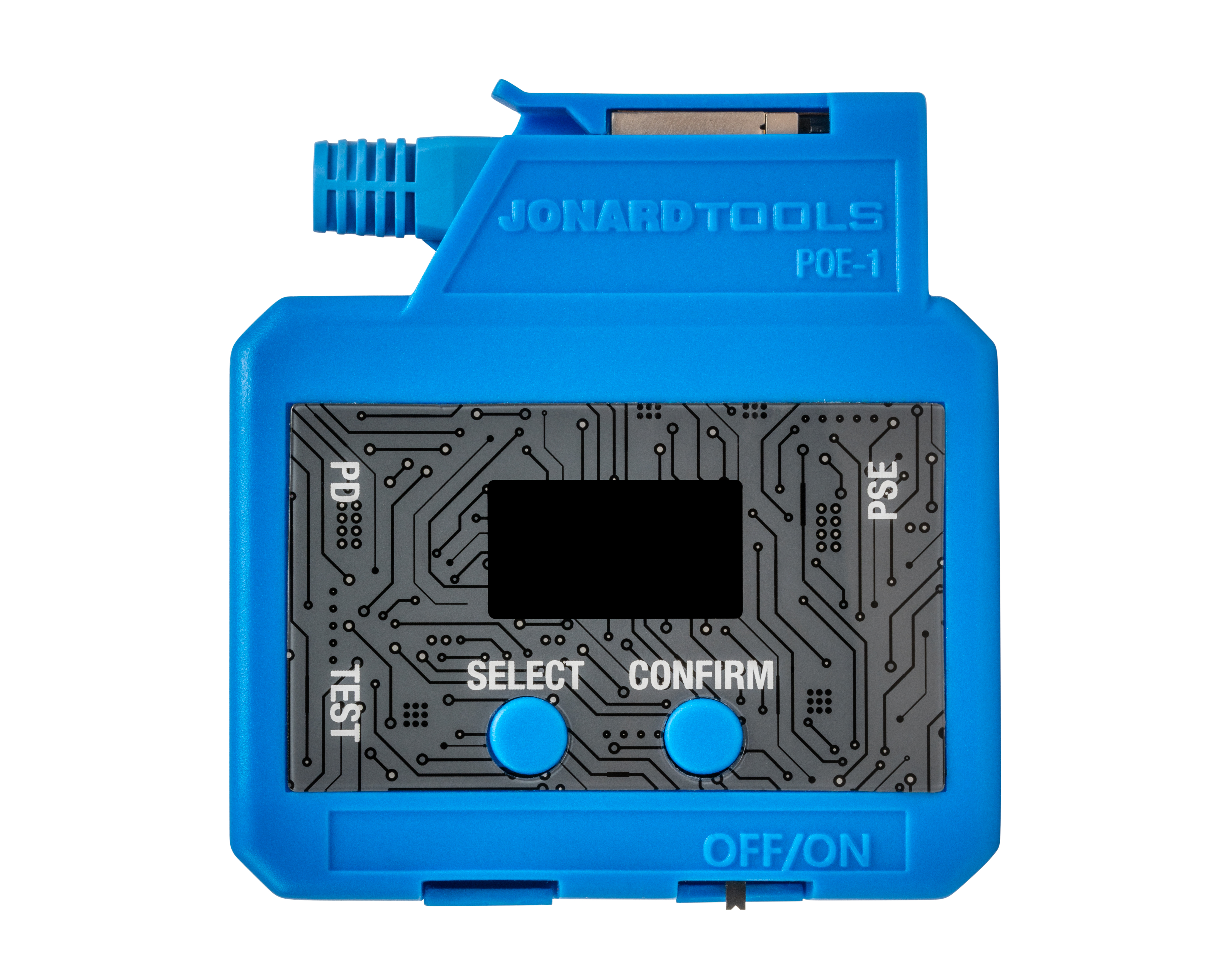

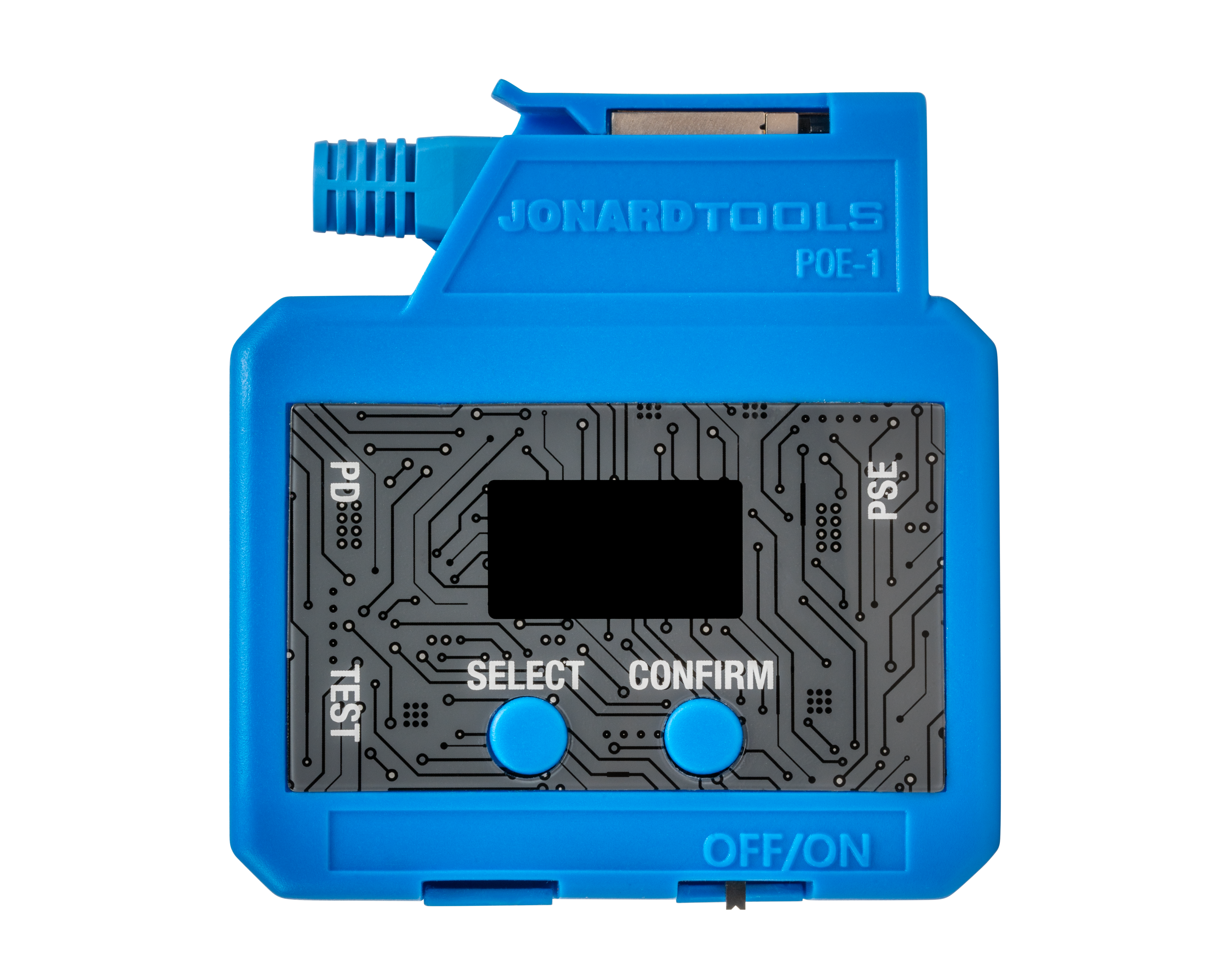

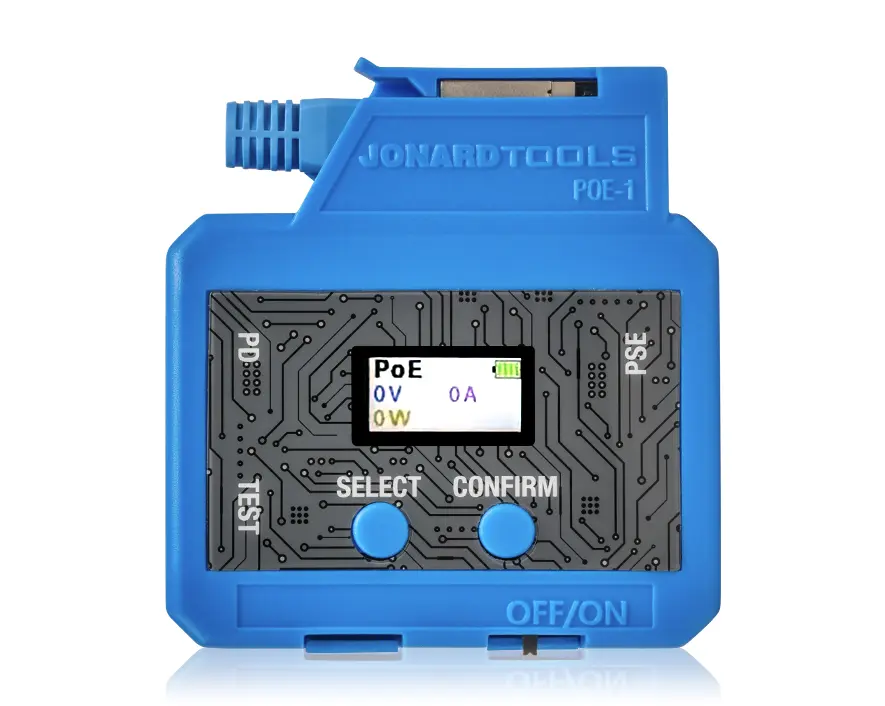

PoE & Cable Testing Tool
PRODUCT FEATURES
Engineered to tackle the dual challenges of PoE testing and network cable continuity verification, our all-in-one PoE tester is a game-changer for network technicians and professionals. This PoE tester also features the following:
- Instantly verify the presence of PoE and determine the Voltage, Amperage, and standards of Ethernet cables, supporting Passive, 802.3af, 802.3at, and 802.3bt standards
- Ensure flawless data transmission by measuring the resistance and verifying the continuity of Cat5, Cat5e, Cat6, and Cat6a network cables
- PoE tester can be used without a battery, using the PoE to power the device
- Can be used to test the resistance and continuity of unpowered network cables using a AA battery as the power source
- Durable construction built to withstand endure challenging environments, ensuring reliable performance wherever the job takes you
- Compact and lightweight design with included belt clip makes this highly portable for on-the-go use
Includes: PoE Tester, Cable Remote, and Female-Female RJ45 Adapter, Instruction Manual, and AA Battery
Specifications
| Connector Type | RJ45 |
|---|---|
| Test Type | PoE, Continuity |
| PoE Range | 12 to 57 volts, 0 to 1500 mA |
| PoE Method | Passive (Simulated 802.3af) |
| PoE Standard | 802.3af/at |
| PoE Standards Supported | Passive, 802.3af, 802.3at, 802.3bt |
| Dimensions | 3.15 in x 2.96 in x 1.49 in (8 cm x 7.52 cm x 3.78 cm) |
| Weight | 0.21 lb (95.34 g) |
| UPC # | 810132437410 |
