ROD-3316 Copy ID to clipboard

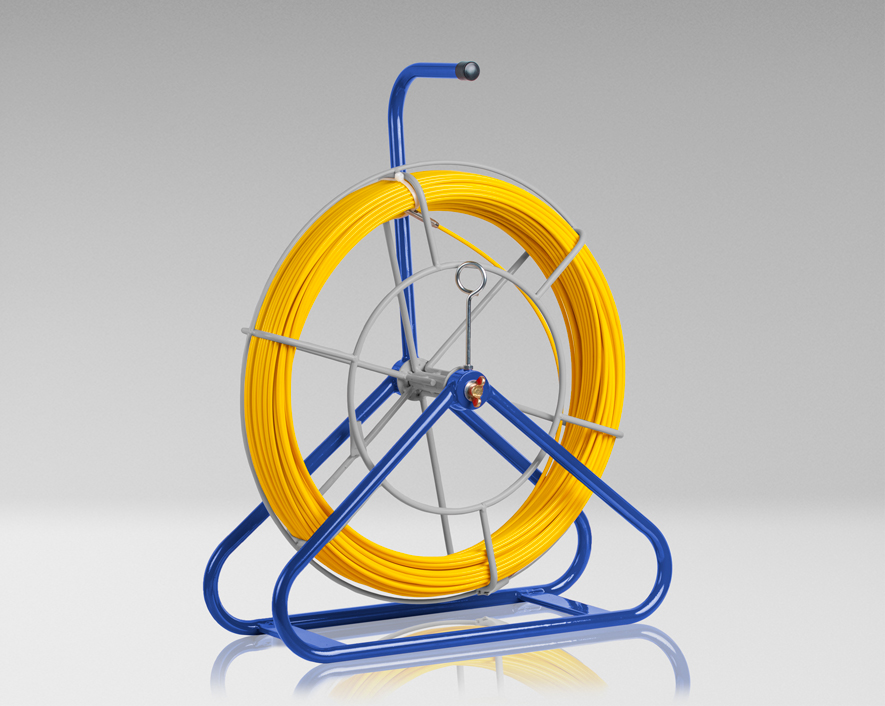

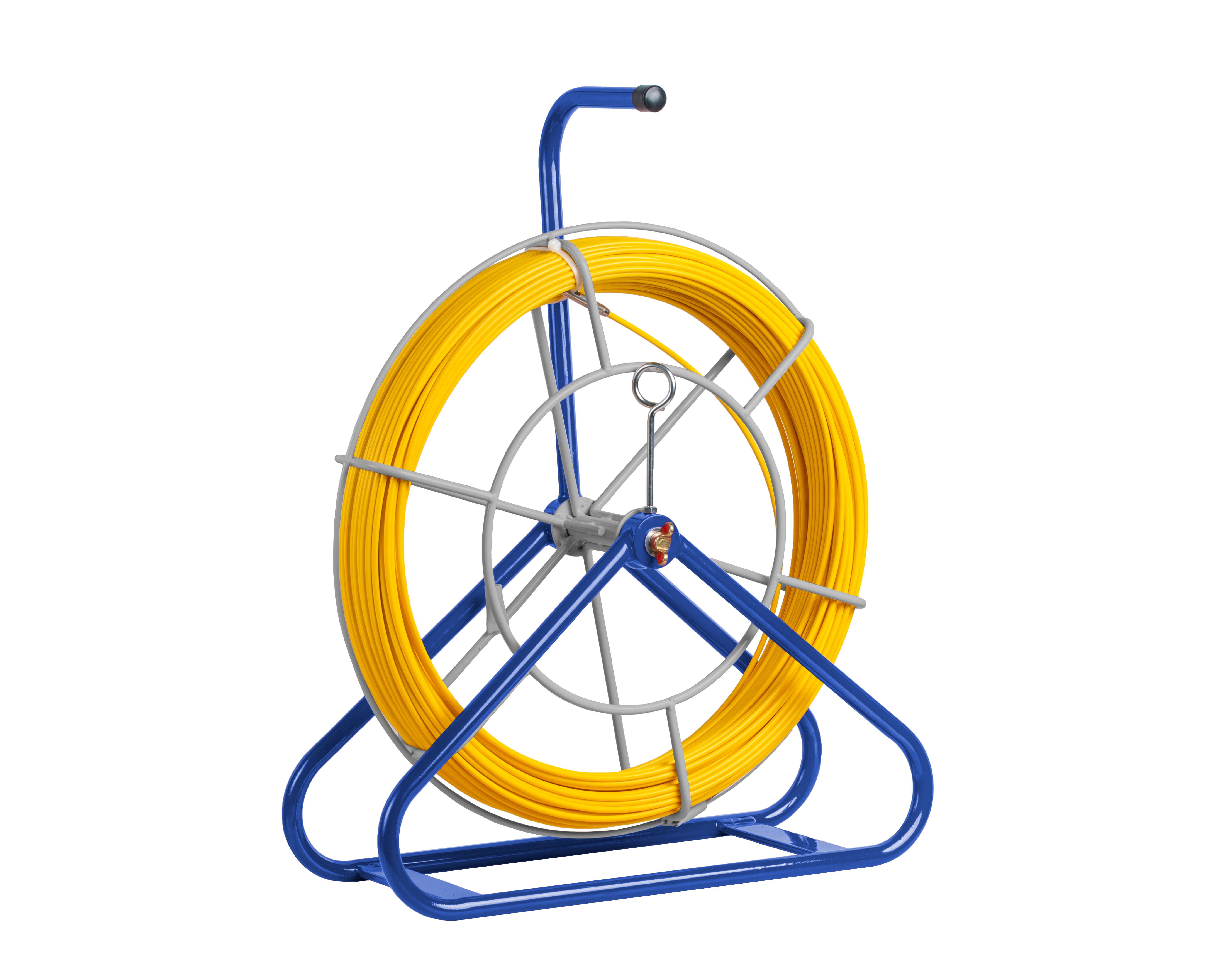

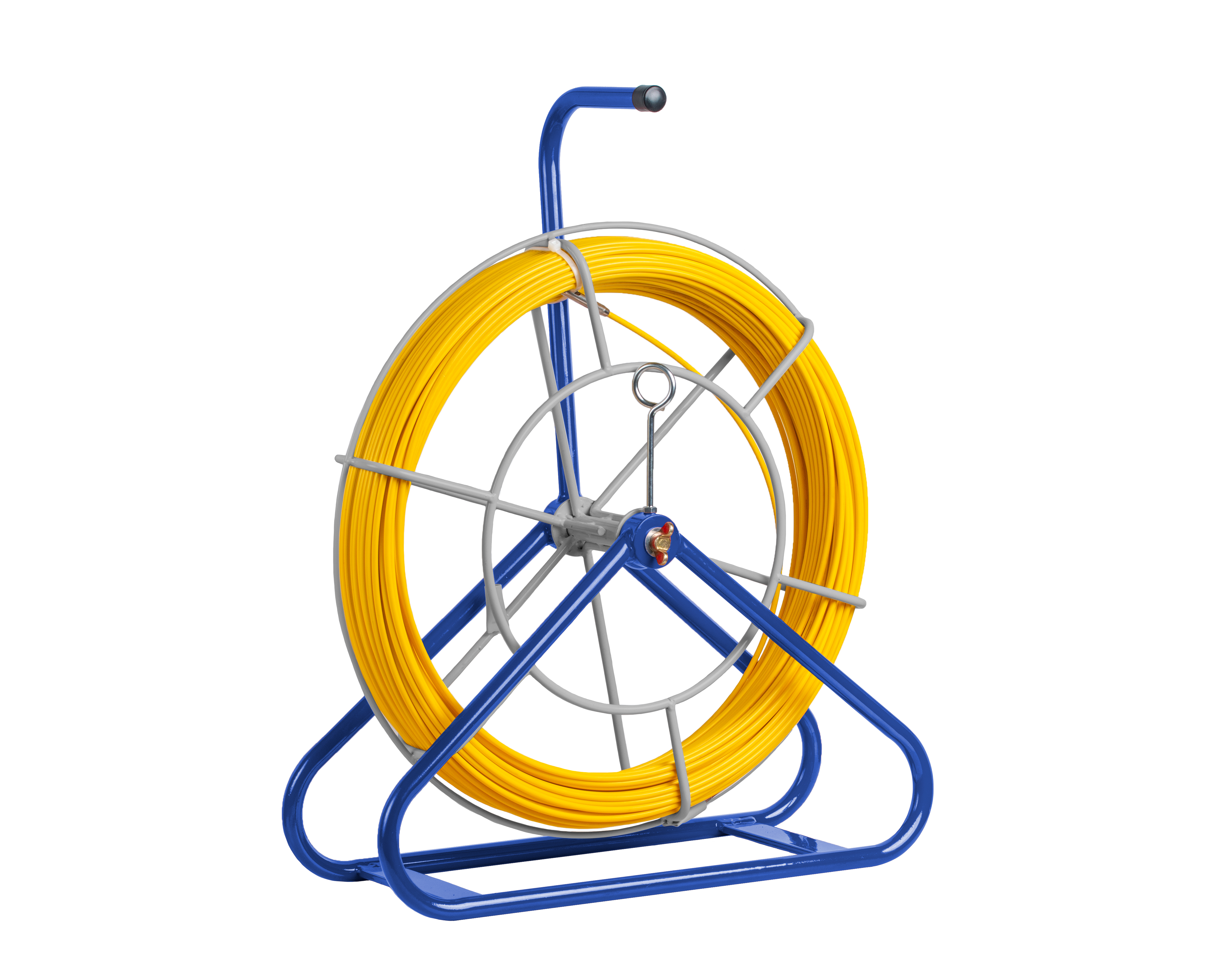

Coated Fiberglass Rodder, 3/16" x 300'
PRODUCT FEATURES
Lightweight and portable, this rodder unit is perfect for running conduit cable or wire through or along conduit drops as well as home drops from the hand-hole box to a building. This rodder also features the following:
- Lightweight and compact design for easy transport
- Can be pulled horizontally or vertically
- Made with a non-conductive fiberglass core with a yellow nylon coating for high visibility and flexibility
- Nylon coating on rod resists harsh environments and provides a low friction surface for easier pulling
- Drag brake for controlling pay out speed
- Triangular stand for stability
- Compatible with any conduit 3/4" or larger
- Includes: ROD-3316AK - Accessory Kit containing flexible leaders with a pulling eye or ball tip
Specifications
| Rod Length | 300' (91.44 m) |
|---|---|
| Diameter of Rod | 0.187" (4.75 mm) |
| Bend Radius | 2.5' (0.76 m) |
| Tensile Strength | 200 kgf (441 lbf) |
| Product Dimensions | 22” X 17” X 7” (55.88 cm x 43.18 cm x 17.78 cm) |
| Product Weight | 14.33 lb (6.5 kg) |
| Thread Size | 8-32 |
| Dimensions | 22 in x 17 in x 7 in (55.88 cm x 43.18 cm x 17.78 cm) |
| Weight | 14.33 lb (6505.82 g) |
| UPC # | 810053350539 |
Specifications
| Rod Length | 300' (91.44 m) |
|---|---|
| Diameter of Rod | 0.187" (4.75 mm) |
| Bend Radius | 2.5' (0.76 m) |
| Tensile Strength | 200 kgf (441 lbf) |
| Product Dimensions | 22” X 17” X 7” (55.88 cm x 43.18 cm x 17.78 cm) |
| Product Weight | 14.33 lb (6.5 kg) |
| Thread Size | 8-32 |
| Dimensions | 22 in x 17 in x 7 in (55.88 cm x 43.18 cm x 17.78 cm) |
| Weight | 14.33 lb (6505.82 g) |
| UPC # | 810053350539 |
