Multi-Function Touchscreen OTDR, 1310/1550 nm, 28/26 dB
OTDR-1100 Copy ID to clipboard
Buy OnlinePRODUCT FEATURES

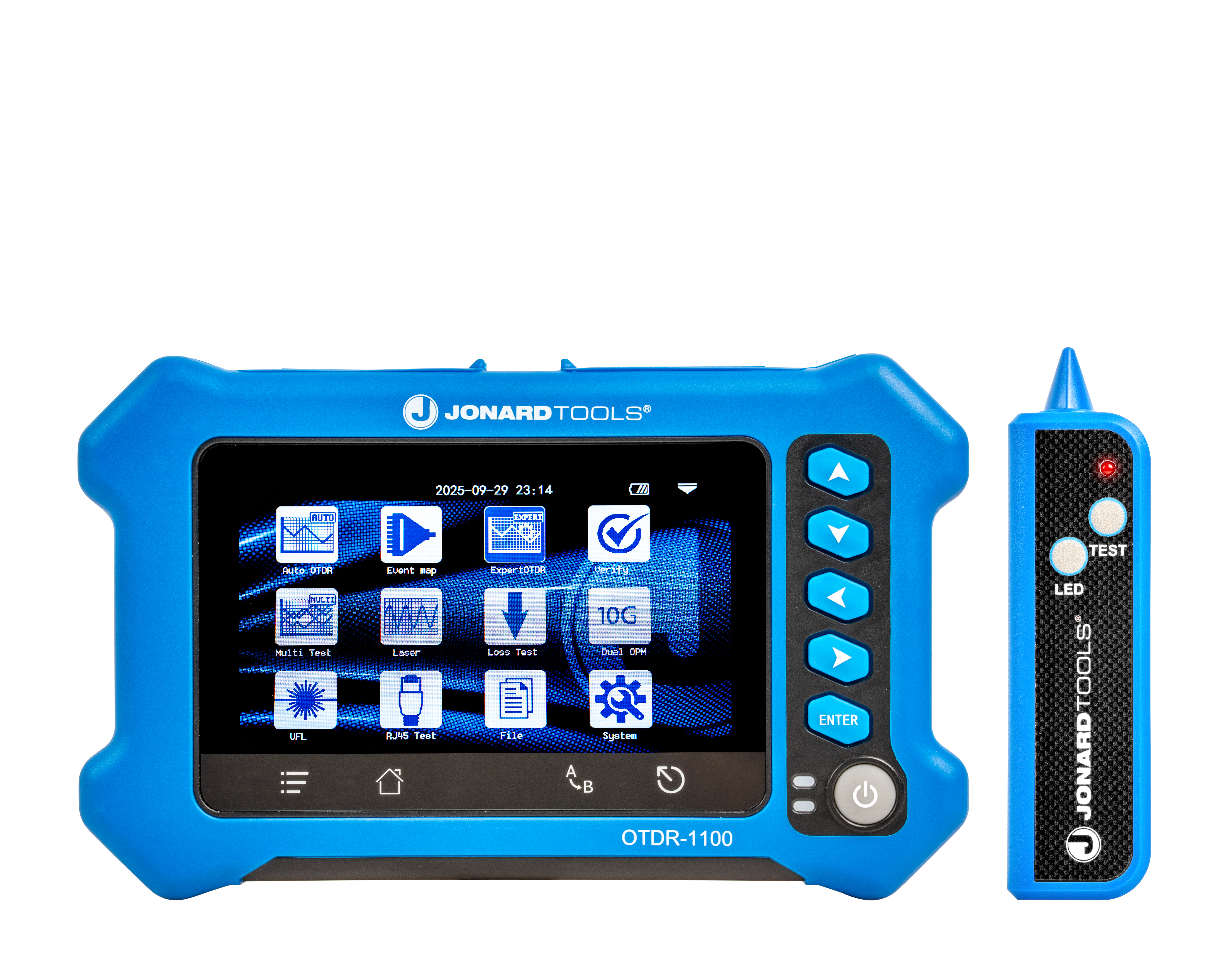

Jonard Tools’ Professional Multi-Function OTDR is the perfect all-in-one handheld device for evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses. This OTDR also features the following:
- Includes 10 different functions for testing fiber and 3 for testing network cables: Auto OTDR, Expert OTDR, Event Map, ONU Verification, Multicore Test, Downstream XGPON Power Meter, Light Source, Power Meter, VFL, and Microscope modules for fiber and RJ45 Sequence, Cable Length, and Cable Tracing
- Large, bright 4.3” color LCD touch screen makes it quick and easy to evaluate data
- More accurate testing with a 28/26 dB Dynamic Range
- Built-in downstream XGPON meter for testing 1490 nm and 1577 nm wavelengths simultaneously
- Multi-core testing module lets you test up to 256 fibers, great for testing newly installed fiber
- Built-in Event Map shows faults with graphical images for simplified troubleshooting
- All-inclusive fiber testing functions, such as light source, power meter, and VFL simplify the fiber testing process
- Network testing modules make testing RJ45 connectorized network cables fast and quick
- Rubberized hard plastic case is shock-proof and drop-proof for maximum durability
- Internal storage stores over 600 entries, with MicroSD/TF card slot for additional memory
- Built-in rechargeable lithium-ion battery provides power on-the-go
- Can be charged or connected to a computer for data transfer via included micro-USB cable
- Convenient unit kickstand
- Protective carrying case
Includes: FC/UPC, SC/UPC, and LC/UPC OTDR Adapters, LC/UPC Adapter for OPM, Test Probe, MicroSD/TF card, Charging Cable, Power Adapter, downloadable software (also featured in the download section of this product page), Calibration Certificate, and Instruction Manual
Specifications
| Wavelengths | 1310±20nm, 1550±20nm |
|---|---|
| Fiber Type | G.652 SingleMode Fiber |
| Dynamic Range | 28dB/26dB |
| Event Blind Zone | 3 m |
| ATT Blind Zone | 8 m |
| Test Range | 5 m - 80 km |
| Pulse Width | 5 ns - 10 us |
| Range Accuracy | ±1.0 m + Sampling Interval + 0.0050% × Test Distance） |
| Loss Accuracy | +/- 0.2 dB/dB |
| Sampling Points | 16k ~ 128K |
| Sampling Resolution | 0.05 m ~ 8.0 m |
| Reflection Accuracy | ± 3 dB |
| Data Storage | Internal: >600 Entries; External: MicroSD Card |
| Laser Safety Level | Class IIIA |
| File Format | SOR Standard File Format |
| Included Connectors for OTDR | FC, SC, LC (APC) |
| Dimensions | 10.5" x 8" x 2.63" (26.67 cm x 20.32 cm x 6.68 cm) |
| Weight | 2.37 lb (1075 g) |
| UPC # | 810132439582 |
| Wavelengths | 1310±20nm, 1550±20nm |
|---|---|
| Fiber Type | G.652 SingleMode Fiber |
| Dynamic Range | 28dB/26dB |
| Event Blind Zone | 3 m |
| ATT Blind Zone | 8 m |
| Test Range | 5 m - 80 km |
| Pulse Width | 5 ns - 10 us |
| Range Accuracy | ±1.0 m + Sampling Interval + 0.0050% × Test Distance） |
| Loss Accuracy | +/- 0.2 dB/dB |
| Sampling Points | 16k ~ 128K |
| Sampling Resolution | 0.05 m ~ 8.0 m |
| Reflection Accuracy | ± 3 dB |
| Data Storage | Internal: >600 Entries; External: MicroSD Card |
| Laser Safety Level | Class IIIA |
| File Format | SOR Standard File Format |
| Included Connectors for OTDR | FC, SC, LC (APC) |
| Dimensions | 10.5" x 8" x 2.63" (26.67 cm x 20.32 cm x 6.68 cm) |
| Weight | 2.37 lb (1075 g) |
| UPC # | 810132439582 |
