ND-631 Copy ID to clipboard

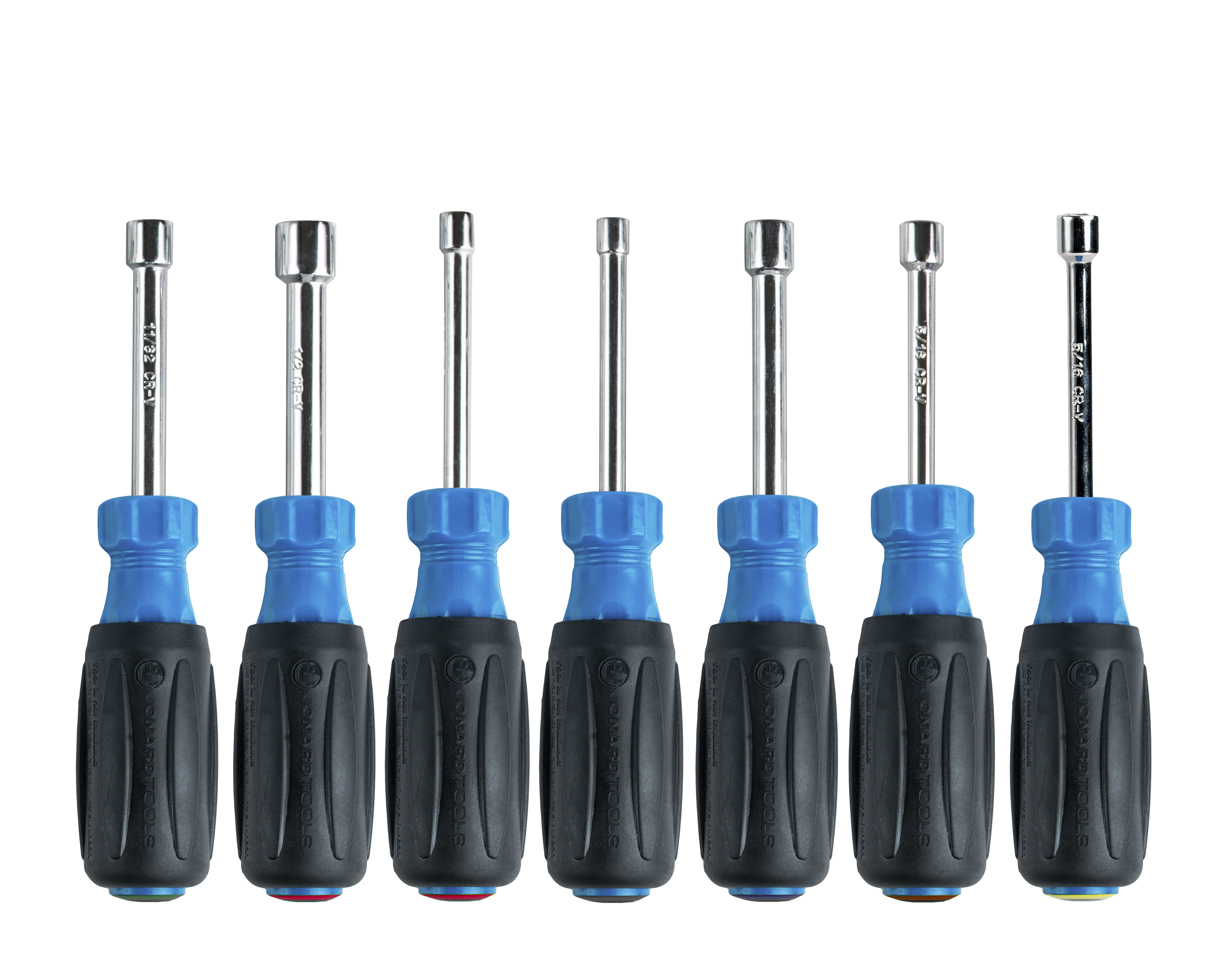

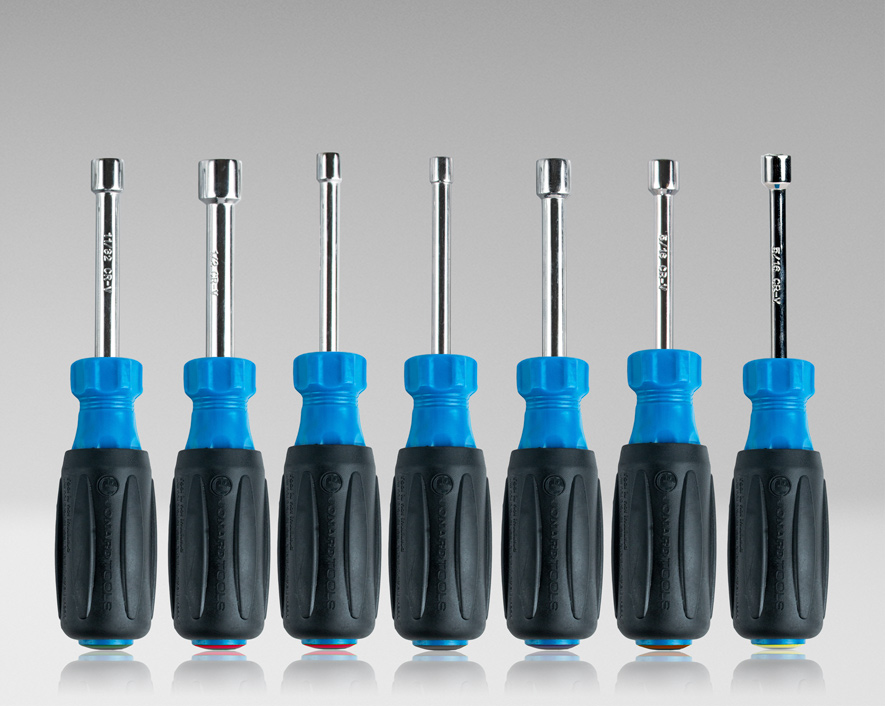

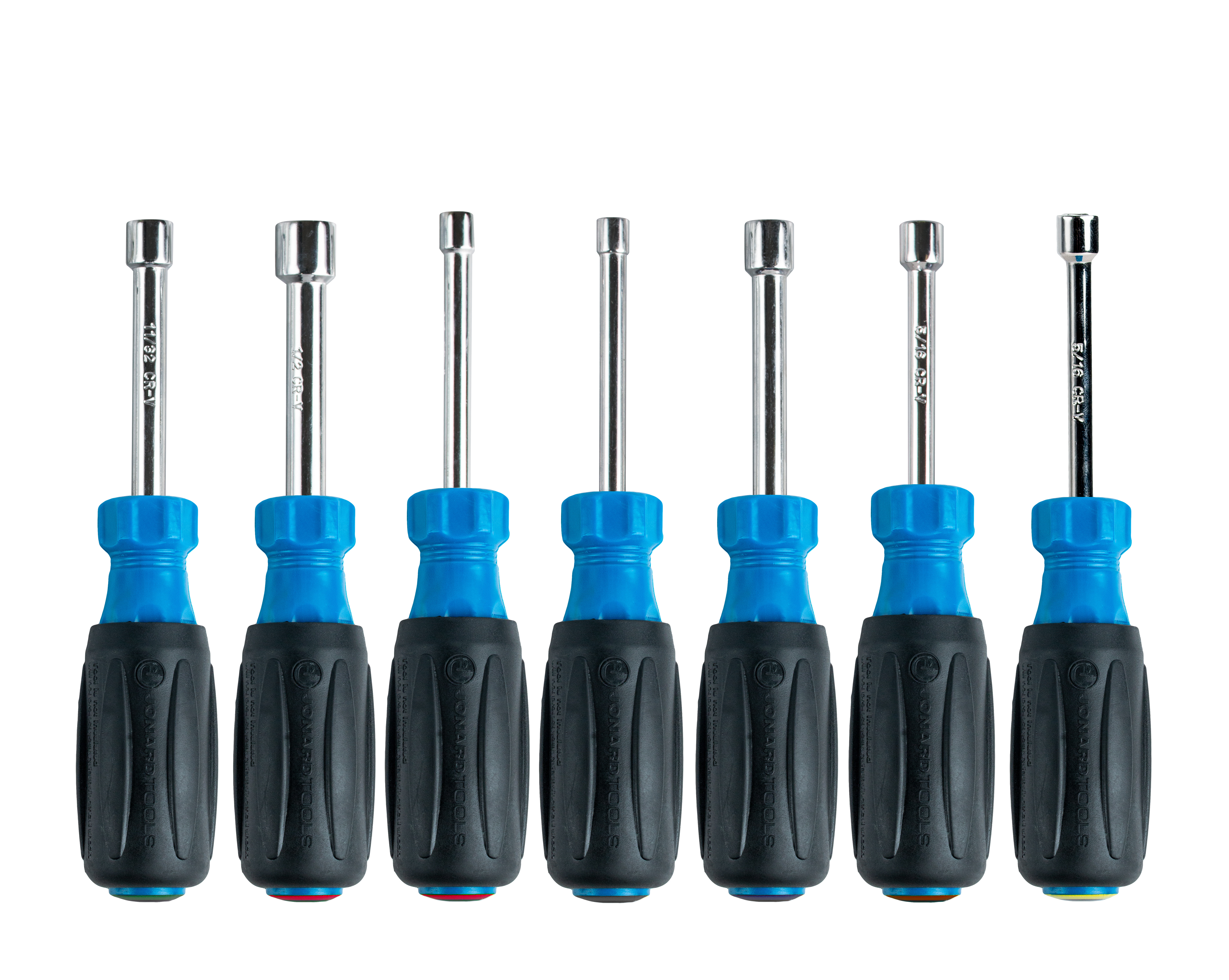

7 Piece Nut Driver Set
PRODUCT FEATURES
Jonard’s Nut Drivers have a full length hollow shaft, making them a great tool to use on stacked circuit boards and long bolts/studs. Our Nut Drivers feature the following:
- Internal shaft flanges to prevent the handle from slipping
- Ergonomically designed handle with thermoplastic rubberized grip for greater comfort and torque
- End of the handle is marked to be easily identifiable while stored
- This product complies with ASME B107.110 and ANSI standards
Kit includes
ND-6301132
|
11/32" Hollow Nut Driver, 3" Shaft |
ND-63012
|
1/2" Hollow Nut Driver, 3" Shaft |
ND-63014
|
1/4" Hollow Nut Driver, 3" Shaft |
ND-630316
|
3/16" Hollow Nut Driver, 3" Shaft |
ND-63038
|
3/8" Hollow Nut Driver, 3" Shaft |
ND-630516
|
5/16" Hollow Nut Driver, 3" Shaft |
ND-630716
|
7/16" Hollow Nut Driver, 3" Shaft |
Kit Includes
Kit includes
| ND-6301132
|
11/32" Hollow Nut Driver, 3" Shaft |
| ND-63012
|
1/2" Hollow Nut Driver, 3" Shaft |
| ND-63014
|
1/4" Hollow Nut Driver, 3" Shaft |
| ND-630316
|
3/16" Hollow Nut Driver, 3" Shaft |
| ND-63038
|
3/8" Hollow Nut Driver, 3" Shaft |
| ND-630516
|
5/16" Hollow Nut Driver, 3" Shaft |
| ND-630716
|
7/16" Hollow Nut Driver, 3" Shaft |
Specifications
| Driver Size | 3/16" (4.763mm), 1/4" (6.35mm), 5/16" (7.94mm), 11/32" (8.73mm), 3/8" (9.53mm), 7/16" (11.11mm), 1/2" (12.7mm) |
|---|---|
| Shaft Material | Chrome Vanadium Steel |
| Handle Type | Ergonomic Cushion Grip |
| Handle Grip Material | TPR Thermoplastic Rubber |
| Standards | ASME B107.110/ANSI |
| Shaft Length | 3" (76.2mm) |
| Hollow Depth | 6.75" (171.5mm) |
| Overall Length | 7" (177.8mm) |
| Driver Weight | 0.318 - 0.355 lbs (144.24 - 161.03g) |
| Total Set Weight | 2.213 lbs (1.0038kg) |
| Weight | 0 lb (0 g) |
| UPC # | 811490010819 |
Specifications
| Driver Size | 3/16" (4.763mm), 1/4" (6.35mm), 5/16" (7.94mm), 11/32" (8.73mm), 3/8" (9.53mm), 7/16" (11.11mm), 1/2" (12.7mm) |
|---|---|
| Shaft Material | Chrome Vanadium Steel |
| Handle Type | Ergonomic Cushion Grip |
| Handle Grip Material | TPR Thermoplastic Rubber |
| Standards | ASME B107.110/ANSI |
| Shaft Length | 3" (76.2mm) |
| Hollow Depth | 6.75" (171.5mm) |
| Overall Length | 7" (177.8mm) |
| Driver Weight | 0.318 - 0.355 lbs (144.24 - 161.03g) |
| Total Set Weight | 2.213 lbs (1.0038kg) |
| Weight | 0 lb (0 g) |
| UPC # | 811490010819 |
