MS-116 Copy ID to clipboard

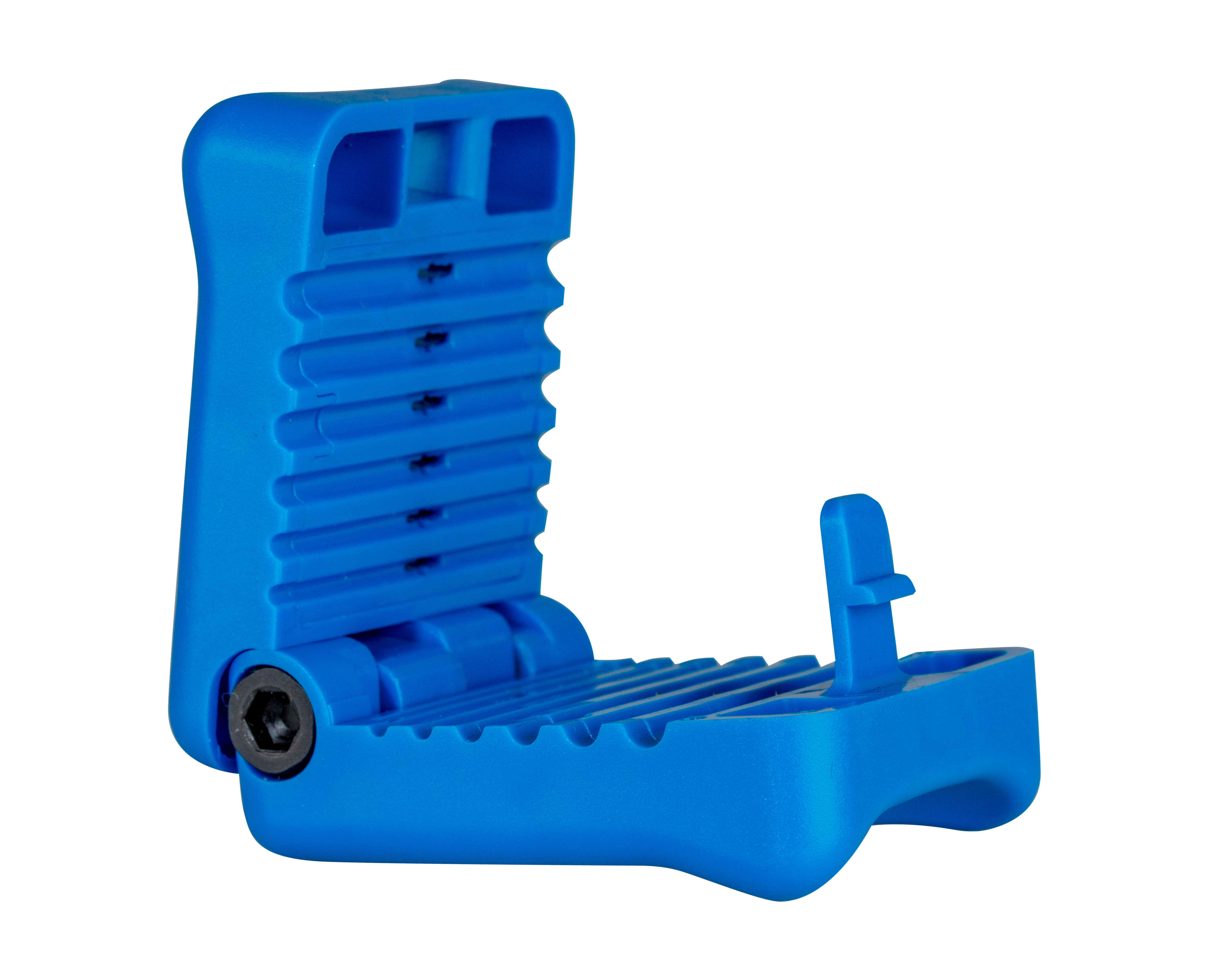

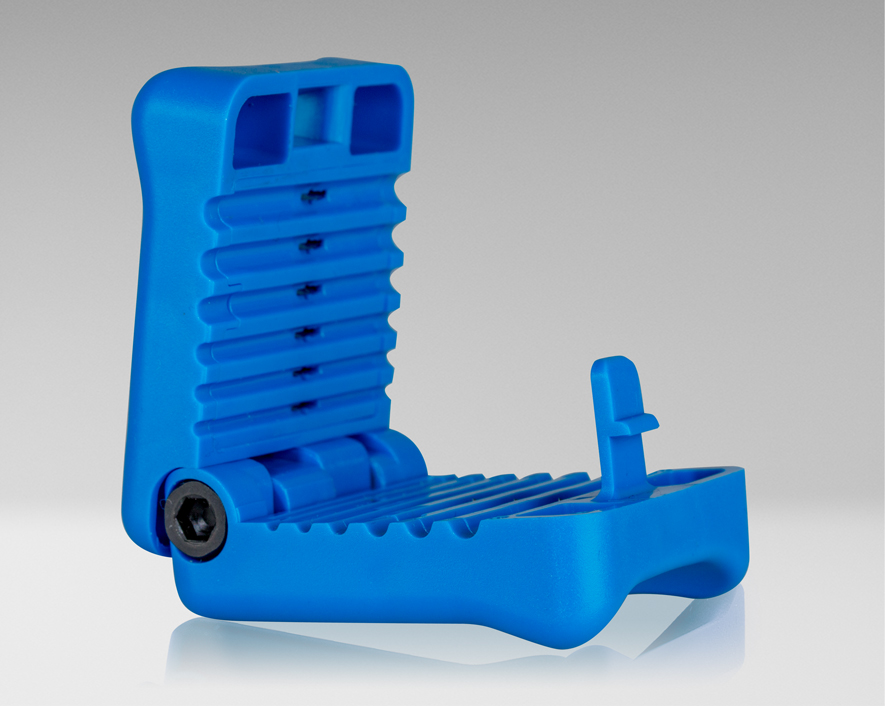

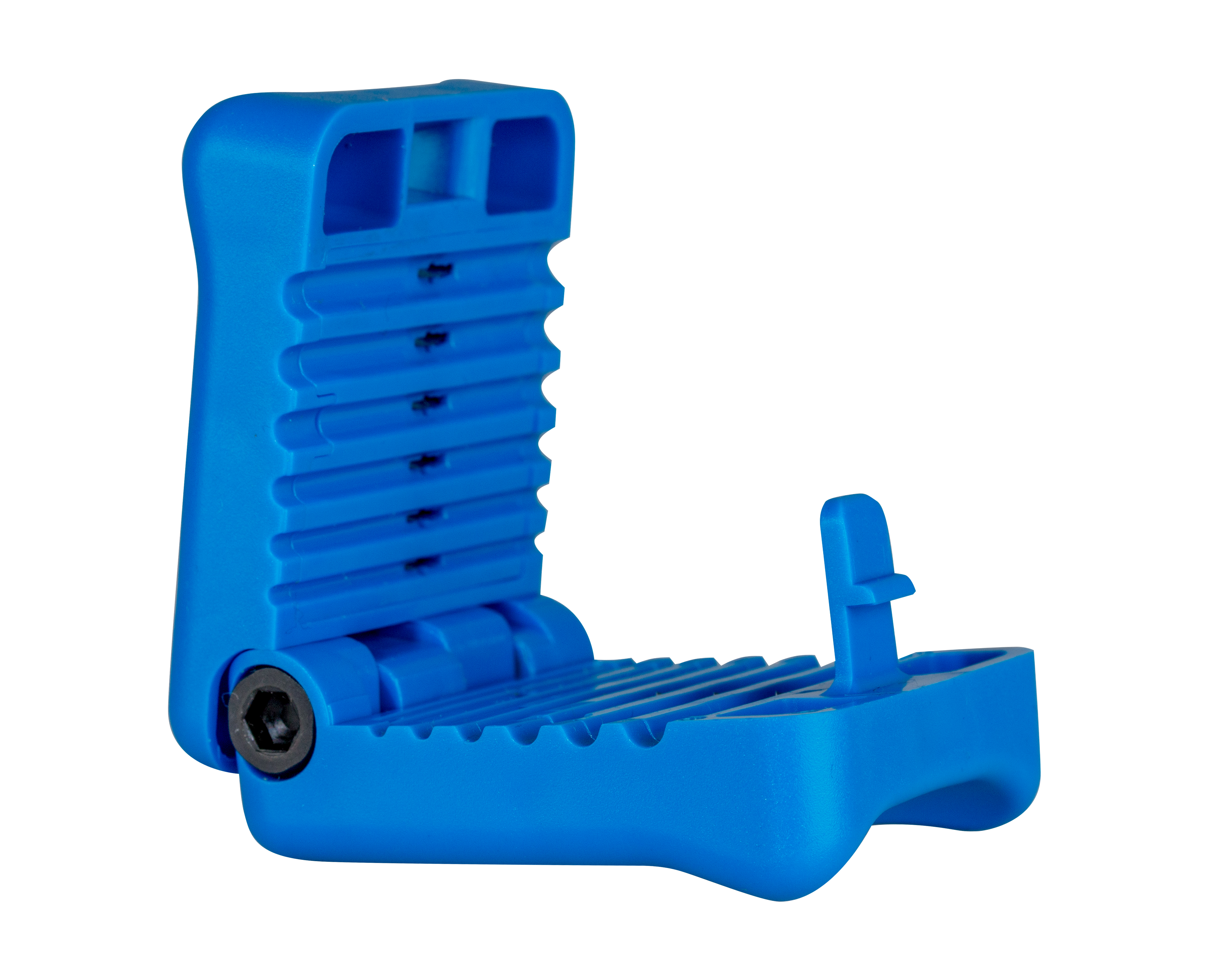

Mid Span Slitter for ABF Cables, 1,1 - 1,6 mm
PRODUCT FEATURES
Designed with 6 precision grooves and blades, this mid span slitter is perfect for slitting the cable sheathes off Air Blown Fiber cable without damaging the fiber inside. This mid span slitter also features the following:
- Consists of 6 precision slitting grooves ranging in size from 1.1 mm to 1.6 mm
- Perfect for slitting Air Blown Fiber and other similarly sized fiber cables
- Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing
- Compact design weighing less than 2.5 oz with included tethering hole makes it perfect to use in tight spaces or on the go
- Replacement blade set available, part number: MS-116RB
- Blades last for 5,000 slits/cuts
- Groove Sizes: 1.1 mm | 1.2 mm | 1.3 mm | 1.4 mm | 1.5 mm | 1.6 mm
- Lifetime Warranty
Specifications
| Cut Type | Slit |
|---|---|
| Number of Slitting Grooves | 6 |
| Cable Type | Air Blown Fiber |
| Cable Diameter | 1.1 mm - 1.6 mm (0.043" - 0.063") |
| Dimensions | 2.23 in x 1.52 in x 1.04 in (5.65 cm x 3.86 cm x 2.64 cm) |
| Weight | 0.09 lb (39.952 g) |
| UPC # | 810132436062 |
