Jonard Tools MS-26 Mid Span Slitter

Fiber Optic Tools

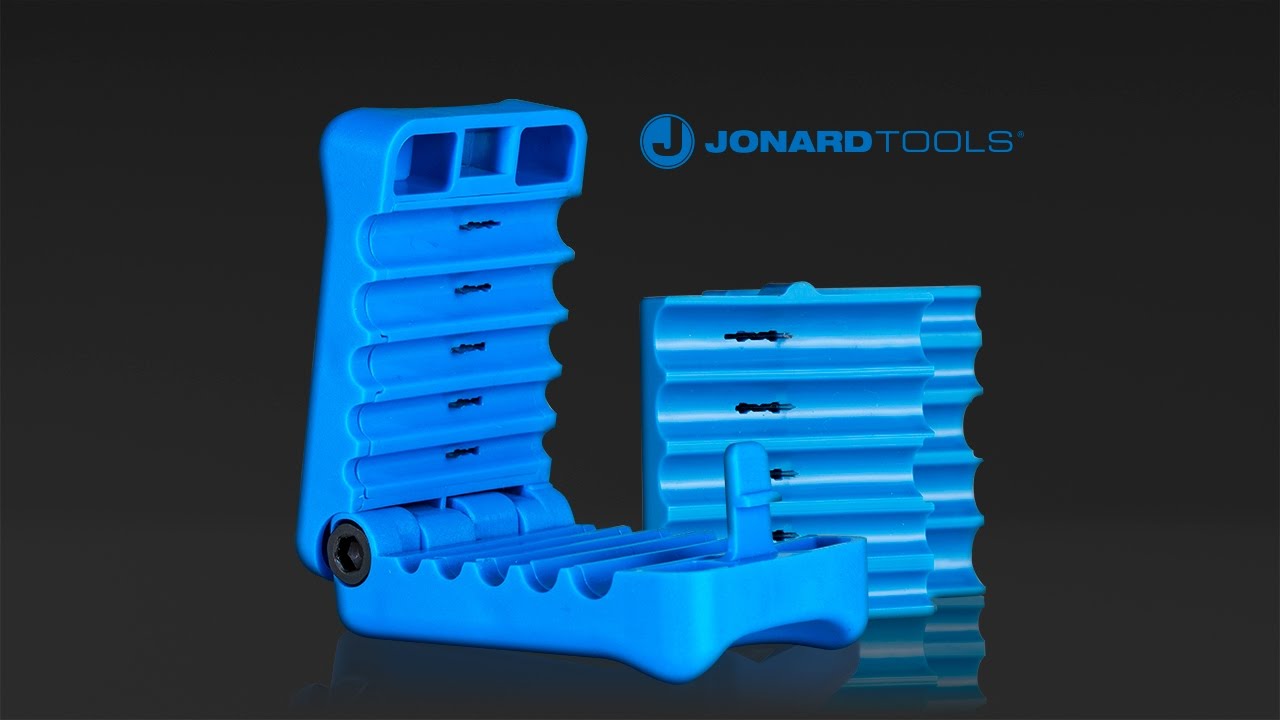

The Jonard Tools patent pending MS-26 Mid Span Slitter is designed to open fiber jackets and loose buffer tubes to provide easy fiber access.

The MS-26 is designed to work on cables or buffer tubes ranging in size from 2.9mm to 6.8mm in diameter. It's sleek ergonomic design allows you to open a jacket or buffer tube without damaging the fiber and features a replaceable cartridge blade set - part number MSB-2968. The MS-26 was designed with 5 precision grooves which are conveniently identified on the top of the tool. The grooves will handle an assortment of cable sizes. These include:

Groove Sizes:

2.9 - 3.6 mm

3.6 - 4.4 mm

4.4 - 5.2 mm

5.2 - 6.0 mm

6.0 - 6.8 mm

Easy to use:

1. Select the correct groove. Each groove is marked with the recommended fiber size.

2. Place the fiber in the groove to be used. The arrow on the top of the MS-26 indicates blade location and pulling direction.

3. Close the tool making sure the lock is engaged and pull.

Like, Comment & Subscribe to stay updated with the latest content! Follow Jonard Tools:

Website: https://www.jonard.com/

Facebook: https://www.facebook.com/JonardTools/

Instagram: https://www.instagram.com/jonardtools/

Twitter: https://twitter.com/jonardtools

Applicable Products
Mid Span Slitter (2.9 mm-6.8 mm)
