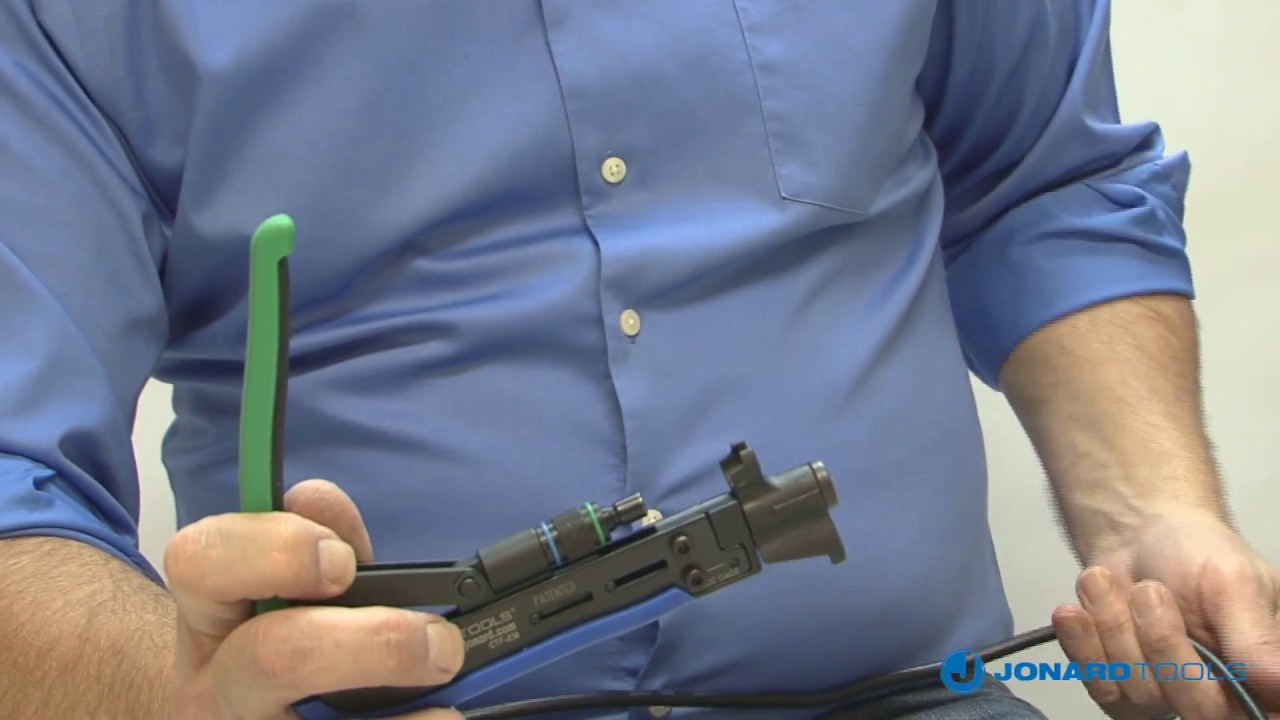

This dual compression tool is two tools in one, combining the features of the CTF-200 and the CTF-300. It is designed for use on either short or long F connectors (such as PPC EX6 and PPC EX6XL), and also works on most RG 11 connectors.

The Green ring side of the plunger is for the “short” PPC EX6 style connectors and the Blue side of the plunger is for the “long” PPC EX6 XL style connectors.

Simple to use:

Select the proper head size by rotating head to the long or short setting

Position the plunger: Green facing the connector for short connectors and Blue facing the connector for long connectors. Pull the plunger to remove and select which side to insert back into tool.

Insert the cable and connector in the tool and squeeze

Some of the connectors this tool will work on are listed below: PPC: CMP6, CMP6Q, CMP59, CMP59Q, CMP11, EX6XL, EX59XL, EX59XLHE, EX6XLWS, EX6LP , EX7, EX7N716, EX11, EX11N716, EX320QR, EX320N716, EX59XLK, EX6XLK, EX6XLP, EX7N716WS, EX59XLK, EX6XLK, EX6XLP, EX7N716WS, EX11N716WS, EX59XLWS, EX11N716WSPLUS, EX11N716PLUS, EX7N716WSPLUS, EX7N716PLUS, EX6XLPLUS, EX6XLWSPLUS, EX59XLPLUS, EX59XLWSPLUS, EX6XLWS. Digicon: DS6, DS59, DS59Q, DS11,DS7 Belden: SNS11A5TP275, SNS59Q5NS, SNS1P59QS, SNS11A5NS, SNS7ASNS, SNS1P6, SNS59TP275, SNS6TP275, SNS7BNS, SNS1P59, SNS1P59HEL, SNS7BQ, SNS7AS, SNS7B Corning Gilbert UltraEase: GF-UE-59, GF-UE-59Q, GF-UE-6, GF-UE-6Q, GF-UE-5.1, GF-URS-6-SR, GF-URS-59-SR, GAF-URS-11MH. ATX Networks: 9-MPF-CQ
