KS21257L3 Copy ID to clipboard

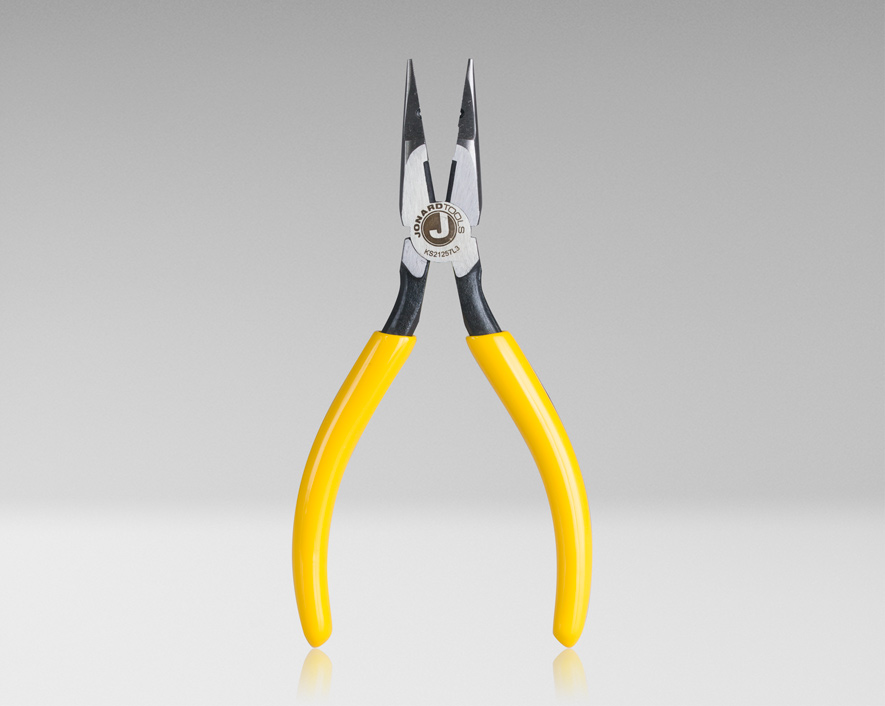

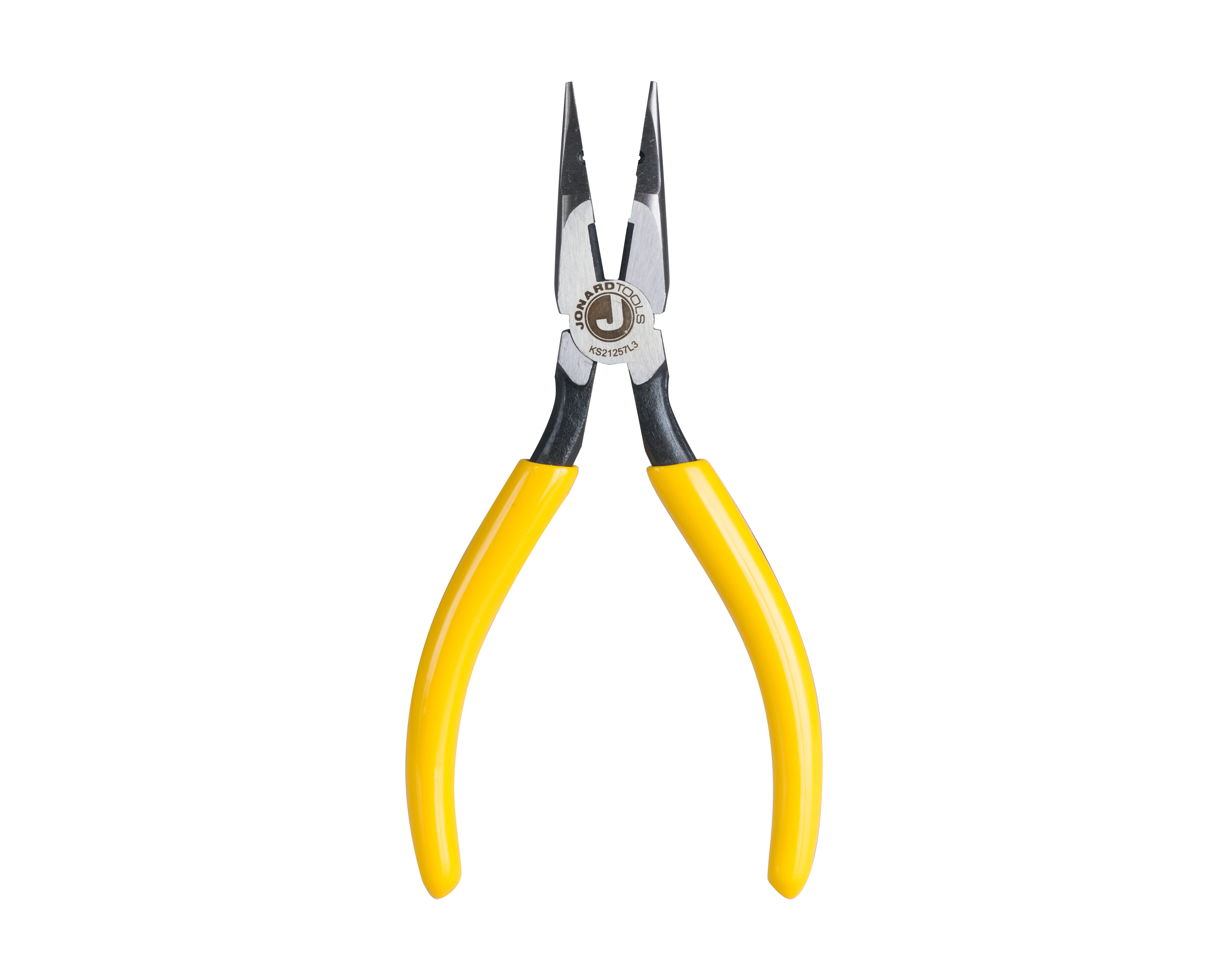

L3 Type Cut Crush Strip Pliers
PRODUCT FEATURES
Jonard’s long nose pliers are made of heat treated carbon steel with induction-hardened cutting edges for maximum strength and durability. These long nose pliers feature the following:
- Side cutting edges, crushing slot, 0.030” stripping hole for 22 AWG wire, and thin knurled nose to facilitate handling of wire while working on terminals
- Ergonomically designed handle with dipped plastic grip for greater comfort and torque
- Side-cutting blades on jaw cut wire with ease
Specifications
| Cutter Length | 7/16" (1.11 cm) |
|---|---|
| Jaw Length | 1 1/2" (3.81 cm) |
| Jaw Thickness | 3/8" (9.53 mm) |
| Jaw Width | 3/4" (1.91 cm) |
| Stripping Hole Diameter | 0.030" (0.762 mm) |
| Overall Length | 6 1/2" (16.5 cm) |
| Material | Carbon Steel |
| Weight | 0.31 lb (139.832 g) |
| UPC # | 811490011342 |
