JIC-203 Copy ID to clipboard

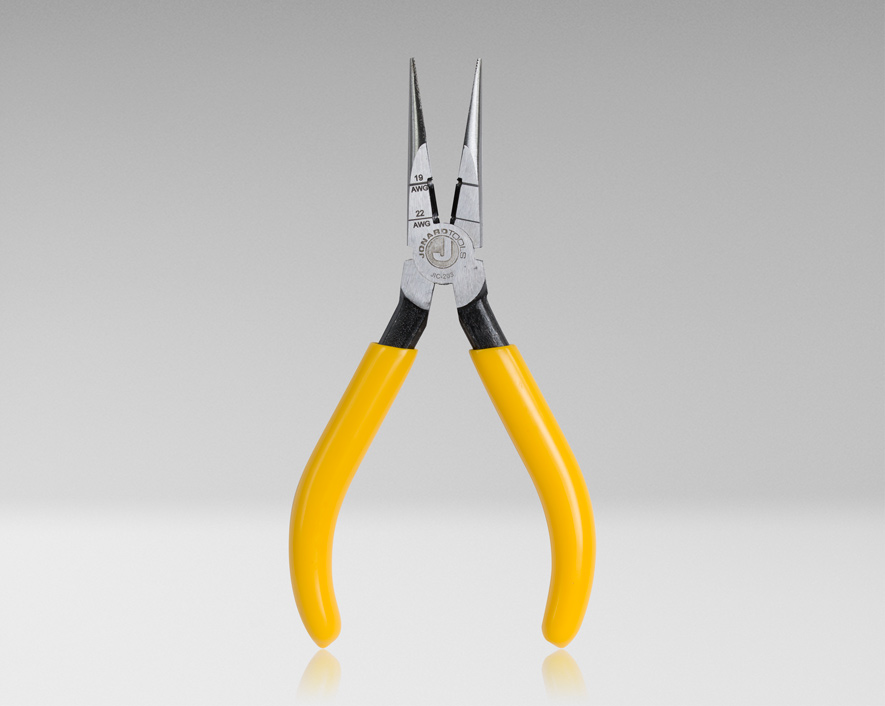

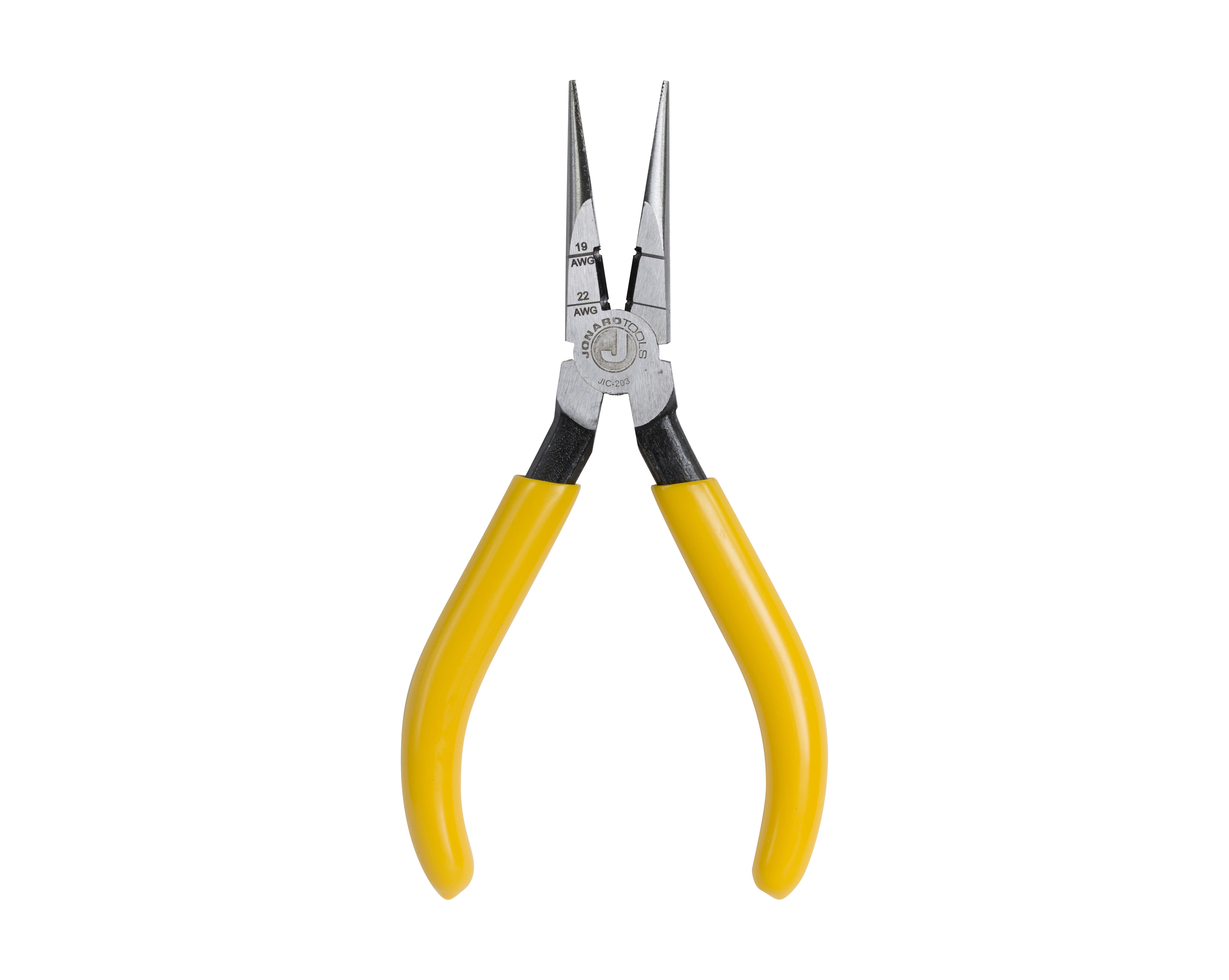

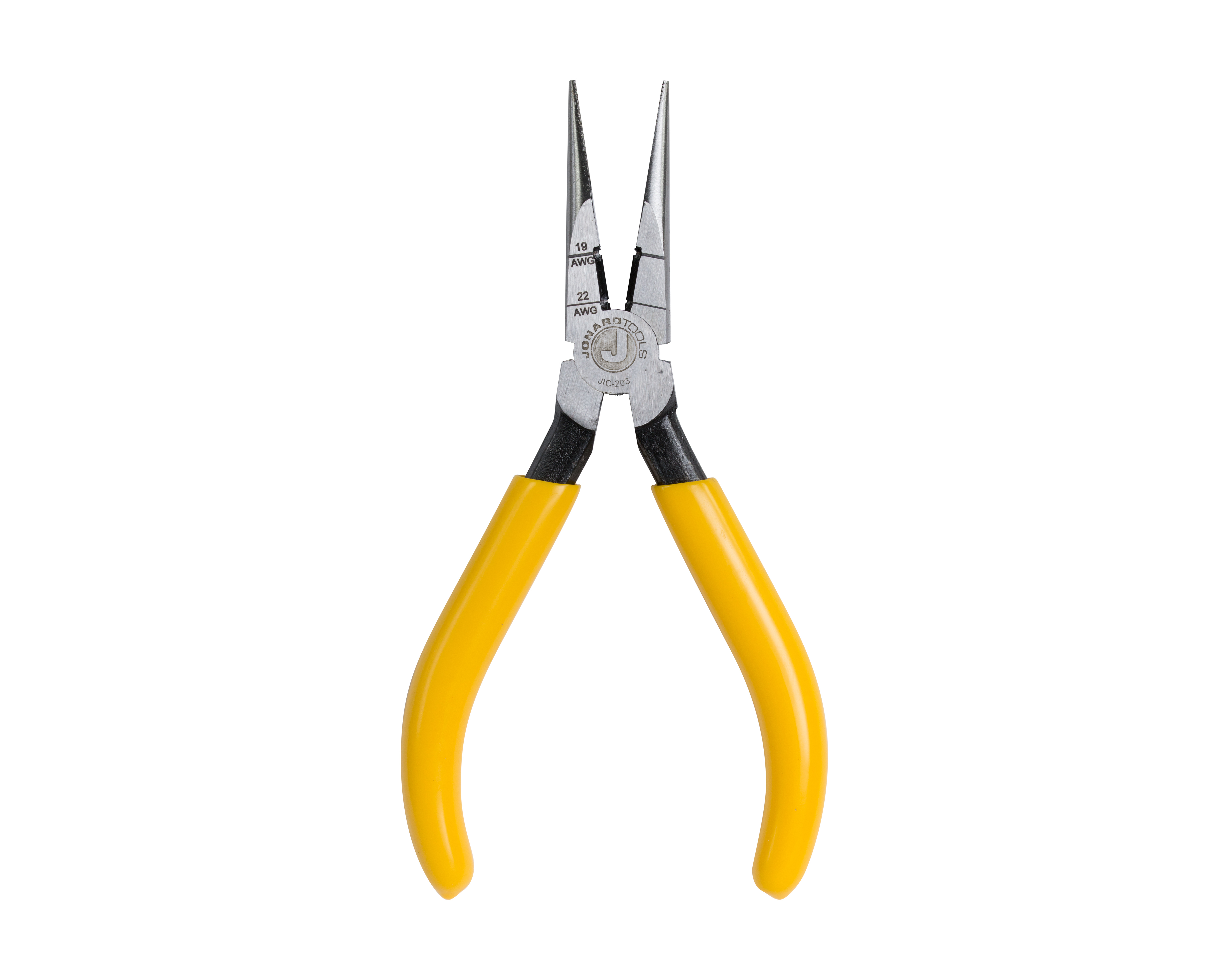

Long Nose Switchboard Pliers
PRODUCT FEATURES
Jonard’s long nose pliers are made of heat treated chrome vanadium steel for maximum strength and durability. These long nose pliers feature the following:
- Designed to grip small wires or parts and reach into tight spaces
- Cross hatched knurled jaws to ensure a tight grip and rivet design to ensure smooth movement and eliminate side-play
- Two stripping holes for 19 AWG and 22 AWG wire to easily strip wire
- Ergonomically designed handle with dipped plastic grip for greater comfort and torque
Specifications
Cut Type | Side-Cut |
---|---|
Stripping Hole | 19 AWG (0.912 mm), 22 AWG (0.644 mm) |
Material | Chrome Vanadium Steel |
Cutter Length | 1/2" (12.7 mm) |
Overall Length | 6 7/8" (174.62 mm) |
Weight | 0.36 lb (162.532 g) |
UPC # | 811490015241 |
