INSS-19M Copy ID to clipboard

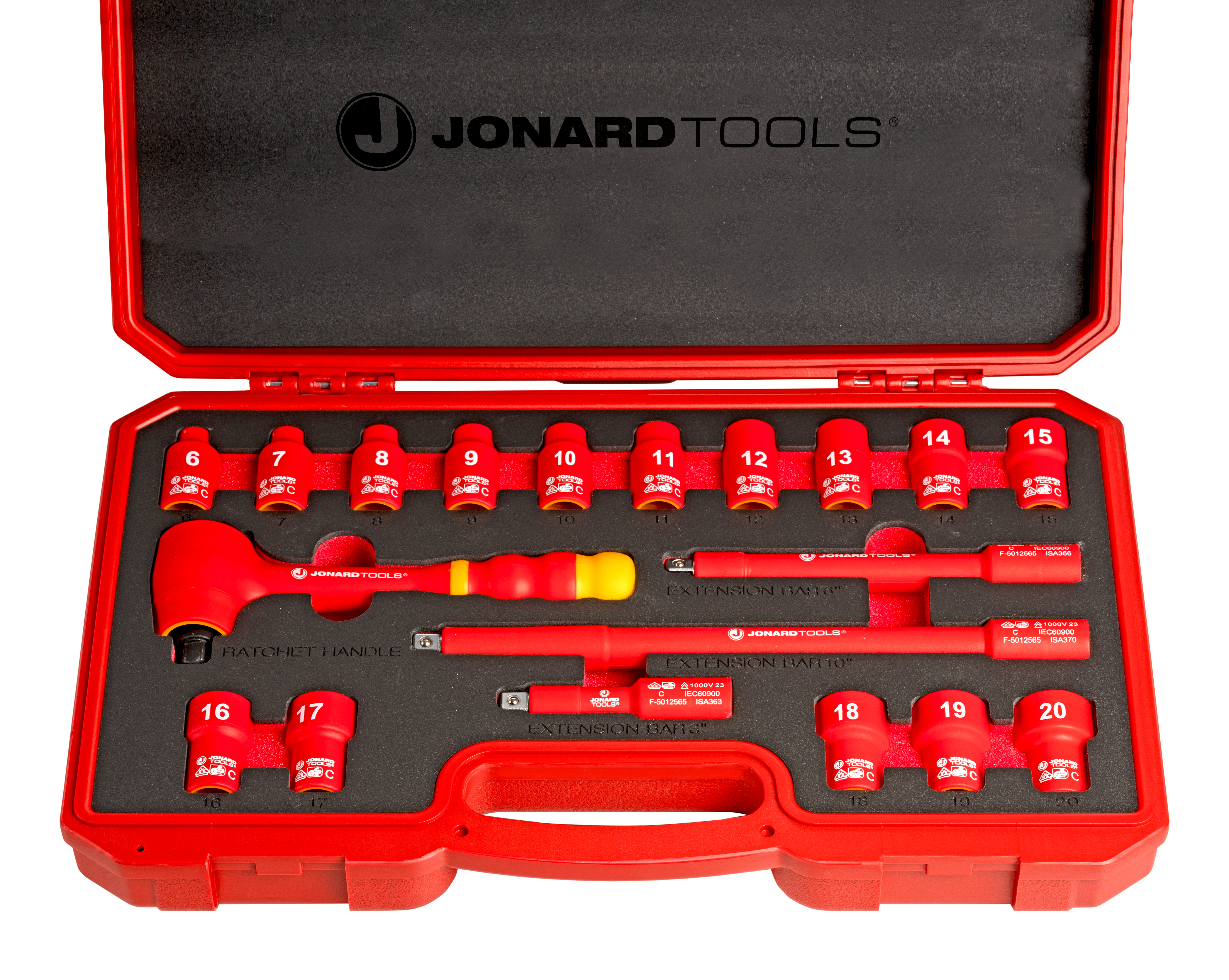

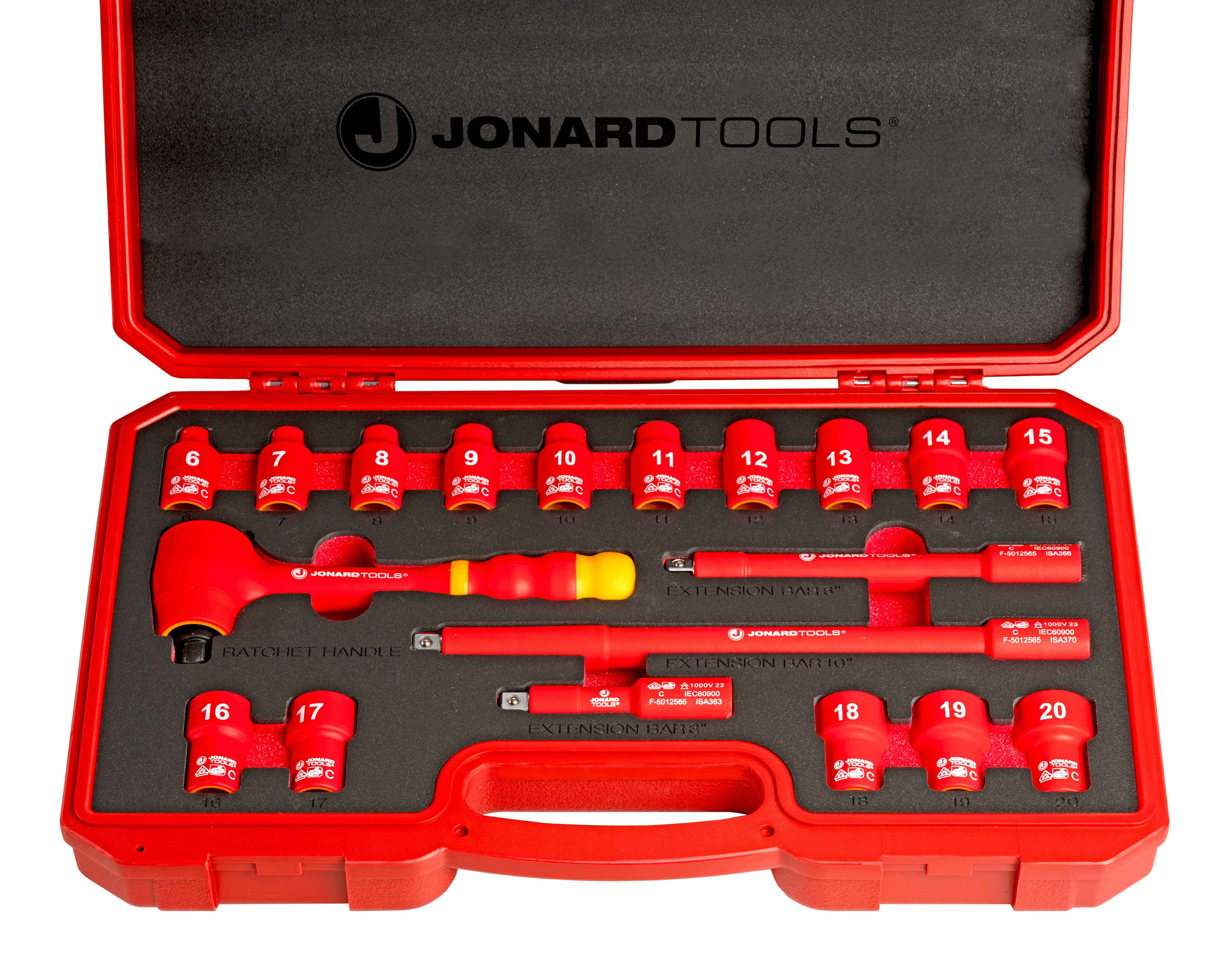

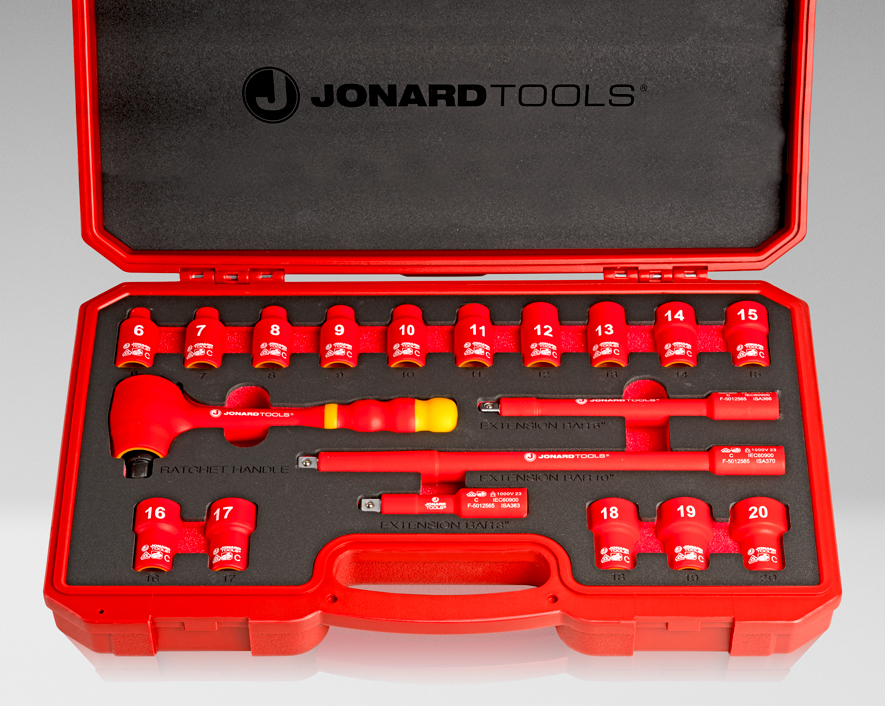

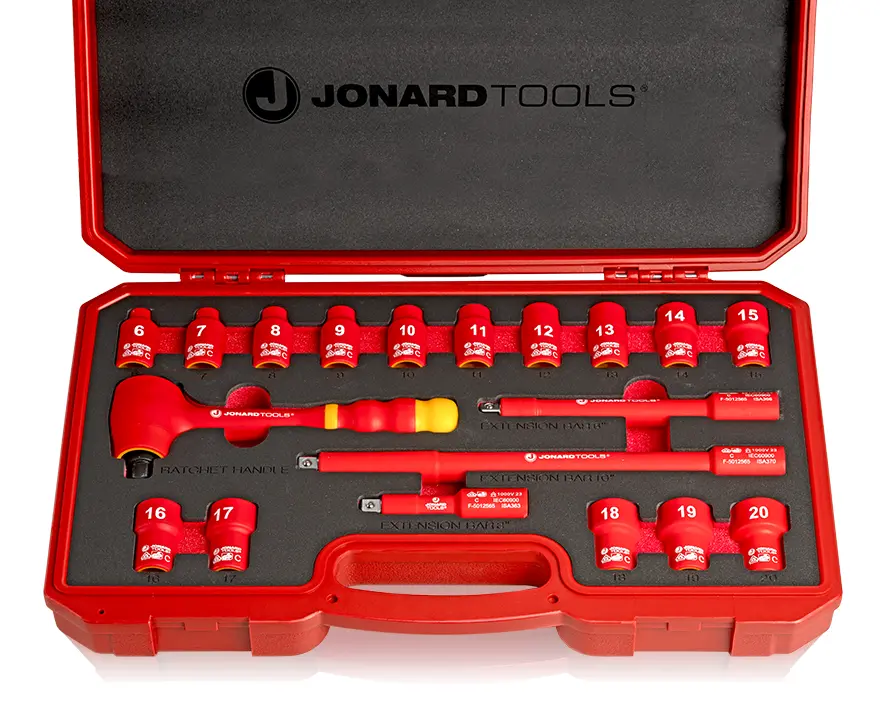

Insulated 19 Piece Metric Socket Set

PRODUCT FEATURES

The INSS-19M Insulated Socket Set features 15 sockets (6-20 mm), 3 extensions, and a 72 tooth ratchet designed to meet the needs of any application. Rigorously tested for protection up to 1000VAC with dual color insulation for confident protection. This product features the following:

  • Fully insulated and built for professionals, every component is tested and certified according to DIN EN 60900 (VDE 0682-201):2013-04; EN 60900:2012 standards (Certificate No. 40032700 by the VDE Testing and Certification Institute, 2023)
  • Sockets and extensions are manufactured from chrome vanadium steel and then coated twice to ensure long-life
  • Deluxe, laminated foam, and blow molded hard storage case ensures VDE tools stay, organized and protected
  • High contrast marking for easy identification
  • Dual color injection molded insulation provides easy identification when insulation is compromised
  • Lifetime Warranty
Learn more about product features Show less

Specifications

Number of Pieces

19

Voltage Rating

1000V

Socket Sizes

 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm and 20 mm

Extensions

3", 6" and 10"

Ratchet type

Fully insulated 72-tooth 3/8-inch drive ratchet with quick release

Dimensions 16 in x 10 in x 3 in (40.64 cm x 25.4 cm x 7.62 cm)
Weight 5.6 lb (2542.4 g)
UPC # 810053359846
