WSU-2224 Copy ID to clipboard

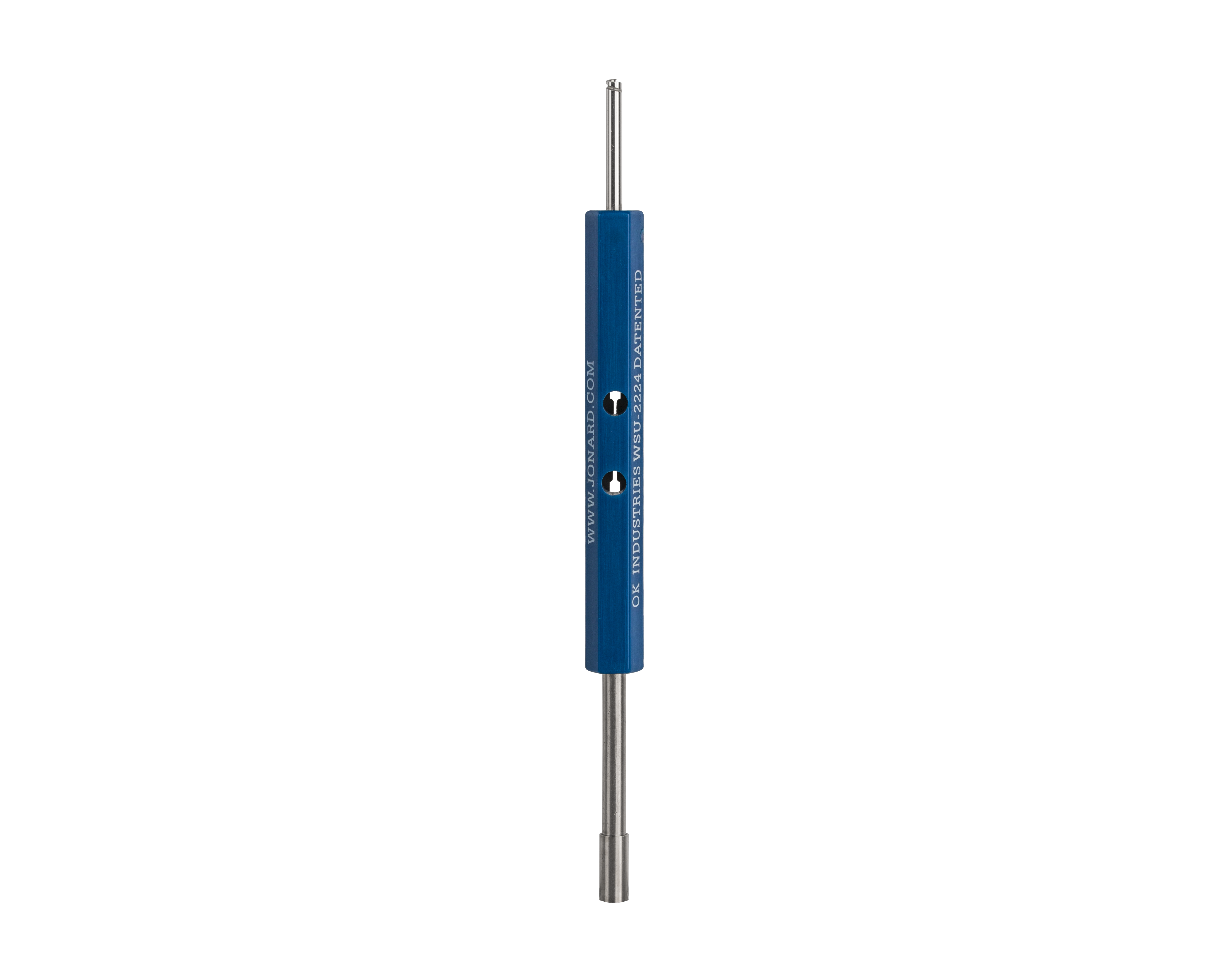

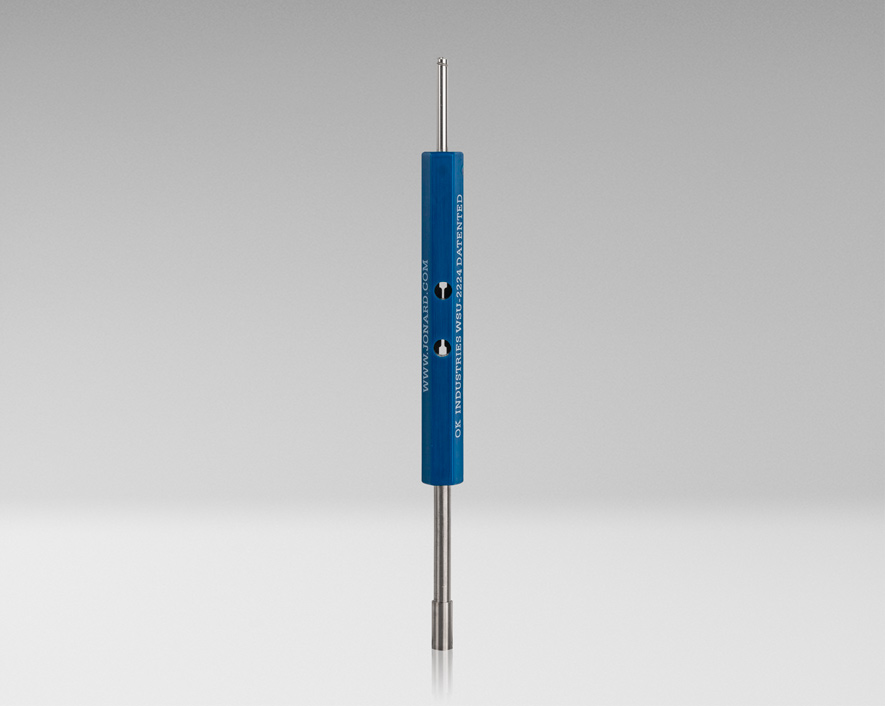

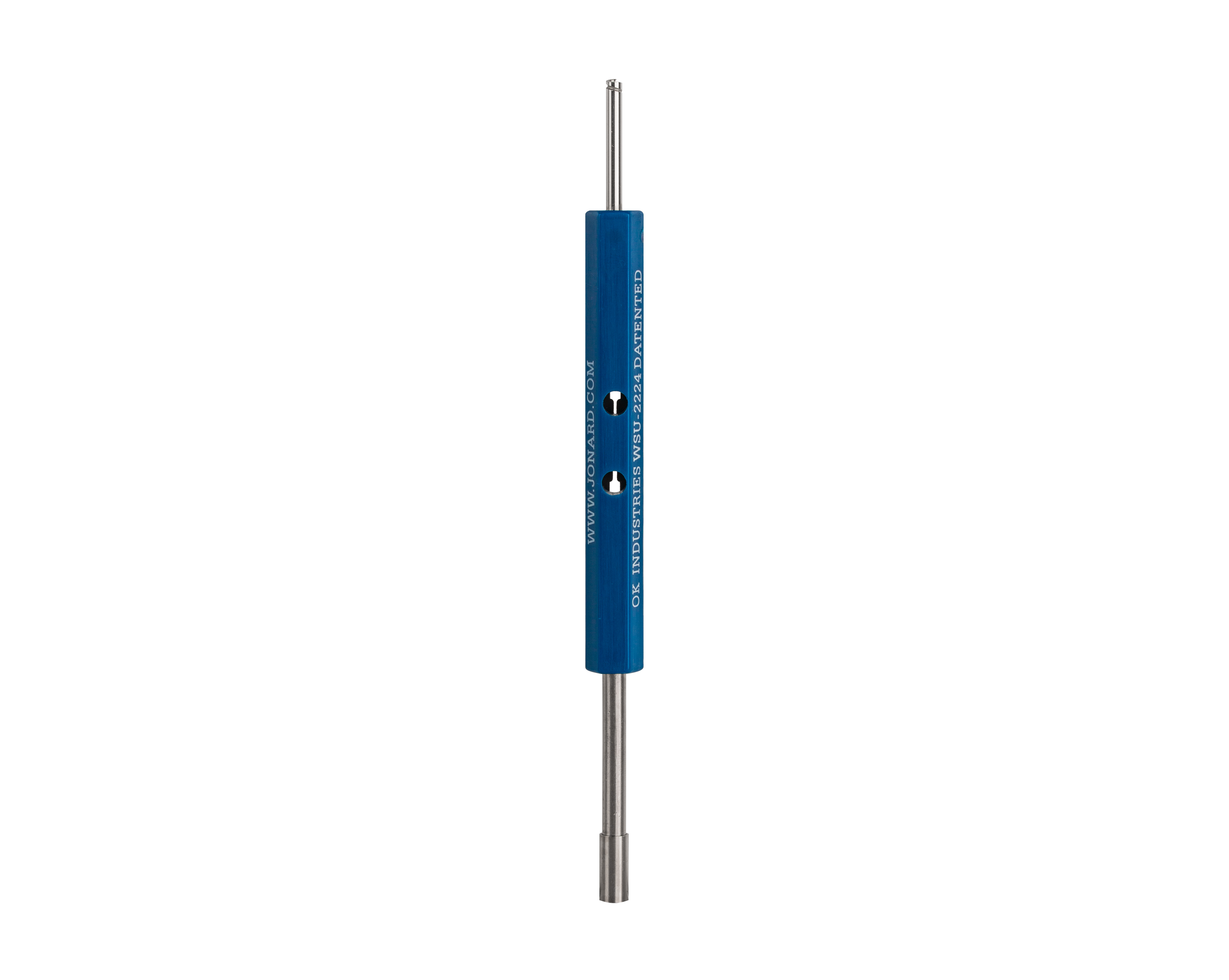

Wrap-Strip-Unwrap Tool, 22-24 AWG
PRODUCT FEATURES
Designed to wrap, strip, and/or unwrap 22-24 AWG (0.64 mm-0.51 mm) wire, this tool is perfect for quick wire service and repair applications. This tool features the following:
- Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical
- Patented built-in wire stripping blades make wire stripping quick and easy in such a compact tool
- Plastic handle for reduced weight and comfortable to carry
Wire Gauge
Wire Gauge: 22-24 AWG (0.64 mm-0.51 mm)
Specifications
| Wrap Type | Regular |
|---|---|
| Wire Gauge | 22-24 AWG (0.64 mm-0.51 mm) |
| Terminal Hole Diameter | 0.075" (1.90 mm) |
| Terminal Hole Depth | 1.50" (38.1 mm) |
| Outside Diameter | 0.213" (5.4 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Length | 6(15.5575cm) |
| Weight | 0.03 lb (13.62 g) |
| UPC # | 811490010291 |
