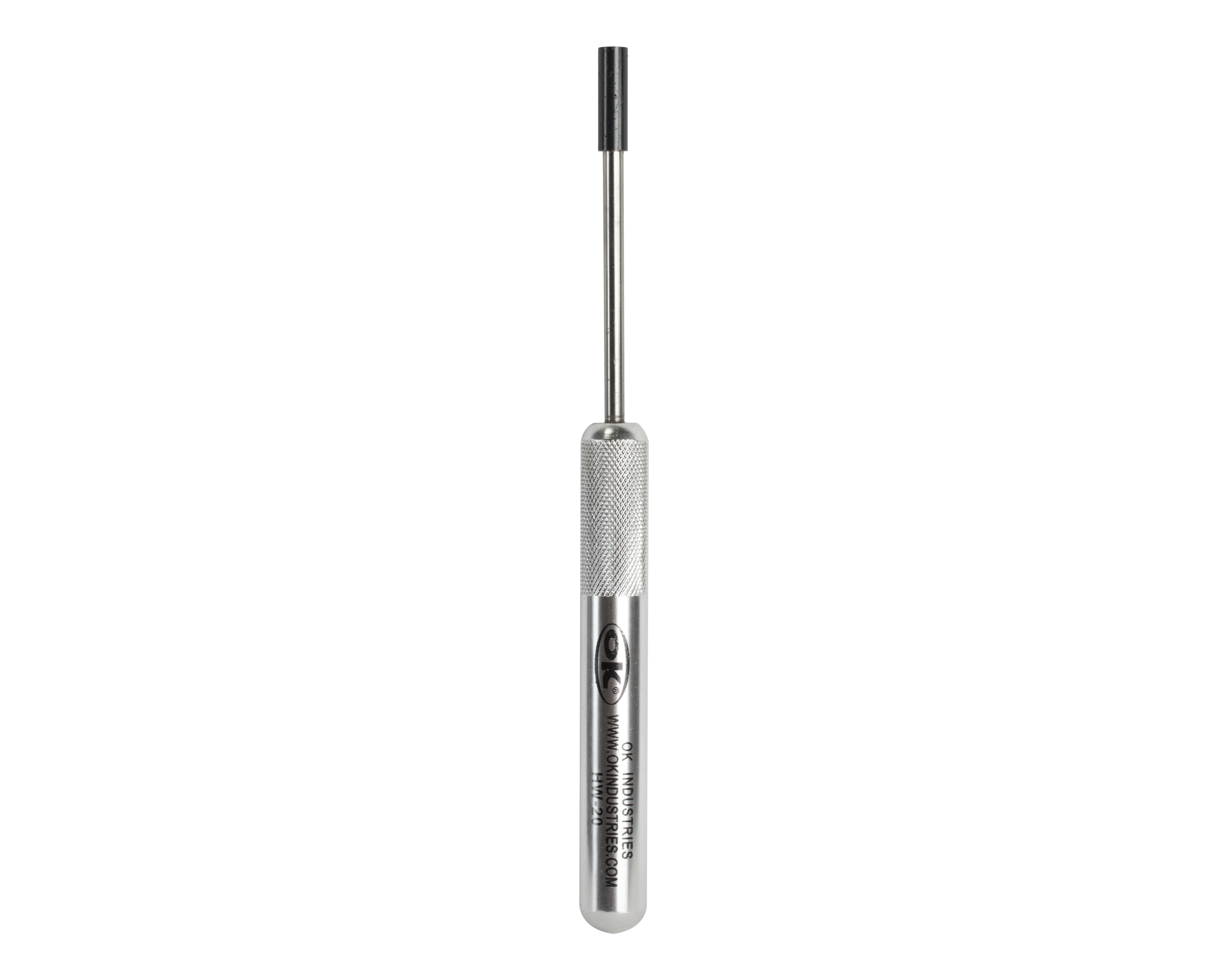

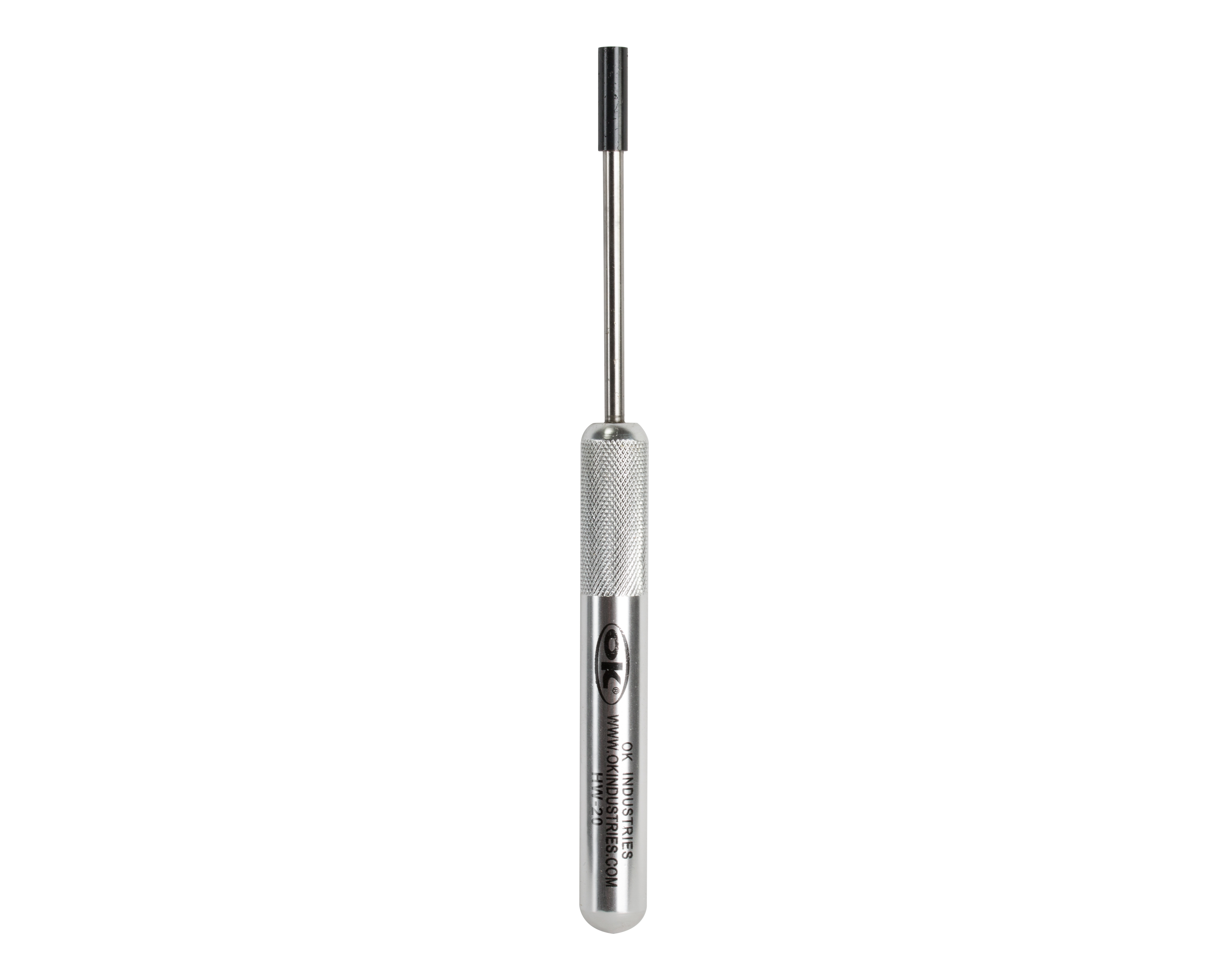

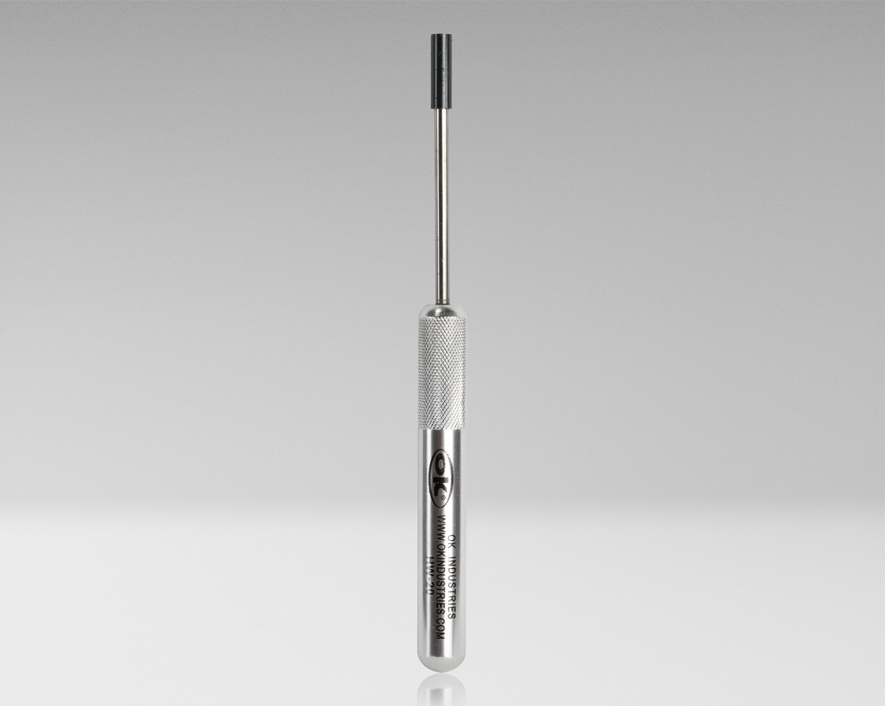

Hand Wrap Tool, 20 AWG
HW-20 Copy ID to clipboard
Buy OnlineWire Gauge
Wire Gauge: 20 AWG (0.81 mm)
PRODUCT FEATURES
Designed to produce perfect wire wrap connections every time, this hand wrap tool is perfect for wrapping 20 AWG (0.8 mm diameter) wire around binding posts. This hand wrap tool also features the following:
- Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical
Specifications
| Wrap Type | Regular |
|---|---|
| Wire Gauge | 20 AWG (0.80 mm) |
| Terminal Hole Diameter | 0.075" (1.90 mm) |
| Terminal Hole Depth | 1" (25.4 mm) |
| Outside Diameter | 0.218" (6.35 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Dimensions | 6.5 in x 0.5 in x 0.5 in (16.51 cm x 1.27 cm x 1.27 cm) |
| Weight | 0.09 lb (39.498 g) |
| UPC # | 811490013629 |
| Wrap Type | Regular |
|---|---|
| Wire Gauge | 20 AWG (0.80 mm) |
| Terminal Hole Diameter | 0.075" (1.90 mm) |
| Terminal Hole Depth | 1" (25.4 mm) |
| Outside Diameter | 0.218" (6.35 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Dimensions | 6.5 in x 0.5 in x 0.5 in (16.51 cm x 1.27 cm x 1.27 cm) |
| Weight | 0.09 lb (39.498 g) |
| UPC # | 811490013629 |
