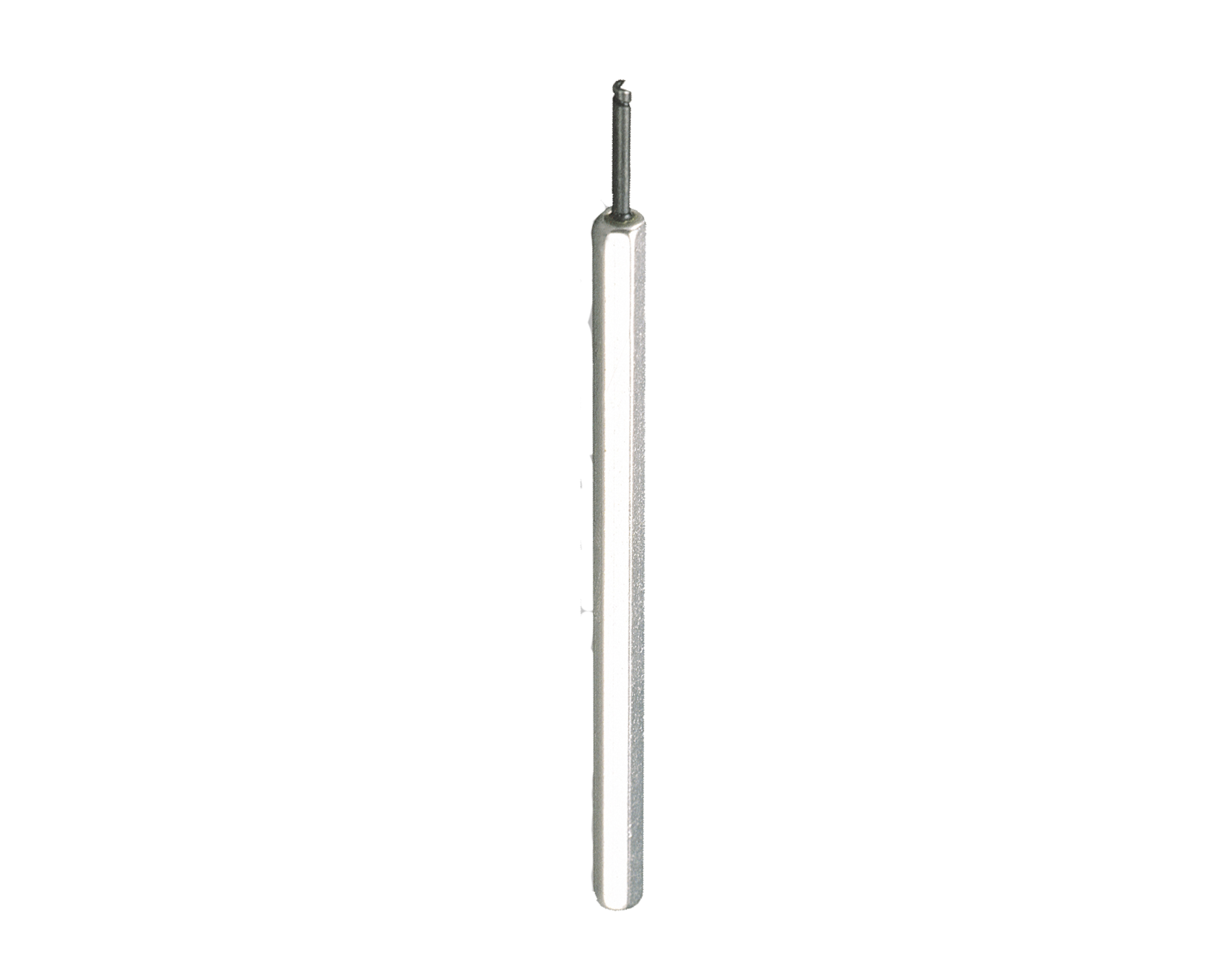

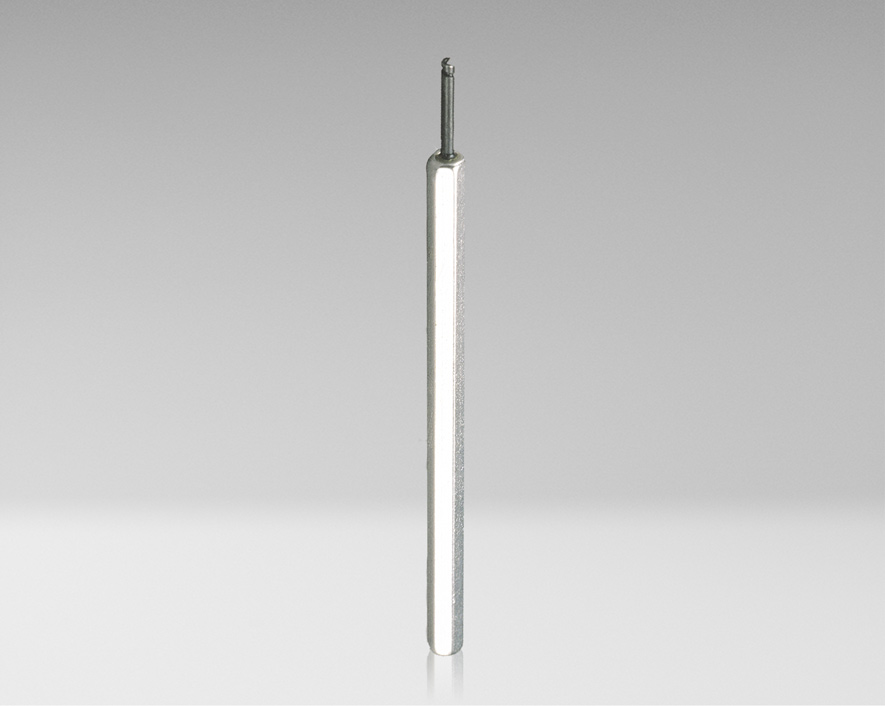

Unwrap Tool, Left-hand, 20-26 AWG
UW1 Copy ID to clipboard
Buy OnlineWire Gauge
Wire Gauge: 20-26 AWG (0.81 mm-0.40 mm)
PRODUCT FEATURES
Designed to unwrap wire on binding posts in the left-hand direction, this hand wrap tool is perfect for unwrapping 20-26 AWG (0.81 mm-0.40 mm) wire. This unwrap tool features the following:
- Unwraps wire in the left-hand direction
- Aluminum housing and hardened steel probe for maximum durability
Specifications
| Unwrap Wire Gauge | 20-26 AWG (0.81 mm-0.40 mm) |
|---|---|
| Unwrap Direction | Left-hand |
| Terminal Hole Diameter | 0.070" (1.77 mm) |
| Terminal Hole Depth | 1" (25.4 mm) |
| Outside Diameter | 0.156" (3.96 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Dimensions | 4.86 in x 0.29 in x 0.25 in (12.34 cm x 0.73 cm x 0.65 cm) |
| Weight | 0.03 lb (11.804 g) |
| UPC # | 811490013650 |
| Unwrap Wire Gauge | 20-26 AWG (0.81 mm-0.40 mm) |
|---|---|
| Unwrap Direction | Left-hand |
| Terminal Hole Diameter | 0.070" (1.77 mm) |
| Terminal Hole Depth | 1" (25.4 mm) |
| Outside Diameter | 0.156" (3.96 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Dimensions | 4.86 in x 0.29 in x 0.25 in (12.34 cm x 0.73 cm x 0.65 cm) |
| Weight | 0.03 lb (11.804 g) |
| UPC # | 811490013650 |
