Mini Optical Power Meter, (-50 to +26dBm)
FPM-50S Copy ID to clipboard
Buy OnlinePRODUCT FEATURES

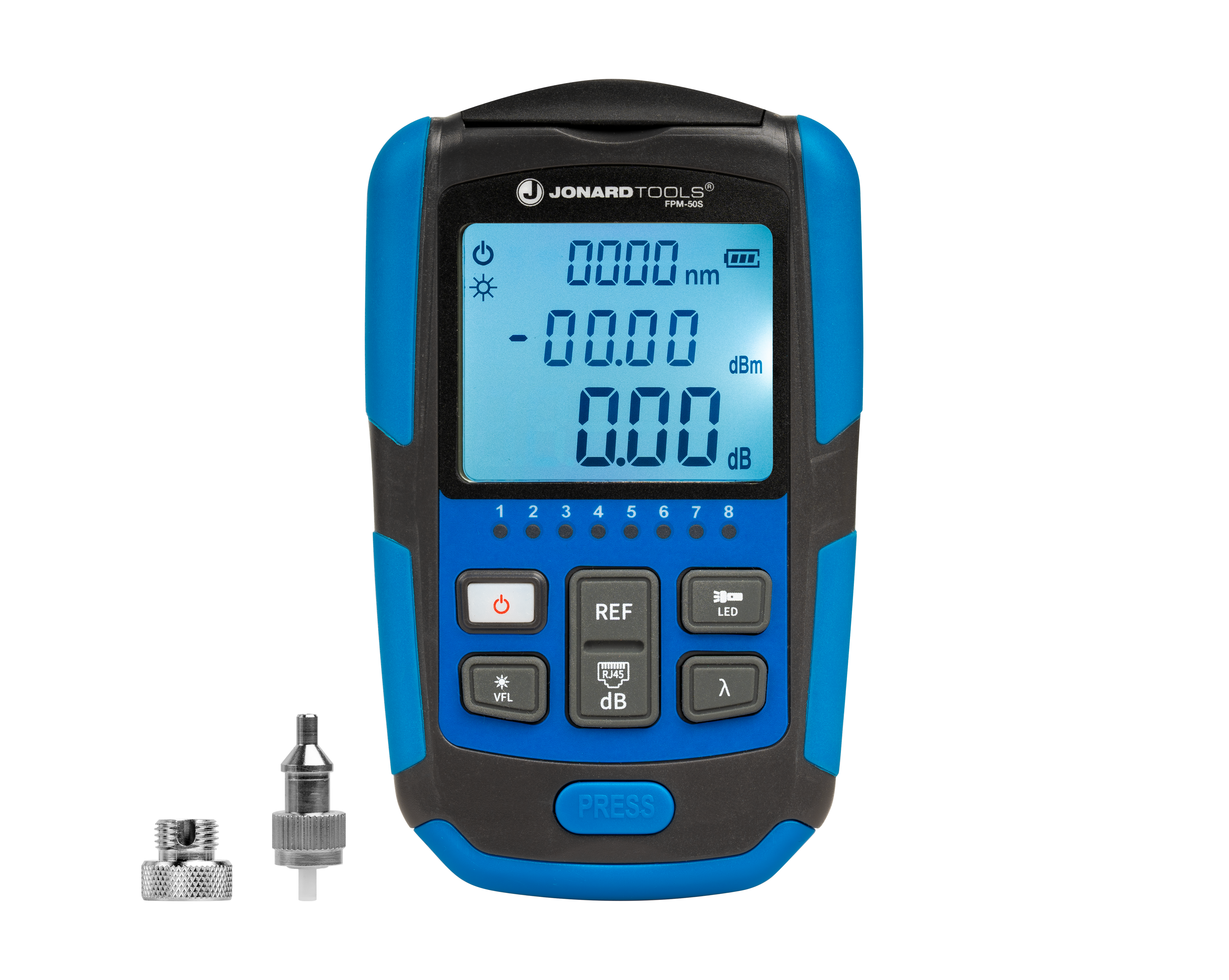

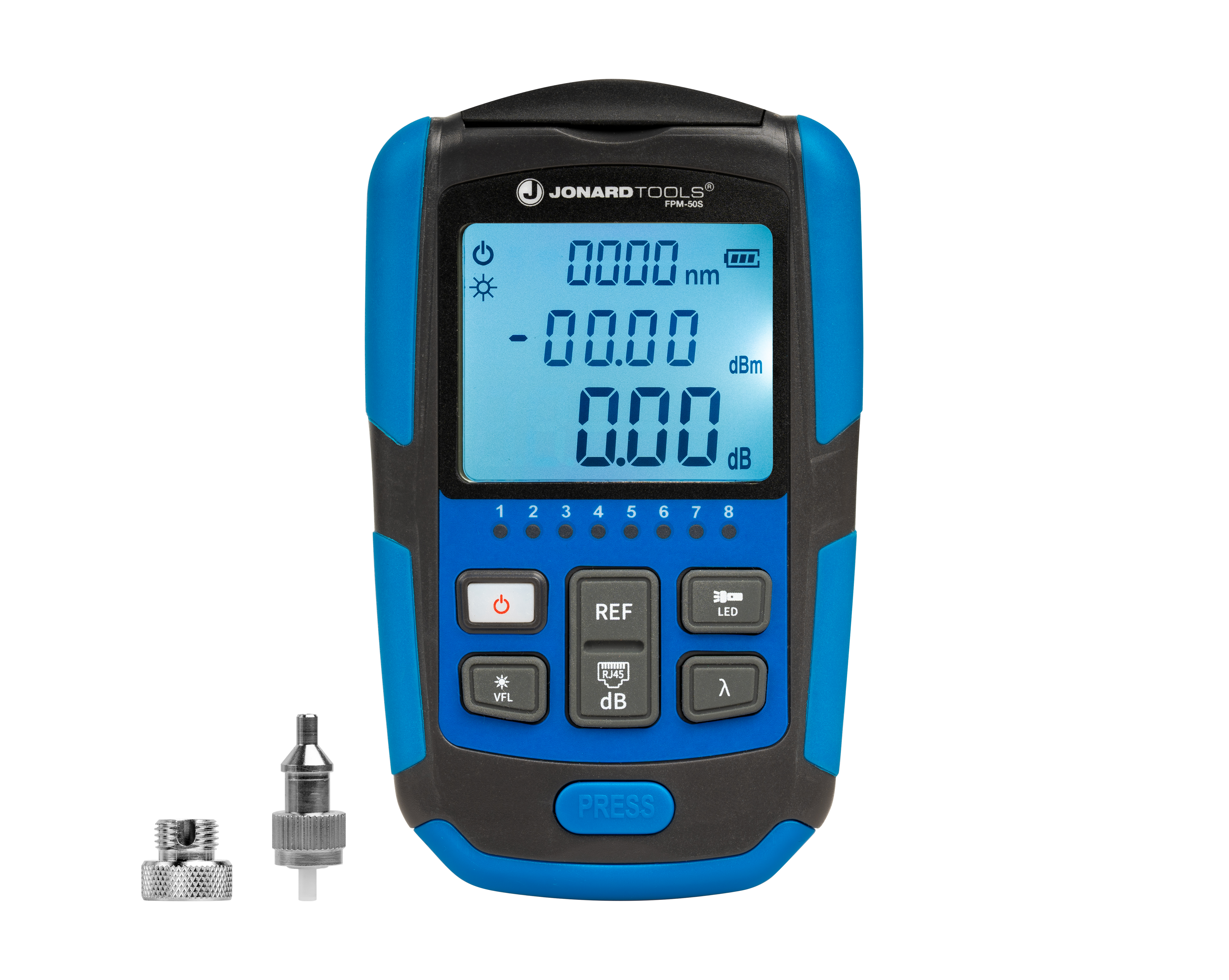

The Jonard Tools Mini Optical Power Meter is perfect for measuring both the absolute optical power and relative power loss in fiber optic cables. It also features a built-in visual fault locator and network cable tester and remote. This power meter features the following:
- Measures power using a wide variety of wavelengths from 800-1650 nm, with a mere 0.01 dB resolution
- Measures 10 preset calibrated wavelengths with high precision to determine absolute or relative power
- LED screen is backlit for viewing in low light locations and a 10 minute auto-off helps preserve battery life
- Built-in 2 mW visual fault locator (VFL) identifies faults in fiber cable in a pinch
- Tests RJ45 connectorized network cables using built-in remote
- Comes with FC and LC adapters so that fiber connectors can be directly connected to the tool
- The FC/SC adapters are for APC/PC/UPC connectors
- The LC adapter is for PC/UPC connectors only
This product includes:
- Mini Optical Power Meter
- Instructional Manual
- (3) AAA Batteries (required for operation)
- FC Adapter
- LC Adapter
Specifications
| Connector Types | FC (APC/PC/UPC) & LC (PC/UPC) |
|---|---|
| Calibrated Wavelengths (nm) | 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650 nm, ≤ ± 0.2 dB |
| Detector Type | InGaAs |
| Measurement Range | -50 dBm to +26 dBm |
| Single Mode Range | 980, 1270, 1310, 1490, 1550, 1577, 1625, 1650 nm |
| Multi Mode Range | 850, 1300 nm |
| XGSPON Range | 1270, 1577 nm |
| Resolution | 0.01 dB |
| Operating Time | ≥ 120 hours |
| Battery Type | (2) AAA 1.5V Alkaline Batteries |
| Dimensions | 4 in x 2 in x 1 in (10.16 cm x 5.08 cm x 2.54 cm) |
| Weight | 0.3 lb (136.2 g) |
| UPC # | 810053359785 |
