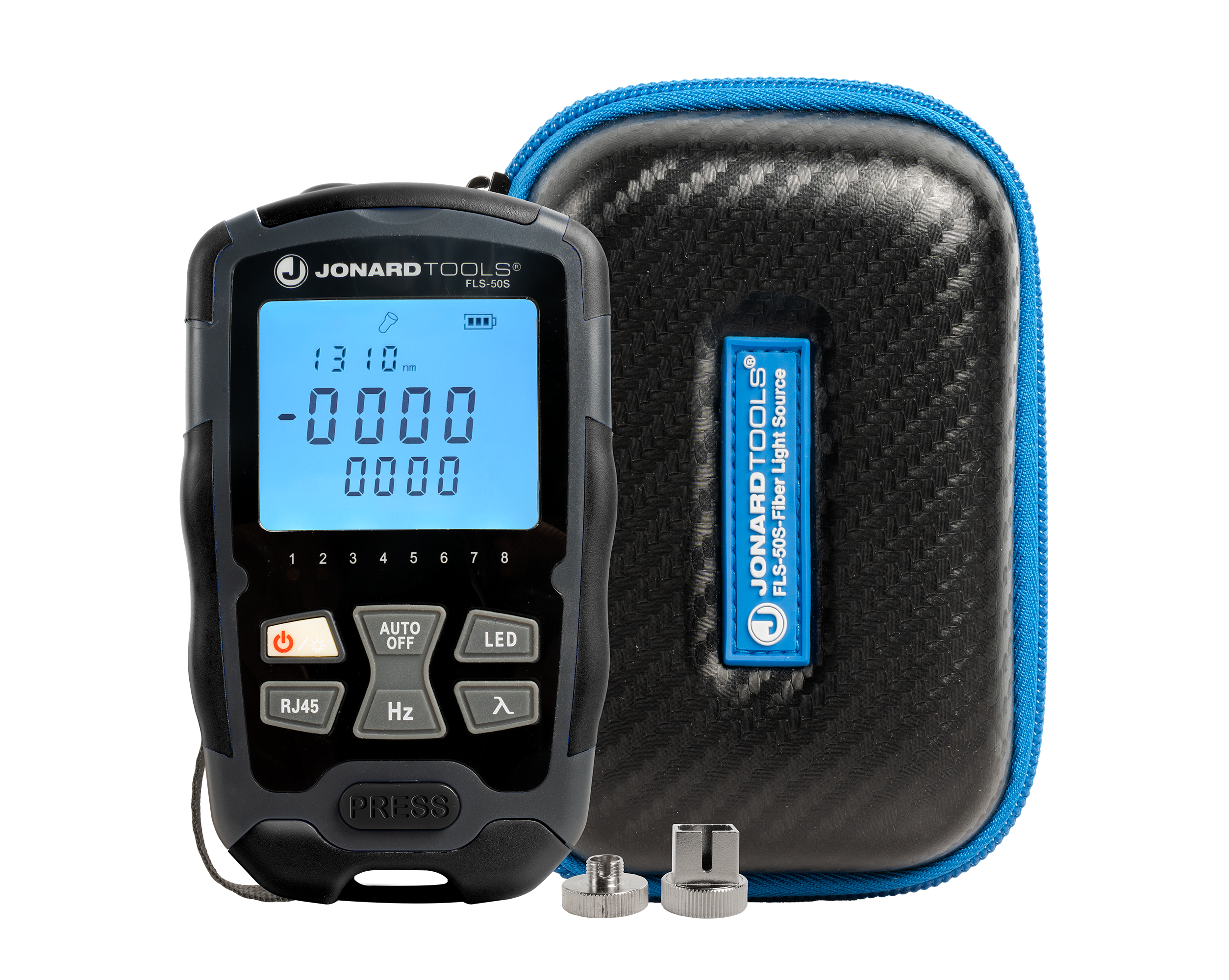

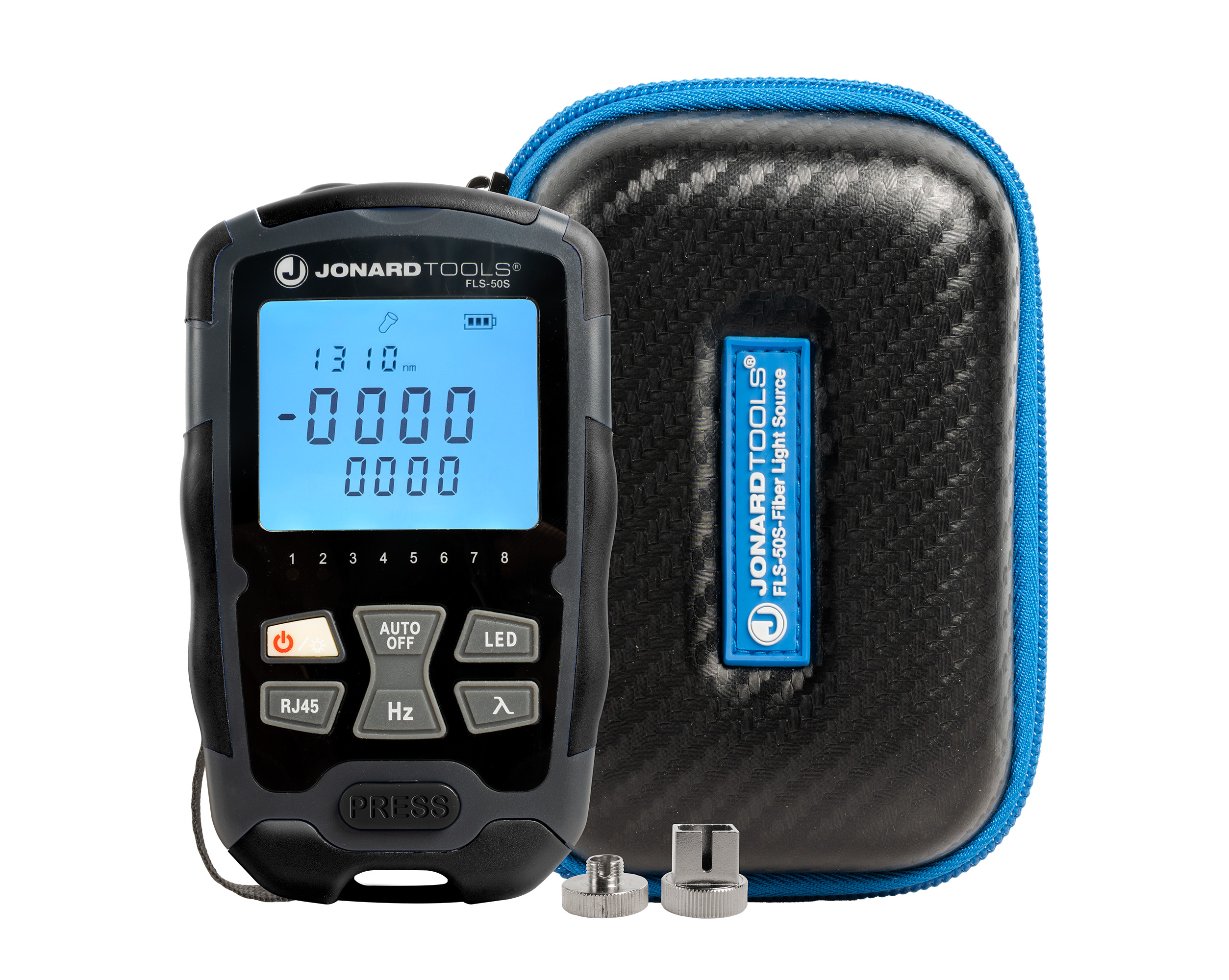

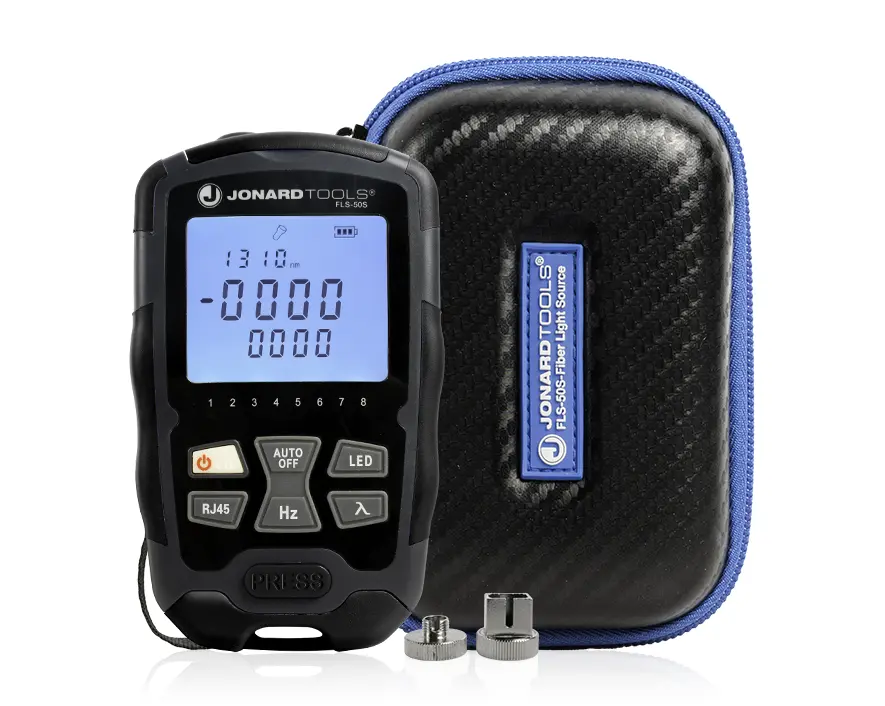

Mini Optical Light Source with FC/LC/SC Adapters for PC/UPC Connectors
FLS-50S Copy ID to clipboard
Buy OnlinePRODUCT FEATURES
Designed to provide either 1310 nm or 1550 nm wavelengths, this optical light source is the perfect tool for providing a stable light source for single mode fiber measurements. It also features a  network cable tester and remote. This optical light source features the following: Includes FC, SC, and FC-LC adapters to directly connect to UPC/PC FC, SC, and LC fiber connectors. Highly stable output power and wavelengths. Has four different modulation outputs (CW, 270 Hz, 1 kHz, 2 kHz) at 1310 N-m and 1550 nm wavelengths Tests RJ45 connectorized network cables using built-in remote. LED screen is backlit for viewing in low light locations and a 10 minute auto-off helps preserve battery life
- Includes FC, SC, and FC-LC adapters to directly connect to UPC/PC FC, SC, and LC fiber connectors.
- Highly stable output power and wavelengths.
- Has four different modulation outputs (CW, 270 Hz, 1 kHz, 2 kHz) at 1310 N-m and 1550 nm wavelengths
- Tests RJ45 connectorized network cables using built-in remote.
- LED screen is backlit for viewing in low light locations and a 10 minute auto-off helps preserve battery life
Specifications
| Connector Types | 1.25 mm LC and 2.5 mm FC/SC |
|---|---|
| Calibrated Wavelengths (nm) | 1310, 1550 |
| Typical Output Power | -5 dBm |
| Output Stability | ± 0.05 dB / 15 min or ± 0.1 dB / 8 hr |
| Operating Temperature | -10 ± 60°C |
| Spectral Width | ≤ 10 nm |
| Modulation Frequencies | CW / 270 Hz / 1 kHz / 2 kHz |
| Battery Type | (2) AAA 1.5V Alkaline Batteries |
| Storage Temperature | -25 ± 70°C |
| Dimensions | 5 in x 3 in x 2 in (12.7 cm x 7.62 cm x 5.08 cm) |
| Weight | 0.5 lb (227 g) |
| UPC # | 810132438189 |
| Connector Types | 1.25 mm LC and 2.5 mm FC/SC |
|---|---|
| Calibrated Wavelengths (nm) | 1310, 1550 |
| Typical Output Power | -5 dBm |
| Output Stability | ± 0.05 dB / 15 min or ± 0.1 dB / 8 hr |
| Operating Temperature | -10 ± 60°C |
| Spectral Width | ≤ 10 nm |
| Modulation Frequencies | CW / 270 Hz / 1 kHz / 2 kHz |
| Battery Type | (2) AAA 1.5V Alkaline Batteries |
| Storage Temperature | -25 ± 70°C |
| Dimensions | 5 in x 3 in x 2 in (12.7 cm x 7.62 cm x 5.08 cm) |
| Weight | 0.5 lb (227 g) |
| UPC # | 810132438189 |
