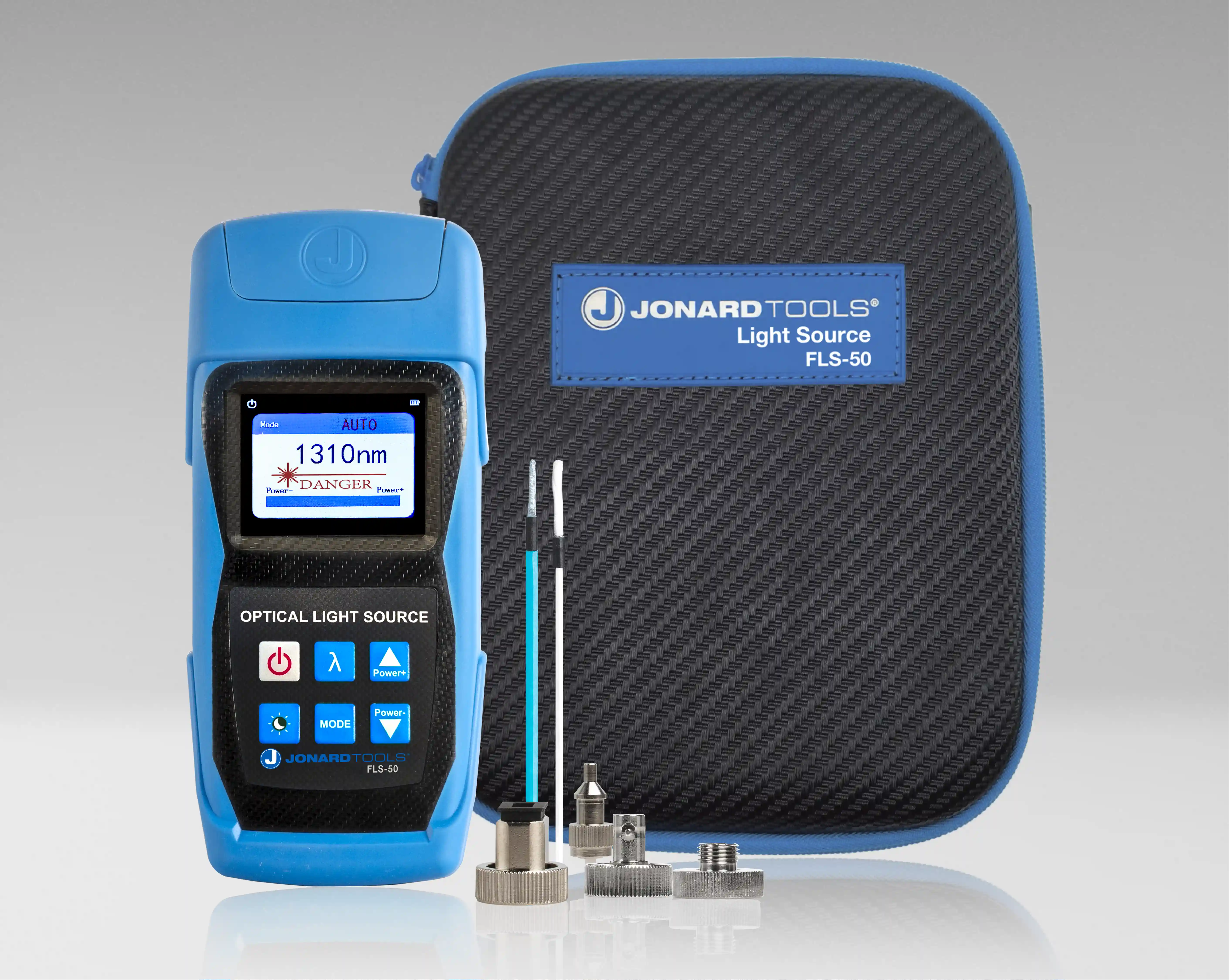

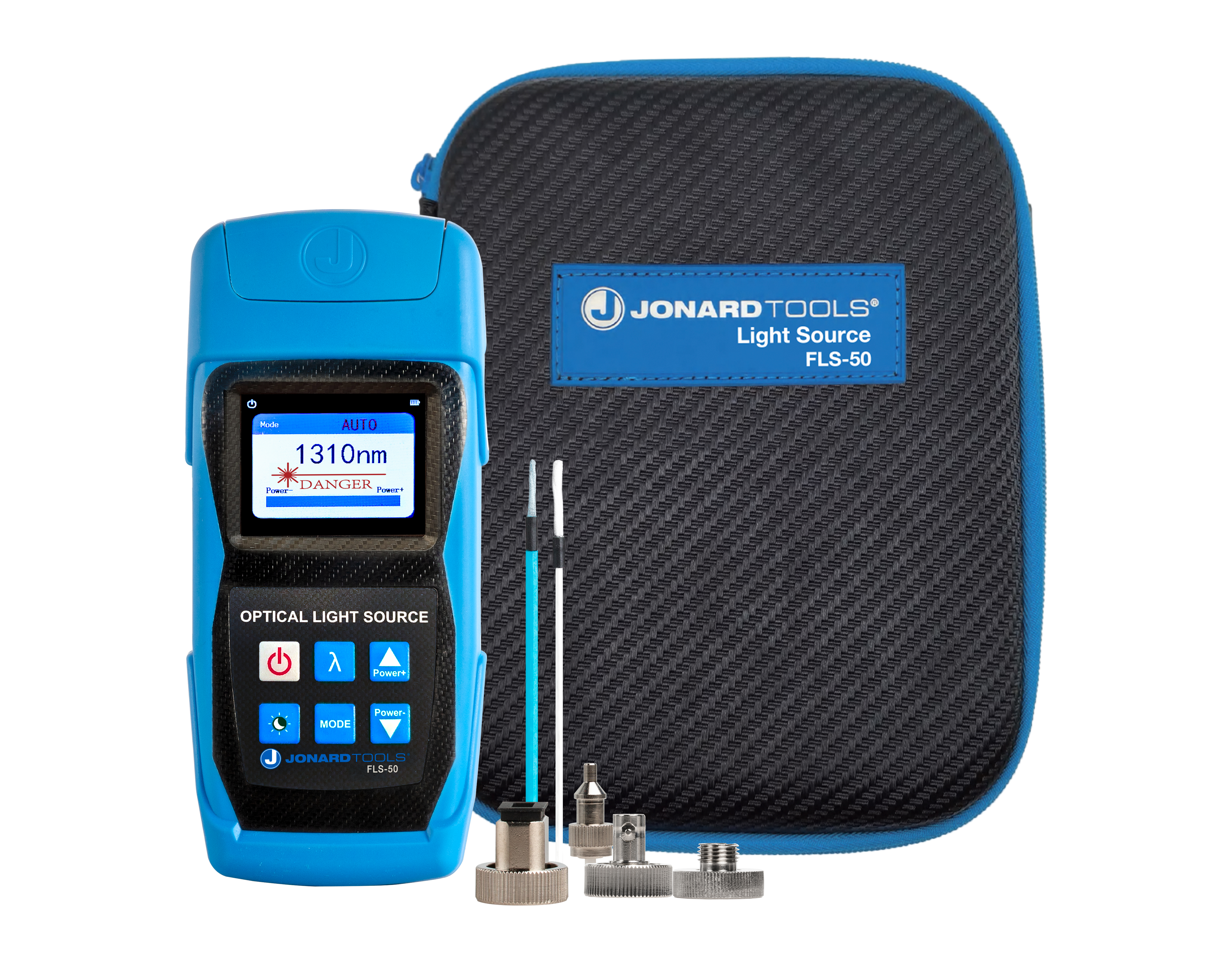

Optical Light Source with SC/ST/FC/FC-LC Adapters for PC/UPC Connectors
FLS-50 Copy ID to clipboard
Buy Online
PRODUCT FEATURES
Includes: Fiber Optic Light Source Instruction Manual (3) AA Batteries (required for operation) (2) Cleaning Swabs Protective Carrying Case FC/UPC Adapter SC/UPC Adapter ST/UPC Adapter FC-LC/UPC Adapter (Singlemode Only) Highly stable output power and wavelengths Four modulation outputs at 1310 nm and 1550 nm wavelengths Intelligent backlight control reduces power consumption Auto-off function can be turned on or off Automatic wavelength detection function
- Highly stable output power and wavelengths
- Four modulation outputs at 1310 nm and 1550 nm wavelengths
- Intelligent backlight control reduces power consumption
- Auto-off function can be turned on or off
- Automatic wavelength detection function
Specifications
| Wavelength (nm) | 1310/1550 ±20 |
|---|---|
| Spectral Width (nm) | ≤5 |
| Typical Output (dBm) | -7 |
| Stability (dB, 15 min) | ≤0.05 |
| Typical Output Power Adjustable Range (dB) | -5 ~ -12 |
| Modulation Frequency (Hz) | CW, 270, 330, 1K, 2K |
| Interface Type | FC/SC/ST/FC-LC (UPC) |
| Display Size | 2.4-inch LCD |
| Power Supply | 1.5V* 3 AA alkaline batteries |
| Auto-off (min) | 10 |
| Continuous Working Hours (hr) | ≥25 |
| Operating Temperature (°C) | -10 ~ +60 |
| Storage Temperature (°C) | -25 ~ +70 |
| Dimensions | 9 in x 7 in x 3 in (22.86 cm x 17.78 cm x 7.62 cm) |
| Weight | 0.64 lb (290.56 g) |
| UPC # | 811490018655 |
| Wavelength (nm) | 1310/1550 ±20 |
|---|---|
| Spectral Width (nm) | ≤5 |
| Typical Output (dBm) | -7 |
| Stability (dB, 15 min) | ≤0.05 |
| Typical Output Power Adjustable Range (dB) | -5 ~ -12 |
| Modulation Frequency (Hz) | CW, 270, 330, 1K, 2K |
| Interface Type | FC/SC/ST/FC-LC (UPC) |
| Display Size | 2.4-inch LCD |
| Power Supply | 1.5V* 3 AA alkaline batteries |
| Auto-off (min) | 10 |
| Continuous Working Hours (hr) | ≥25 |
| Operating Temperature (°C) | -10 ~ +60 |
| Storage Temperature (°C) | -25 ~ +70 |
| Dimensions | 9 in x 7 in x 3 in (22.86 cm x 17.78 cm x 7.62 cm) |
| Weight | 0.64 lb (290.56 g) |
| UPC # | 811490018655 |
