JIC-4366 Copy ID to clipboard

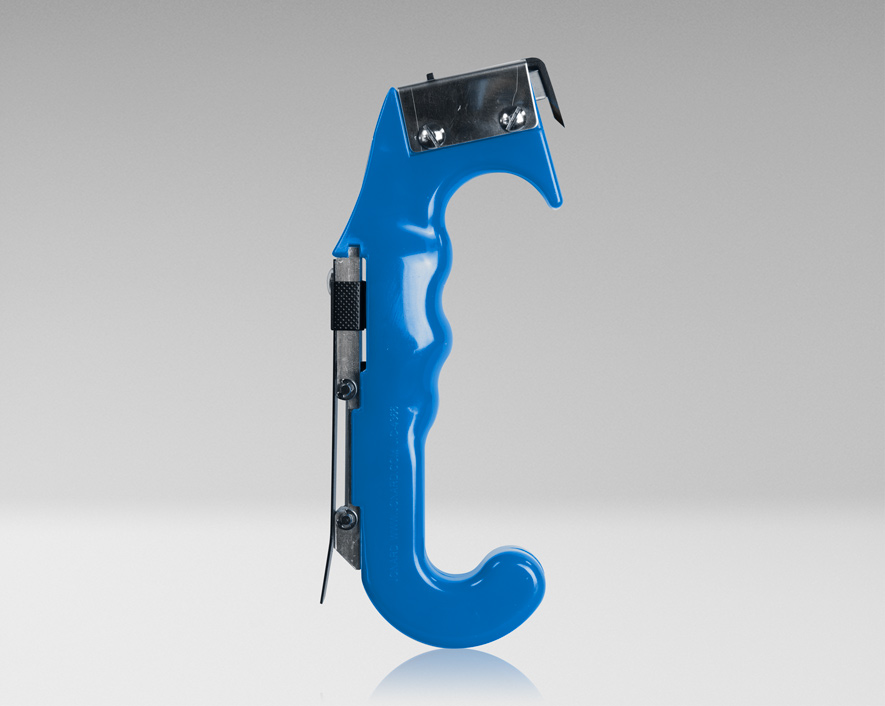

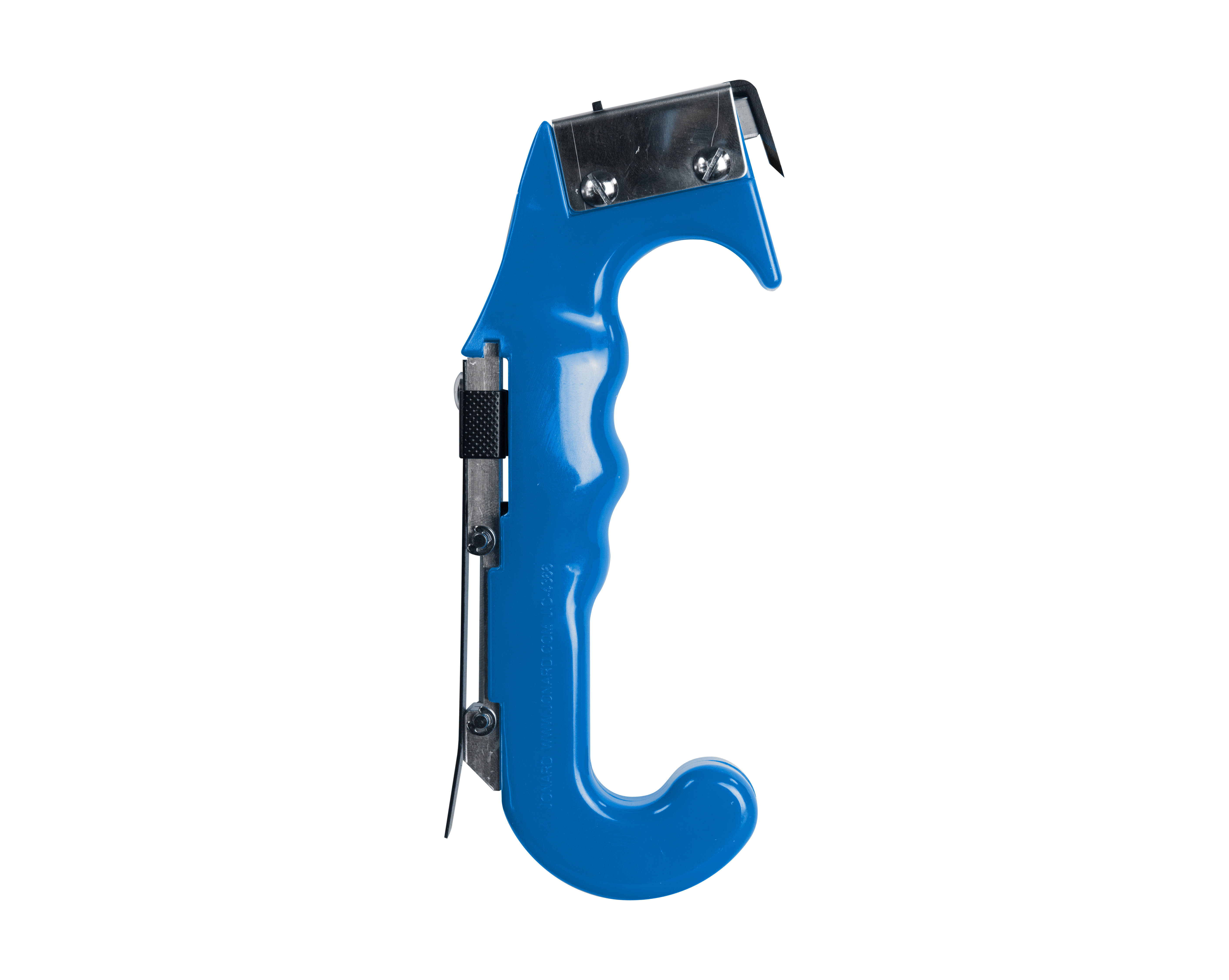

Cable Slit & Ring Tool

PRODUCT FEATURES

Designed to slit and ring many types of tight buffers, loose tube buffers, breakout cables, and other types of jacketed fiber cables, this tool is perfect for any fiber technician. This slit and ring tool features the following:

  • L-shaped hardened steel guide and blade guard are specially designed to allow the tool to slit open jackets while protecting the buffer tubes and fiber inside the cable
  • The slitter blade is located at the top of the tool, has 1/4” of the blade exposed, and is held in place by the 3/4” L-shaped steel guide (longer guide than the JIC-4377)
  • The Ringer portion of the tool is located on the back of the handle and uses a spring steel cable holder to hold the cable in place. This holder also has a sliding metal tensioner to increase the force on the cable and help ensure the jacket is cut all the way through
  • Ringer can be used on 3/16"-1/2" (4.7 mm-12.7 mm) diameter cables and cuts through plastic, rubber, or fabric insulation sheathing with 0.031” (0.787 mm) or 0.018" (0.457 mm) thickness
  • Includes one spare ringing and one spare slitting blade
Learn more about product features Show less

Cable Type

Cable Type: Jacket & Loose

Specifications

Cable Type

Jacket, Loose Tube

Steel Guide

3/4" (19.05 mm)

Cut Type

Ring, Slit

Cable Diameter

1/8"-3/8" (3.2 mm-9.6 mm)

Max Blade Depth

0.031” (0.787 mm) or 0.018" (0.457 mm)

Weight 0.23 lb (102.604 g)
UPC # 811490011922
Cable Type

Jacket, Loose Tube

Steel Guide

3/4" (19.05 mm)

Cut Type

Ring, Slit

Cable Diameter

1/8"-3/8" (3.2 mm-9.6 mm)

Max Blade Depth

0.031” (0.787 mm) or 0.018" (0.457 mm)

Weight 0.23 lb (102.604 g)
UPC # 811490011922
