FIM-200 Copy ID to clipboard

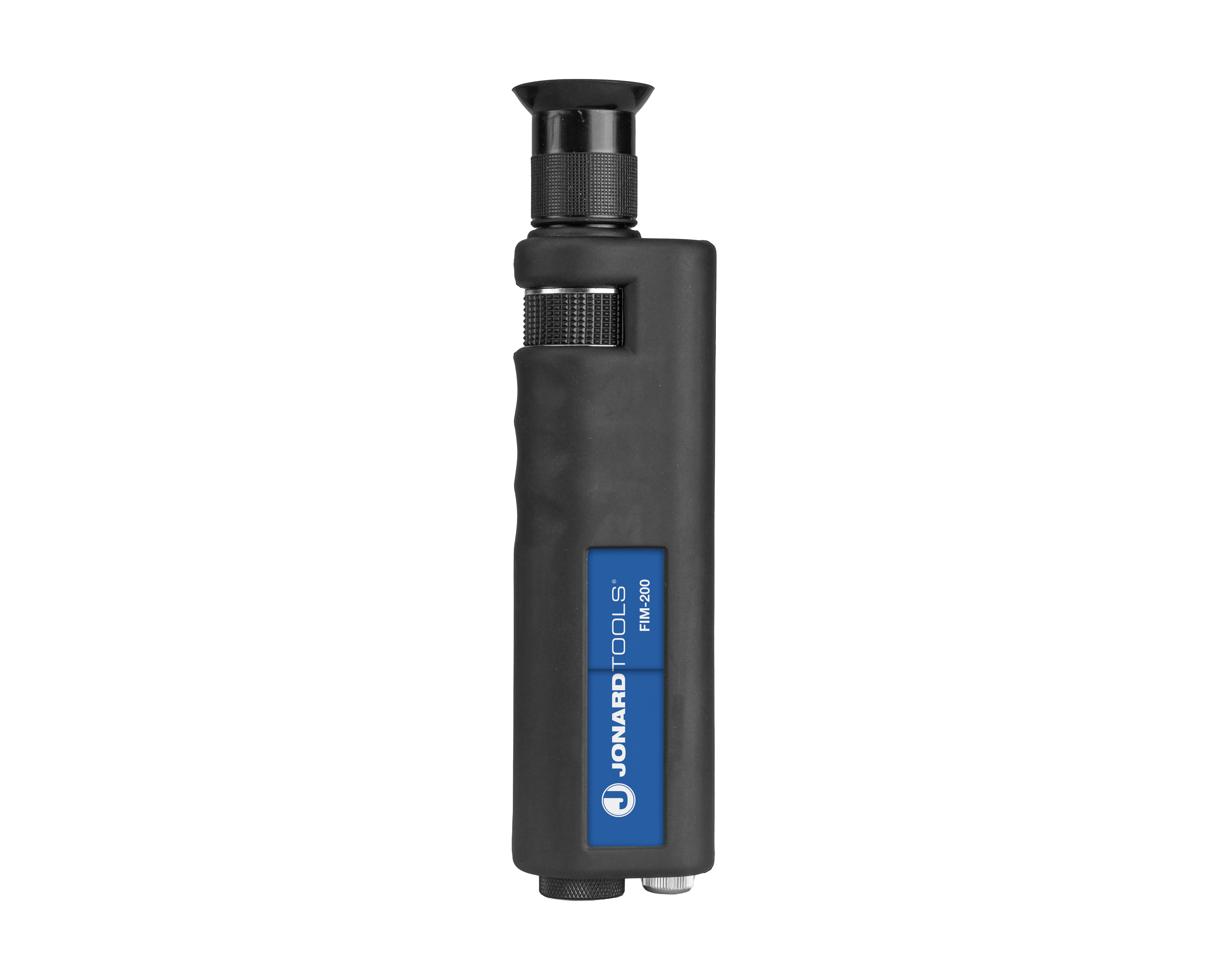

Fiber Inspection Microscope 200x
PRODUCT FEATURES
Jonard’s fiber inspection microscope has 200x magnification, a focus wheel, and features 2.5 mm (FC/SC/ST) and 1.25mm (LC) adapters for use on most fiber connectors. The microscope also features the following:
- Achromatic lens offers excellent imaging and integrated laser filters provide a safe experience (not intended for use with illuminated fibers)
- Coaxial illumination provides clear view of connector face and fiber
- LED light for longer battery life
- Includes cushioned nylon case and three AAA batteries, microscope also has rubber cover for protection
- CE certified to EU standards
- Includes 2.5 mm adapter that works with standard and outdoor Simplex fiber optic connectors
Specifications
| Magnification | 200x |
|---|---|
| Dimensions | 9 in x 2.5 in x 2 in (22.86 cm x 6.35 cm x 5.08 cm) |
| Weight | 1.27 lb (576.58 g) |
| UPC # | 811490019065 |
