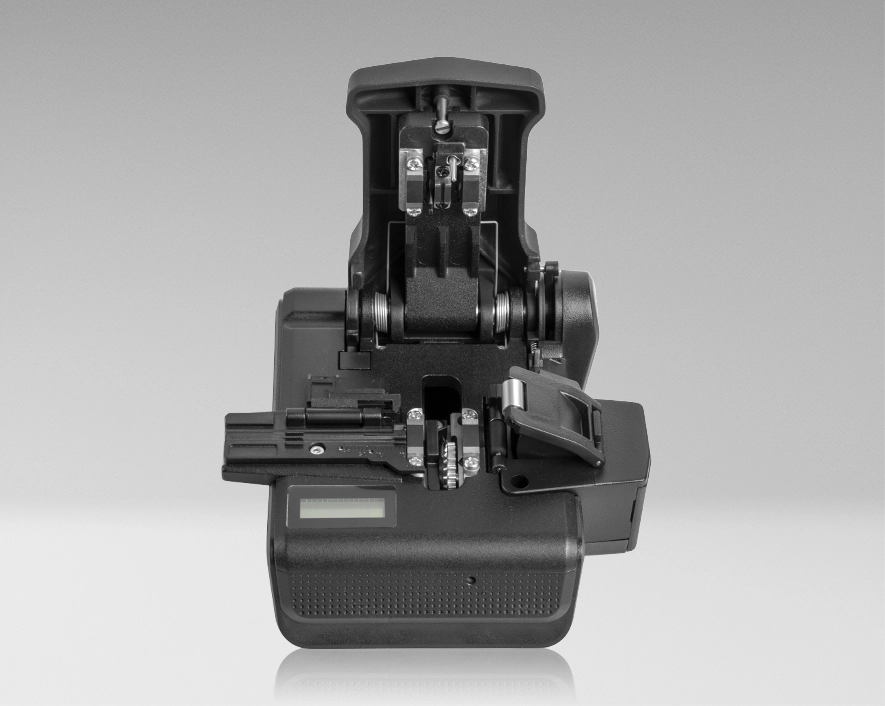

SPARC™ Blade One Step Fiber Optic Cleaver, Ribbon Fiber
FCR-800 Copy ID to clipboard
Buy OnlinePRODUCT FEATURES
The SPARC™ Blade Ribbon Fiber Cleaver is the ultimate fiber for ribbon fiber cable. It is a fully automatic one step cleaver with automatic blade rotation, fiber shard collector, digital cleave counter, and an alloy steel blade with a lifespan of over 60,000 cleaves. This fiber optic cleaver also features the following:
- Blade automatically rotates after each cleave for a perfect cleave every time
- Digital counter records how many cleaves have been performed to track blade wear
- Automatic fiber shard collecting mechanism keeps the cleaver free from debris
- Alloy steel blade has a lifetime of 60,000 cleaves, 2,500 cleaves per position
- Lifetime Warranty
This product includes:
- Fiber Cleaver,
- Cleaning Brush
- Flathead Screwdriver
- Rugged Carrying Case
Specifications
| Type | Ribbon |
|---|---|
| Cladding Diameter | 125 μm |
| Cleave Length | Single Fiber : 5mm - 24mm (Coating diameter: 250µm), 10mm - 20mm (Coating diameter> 250µm) Ribbon (Multi) Fiber: 10mm |
| Applicable Fiber Cable | Single Fiber: 160 µm to 900 µm, 2mm - 3mm and drop cable Ribbon (Multi) Fiber : 2 - 16 ribbon fiber |
| Cleave Angle | Single Fiber: 0.5° |
| Blade Life | Total 60,000 fiber cleaves (2,500 cleaves per each point, total 24 points) |
| Holder | Ribbon Fiber |
| Dimensions | 4.25" x 4.13" x 2.25" (10.8 cm x 10.49 cm x 5.72 cm) |
| Weight | 0.72 lb (326.6 g) |
| UPC # | 810132438387 |
