DRT-316 Copy ID to clipboard

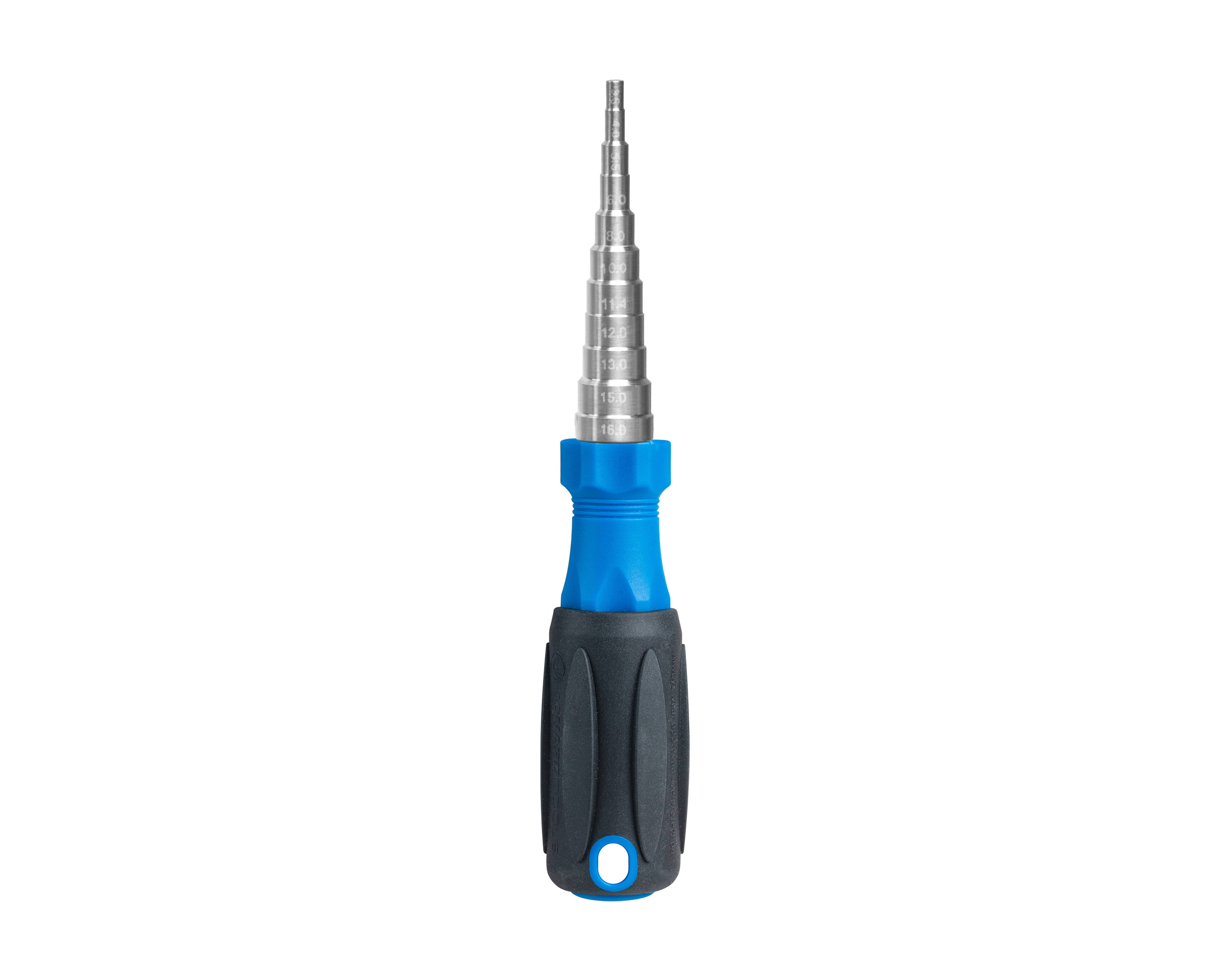

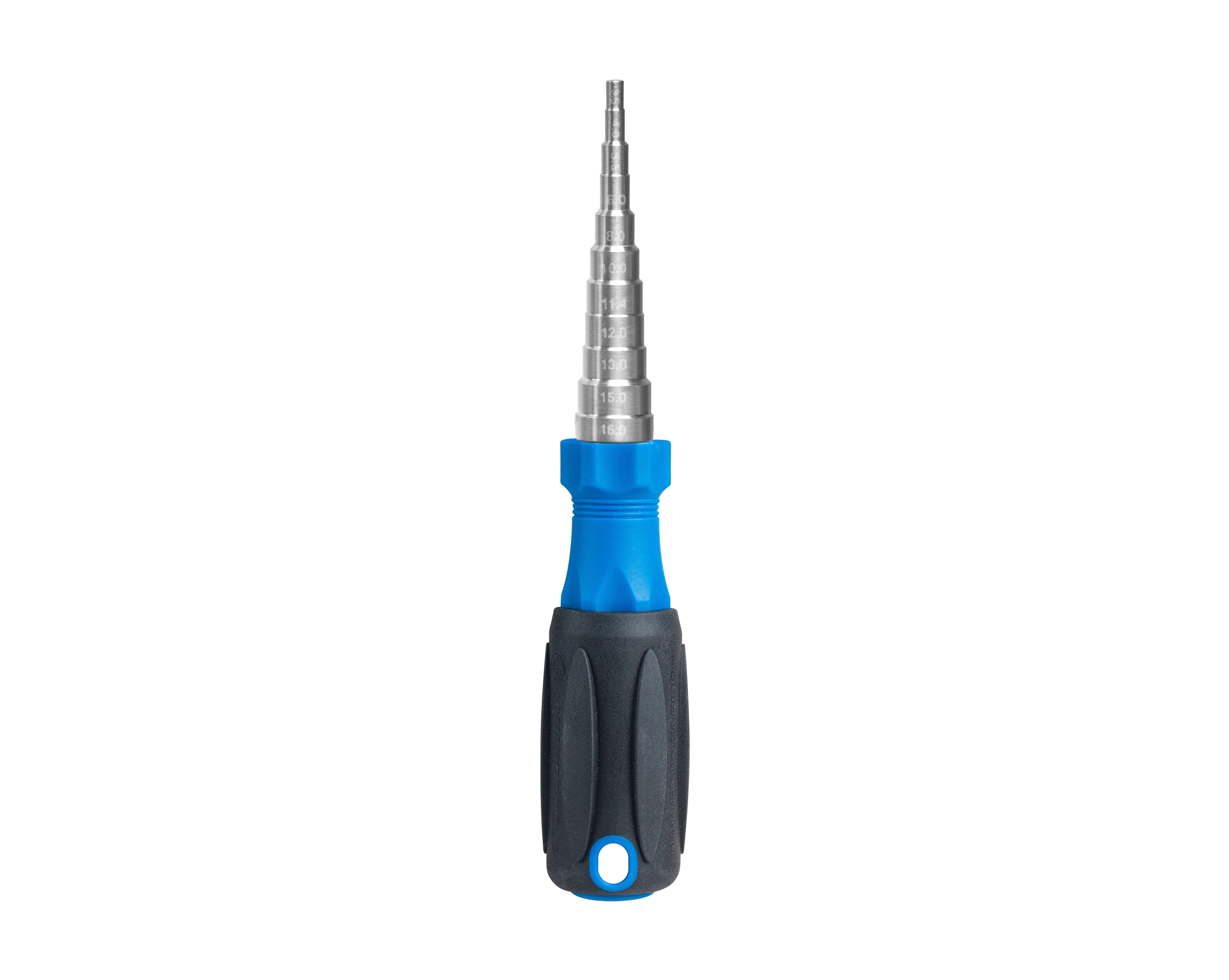

Duct Reforming Tool, 3.5 mm - 16 mm
PRODUCT FEATURES
Designed to reform microducts after cutting them, this duct reforming tool is perfect for reshaping the geometry of microducts to prevent blowout stops when connecting them. This tool also features the following:
- Reforms microducts with inside diameters of 3.5, 4.0, 5.5, 6.0, 8.0, 10.0, 11.4, 12.0, 15.0, and 16.0 mm
- Individual steps with chamfered edges to make it easy to insert into microducts with little force
- Suitable for thin- and thick-walled microducts according to DIN EN 50411-6-1 and DIN EN 60794-5-ff standards
- Comfort grip handle is ergonomic and makes it easy to use
- Lifetime Warranty
Specifications
# Steps | 10 |
---|---|
Step Diameters | 3.5, 4.0, 5.5, 6.0, 8.0, 10.0, 11.4, 12.0, 15.0, 16.0 mm |
Dimensions | 6.5 in x 1.22 in x 1.22 in (16.51 cm x 3.1 cm x 3.1 cm) |
Weight | 0.12 lb (55.388 g) |
UPC # | 810132437380 |
Specifications
# Steps | 10 |
---|---|
Step Diameters | 3.5, 4.0, 5.5, 6.0, 8.0, 10.0, 11.4, 12.0, 15.0, 16.0 mm |
Dimensions | 6.5 in x 1.22 in x 1.22 in (16.51 cm x 3.1 cm x 3.1 cm) |
Weight | 0.12 lb (55.388 g) |
UPC # | 810132437380 |
