SDC-3163 Copy ID to clipboard

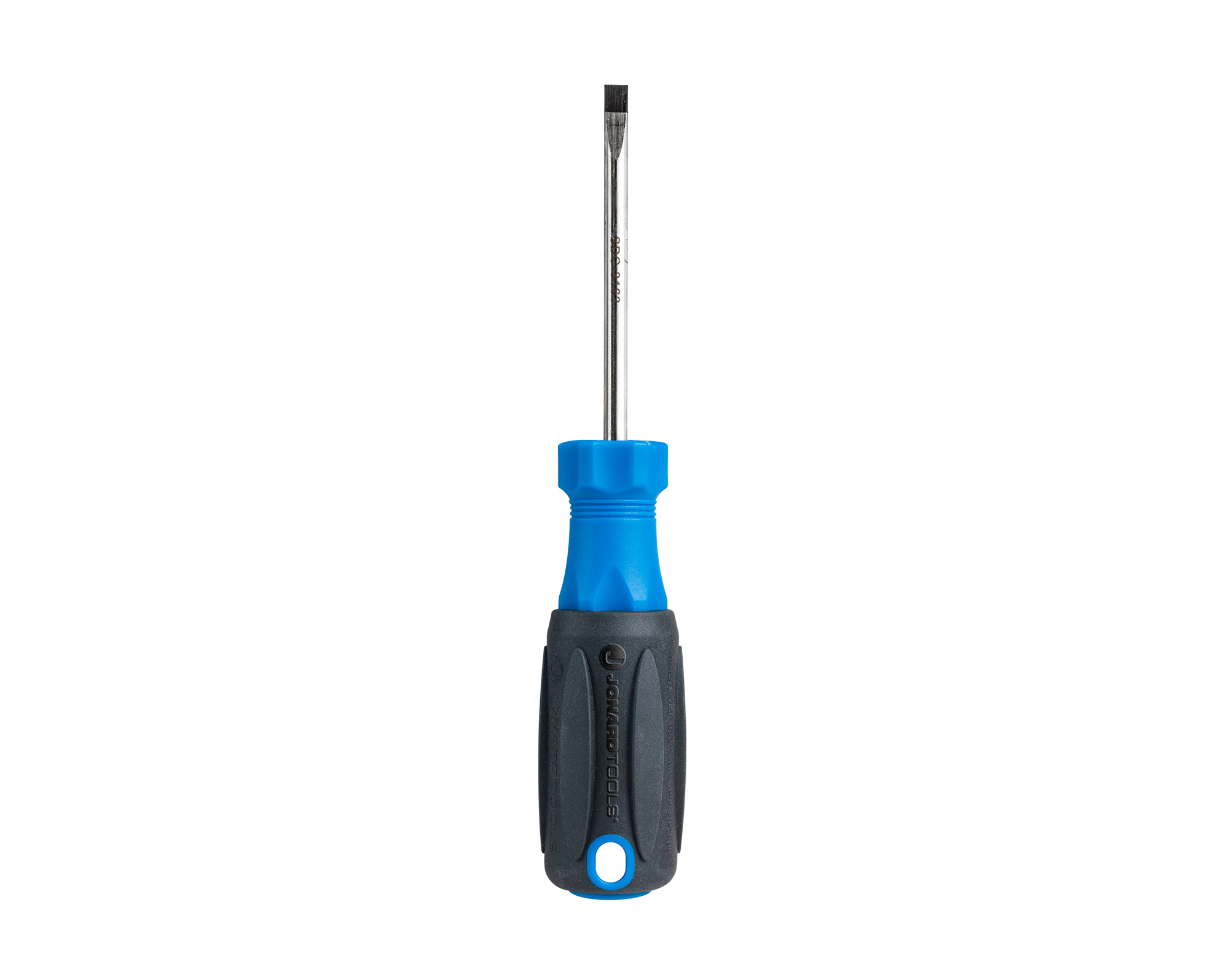

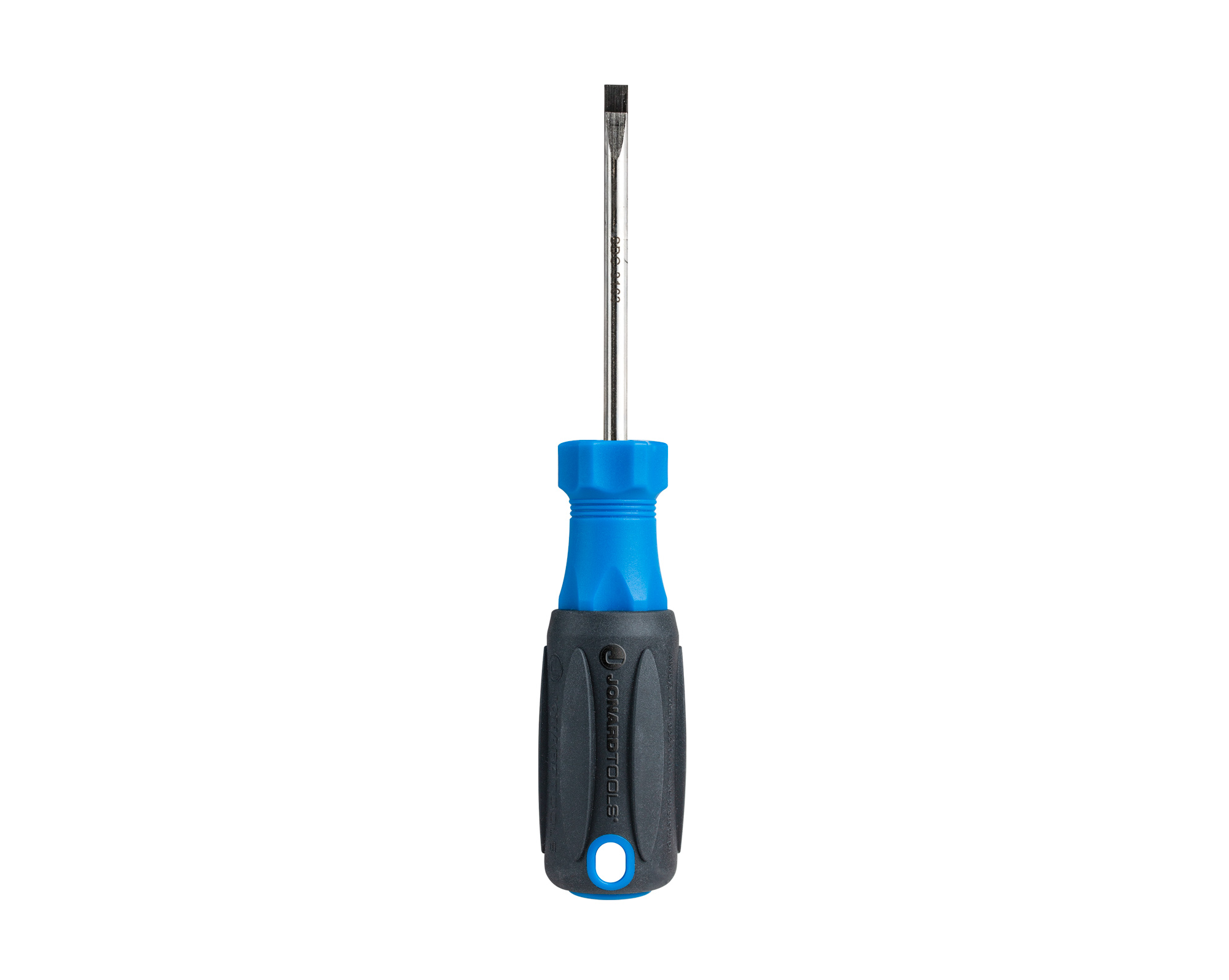

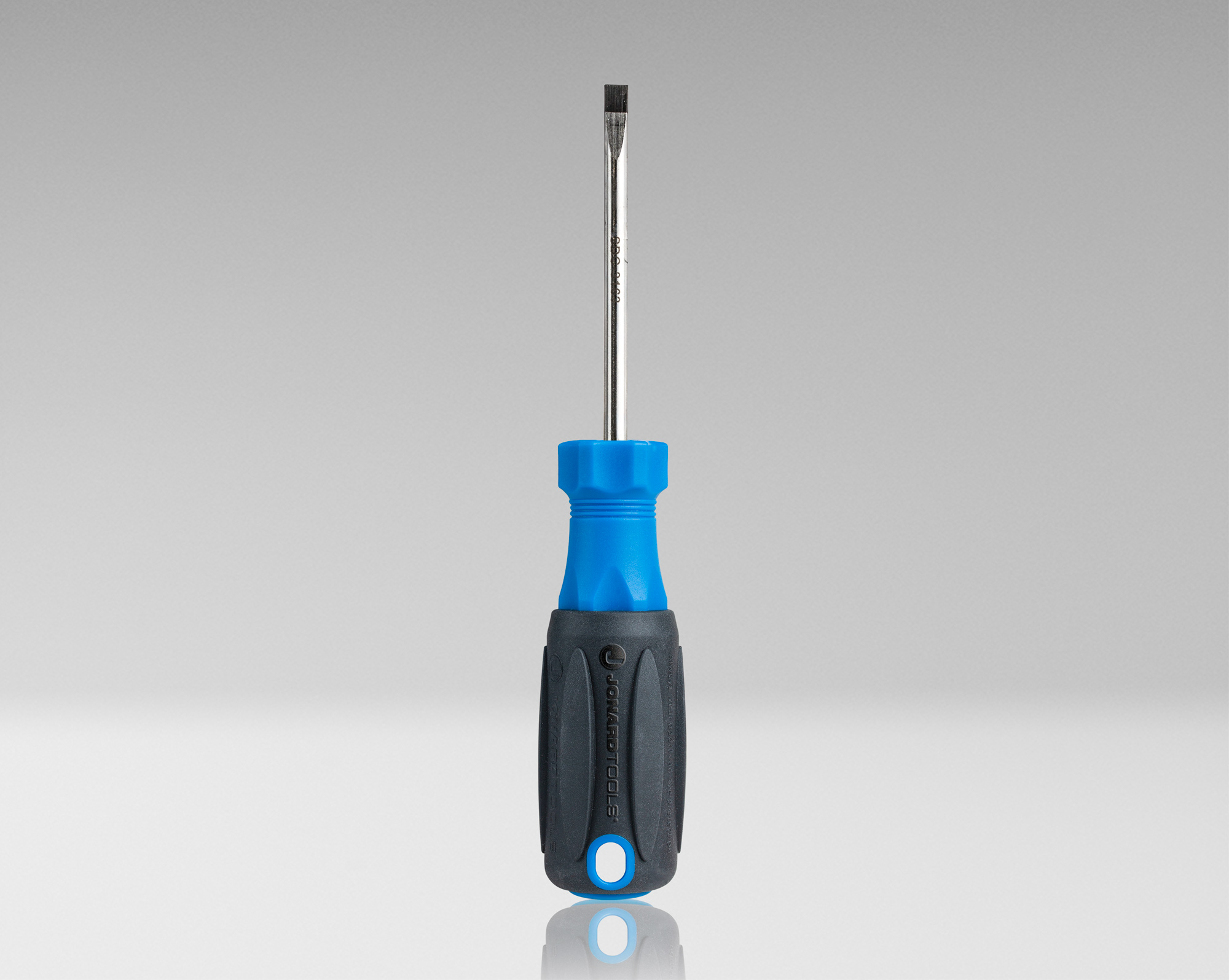

Cabinet Slotted Screwdriver, 3/16" x 3"
PRODUCT FEATURES
Jonard's Cabinet Slotted Screwdrivers are made with an S2 steel shank and a chrome finish for exceptional strength and long life. Our Cabinet Slotted Screwdrivers feature the following:
- Internal shank flanges to prevent the handle from slipping
- Black oxide finished tip to prevent corrosion and magnetized to hold fasteners for easy removal and installation
- Tip is cabinet slotted for easier access to hard-to-reach places
- Ergonomically designed handle for greater comfort and torque
- End of the handle is marked to be easily identifiable and features a convenient hole for hanging
- This Cabinet Slotted Screwdriver complies with ASME B107.600 and ISO 2380 standards
Shank Length
Shank Length: 3" (76.2 mm)
Specifications
| Head Type | Cabinet Slotted |
|---|---|
| Cabinet Slotted Size | 3/16" (4.76 mm) |
| Shank Length | 3" (76.2 mm) |
| Shank Material | S2 Steel |
| Finish | Chrome, Black Oxide Tip |
| Handle Type | Rubberized Cushion Grip |
| Standards | ASME B107.600/ANSI ISO 2380 |
| Overall Length | 6 3/4" (171 mm) |
| Dimensions | 6.63 in x 1.25 in x 1.25 in (16.83 cm x 3.16 cm x 3.16 cm) |
| Weight | 0.16 lb (72.64 g) |
| UPC # | 811490014985 |
