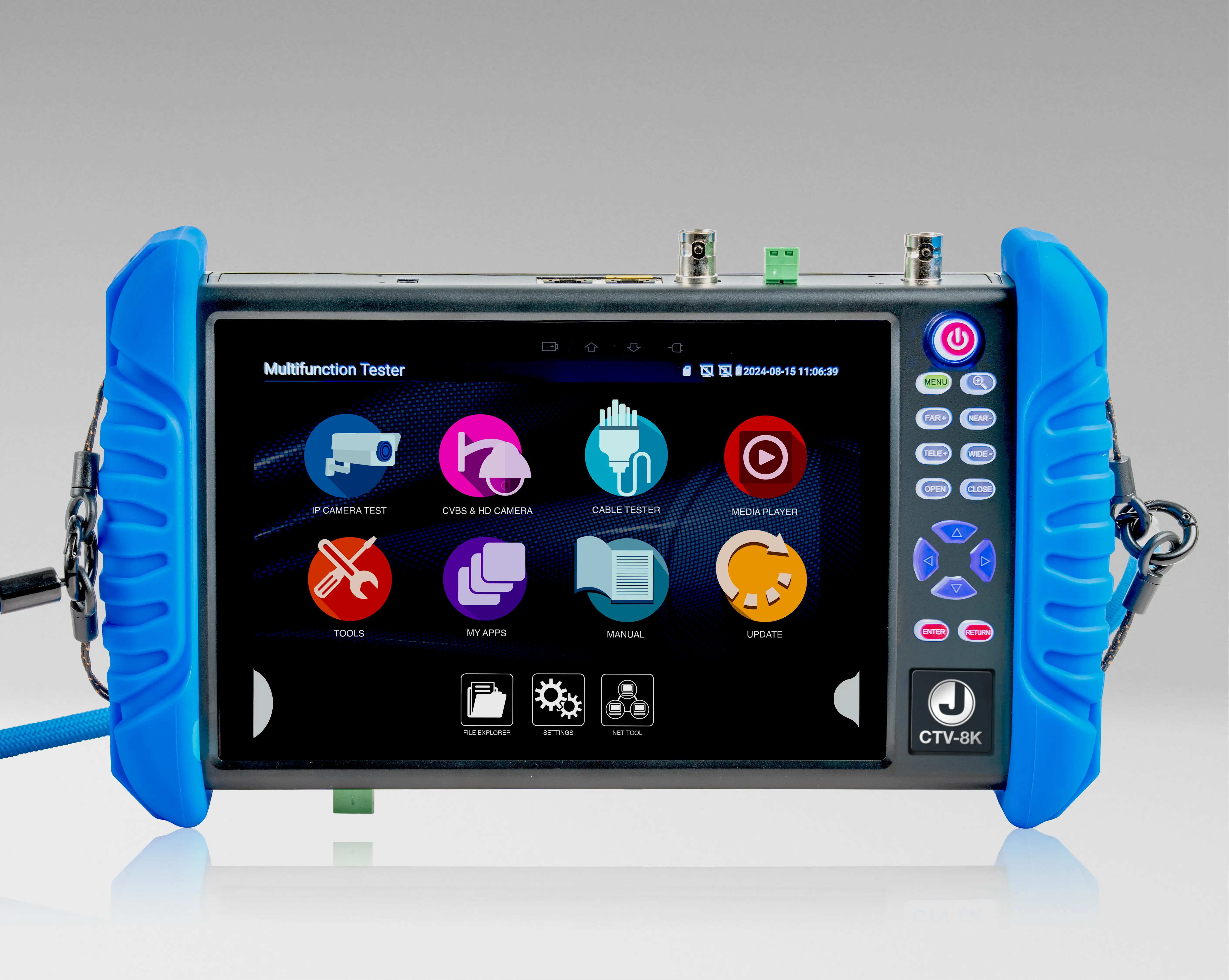

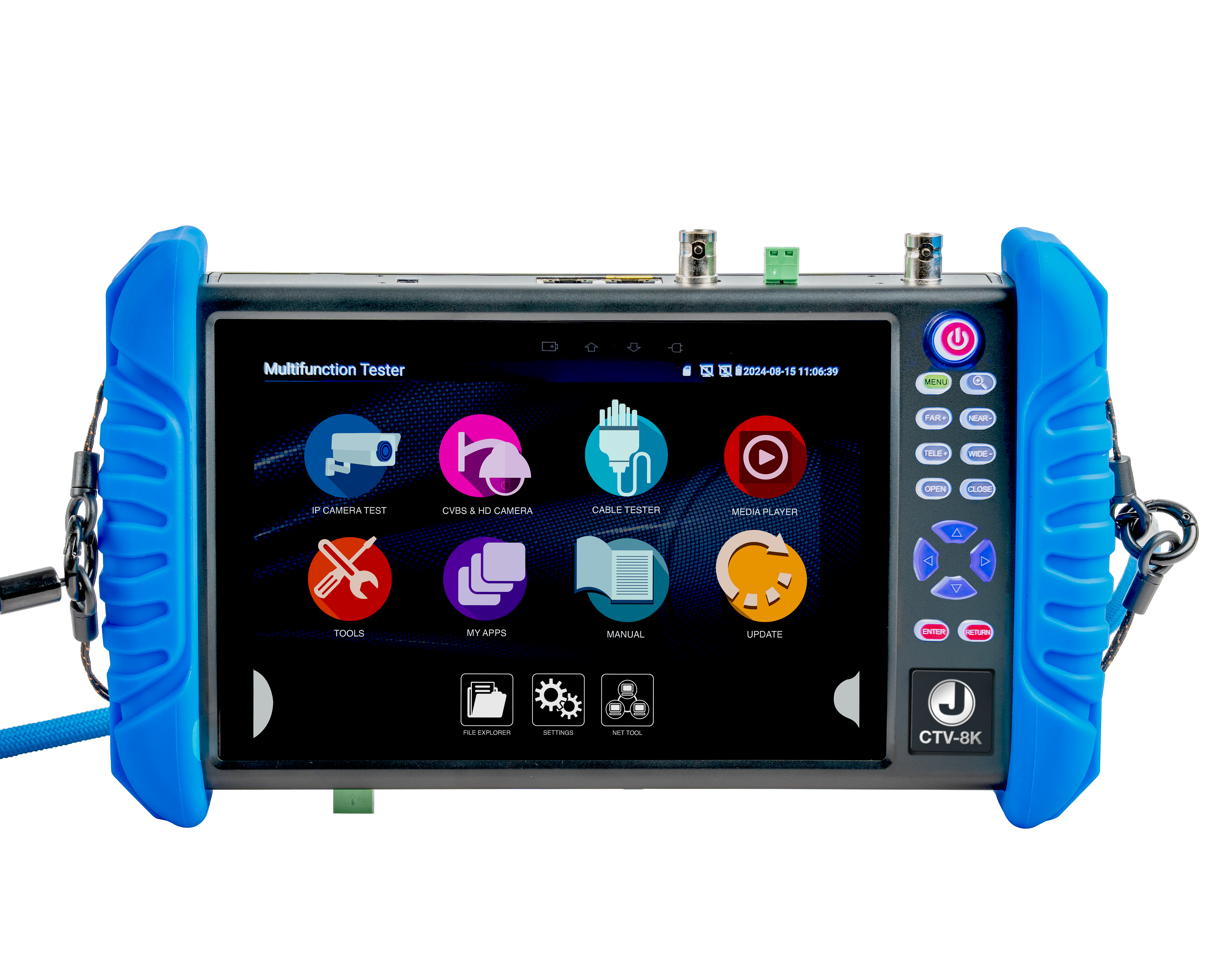

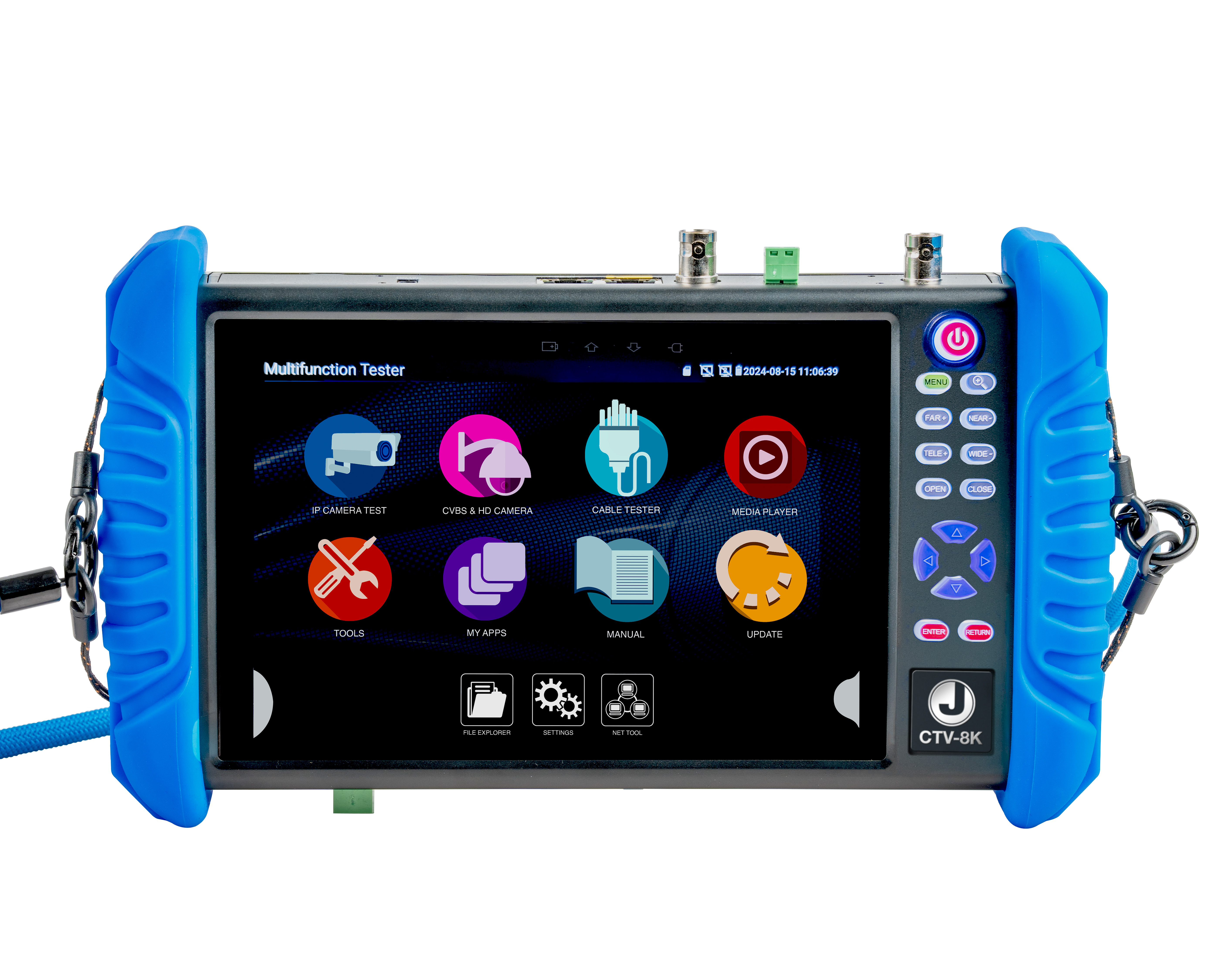

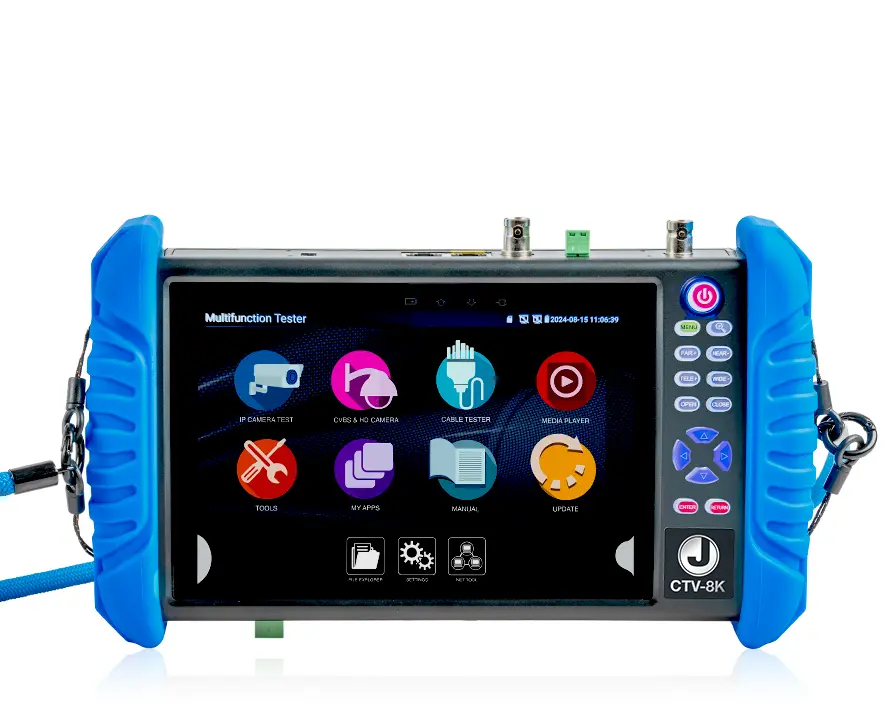

Multifunctional 8k CCTV Tester
CTV-8K Copy ID to clipboard
Buy OnlinePRODUCT FEATURES
Introducing the CTV-8K, the ultimate multifunctional CCTV tester that supports a wide array of camera types, making setup and testing of your network a breeze. With its built-in POE and HDMI tester, along with the RJ45 TDR tester, this all-in-one solution allows you to effortlessly verify and troubleshoot your entire system. Empower yourself with enhanced productivity from start to finish with the CTV-8K installation and troubleshooting tester for digital/IP, HD coax, and analog CCTV camera systems. This product features the following:
- 8k IP Camera Test and 4K 60fps HDMI Test
- Connect to various cameras using RJ45, Wi-Fi or BNC ports
- Power the camera with 12V from the Li-Ion battery or PoE/PoE+
- Comprehensive camera setup with aim, focus, PTZ, presets and network settings
- Setup Security Cameras- use the analog video port to setup security cameras
- Product has been independently tested to meet ETL Listed standards
Specifications
| IP Camera Test | 8K H.265 IP |
|---|---|
| HDMI Output | Max support 4K 60FPS; Open HDMI app output pure color interface |
| VGA Input | Supports up to 1920 x 1080P |
| Additional Functions | PoE protocol detection and testing; Real-time network traffic monitoring; Cable Length Measurement/TDR; RS485 input/output |
| Android System Version | 11 |
| Supported Camera Types | IP, CVBS, AHD, CVI, TVI |
| Display | 7-inch touch screen, 1280 x 800 |
| Network port | Auto-adjusting 10/100/1000 Mbps, RJ45, Dual LAN port |
| Wifi Speed | 150 Mbps |
| 8K H.265 Mainstream Test | New hardware decoding, 8K H.265/4K H.264 camera image display by mainstream testing |
| IP Camera Type | ONVIF, ONVIF PTZ, Dahua IPC-HFW2100P, Hikvision DS-2CD864-E13, Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell HICC-2300T, RTSP Viewer |
| CVI Video Signal Test | 1 channel CVI input (BNC interface). Supports resolutions: 720P 25/30/50/60fps,1080P 25/30fps, 2560x1440P 25/30fps, 2592x1944 20fps, 2960x1920 20fps, 3840 x 2160 12.5/15 fps. |
| TVI Video Signal Test | 1 channel TVI input (BNC interface). Supports resolutions: 720P 25/30/50/60fps, 1080P 25/30fps, 2048x1536P 18/25/30fps, 2688x1520P 15fps, 2560x1440P 15/25/30fps, 2560x1944P 12.5/20fps, 3840 x 2160 12.5/15 fps |
| AHD Video Signal Test | 1 channel AHD input (BNC interface). Supports resolutions: 720P 25/30fps, 1080P 25/30fps, 2048x1536P 18/25/30fps, 2560x1440P 15/25/30fps, 2560x1944P 12.5/ 20fps, 3840 x 2160P 15 fps |
| Analog Video Test | 1 channel BNC Input & 1 channel BNC Output , NTSC/PAL (Auto adapting) |
| Battery | 11.1V Li-Po, 5200 mAh |
| IP discovery | Auto-scan the whole network segment camera IP |
| Rapid ONVIF | Search cameras quickly, auto log in and display images from the camera, and activate Hikvision cameras |
| Hik Test Tool | Batch activate Hikvision cameras, display images from the camera, modify channels, batch modify IP, change username and password parameters, etc. |
| DH Test Tool | Batch activate Dahua cameras, batch modify IP, modify channels, change username and password parameters, etc. |
| Auto HD | Auto-recognize the resolution and auto-display the image of the connected camera. Supports coaxial PTZ control and calls the OSD menu. Supports up to 8MP TVI/CVI/AHD and CVBS cameras. |
| Zoom Image | Supports Analog and IP camera image zooming & movement |
| Snapshot, Video record and playback | Capture current images and record live video as JPG file. Media player will view photos and playback video |
| HDMI IN | HDMI IN, Support 4K 30FPS, 3840x2160P 30FPS, 720×480P /720×576P/1280×720P/1920×1080P /1024×768P/1280×1024P /1280×900P /1440×900P. |
| RJ45 cable TDR test | RJ45 cable TDR test and cable quality test -- to test cable pair status, length, attenuation, reflectivity, impedance, skew and other parameters. |
| 24V 2Apower output | Output DC24V/2A power to camera |
| 12V 3A power output | Output DC12V/3A power to camera |
| USB 5V power output | 5V 2A power output |
| PoE++ power output | PoE++ power output, Max power 90W |
| Drop-down menu | PoE power switch, IP setting, WLAN switch, HDMI IN functions, screen lock, password lock screen or pattern lock |
| Audio test | 1 channel audio signal input and 1 channel audio signal output to connect headphones |
| PTZ control | Supports RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, and others. |
| Color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitors or video cables. (red, green, blue, white and black color ) |
| UTP Cable tester | Test UTP cable connection status and display on the screen. Read the number on the screen |
| Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal |
| NET TOOL PRO | NET TOOL PRO-Cable Test, Wireless Tool, Link Tool, Full Duplex Detection, PING, IP Scan, DHCP Server, PPPOE, OUI Search, Socket Tool, DNS, LLLDP. |
| PoE /PSE voltage test | Measures PoE switch voltage and displays pin configuration |
| Cable length | TDR supports cable length up to 1.8 mi (3 km) |
| External power supply | DC 15V 1.6A |
| Rechargeable | Fasting charge, after charging 3.5 hours, normal working time is 11 hours |
| Operation setting | Capacitive touch screen, OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, Polish, etc. |
| Auto off | 1-30 (mins) |
| Working Temperature | -10℃---+50℃ |
| Working Humidity | 30%-90% |
| Dimensions | 12 in x 7 in x 4 in (30.48 cm x 17.78 cm x 10.16 cm) |
| Weight | 4.68 lb (2124.72 g) |
| UPC # | 810132438028 |
