CS-1022 Copy ID to clipboard

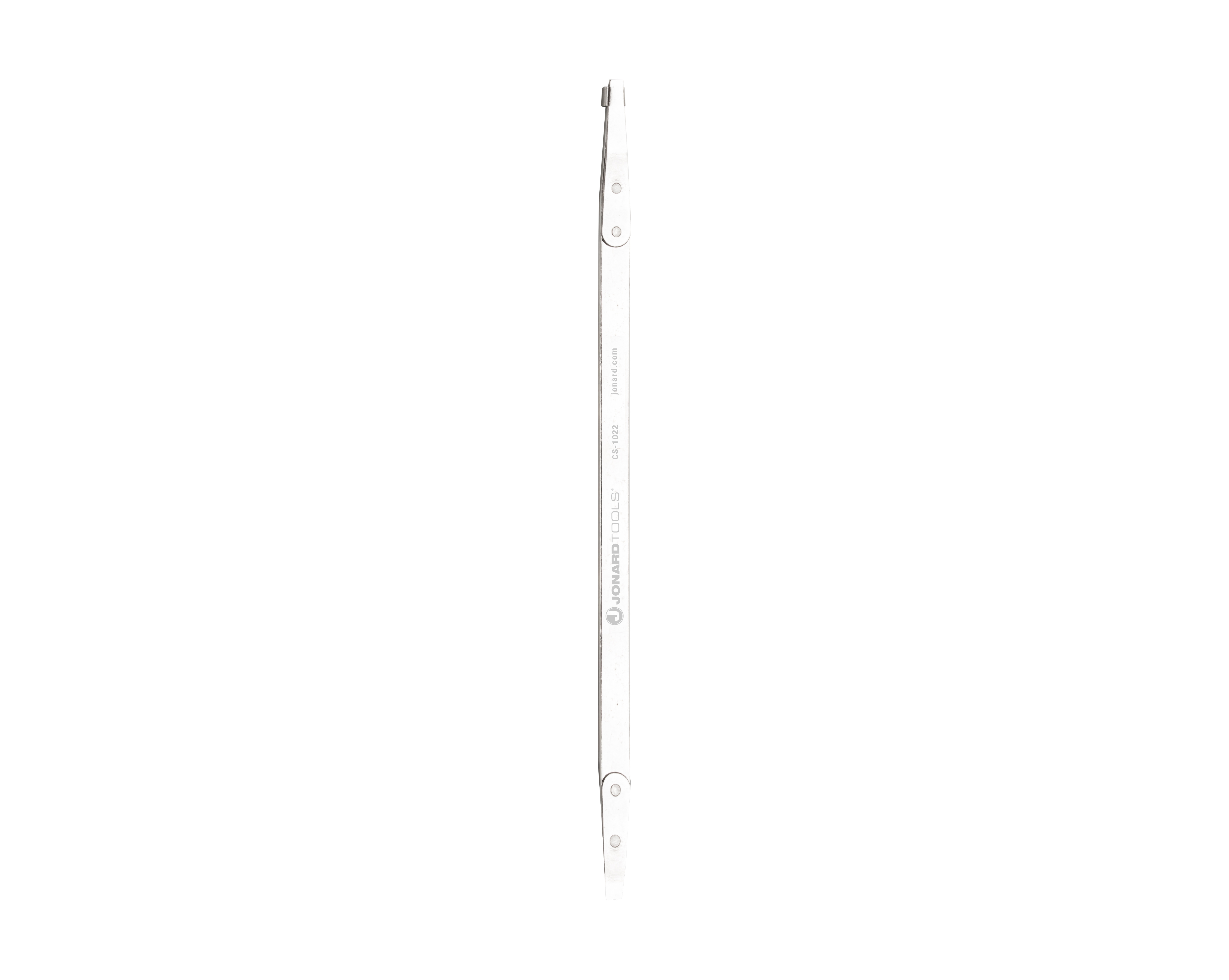

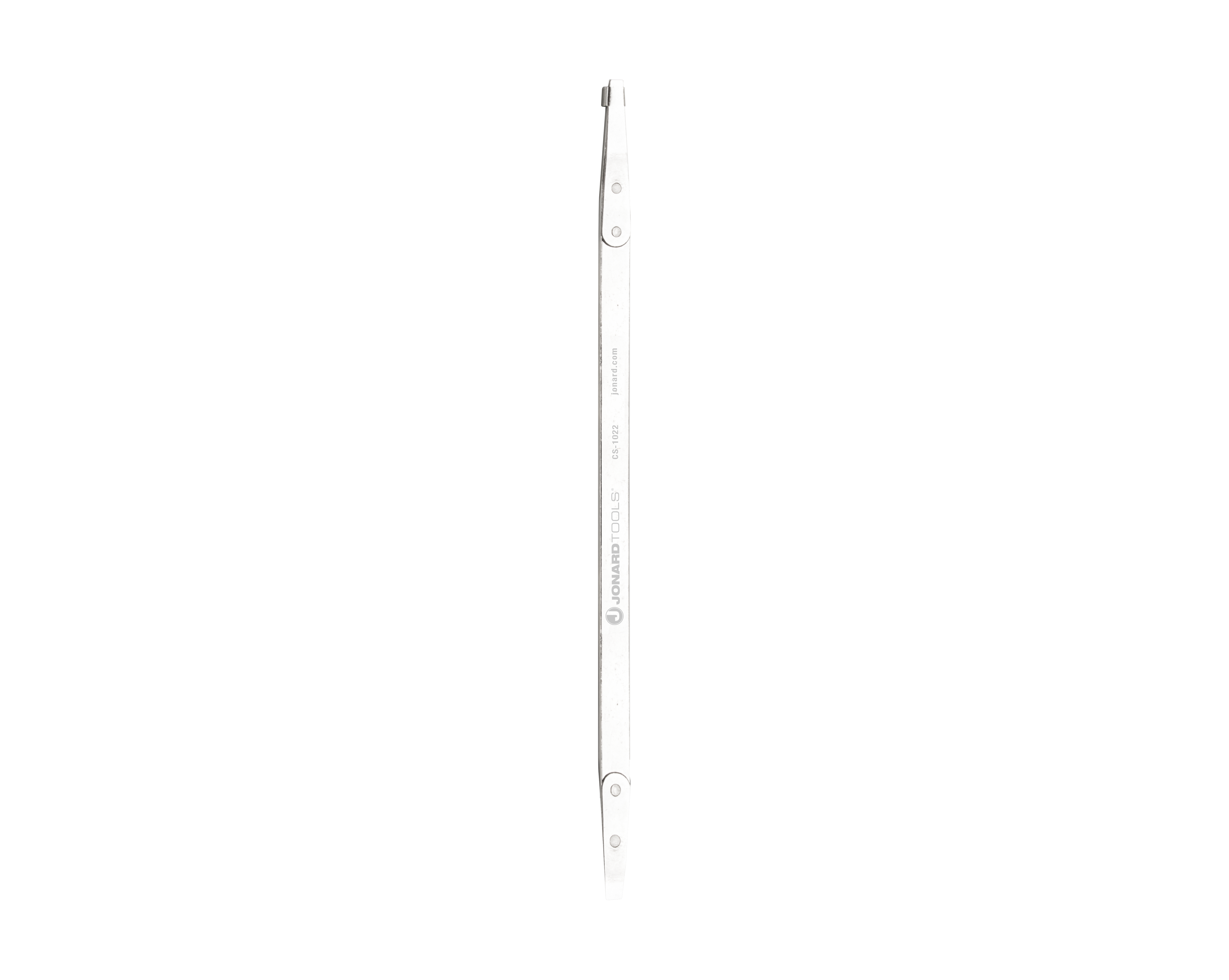

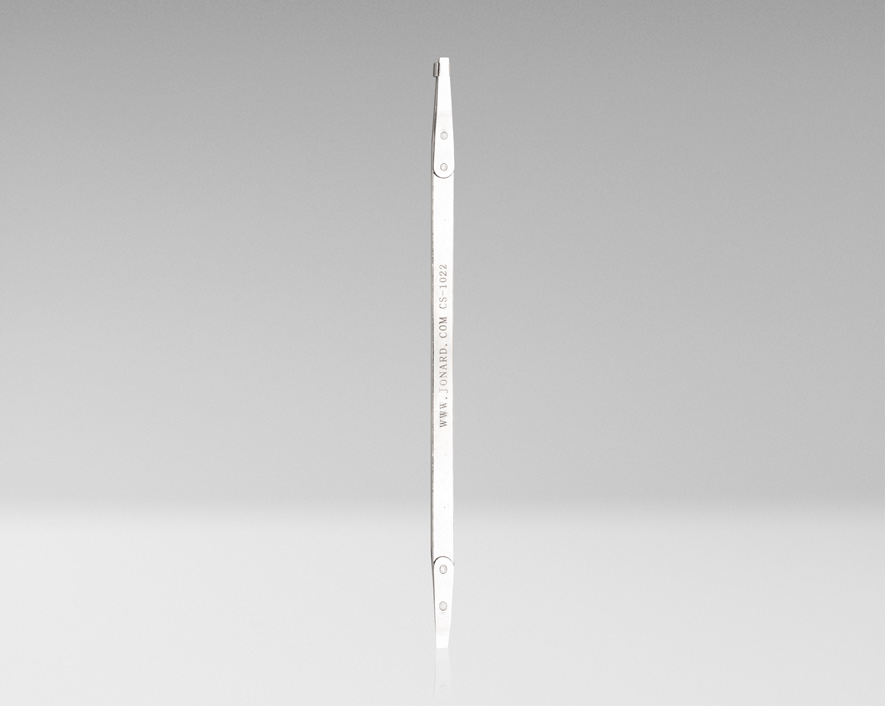

E & C Clip Setter
PRODUCT FEATURES
Designed for inserting or removing E and C clips, this clip setter is perfect for holding E and C clips in position while inserting or grabbing them for removal. This clip setter features the following:
- Used on E and C clips 0.156" - 3.00" inside diameter, and thicknesses 0.025" - 0.093"
- Hook and leaf spring on one end of the tool removes the clips with ease
- Leaf spring on other end of the tool holds clips in position while inserting
- Thin narrow body allows access to confined spaces
Specifications
| Clip Diameter | 0.156" - 3.00" (3.96 mm - 76.2 mm) |
|---|---|
| Clip Thickness | 0.025" - 0.093" (0.635 mm - 2.36 mm) |
| Thickness | 1/16" (1.59 mm) |
| Length | 6(17.145cm) |
| Weight | 0.03 lb (13.62 g) |
| UPC # | 811490013865 |
